745072-1 datasheet, PDF - EEWORLD Datasheet

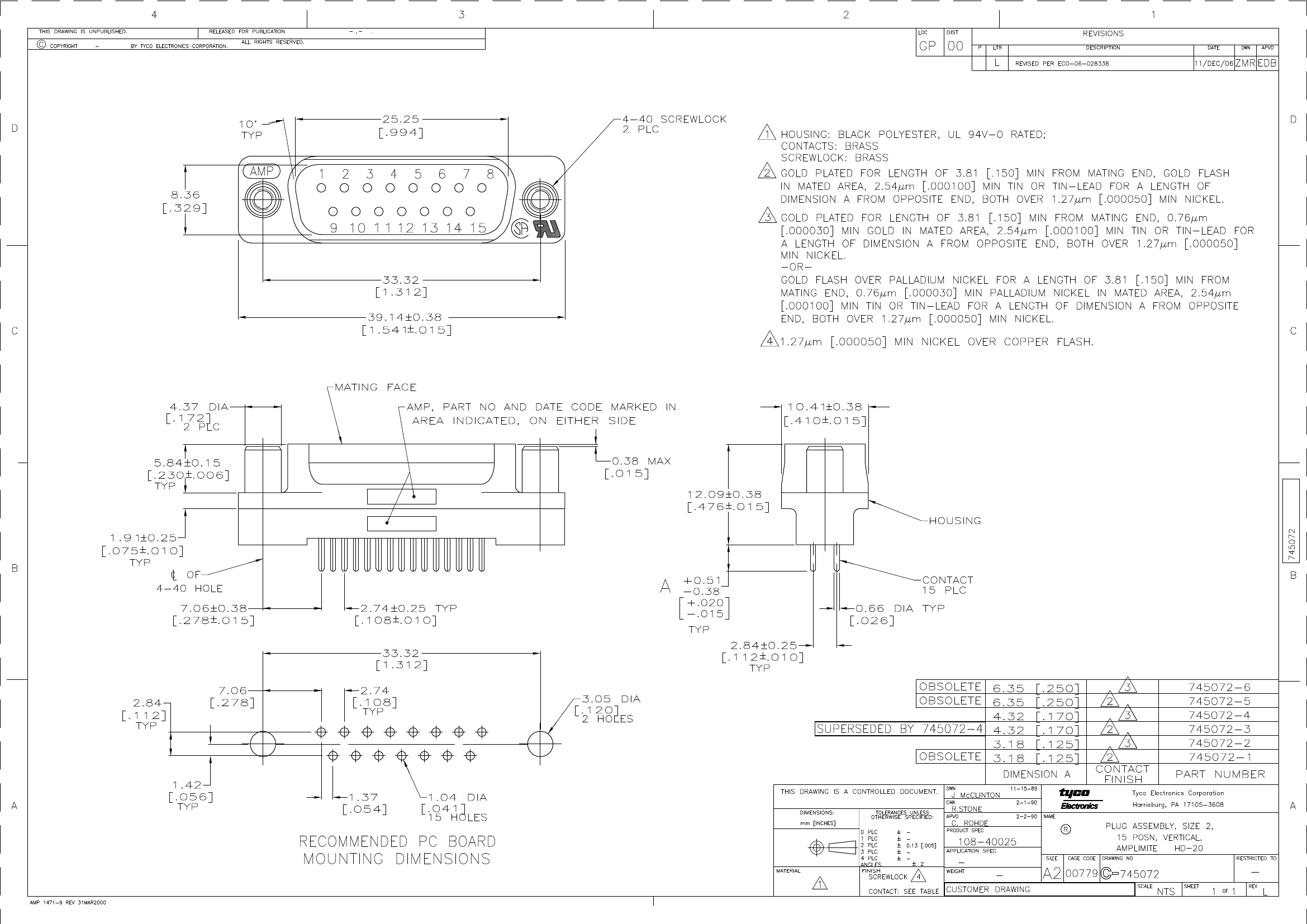

745072-1: DescriptionCONNECTOR,D-SHELL,PCB MNT,RECEPT,15 CONTACTS,PIN,0.109 PITCH,PC TAIL TERMINAL,#4-40; CategoryThe connector The connector; File Size126KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

745072-1 Overview

CONNECTOR,D-SHELL,PCB MNT,RECEPT,15 CONTACTS,PIN,0.109 PITCH,PC TAIL TERMINAL,#4-40

Parameter Name	Attribute value
Objectid	300067937
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.42 inch
body length	1.546 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	YES
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	ROUND STANDOFF
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Guideline	UL, CSA
reliability	MIL-C-24308
Terminal length	0.125 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	15

	745072-1	745072-4	745072-3	745072-6	745072-5
Description	CONNECTOR,D-SHELL,PCB MNT,RECEPT,15 CONTACTS,PIN,0.109 PITCH,PC TAIL TERMINAL,#4-40	15 PLUG SP/AP SCRLK	CONNECTOR, 15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG	CONNECTOR, 15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG	CONNECTOR, 15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown
Body/casing type	RECEPTACLE	PLUG	PLUG	PLUG	PLUG
Contact point gender	MALE	MALE	MALE	MALE	MALE
insulator material	POLYETHYLENE	POLYESTER	POLYESTER	POLYESTER	POLYESTER
MIL compliance	YES	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	15	15	15	15
ECCN code	EAR99	EAR99	-	EAR99	-
Other features	-	AMPLIMITE	AMPLIMITE	AMPLIMITE	AMPLIMITE
Connector type	-	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
DIN compliance	-	NO	NO	NO	NO
empty shell	-	YES	NO	NO	NO
Filter function	-	NO	NO	NO	NO
IEC compliance	-	NO	NO	NO	NO
Plug information	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	-	NO	NO	NO	NO
Housing size	-	2/A	2/A	2/A	2/A
UL Flammability Code	-	94V-0	94V-0	94V-0	94V-0
Maker	-	-	TE Connectivity	TE Connectivity	TE Connectivity
Manufacturer's serial number	-	-	745072	745072	745072
Shell material	-	-	PLASTIC	PLASTIC	PLASTIC
Base Number Matches	-	-	1	1	1
