LP2950-03BZAP datasheet, PDF - EEWORLD Datasheet

LP2950-03BZAP: DescriptionFixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PBCY3, PLASTIC, TO-92, 3 PIN; CategoryPower/power management The power supply circuit; File Size731KB，14 Pages; ManufacturerMicrel ( Microchip ); Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

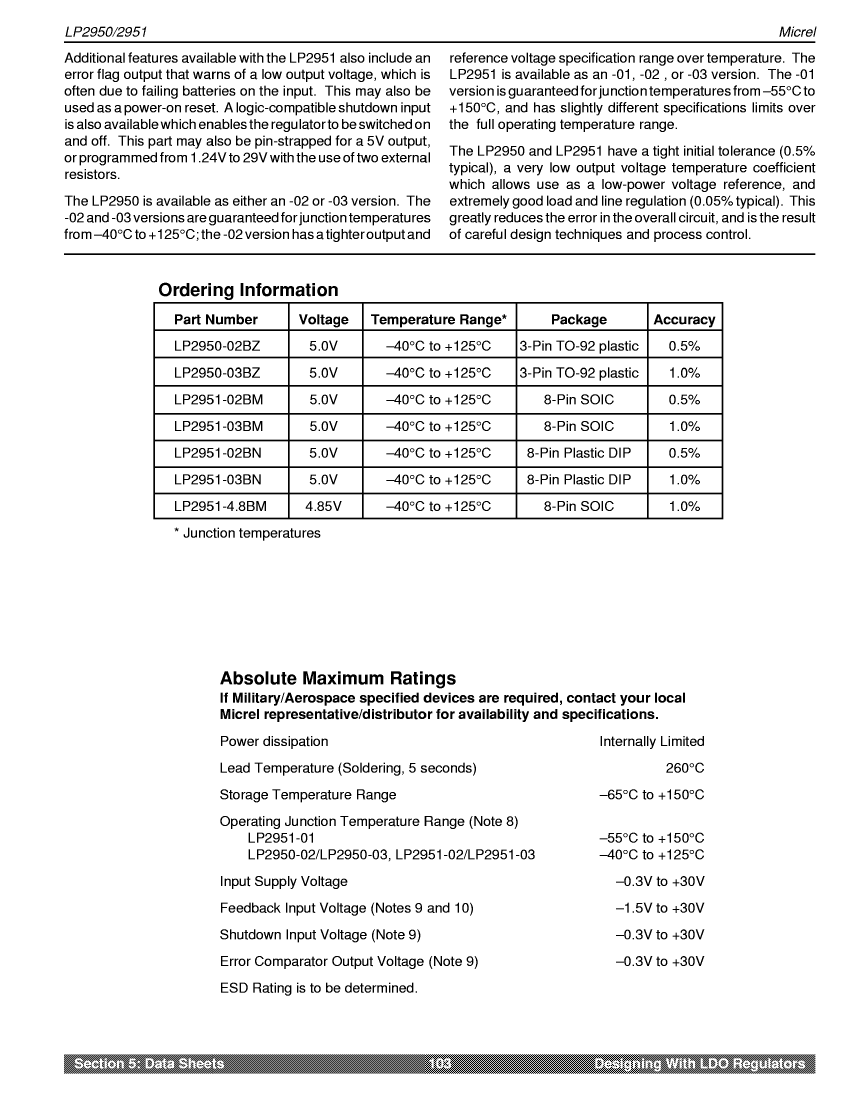

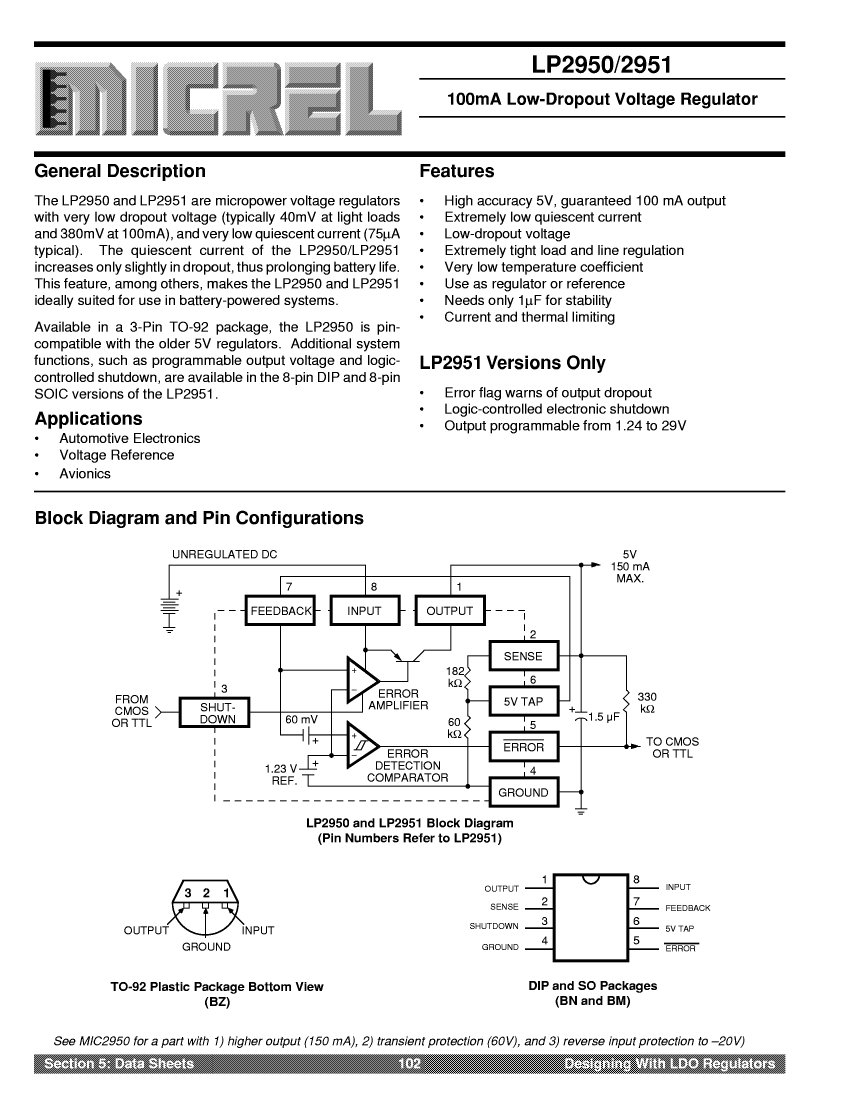

LP2950-03BZAP Overview

Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PBCY3, PLASTIC, TO-92, 3 PIN

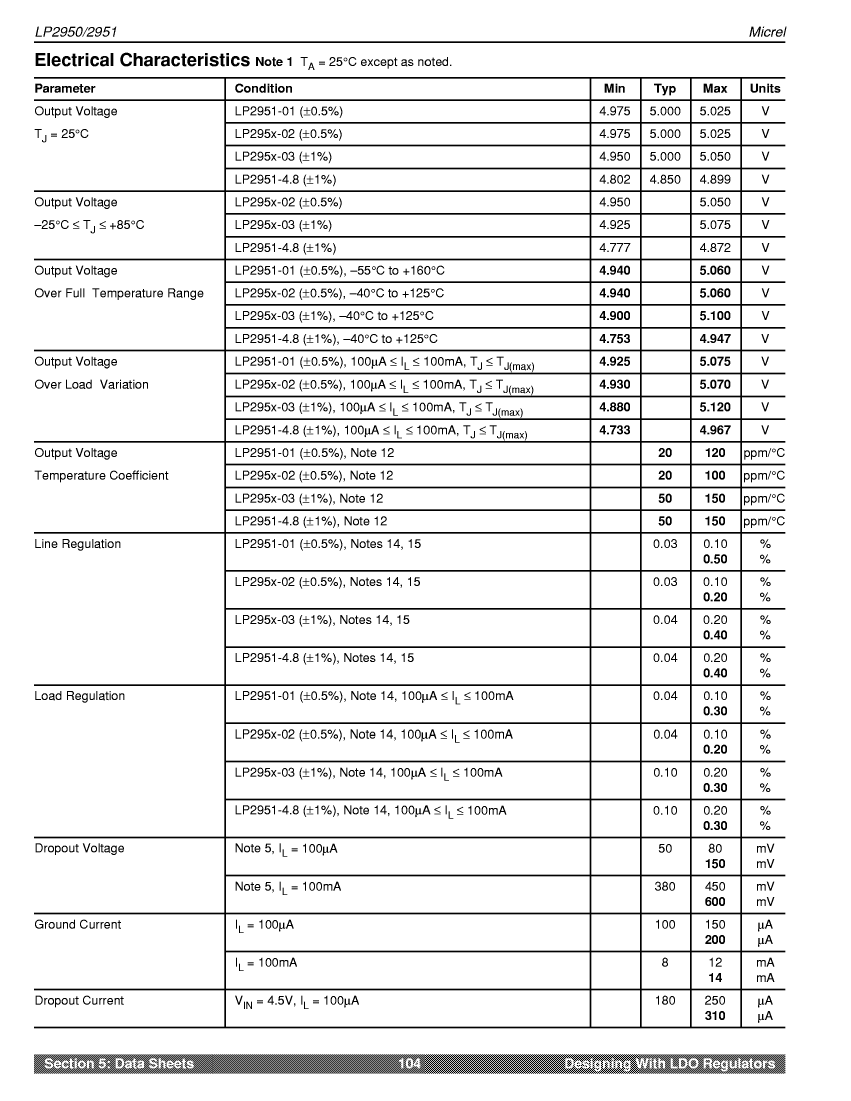

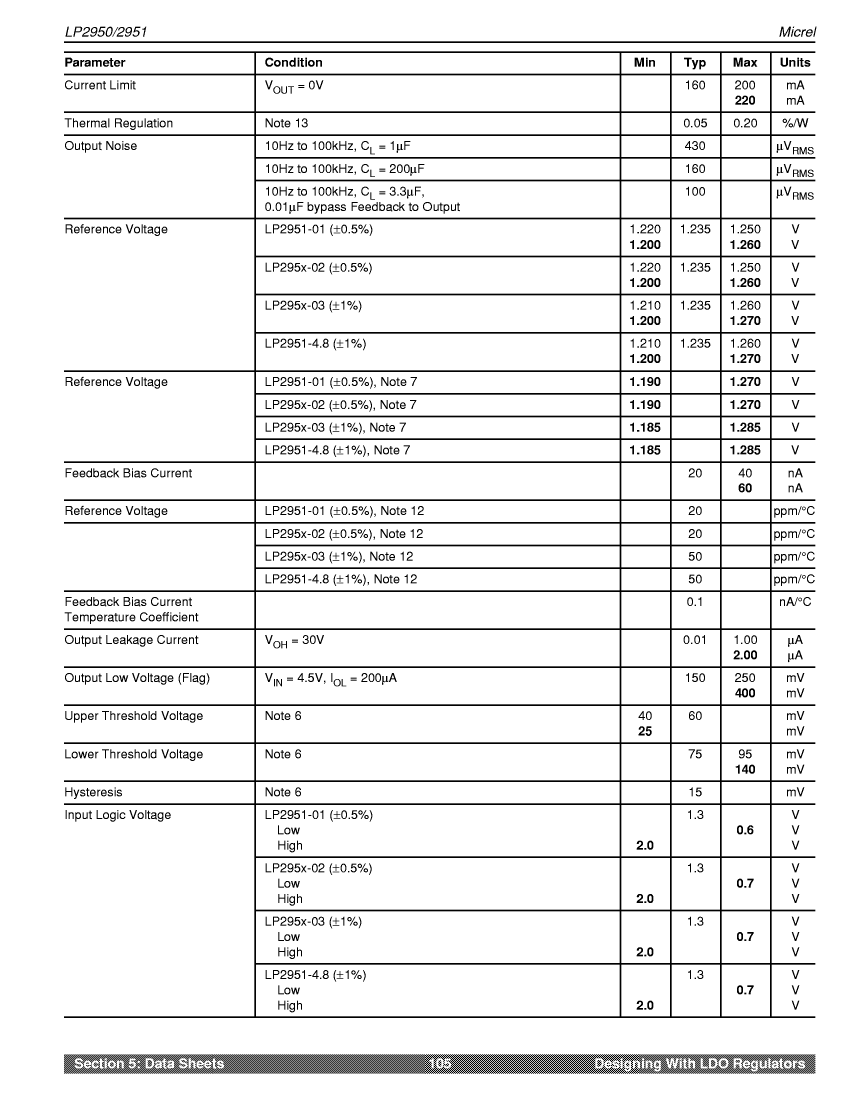

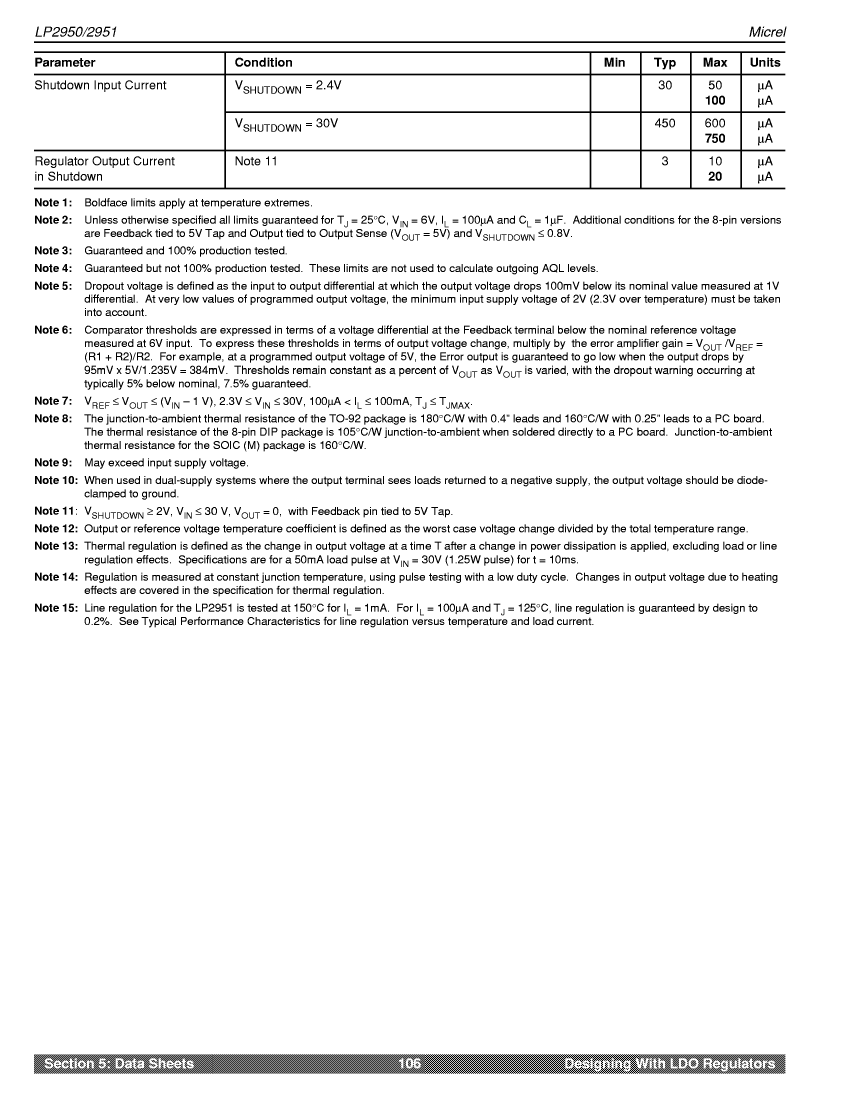

Parameter Name	Attribute value
Maker	Micrel ( Microchip )
Parts packaging code	TO-92
package instruction	PLASTIC, TO-92, 3 PIN
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum drop-back voltage 1	0.6 V
JESD-30 code	O-PBCY-T3
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	0.1 A
Maximum output voltage 1	5.1 V
Minimum output voltage 1	4.9 V
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Base Number Matches	1

	LP2950-03BZAP	LP2951-4.8BMT&R	LP2950-02BZAP
Description	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PBCY3, PLASTIC, TO-92, 3 PIN	Fixed/Adjustable Positive LDO Regulator, 4.753V Min, 4.947V Max, 0.6V Dropout, BIPolar, PDSO8, SOIC-8	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PBCY3, PLASTIC, TO-92, 3 PIN
Maker	Micrel ( Microchip )	Micrel ( Microchip )	Micrel ( Microchip )
Parts packaging code	TO-92	SOIC	TO-92
package instruction	PLASTIC, TO-92, 3 PIN	SOP,	,
Contacts	3	8	3
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum drop-back voltage 1	0.6 V	0.6 V	0.6 V
JESD-30 code	O-PBCY-T3	R-PDSO-G8	O-PBCY-T3
Number of functions	1	1	1
Number of terminals	3	8	3
Working temperatureTJ-Max	125 °C	125 °C	125 °C
Working temperature TJ-Min	-40 °C	-40 °C	-40 °C
Maximum output current 1	0.1 A	0.1 A	0.1 A
Maximum output voltage 1	5.1 V	4.947 V	5.06 V
Minimum output voltage 1	4.9 V	4.753 V	4.94 V
Nominal output voltage 1	5 V	4.85 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	RECTANGULAR	ROUND
Package form	CYLINDRICAL	SMALL OUTLINE	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	BOTTOM	DUAL	BOTTOM
