74AC11194D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74AC11194D

74AC11194D: DescriptionParallel In Parallel Out, AC Series, 4-Bit, Bidirectional, True Output, CMOS, PDSO20; Categorylogic logic; File Size240KB，9 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

74AC11194D Overview

Parallel In Parallel Out, AC Series, 4-Bit, Bidirectional, True Output, CMOS, PDSO20

74AC11194D Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
Other features	HOLD MODE; CENTER VCC/GND PINS
Counting direction	BIDIRECTIONAL
series	AC
JESD-30 code	R-PDSO-G20
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	10.2 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	150 MHz
Base Number Matches	1

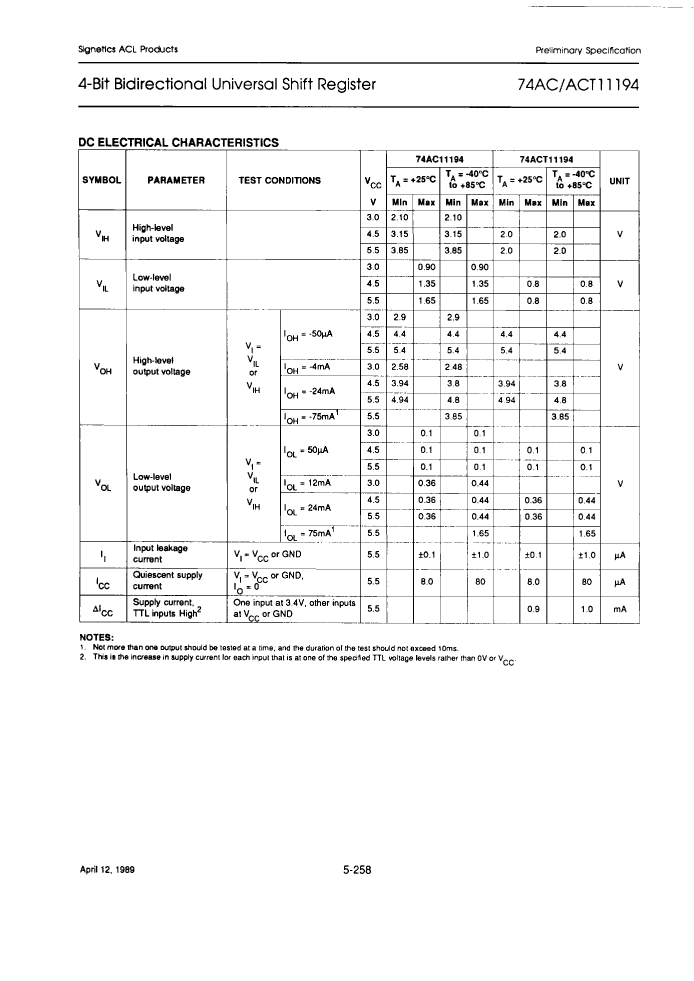

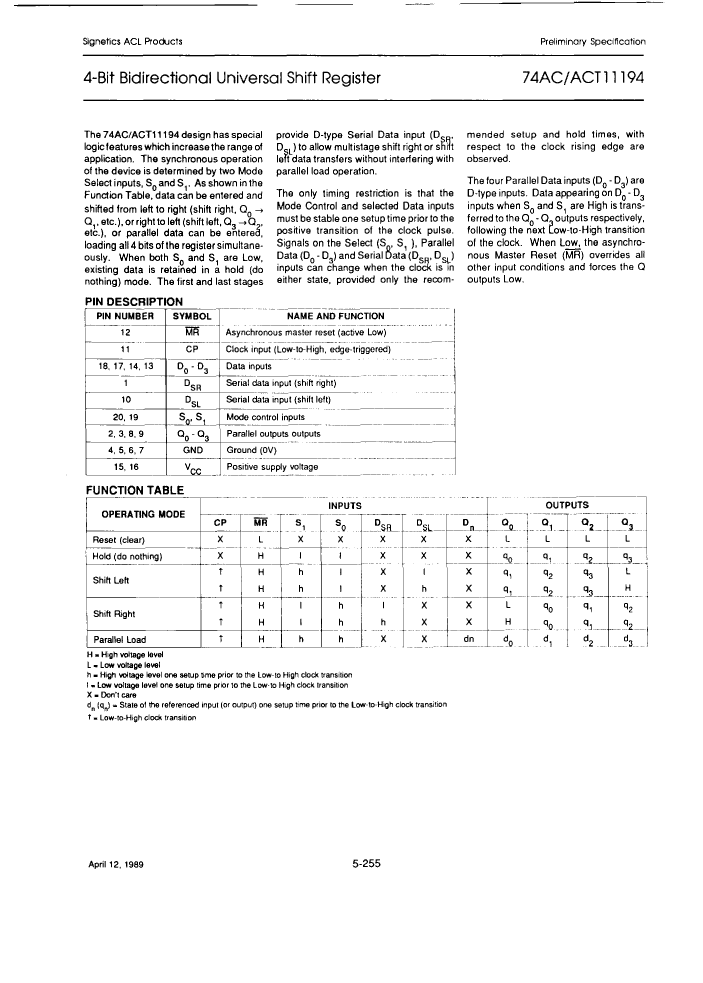

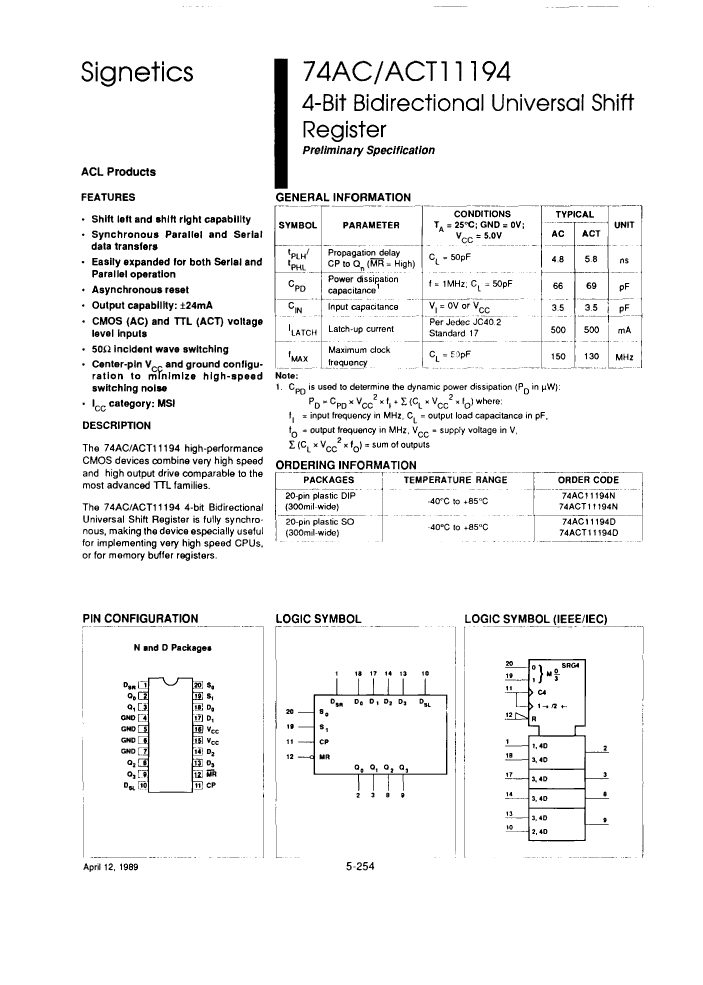

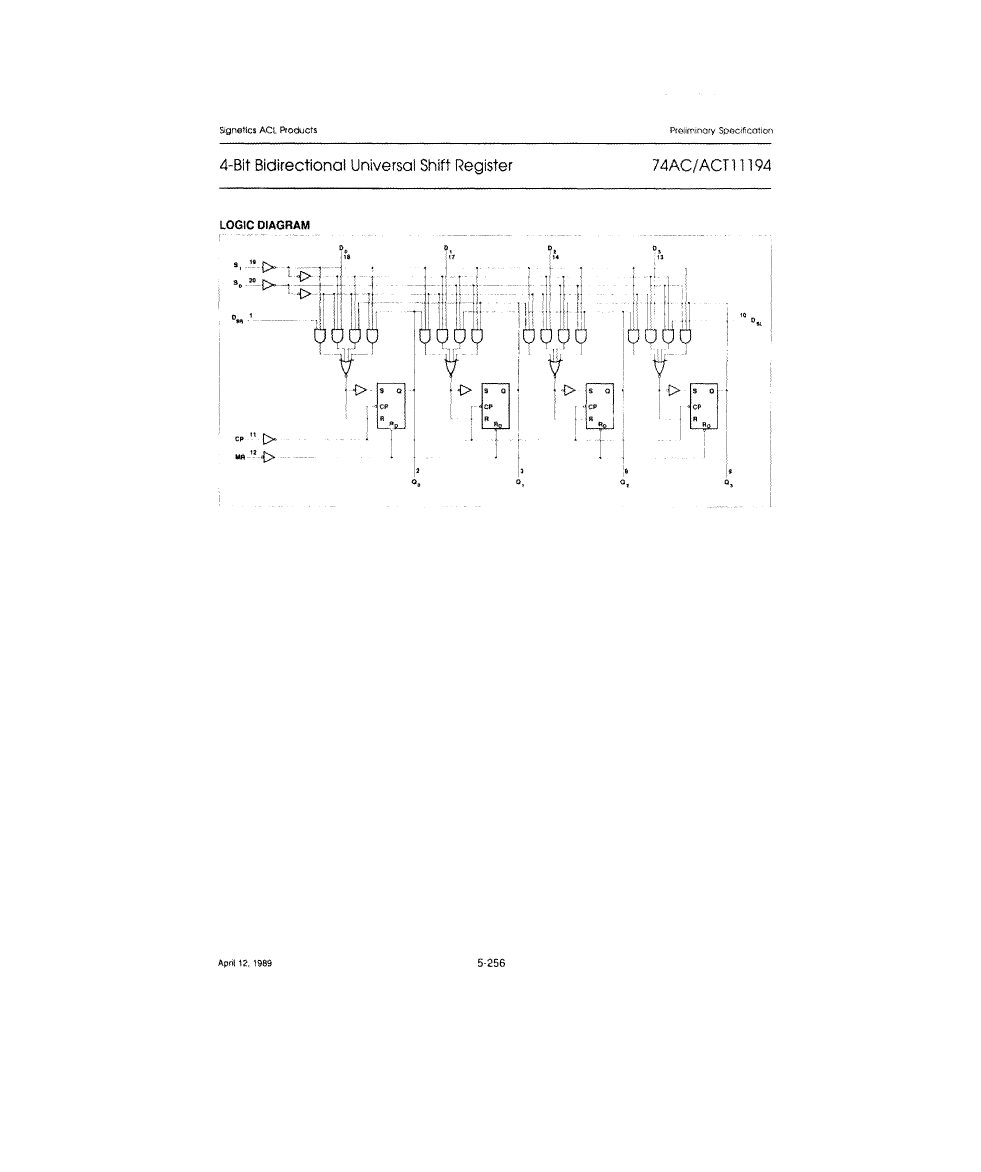

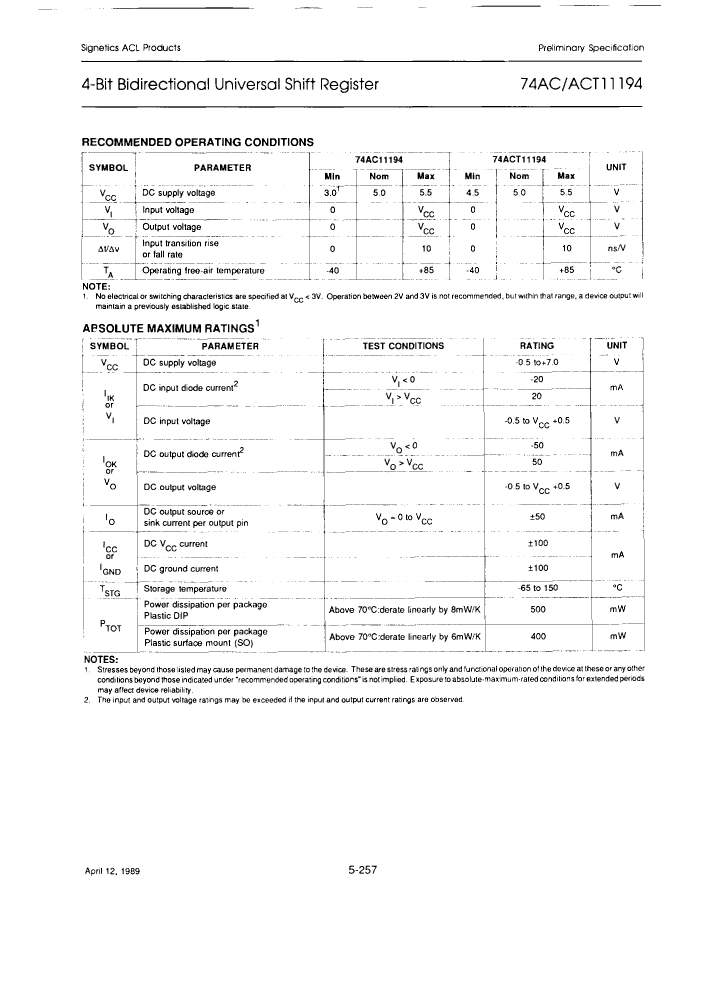

Preview

Download Datasheet

View All

74AC11194D Related Products

	74AC11194D	74AC11194D-T	74ACT11194D	74ACT11194D-T	74ACT11194N	74AC11194N
Description	Parallel In Parallel Out, AC Series, 4-Bit, Bidirectional, True Output, CMOS, PDSO20	Parallel In Parallel Out, AC Series, 4-Bit, Bidirectional, True Output, CMOS, PDSO20	Parallel In Parallel Out, ACT Series, 4-Bit, Bidirectional, True Output, CMOS, PDSO20	Parallel In Parallel Out, ACT Series, 4-Bit, Bidirectional, True Output, CMOS, PDSO20	Parallel In Parallel Out, ACT Series, 4-Bit, Bidirectional, True Output, CMOS, PDIP20	Parallel In Parallel Out, AC Series, 4-Bit, Bidirectional, True Output, CMOS, PDIP20
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	HOLD MODE; CENTER VCC/GND PINS	HOLD MODE; CENTER VCC/GND PINS	HOLD MODE; CENTER VCC/GND PINS	HOLD MODE; CENTER VCC/GND PINS	HOLD MODE; CENTER VCC/GND PINS	HOLD MODE; CENTER VCC/GND PINS
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	AC	AC	ACT	ACT	ACT	AC
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDIP-T20	R-PDIP-T20
Logic integrated circuit type	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT
Number of digits	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
propagation delay (tpd)	10.2 ns	10.2 ns	8.3 ns	8.3 ns	8.3 ns	10.2 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	3 V	3 V	4.5 V	4.5 V	4.5 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
minfmax	150 MHz	150 MHz	130 MHz	130 MHz	130 MHz	150 MHz
Base Number Matches	1	1	1	1	1	1
