WWW.PHIHONG.COM
18 Watt Universal 3-Wire Input Adapter
PSAA18U Adapter Meets EISA and Ecodesign Requirements
Features
Low Cost
Efficiency Level V Compliance
Ecodesign ErP Directive 2009/125/EC
level 2 annex 1b Compliant
Applications
Portable Equipment
Access Devices
Safety Approvals
cUL/UL
Mechanical Characteristics
Length: 103mm (4.06in)
Width: 49mm (1.93in)
Output Specifications
Model
PSAA18U-090
PSAA18U-120
PSAA18U-150
PSAA18U-240
DC Output
Voltage
+9V
+12V
+15V
+24V
Load
Min.
0A
0A
0A
0A
Non-vented/Spill-proof Case
Low Profile Design
Class B EMI
Peripherals
Network Hubs
CE
Height: 33.5mm (1.32in)
Weight: 140g (4.94oz.)
Max.
2.0A
1.5A
1.2A
0.75A
Ripple
(1)
P-P (max.)
110mV
120mV
150mV
240mV
Regulation
Line & Load
±5%
±5%
±5%
±5%
Efficiency
Level
(1) Measured after 10 minutes warm up at 25°C with 12-inch twisted pair terminated with a 10uF capacitor and 0.1uF
ceramic in parallel.
Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at
www.phihong.com for the most up-to-date specifications and contact information.
Revision 11/21/2011
PSAA18U Characteristics
Input:
AC Input Voltage Rating
100 to 240V AC
WWW.PHIHONG.COM
Short-Circuit Protection
Output can be shorted permanently without damage
AC Input Voltage Range
90 to 264V AC
Environmental:
Temperature
Operation
Non-operation
0 to +40°C
-20 to +75°C
AC Input Frequency
47 to 63Hz
Relative Humidity
Emissions
0 to 90%
Input Current
0.6A (RMS) maximum at 100V AC
0.3A (RMS) maximum at 240V AC
FCC Class B
EN55022 Class B/CISPR22 Class B
Immunity
Leakage Current
0.25mA maximum at 250V AC and 50Hz
EN50082-1:
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
(EN55024)
Level 4
Level 2
Level 2
Level 3
Level 2
Level 1
Inrush Current
60A for 100V Ac at maximum load
150A for 240V AC at maximum load
(Cold start at ambient 25°C)
Input Power Saving
0.3W maximum at no load
Output:
Efficiency
≥80.3%
average efficiency
Compliant for Level V Marking
Insulation Resistance
Input to Output : > 10M ohm, 500V DC
Input to Field Ground: > 10M ohm, 500V DC
Dielectric Withstand (Hi-pot) Test
Primary to Secondary: 3000V AC for 1 min., 10mA
Primary to F.G.: 1500V AC for 1 min., 10mA
Over-Voltage Protection
Auto restart
Input Connector
IEC C14
Over-Current Protection
Auto restart
DC Output Connector
2.1mm x 5.5mm center positive standard

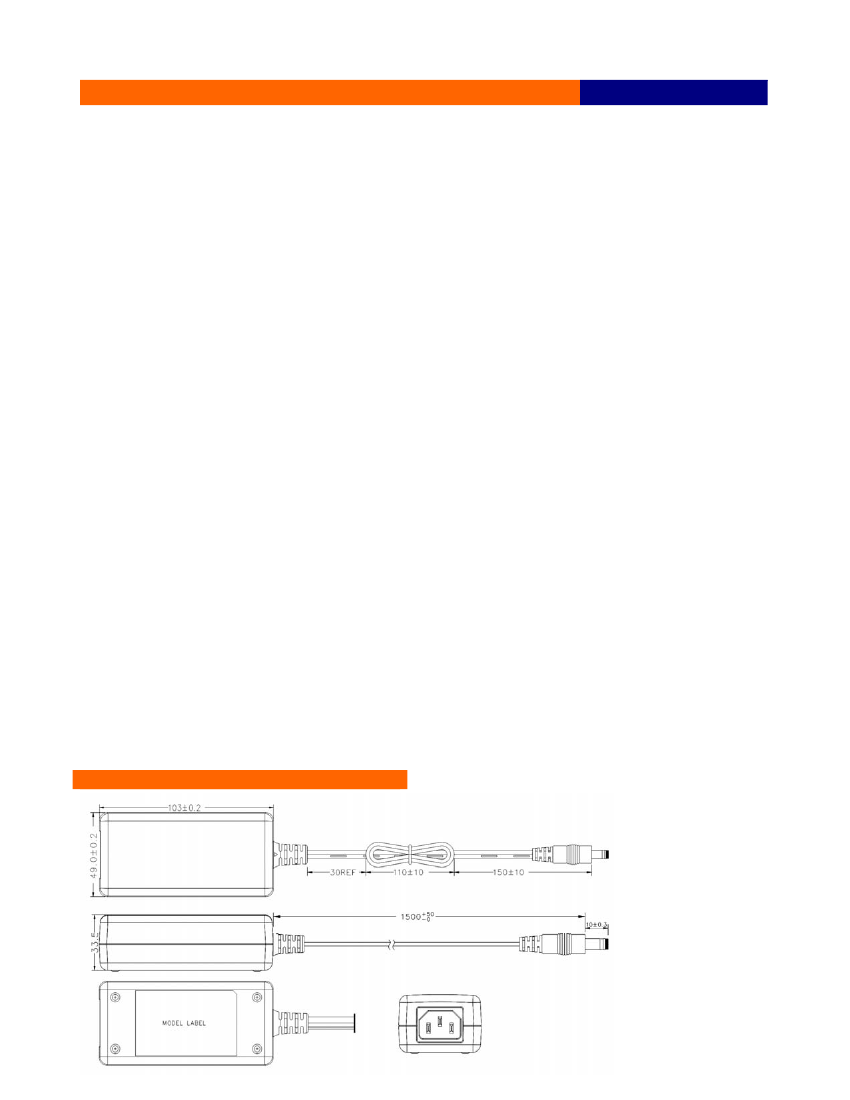

Dimension Diagram Unit: mm
[Type text]
