Part No: DPS120100UPS-P5P-SZ
Description:
switching power supply
Date: 4/05/2006
Unit: mm
Page No: 1 of 6
Input
Rated input voltage
Input voltage range
Rated frequency
Frequency range
Rated input current
Inrush current
100 V ~ 240 V ac
90 V ~ 264 V ac
50~60 Hz
47~63 Hz
300 mA RMS max.
15 A max. at 115 / 30 A max. at 230 V ac cool start
Output
Output voltage
Output min. current
Line regulation
Load regulation
Over voltage protection
Short circuit protection
Ripple voltage
Efficiency
12 V dc at 1.0 A
0A
± 1%
± 5%
15 ~ 18 V dc max. (output shut down)
output shut down and auto restart
150 mV (p-p) (100~240 V ac at full load)
60% min.
Safety and EMI
HI-POT
Insulation resistance
Safety approvals
EMI standard
RoHS compliant
Leakage current
input to output
3000 V ac at 10 mA for 1 min.
input to output
> 100 M Ohm at 500 V dc
UL/cUL
meets FCC class B. VCCI-II
yes
0.25 mA
Environmental
Storage temperature
Operating temperature
Storage humidity
Operating humidity
-10°C ~ +70° C
0°C ~ +40° C
10~90%
20~80%
Phone: 800.275.4899
Fax: 503.372.1266
www.cui.com
9615 SW Allen Blvd Suite 103
Beaverton, OR 97005
Part No: DPS120100UPS-P5P-SZ
Description:
switching power supply
Date: 4/05/2006
Unit: mm
Page No: 2 of 6

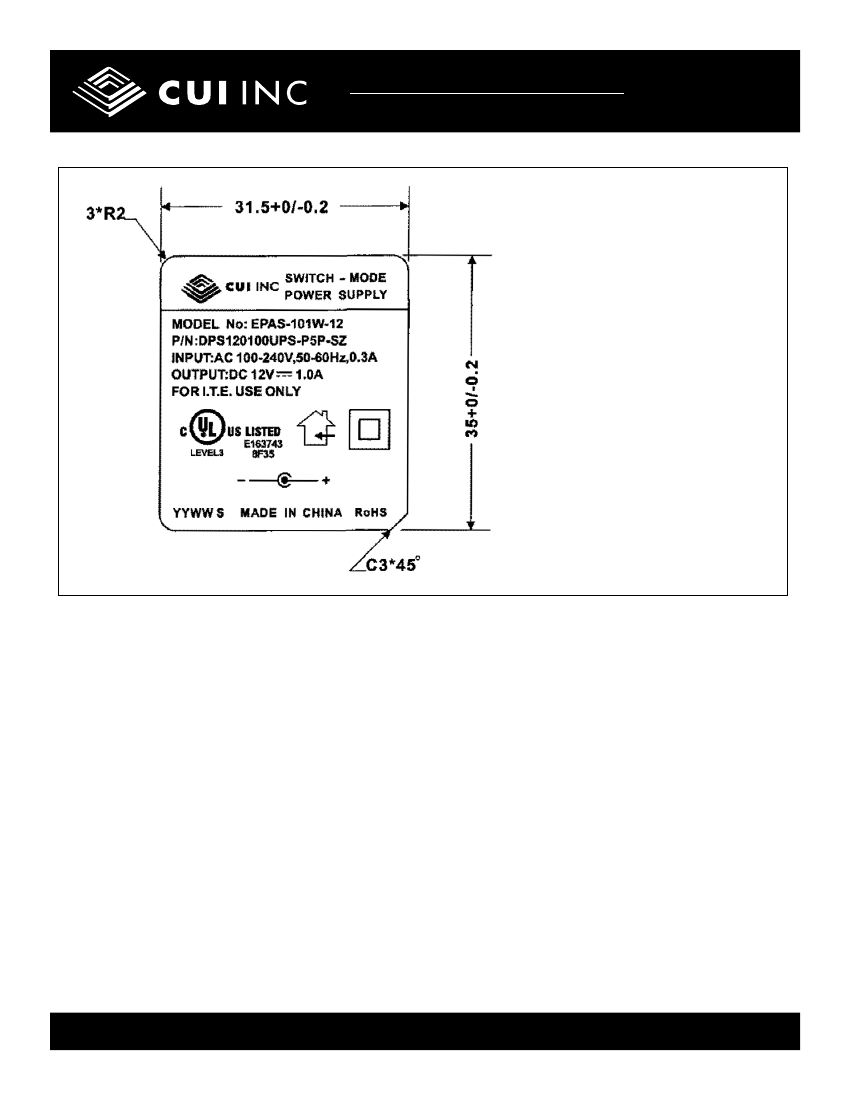

Label
Thickness: 0.2 mm
Material: PVC polyester
Color: black on silver base
Remarks: YYWW S
YY=production year
WW=production week
S=production location
Phone: 800.275.4899
Fax: 503.372.1266
www.cui.com
9615 SW Allen Blvd Suite 103
Beaverton, OR 97005
Part No: DPS120100UPS-P5P-SZ
Description:
switching power supply
Date: 4/05/2006
Unit: mm
Page No: 3 of 6

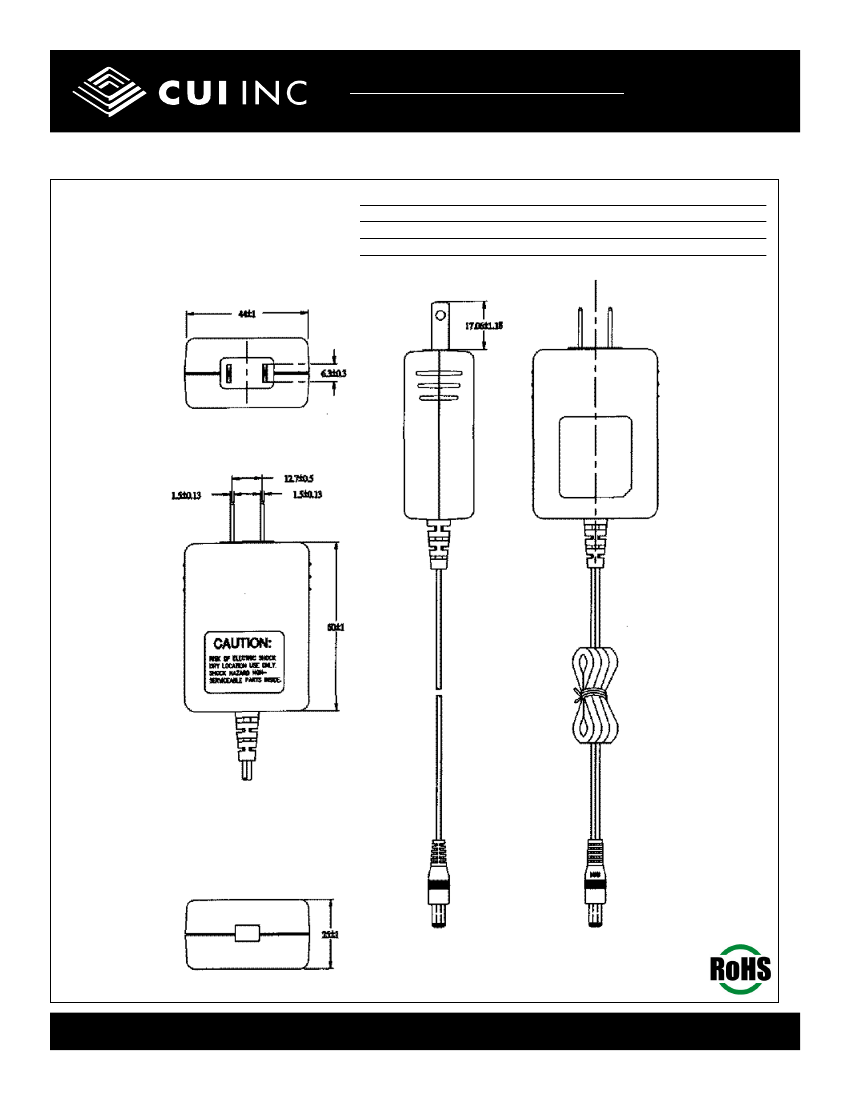

Mechanical Drawing
Tolerance: ±1
Input plug
Weight
Case size
Direct plug-in UL type
114 g
60 L x 44 W x 25 H mm
Phone: 800.275.4899
Fax: 503.372.1266
www.cui.com
9615 SW Allen Blvd Suite 103
Beaverton, OR 97005
Part No: DPS120100UPS-P5P-SZ
Description:
switching power supply
Date: 4/05/2006
Unit: mm
Page No: 4 of 6

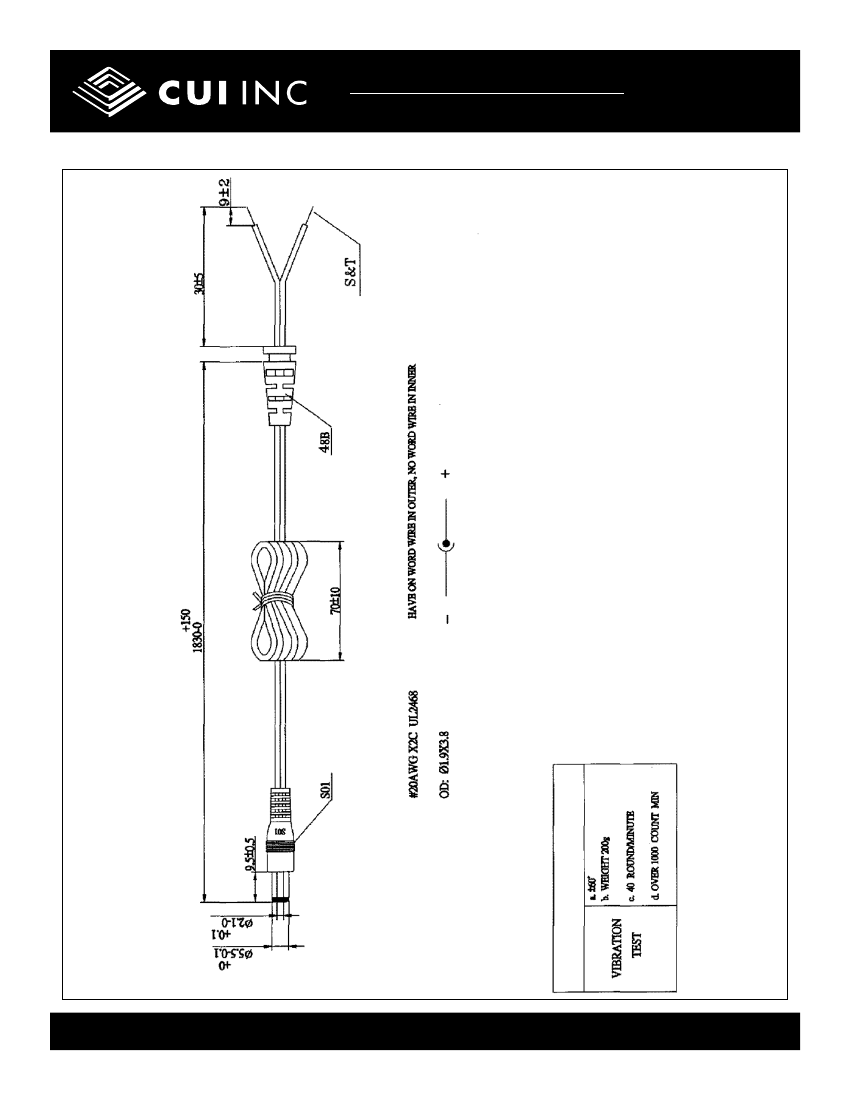

DC Cord
Phone: 800.275.4899
Fax: 503.372.1266
www.cui.com
9615 SW Allen Blvd Suite 103
Beaverton, OR 97005
Part No: DPS120100UPS-P5P-SZ
Description:
switching power supply
Date: 4/05/2006
Unit: mm
Page No: 5 of 6

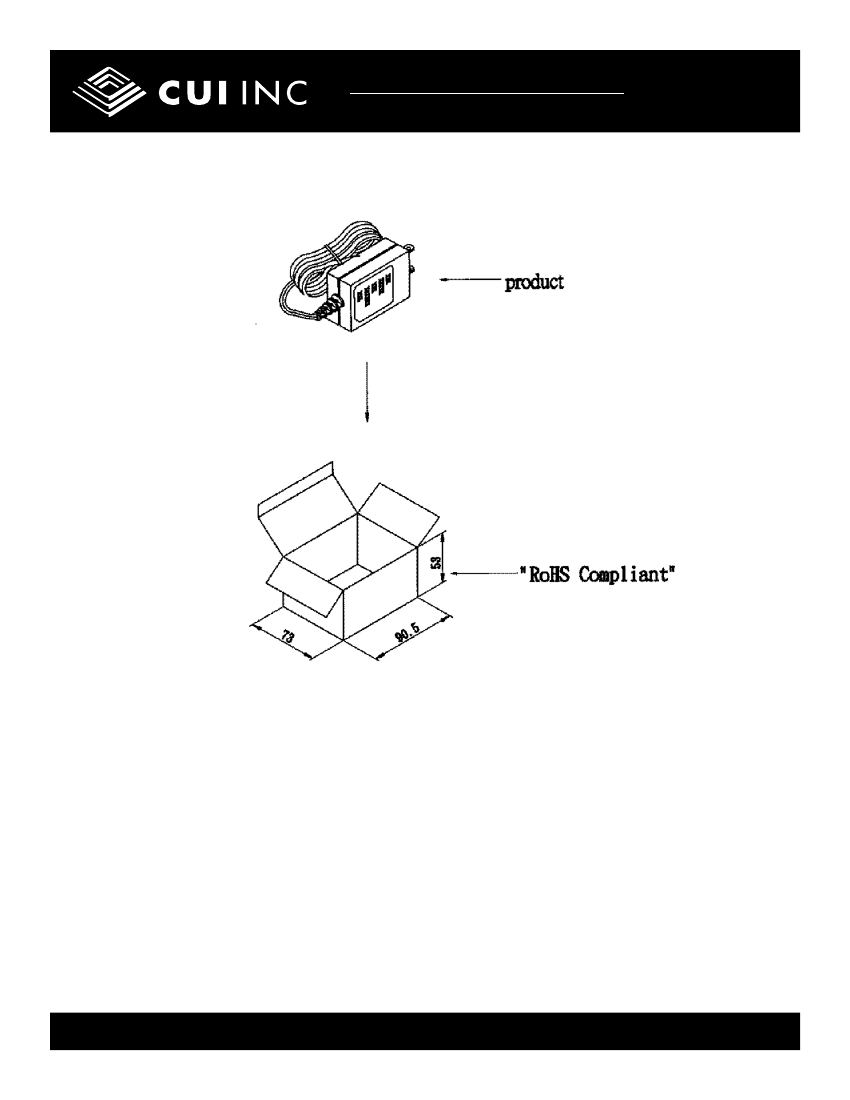

Individual Packaging
Tolerance: ±1
Phone: 800.275.4899
Fax: 503.372.1266
www.cui.com
9615 SW Allen Blvd Suite 103
Beaverton, OR 97005
