DMS050500-P5P-IC Overview

power supply switching 5.0V 5.0A

Preview

Download Datasheet

View All

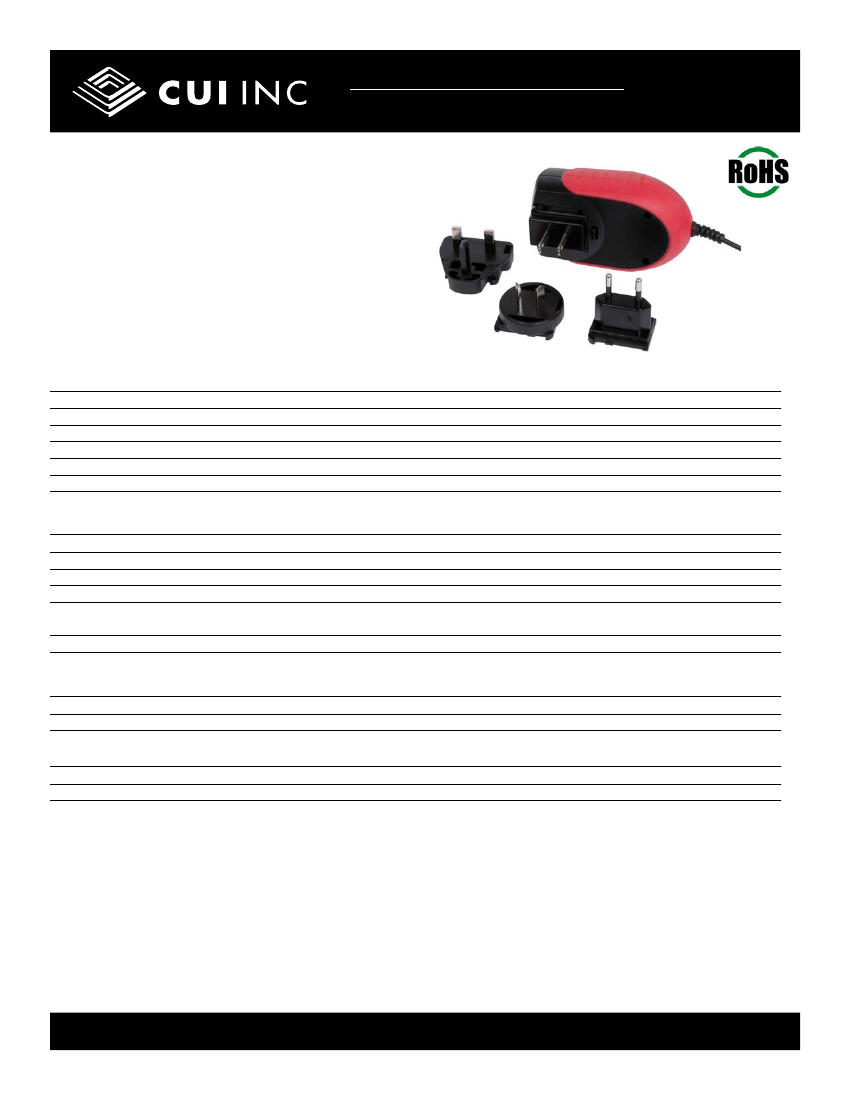

Part No: DMS050500-P5P-IC

Description: switching power supply

w/ interchangeable input blades

Date: 9/25/2006

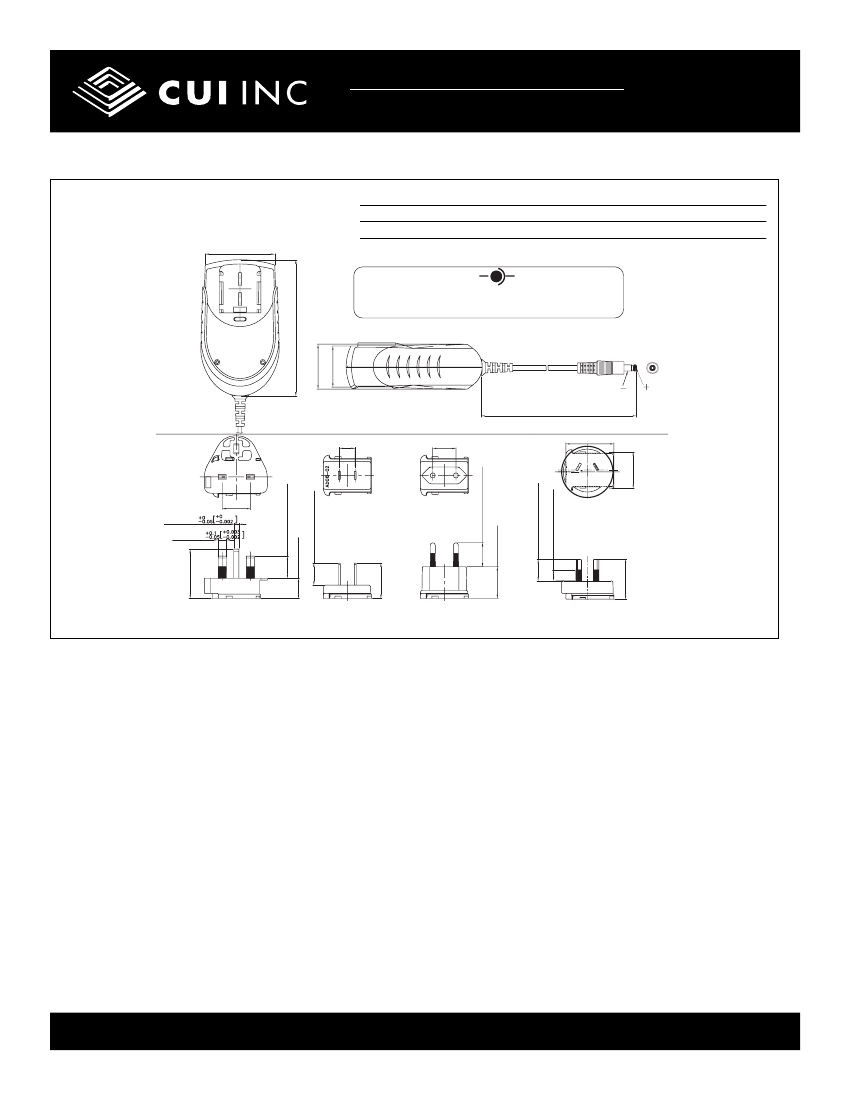

Unit: mm

Page No: 1 of 3

Input

Rated input voltage

Input voltage range

Rated frequency

Frequency range

Rated input current

Inrush current

100 V- 240 V ac

90 V to 264 V ac

50-60 Hz

47-63 Hz

800 mA RMS max.

50A max (at 260 V ac input, full load)

Output

Output voltage

Output min. current

Over voltage protection

Short circuit protection

Ripple voltage

Efficiency

5 V dc at 5 A

6.8 V dc

output shut down and auto restart

50 mV (p-p) (with a 0.1 µF ceramic capacitor and a 10 µF electrolytic

capacitor to output at 20 MHz bandwidth)

70% typ. (at 100 V ac/50 Hz or 240 V ac/50 Hz input, full load)

Safety and EMI

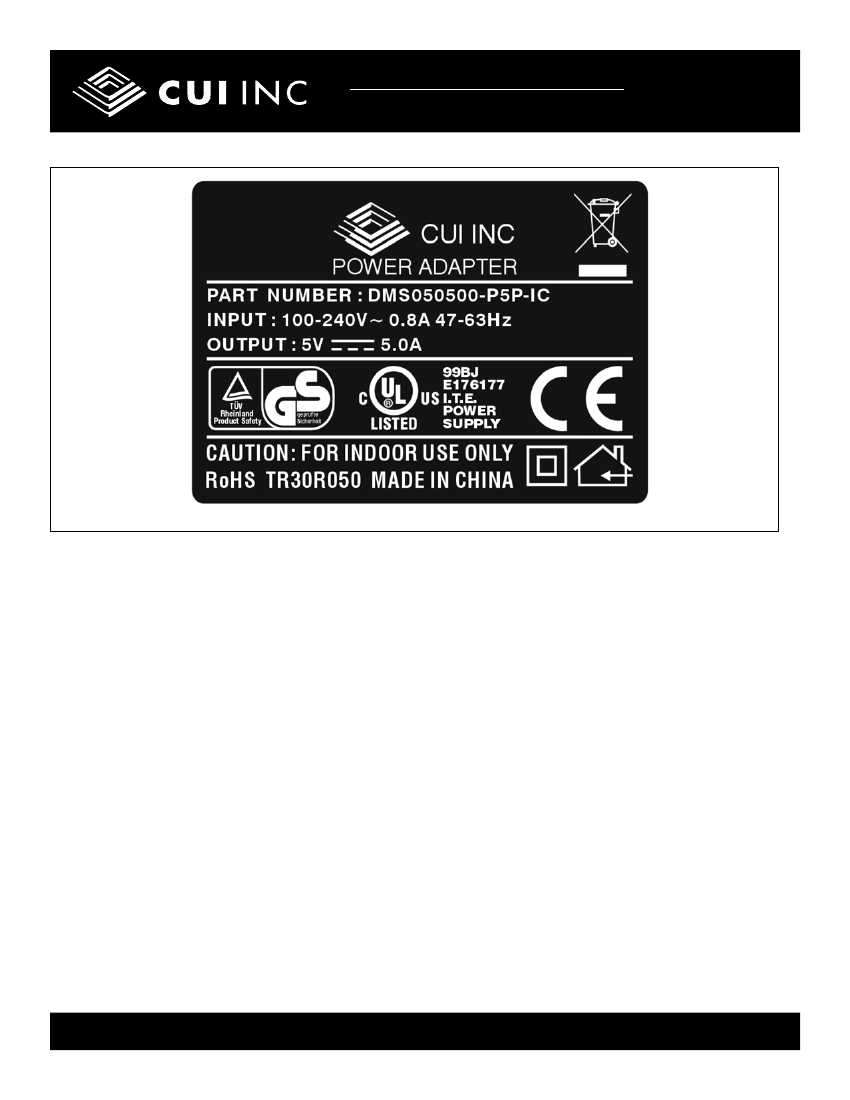

Safety approvals

RoHS compliant

UL/cUL, CE, TUV/GS

yes

Environmental

Storage temperature

Operating temperature

-20°C ~ +85° C

0°C ~ +40° C

Phone: 800.275.4899

Fax: 503.612.2381

www.cui.com

20050 SW 112th Ave.

Tualatin, OR 97062
