402F22821CJR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> 402F22821CJR

402F22821CJR: DescriptionParallel - Fundamental Quartz Crystal, 22.816MHz Nom, GREEN, 4 PIN; CategoryPassive components Crystal/resonator; File Size298KB，5 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

402F22821CJR Overview

Parallel - Fundamental Quartz Crystal, 22.816MHz Nom, GREEN, 4 PIN

402F22821CJR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	8002031682
Reach Compliance Code	compliant
YTEOL	7.22
Other features	AT-CUT STRIP CRYSTAL
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.001%
frequency tolerance	20 ppm
JESD-609 code	e4
load capacitance	9 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	22.816 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	2.0mm X 1.6mm X 0.55mm
Series resistance	150 Ω
surface mount	YES
Terminal surface	GOLD OVER NICKEL

Preview

Download Datasheet

View All

Model 402

Features



Sub-Miniature Surface Mount Crystal

Hermetic Ceramic Surface Mount Package

Fundamental Crystal Design

Frequency Range 16 – 96MHz

Frequency Tolerance, ±30ppm Standard

Frequency Stability, ±30ppm Standard

Operating Temperature Range to -40°C to +105°C

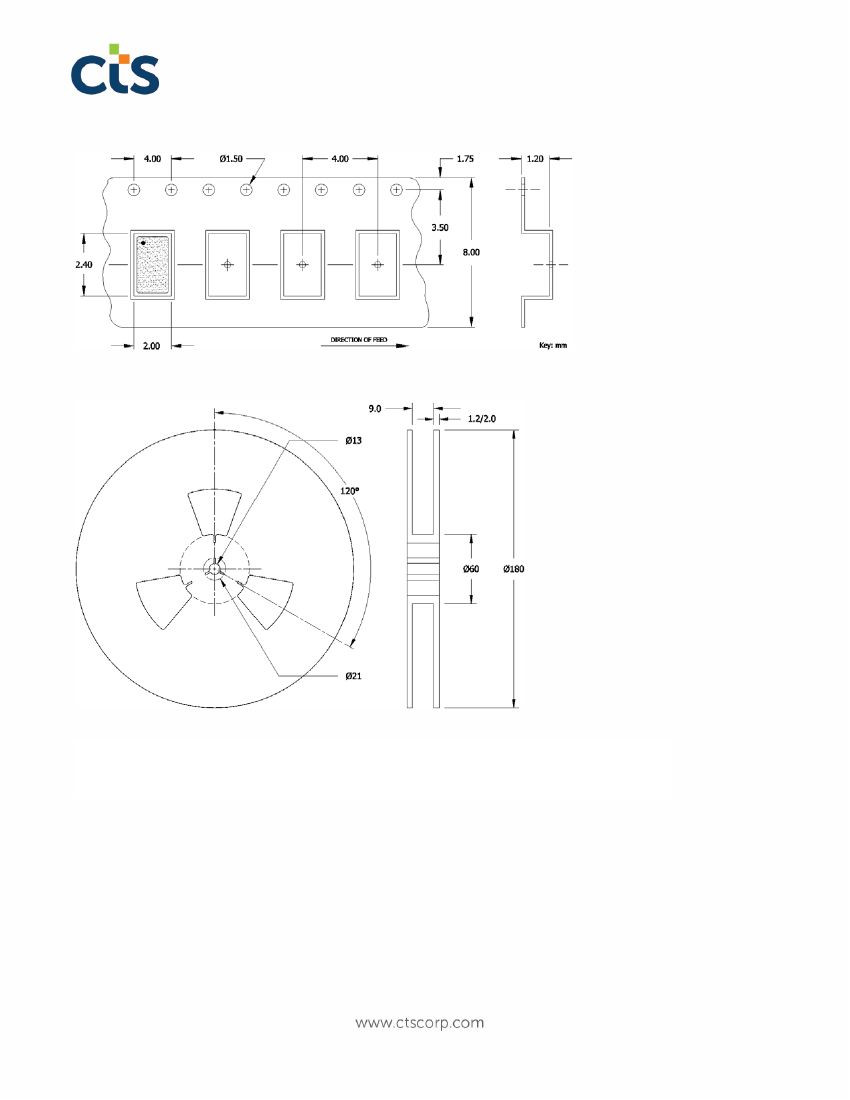

Tape and Reel Packaging, EIA-418

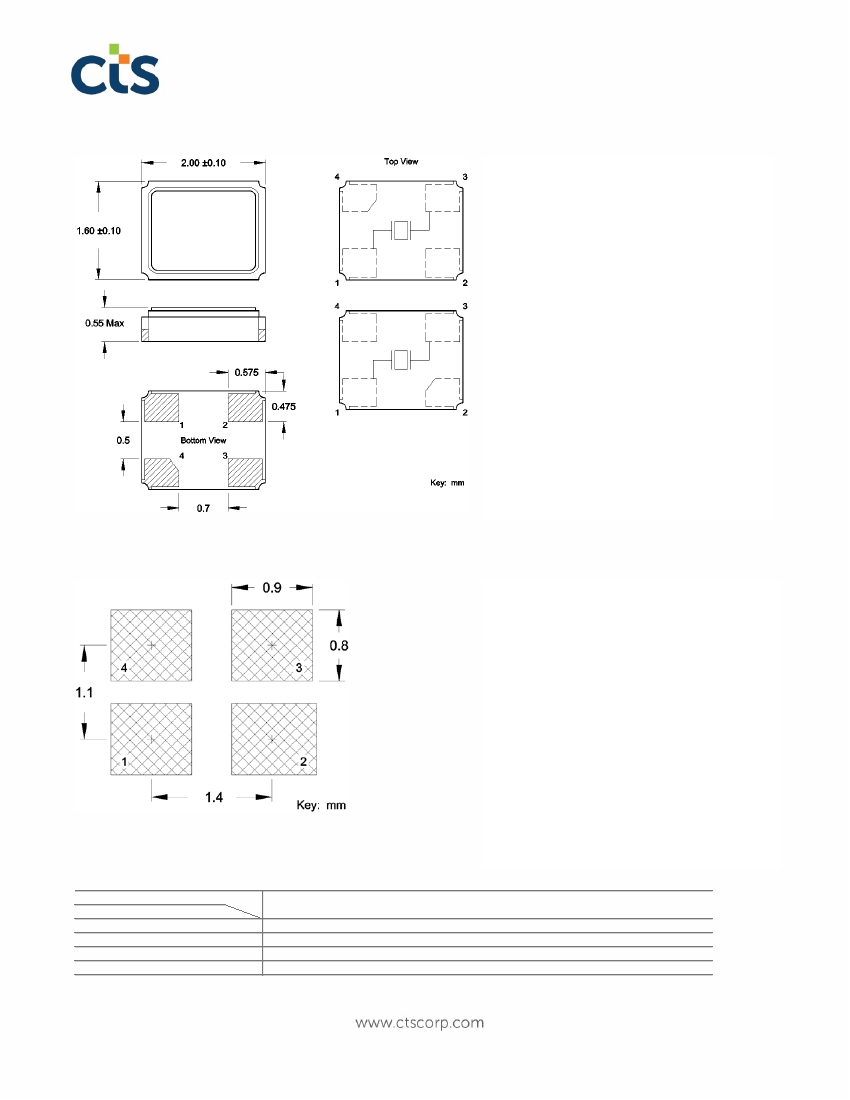

Part Dimensions:

2.0 × 1.6 × 0.55mm

•

3.9mg

Standard Frequencies – see Page 5 for common frequencies.

* Check with factory for availability of frequencies not listed.

Applications



IoT and IIoT Applications



Wireless Communications



FPGA/Microcontrollers



USB Interfaces



Computer Peripherals



Portable Equipment



Test and Measurement



M2M Communications



Wearables

Description

CTS Model 402 incorporates a high Q quartz resonator and is ideal for supporting a wide range of commercial and

industrial applications.

Ordering Information

Model

402

Mode of

Os ci l l a ti on

F requency Code

[ MHz ]

XXX

T ol era nce

@ +25°C

T em pera ture

Sta bi l i ty

T em pera ture

Ra ng e

Loa d

Ca pa ci ta nce

Pa cka g i ng

Mode

Code

Fundamental

Code

Tolerance

±10ppm

±15ppm

±20ppm

±25ppm

±30ppm

Temp. Range

Code

-10°C to +60°C

-20°C to +70°C

-30°C to +85°C

-40°C to +85°C

G -40°C to +105°C

Code

Packing

3k pcs./reel

Code

Frequency

Product Frequency Code

Code

Stability

±10ppm

±15ppm

±20ppm

Code

Stability

±25ppm

±30ppm

±50ppm

Code

Capacitance

5pF

6pF

7pF

8pF

9pF

10pF

Code

Capacitance

12pF

13pF

16pF

18pF

20pF

Series

Notes:

Refer to document 016-1454-0, Frequency Code Tables. 3-digits for frequencies <100MHz.

Available with all stability codes.

Available with stability codes X, 2, Y, 3 and 5.

Available with stability codes 3 and 5.

N ot a l l perf orm a nce com bi na ti ons a nd f requenci es m a y be a va i l a bl e.

Conta ct your l oca l CT S Repres enta ti ve or CT S Cus tom er Servi ce f or a va i l a bi l i ty.

This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this

product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.

DOC# 008-0330-0 Rev. D

Page 1 of 5

equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
