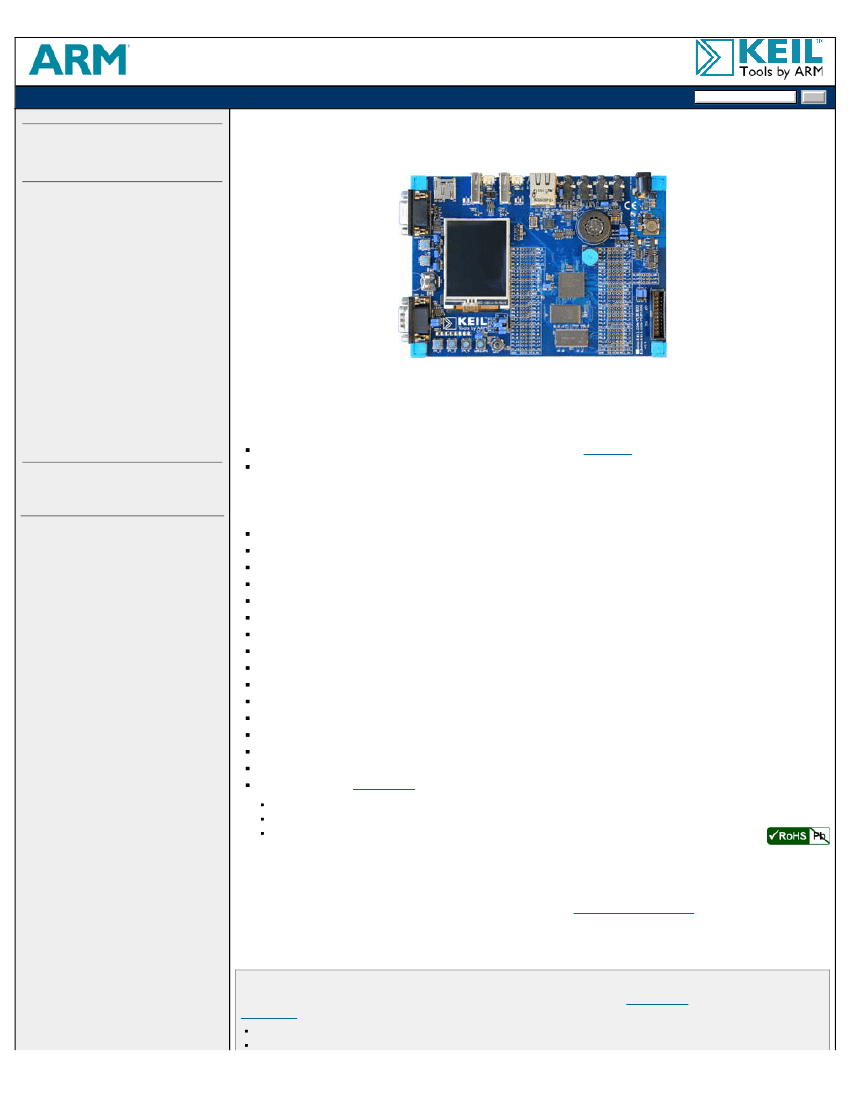

The Keil MCB1800 Evaluation Boards enable you to create and test working programs
based on the NXP LPC1850 family of ARM Cortex™-M3 processor-based devices.
The MCB1800 Evaluation Board is available in two different configurations:
The MCB1850 Evaluation Board is populated with an NXP
LPC1850
device
The MCB1857 Evaluation Board is populated with a NXP LPC1857 device
C251/C51 Evaluation Boards
8051 Board Comparison
MCB900 Evaluation Board
MCB950 Evaluation Board
Features
180MHz ARM Cortex-M3 processor-based MCU in LBGA256
On-Chip SRAM: 136KB (LPC1857), 200KB (LPC1850)
On-Chip Flash: 1MB dual bank (LPC1857), no on-chip Flash (LPC1850)
On-Board Memory: 16MB NOR Flash, 4MB Quad-SPI Flash, 16 MB SDRAM, & 16KB EEPROM (I2C)
Color QVGA TFT LCD with touchscreen
10/100 Ethernet Port
High-speed USB 2.0 Host/Device/OTG interface (USB host + Micro USB Device/OTG connectors)
Full-speed USB 2.0 Host/Device interface (USB host + micro USB Device connectors)
CAN interfaces
Serial/UART Port
MicroSD Card Interface
4 user push-buttons + reset
Digital Temperature Sensor (I2C)
Analog Voltage Control for ACD Input
Audio CODEC with Line-In/Out and Microphone/headphone connector + Speaker
Debug Interface
Connectors
20-pin JTAG (0.1 inch)
10-pin Cortex debug (0.05 inch)
20-pin Cortex debug + ETM Trace (0.05 inch)
Development Software
The MCB1800 Evaluation Board and Starter Kit includes the
MDK-ARM Lite Edition
Tools. These tools help
you get started writing programs and testing the microcontroller and its capabilities. Sample applications
that run on the MCB1800 evaluation board, and a Quickstart guide are included.
Ordering Information
The MCB1800 is available as a stand alone evaluation board or as a
starter kit
which includes the
ULINK-ME
debug adapter.
MCB1850:
MCB1850 evaluation board
MCB1850UME:
MCB1850 starter kit (includes ULINK-ME)
