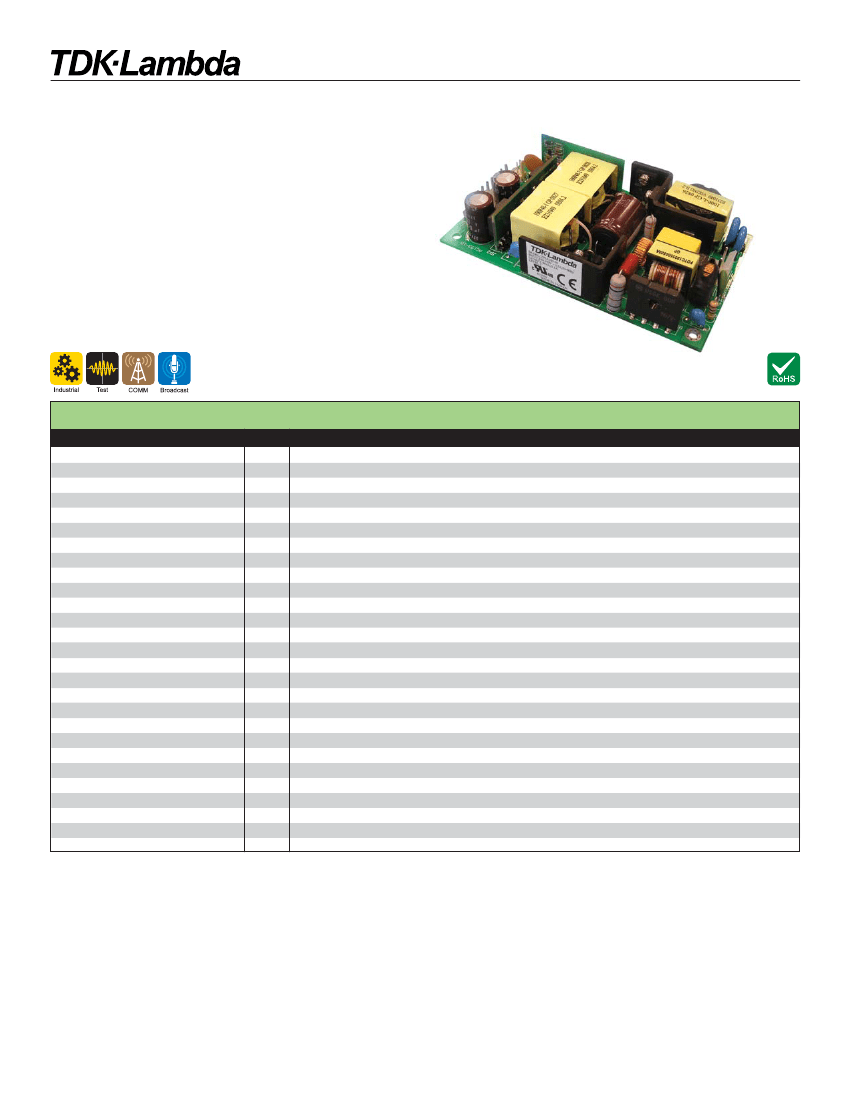

ZPSA100 Series
3” x 5” 100W AC-DC Power Supplies
Features
PFC
Wide Range AC Input
Low Profile, Industry Standard Footprint
Global Safety Agency Compliance
RoHS Compliant
Up to 84% efficiency
Meets EN61000-4 Immunity
Key Market Segments & Applications
Specifications
Model
Input Voltage range
Inrush Current
Input Current (115/230VAC)
Temperature Coefficient
Voltage Accuracy
Minimum Load
Load Regulation
Line Regulation
Ripple & Noise (1)
Short Circuit Protection
Overvoltage Protection
Hold Up Time (Typ)
LED Indicator
Operating Temperature
Storage Temperature
Humidity (non condensing)
Cooling
Withstand Voltage
Isolation Resistance
Vibration (non operating)
Shock
Safety Agency Certifications
Conducted & Radiated EMI
Immunity
Weight (Typ)
Size (WxLxH)
Warranty
(1)
-
A
A
-
-
A
-
-
mV
-
V
ms
-
°C
°C
-
-
-
-
-
-
-
-
-
g
in(mm)
yrs
ZPSA100
90 - 264VAC (47 - 440Hz) or 120 - 370VDC*
25 / 50 (cold start)
1.1 / 0.6
±0.05%/°C
±1%
None
±1%
±0.5%
5V: 2%, others 1%
Foldback
Typically 110-130% of nominal, auto recovery
16ms at 115VAC input
Green LED = OK
0 to +70°C with derating/air flow
-20 to +85
10 - 95% RH
Convection/air flow
Input to Ground 1.5kVAC, Input to Output 3kVAC, Output to Ground 500VAC for 1 min.
>100M at 25°C & 70%RH, Output to Ground 500VDC
23.52m/s
2
(10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
< 196.1 m/s
2
(20G)
UL/CSA/EN60950-1 (2nd Ed) Class I , CE Mark (LVD)
EN55022-B, FCC Class B
EN61000-4-2,-3,-4,-6,-8
385
3 x 5 x 1.05 in. (76.2 x 127 x 26.6 mm) including underside components
2 Years
5V measured with 0.1uF ceramic & 220uF electrolytic at 20MHz BW,
all other models measured with 0.1uF & 10uF ceramic electrolytic at 20MHz BW
*Safety certified for 47-63Hz input only
1-800-526-2324 • www.us.tdk-lambda.com/lp/
158
Disclaimer: us.tdk-lambda.com/lp/legal.htm
ZPSA100 Series
Model Selector
Mo
Output
Model
ZPSA100-5
ZPSA100-9
ZPSA100-12
ZPSA100-15
ZPSA100-18
ZPSA100-24
ZPSA100-48
Voltage (V)
5V
9V
12V
15V
18V
24V
48V
Maximum
Load (A)
20A
11.2A
8.4A
6.7A
5.6A
4.2A
2.1A
Efficiency
(%)
83%
84%
84%
84%
84%
84%
84%
Ripple
and Noise
2%
1%
1%
1%
1%
1%
1%
Voltage
Accuracy
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
Line
Regulation
± 0.5%
± 0.5%
± 0.5%
± 0.5%
± 0.5%
± 0.5%
± 0.5%
Load
Regulation
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%

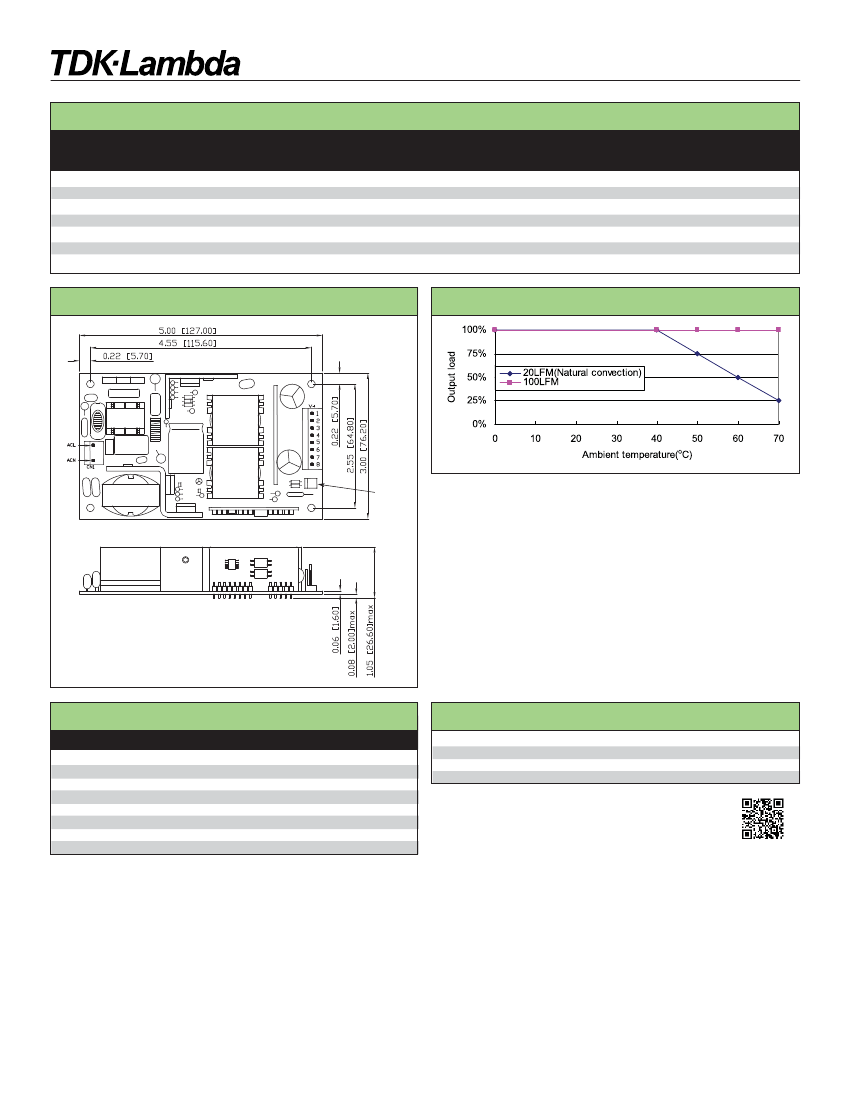

Outline Drawing
Derating Curve
ÐS
+S
Remote
Sense
Input Connector Mates with Molex Housing 09-50-3031 and Molex
2478 Series Crimp Terminal
Output Connector Mates with Molex Housing 09-50-1081 and
Molex 5194 Series Crimp Terminal
Sense Connector Mates with Molex Housing 22-01-1022 and
Molex 2759 or 5159 Crimp Terminal
Notes:
All dimensions are in inches (mm)
Tolerances: XX±.02 (XX± .5) unless otherwise noted
Pin Assignments
PIN
1
2
3
4
5
6
7
8
Function
Vout (+)
Vout (+)
Vout (+)
Vout (+)
Vout (–)
Vout (–)
Vout (–)
Vout (–)
Other Industrial Products
KPSA
KM
ZPSA/ZPD/ZPT
ZWS
5 - 15W pcb mount
15 - 40W pcb mount medical
40 - 60W, single, dual and triple output
5 - 240W single output
For Additional Information, please visit
us.tdk-lambda.com/lp/products/zpsa-series.htm
1-800-526-2324 • www.us.tdk-lambda.com/lp/
159
Revision A3.1: Apr 2014
