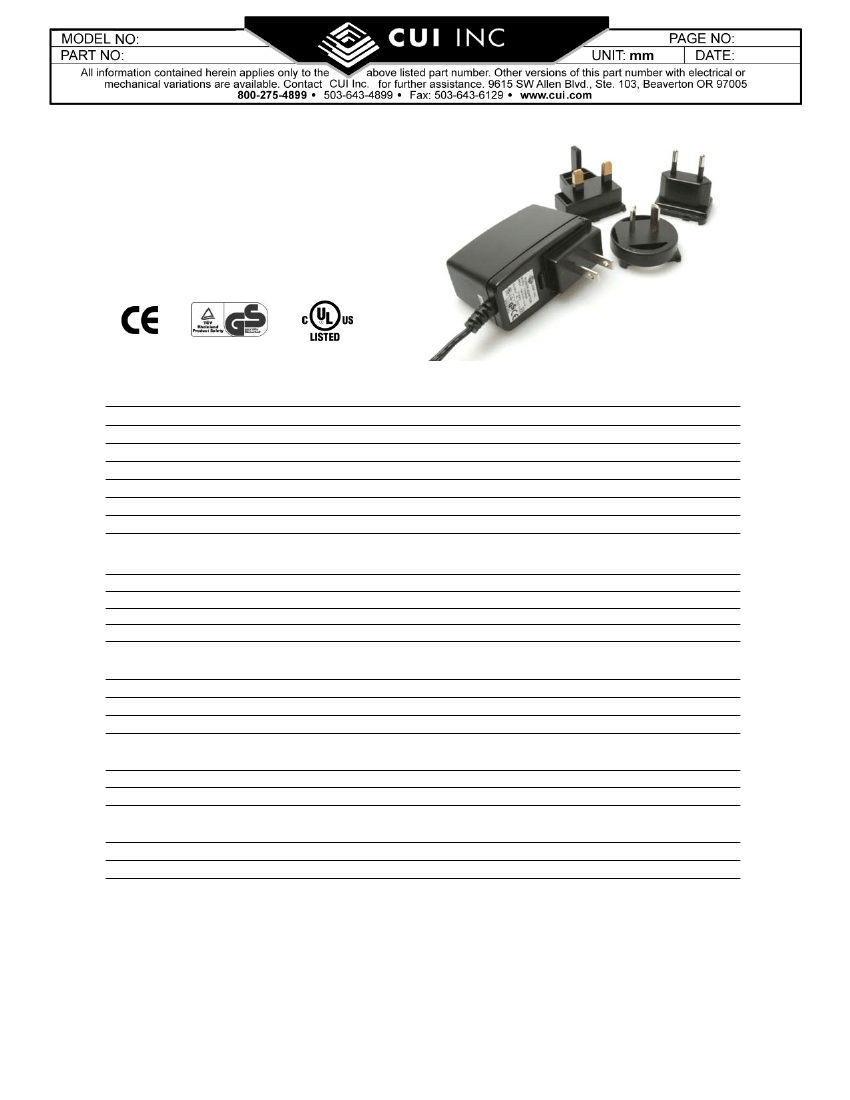

DMS090110-P5-IC
1 of 2
6/12/03
Features
·Interchangeable AC plug
·Universal input: 90~264VAC
·Continuous short circuit protection
·Conductive EMI meets CISPR/FCC Class B
·High efficiency: 75% typical
General
Output voltage
Max. load
Min. load
Ripple & noise
Voltage accuracy
Line regulation
Load regulation
9V
1100mA
0A
1%
±2%
±1%
±2%
Input
Input Voltage Range
Frequency
Input current
Inrush current
90~264VAC
47~63Hz
0.4A max
30A max @ 264VAC
Output
Hold-up time
Short-circuit protection
Over-current protection
10mS typ. ~115VAC
continuous (auto-recovery)
constant current type
Environmental
Operating temperature
Storage temperature
0~40°C
-20~85°C
Mechanical

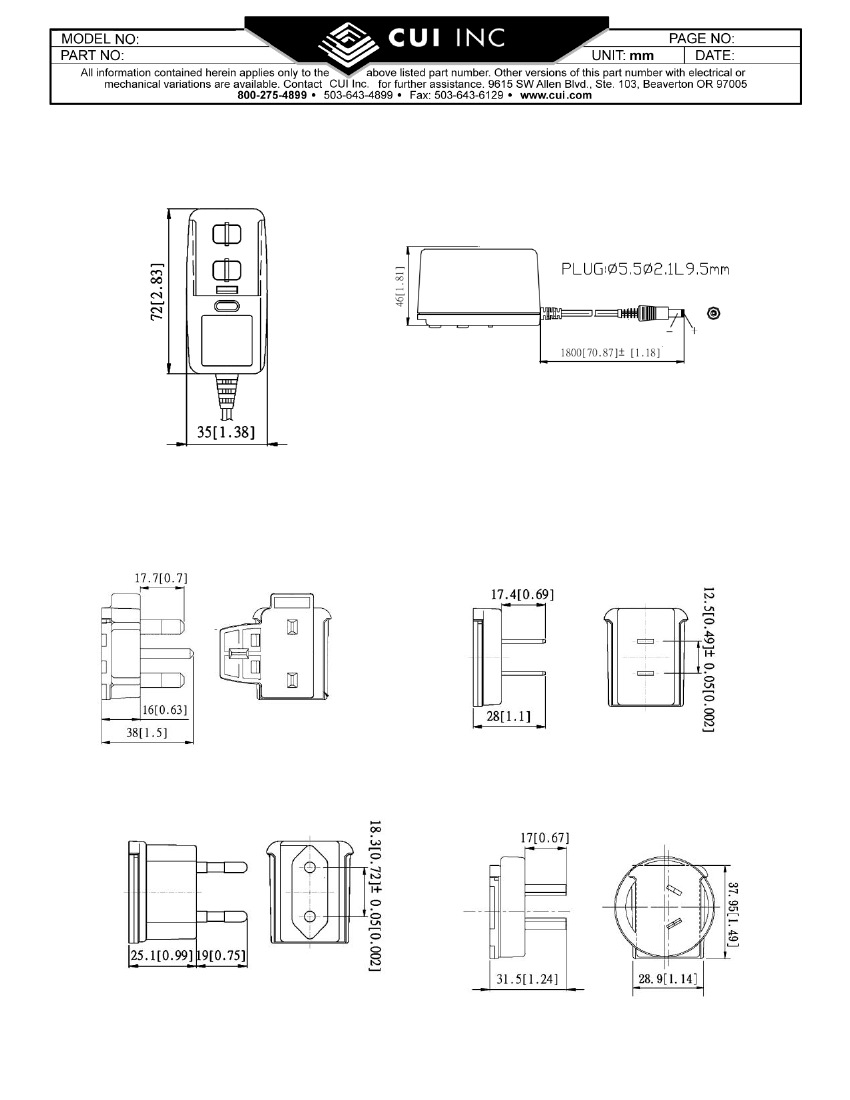

Dimensions
Weight
72x46x35 mm
3
(2.83x1.81x1.38”)
130g (0.29 lbs)
Notes:
1. Typical at 25°C, nominal line, and 75% load, unless otherwise specified.
2. Voltage set point is at 60% load.
3. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for ripple & noise measuring @20MHz BW.
4. Line regulation measured from 100VAC to 240VAC, full load.
5. Load regulation measured from 60% to full load and from 60% to 20% load (60% ± 40% load)
