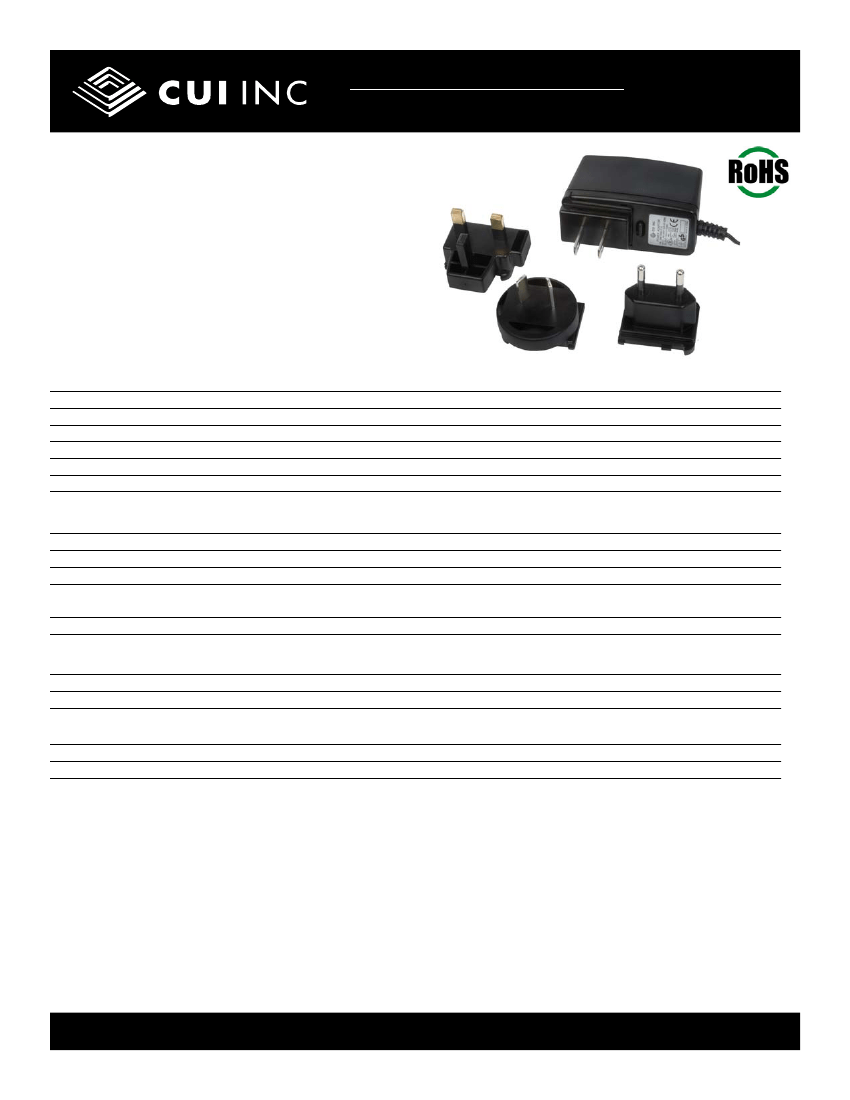

Part No: DMS060150-P5-IC
Description: switching power supply
w/ interchangeable input blades
Date: 9/25/2006
Unit: mm
Page No: 1 of 3
Input
Rated input voltage
Input voltage range
Rated frequency
Frequency range
Rated input current
Inrush current
100 V- 240 V ac
90 V to 264 V ac
50-60 Hz
47-63 Hz
400 mA RMS max.
30A max (at 260 V ac input, full load)
Output
Output voltage
Output min. current
Short circuit protection
Ripple voltage
Efficiency
6 Vdc at 1.5 A
0A
output shut down and auto restart
60 mV (p-p) (with a 0.1 µF ceramic capacitor and a 10 µF electrolytic
capacitor to output at 20 MHz bandwidth)
75% typ. (at 100 V ac/50 Hz or 240 V ac/50 Hz input, full load)
Safety and EMI
Safety approvals
RoHS compliant
UL/cUL, CE, TUV/GS
yes
Environmental
Storage temperature
Operating temperature
-20°C ~ +85° C
0°C ~ +40° C
Phone: 800.275.4899
Fax: 503.612.2381
www.cui.com
20050 SW 112th Ave.
Tualatin, OR 97062
Part No: DMS060150-P5-IC
Description: switching power supply
w/ interchangeable input blades
Date: 9/25/2006
Unit: mm
Page No: 2 of 3

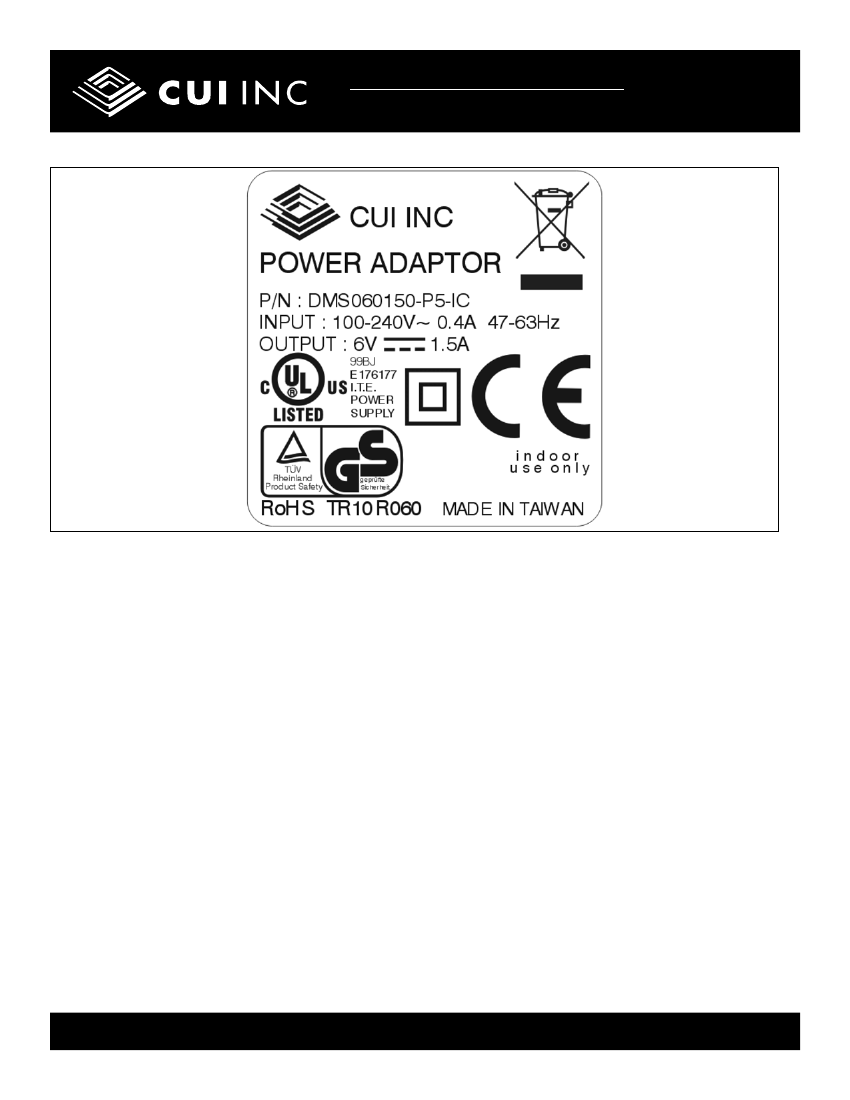

Label
Phone: 800.275.4899
Fax: 503.612.2381
www.cui.com
20050 SW 112th Ave.
Tualatin, OR 97062
Part No: DMS060150-P5-IC
Description: switching power supply
w/ interchangeable input blades
Date: 9/25/2006
Unit: mm
Page No: 3 of 3

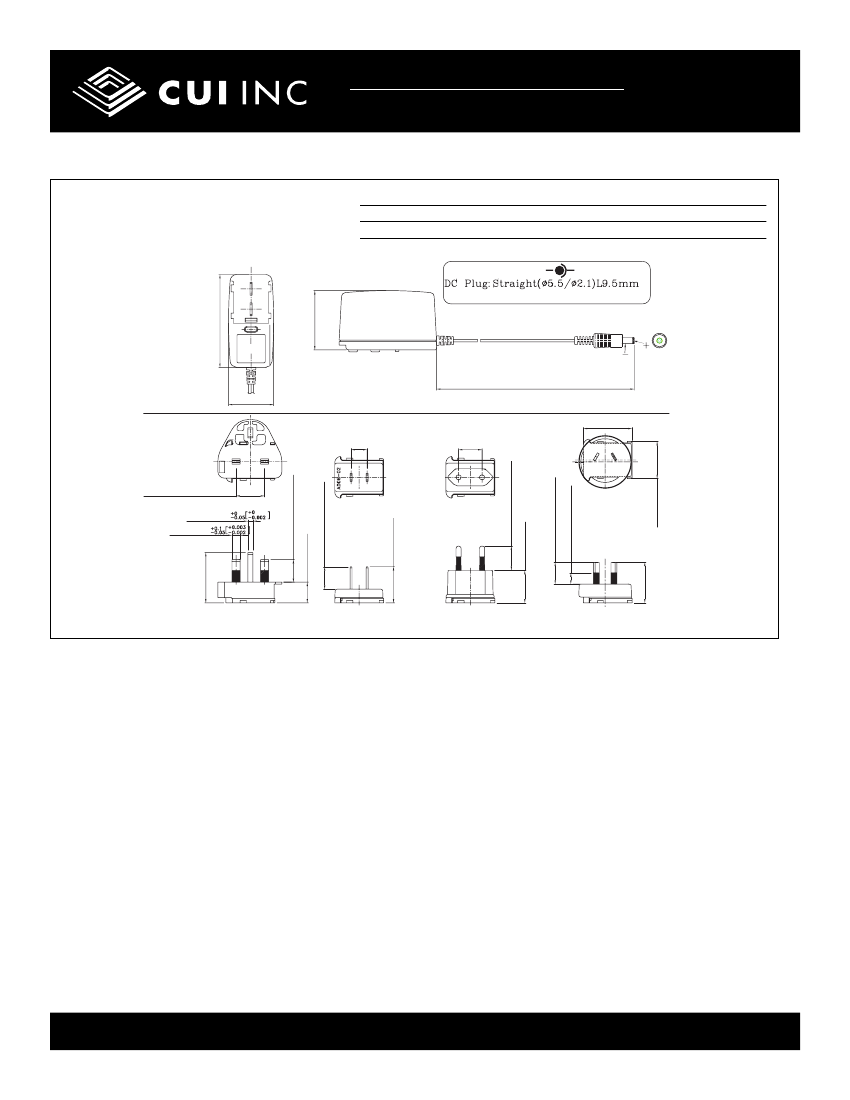

Mechanical Drawing
Input plug
Case size
D Pl ug type :
C
72.00[2 .83 ]
46.00 [1. 81]
interchangeable input blade
72 L x 46 W x 35 H mm
V+
V-
20AWG / 1800 mm
1800[70.87] ±50[ 1. 97]
35.0 0[1. 38]
37. 95[ 1.49]
12.50 [0. 49]±0.0 5[ 0. 002]
18.30 [0 .72]± 0.0 5[ 0. 002]
19. 00 [0.75] ±0.5 [0 .02 ]
17.50 [0.69] ±0.5[ 0. 02]
17. 40 [0.69] ±0.7 [0 .03 ]
16. 99 [0.67 ]±0 .3 [0 .01 ]
22.20 [0. 87]±0.1 3[ 0. 005]
28.00 [1 .1 0]
4.00 [0. 16]
6.30 [0. 25]
39. 00 [1 .5 4]
16.00 [ 0. 63]
25.10 [0 .9 9]
8.70 [0. 34]±0.5 [0. 02]
Phone: 800.275.4899
Fax: 503.612.2381
www.cui.com
20050 SW 112th Ave.
31.48 [1 .2 4]
28.93 [ 1. 14]
Tualatin, OR 97062
