Getting Started
PROFET Demo Kit
Preface
The PROFET Demo Kit is a versatile tool to demonstrate the functions of the
BTS 5241L, BTS 5234G, BTS 5230GS and BTS 6143D. It is an ideal tool to become
familiar with the performance of the devices.

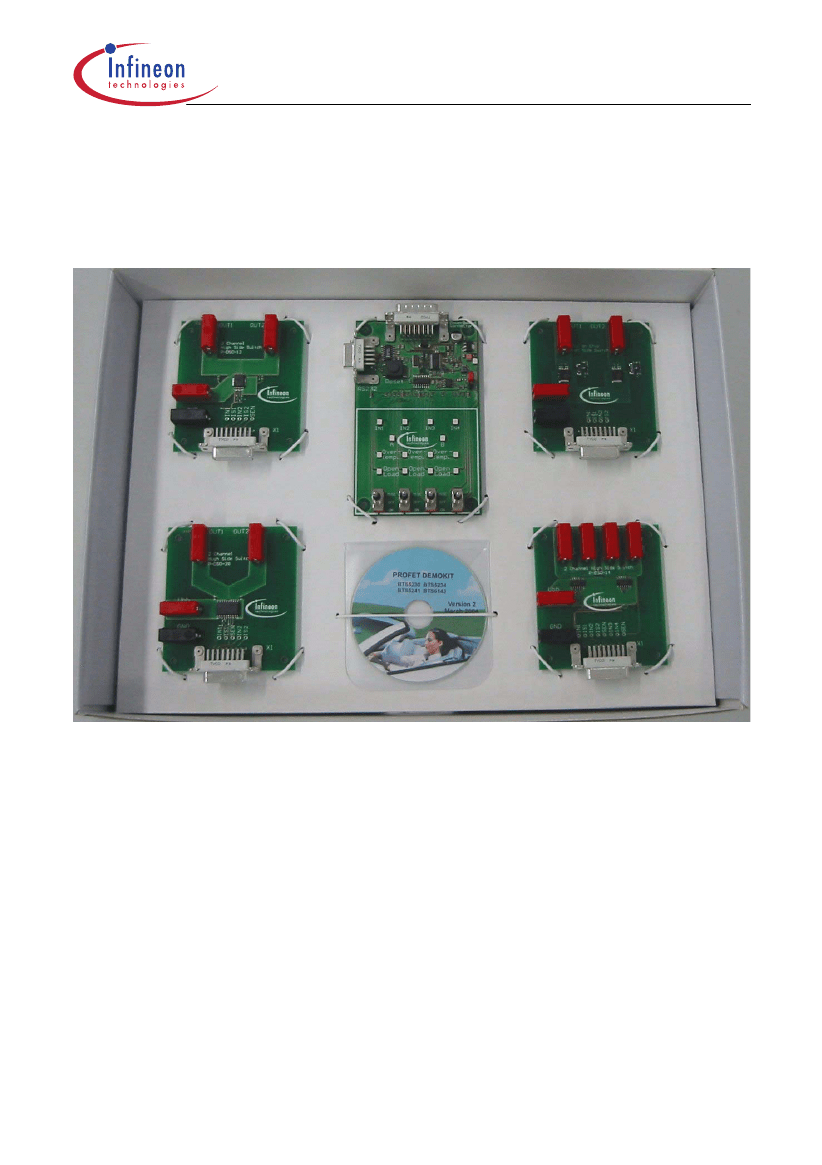

The PROFET Demo Kit consists of five different boards devided in two types. The
PROFET are mounted on the power boards which also contain 4 mm plug sockets for
power supply and loads. The power boards are connected via a D-SUB-15 connector to
the control board. The complete PROFET Demo Kit is reverse polarity protected.
There are four different power boards available. The P-DSO-12 board contains
BTS 5241L, a dual channel PROFET in P-DSO-12 power package. The P-DSO-20
board is equipped with BTS 5234G, a dual channel PROFET in P-DSO-20 package.
Two BTS 5230GS dual channel PROFET in P-DSO-14 package are mounted on the P-
DSO-14 board. Two BTS 6143D high current PROFET are available on the Power HIC
board.
Getting Started
2
V 2.0, 2004-04
Getting Started
PROFET Demo Kit
Getting Started
1
Getting Started
This chapter is intended to describe a step by step procedure to get the system running
the first time. For detailed information about the hardware and software of the
PROFET Demo Kit, please refer to the “Tool Description” document.
1.1
Usage of Hardware
The hardware is intended to be used the following way:
1. select one of the power boards
2. connect the control board
3. connect 12 V bulbs to the OUTx plugs of the power boards according to following
table:
Power Board
P-DSO-12
P-DSO-20
P-DSO-14
Power HIC
Chanel 1
Channel 2
Channel 3
Channel 4
-
-
10 W
-
21 W + 21 W + 21 W + 21 W + -
5W
5W
21 W
10 W
55 W
21 W
10 W
60 W
-
10 W
-
4. connect a 12 V power supply, which is able to drive the loads’ current, to the VBB and
GND plug of the power board. The control board is supplied via the power board.
5. check, if the jumper at the control board is placed in position “normal”
6. occasionally, the reset button has to be pressed to start-up the system after power up
7. use switches to switch on the loads
To see the performance and protection features of the device, following evaluation could
be performed:
• Open Load: Remove the load of one channel completely
The open load LED of that channel will be switched on.
• Low load: Reduce the load of one channel (e.g. P-DSO-12: Remove one 21 W bulb)
The open load LED is enabled, when that channel is switched on.
• Short Circuit to GND: Short Circuit one channel
The over temperature LED is enabled, when that channel is switched on.
• Reverse Polarity:
1)
Connect the power supply in reverse polarity.
All loads will be switched on
Note: Please keep in mind that short circuit evaluation as well as normal power
dissipation will heat up the power devices. Harmful temperatures can be
reached at the device packages and the PCB!
1)
the control board is reverse polarity protected
3
V 2.0, 2004-04
