Quick Start
Renesas

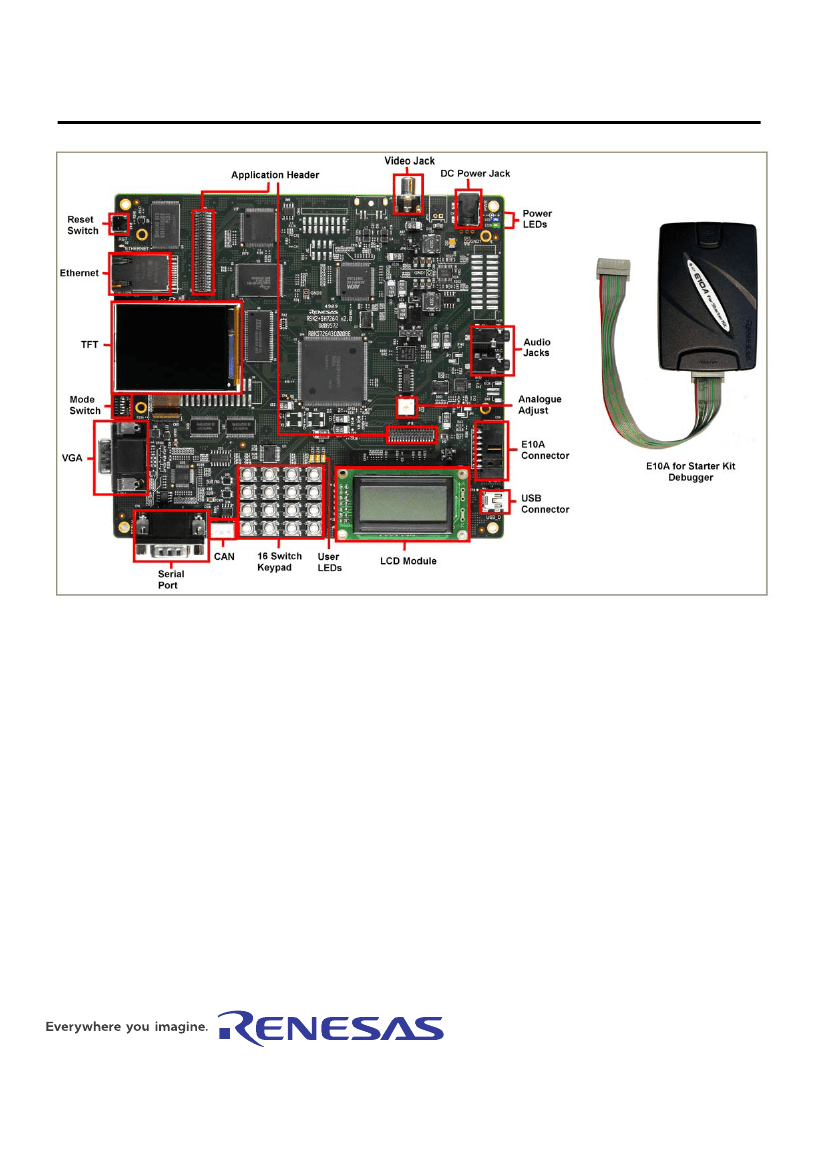

Starter Kit2+ for SH7264
1. Installation
Do not connect the E10A debugger module until the software support has been installed.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Insert the CD into your computer’s CD-ROM drive. The CD should automatically run the installation program. If the installer does not start, browse to the
CD root folder and double click on ‘setup.exe’.
Windows Vista users may see “User Account Control” dialog box. If applicable, enter the administrator password and click <OK>.
The installer will ask you which language is to be used, please choose the appropriate one and click <OK>.
On the first screen of the installer proper, click <Next>.
The License Agreement will be shown, read and click <Yes>.
The next screen asks you to pick the world region – please select and click <Next>.
The destination folders are specified on the next screens. It is recommended to accept the default settings. Click <Next> to continue.
Click <Next> on all screens until the Installation process commences.
After the completion of successful installation, click <Finish>.
2. Connection
10.
11.
12.
13.
14.
Fit the LCD module to the connector marked ‘J6’ on the RSK2+. Ensure all the pins of the connector are correctly inserted in the socket.
Connect the E10A debugger to the connector marked ‘E10A’ (CN9) on the RSK2+ using the ribbon cable.
Connect the E10A debugger to a spare USB port on your PC. The green ‘ACT’ LED on the E10A debugger will illuminate.
Connect an external 5V power supply to the RSK2+ board at PWR connector, ensuring the polarity is correct (Centre positive).
The ‘Found New Hardware’ Wizard will appear. Please follow the steps below to install the drivers. Note that administrator privileges are required for a
Windows™ 2000/XP/Vista machine.
Windows™ 2000/XP
Windows Vista
a. Select option ‘No, not this time’ in “Found New Hardware” Wizard a. Select “Locate and install driver software (recommended)”.
dialog, and click <Next> button.
b.
c.
Verify the “Recommended” option is selected and click <Next>.
If using Windows XP, go to step ‘e’; otherwise, click <Next>.
b.
c.
“User Account Control” dialog box will appear. If applicable, enter
administrator password and click <OK>.
Driver installation will start. After couple of minutes a “Windows
security” dialog box will appear, select “install this driver software
anyway”.
“Device driver software installed successfully” pop-up will appear in
the windows toolbar and installation will complete.
d.
e.
Click <Next> to install the driver.
Click <Finish> to close the wizard.
d.
Note: The Windows driver signing dialog may be displayed. Please accept the driver to continue.
3. HEW Workspace
HEW integrates various tools such as compiler, assembler, debugger and editor into a common graphical user interface. To learn more on how to use HEW,
open the HEW manual installed on your computer (Start Menu > All Programs > Renesas > High-performance Embedded Workshop > Manual Navigator)
15. Launch HEW from the Start Menu. (Start Menu > All Programs > Renesas > High-performance Embedded Workshop).
16. In the “Welcome” dialog box: Verify “Create New Workspace” is selected. Click <OK>
17. In the “New Project Workspace” dialog box: Set the “CPU Family” to “SuperH RISC Engine”, and verify the “Tool chain” is set to “Renesas SuperH
Standard”. Select “RSK2+SH7264” from the left hand pane.
18. Enter a name for the workspace. The project name will be automatically completed with the Workspace name. You can change this name to ‘Tutorial’ if
required. Click <OK>.
19. On the “RSK2+SH7264 – Step 1” window: Select “Tutorial” and click <Next>.
20. On the “RSK2+SH7264 – Step 2” window: Click <Finish>.
21. On the Project Generator Information window: Click <OK>.
The project that is created has two configurations. The ‘Release’ configuration compiles the project without any debugger support and can be used for the
final release code version. The ‘Debug’ configuration can be used to debug the user application.
22. Select the ‘Debug’ build configuration in the left hand drop down list on the tool bar.
23. Click on the ‘Build’ icon to compile, assemble and link the project.
4. Programming and Debug
24. Ensure that ‘SessionSH2A_FPU_E10A_USB_SYSTEM’ session in the right hand
drop down list on the tool bar is selected.
25. Please open the ‘Command Line’ window by choosing ‘Command Line’ in the ‘View’ menu, or by pressing crtl +L.
26. Click the <Connect> button on the ‘debug’ toolbar.
27. Ensure the DIP switch, SW1, on the RSK2+ is set to the following configuration
1: ON
2: ON
3: OFF 4: ON
5: ON
6: OFF
28. In the “Select Emulator Mode” dialog choose “SH72643” and ensure the “E10A-USB Emulator” radio button is selected, click <OK>.
29. If this isn’t the first time you have used the E10A module with this RSK2+, please skip to step 32.
First use of the E10A module
30. The ‘Please choose driver’ dialog will be shown. Click <OK>

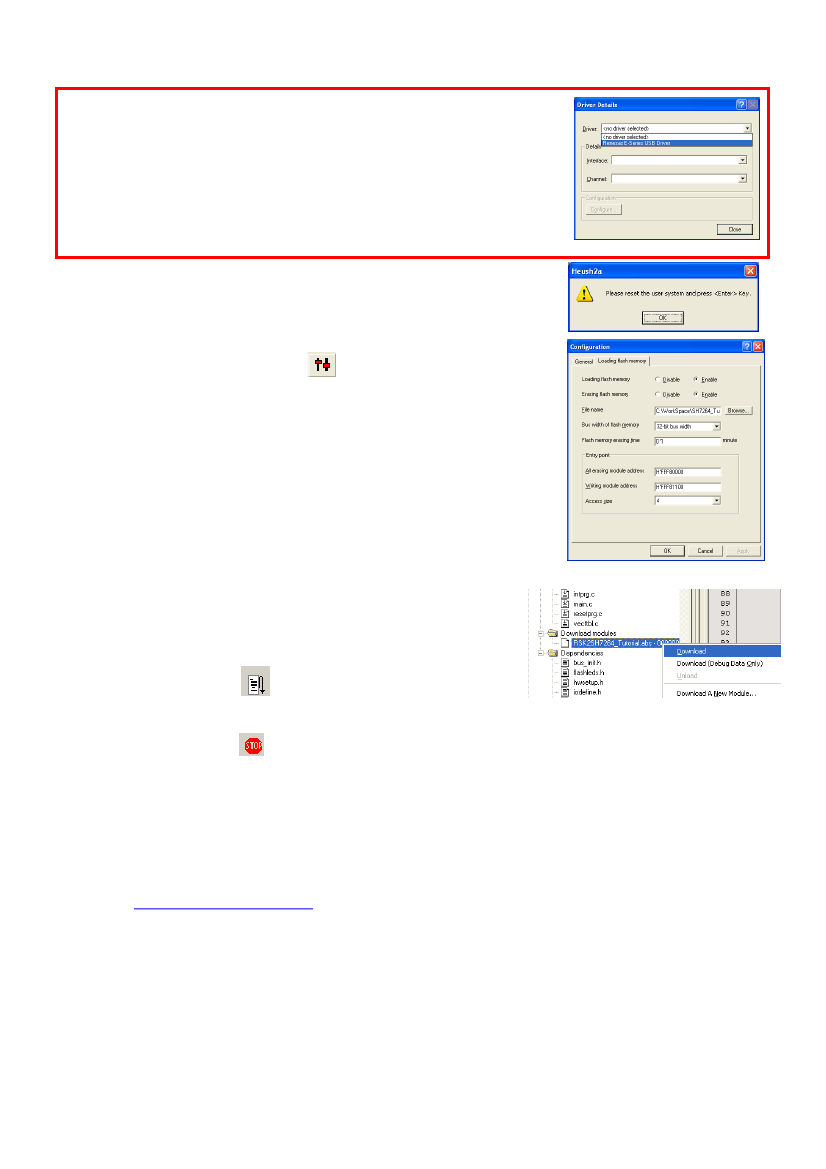

31. The ‘Driver Details’ dialog will be shown, please select “Renesas E-Series USB Driver” as
illustrated. The ‘Interface’ and ‘Channel’ items will be automatically populated. Click <Close>.
32. The Firmware setup dialog will be shown warning you not to disconnect the USB cable until the
firmware download is complete. Click <OK>.
33. The firmware will be downloaded to the E10A module; this will take a few moments.
Please do not disconnect the E10A from the host during download, doing so is likely to damage
the E10A module.
A box will appear; “Please reset the user system and press <Enter> key.”
Press the reset (RST) switch on the board and press <Enter> (or click <OK>).
HEW will connect to the target system.
Please wait until the ‘Connected’ message appears in the HEW output window. The RSK board is
successfully connected.
38. Click on the ‘Emulator System’ button in HEW.
39. The “Configuration” dialog will appear, select the ‘Loading Flash memory’ tab.
40. Select the ‘Enable’ radio button for both ‘Loading flash memory’ and for ‘Erasing flash memory’ options.
41. Browse and select the ‘fmtool_s29gl512_4M.mot’ file available in the FMTool folder present in the
project directory.
42. Check the settings against the picture to the right.
43. Click <OK> on the “Configuration” dialog.
44. Right click on the <project_name>.abs file listed in the download modules area of the
Workspace view and select “Download”. This will erase and download code in the flash.
45. The ‘Downloading program’ window will show the progress of the download, once completed
it will disappear.
46. Click the <Reset – Go> button.
47. The code will run and you will see LED1 and LED2 flash on the board, the LCD will show “Renesas SH7264”.
48. Click the <Stop> button.
49. The code will stop and the source code will be opened at the current program counter.
34.
35.
36.
37.
5. Next Step
After you have completed this quick start procedure, please review the tutorial code and sample code that came with the kit. You can add projects to the
current workspace by selecting (Project > Insert Project) from the main menu. The tutorials will help you understand the device and development process
using Renesas Development Tools.
The Hardware manual supplied with this RSK2+ is current at the time of publication. Please check for any updates to the device manual from the Renesas
website at:
www.renesas.com/renesas_starter_kits
6. Renesas SuperH Compiler
The version of the compiler provided with this RSK2+ is fully functional but time limited. You have 60 days to evaluate the full product before the compiler
will limit the code linker to 256k bytes. Full licensed SH compiler versions are available from your Renesas supplier.
