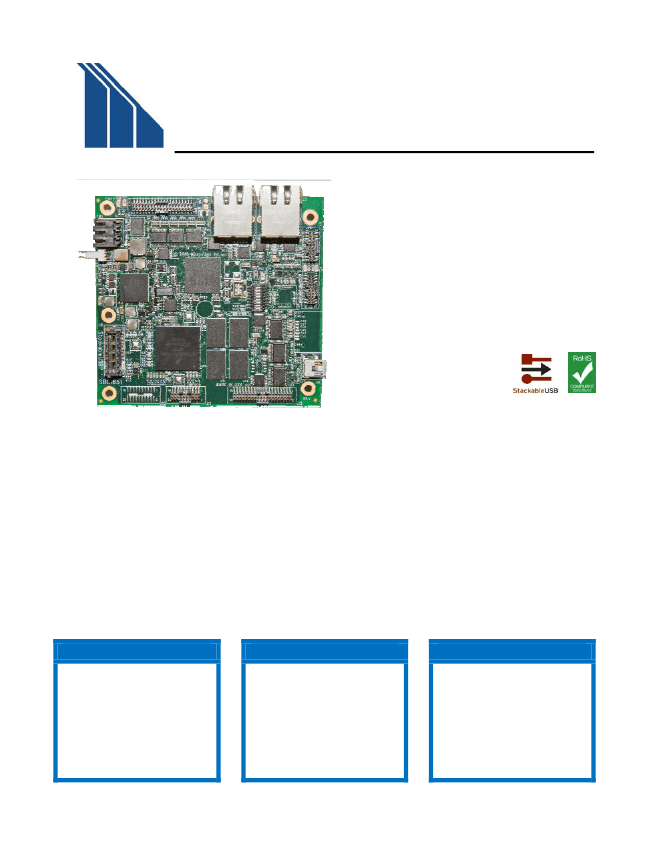

i.MX515 ARM Cortex-A8
StackableUSB™ Computer
SBC1651
Features
ARM Cortex-A8 processor, 800MHz
512MB SDRAM, 2GB Flash
Four (4) USB ports
Dual 10/100BASE-T Ethernet
Controller Area Network (CAN) port
Seven (7) serial ports
Two (2) SD/MMC card slots
24 bits of digital I/O
-40° to +85°C operation
The SBC1651 is ideal for high-performance,
low-power
embedded
applications.
Freescale’s i.MX515 ARM Cortex-A8 CPU
operates at 800MHz delivering the
performance needed to run multimedia-rich
applications in embedded environments.
Offering several embedded I/O features, the
SBC1651 also consumes minimal power,
satisfying the demanding environmental
conditions in which OEMs must operate.
A high degree of integration allows a variety of
I/O functions to be included on the SBC1651.
On-board peripherals include dual Ethernet,
Software Support
Linux
Windows CE
VxWorks
Android
C, compilers
USB On-The-Go, a real-time clock, watchdog
timer, audio support, TV out, 24-bit LVDS flat
panel display output, 4-wire touchscreen
interface, two PWM outputs, a SATA HDD
port, two SD/MMC card slots, 1-Wire
interface, seven serial ports, and 24 lines of
discrete I/O. For additional expansion, the
StackableUSB interface allows for rugged,
reliable board-to-board communication via
2
USB, I C, and SPI.
All these features make the SBC1651 ideal for
handheld, mobile devices or remote applications
requiring rich connectivity and low power.
Mounting/Packaging
Standoffs, STDOFFUSB
ENC104
Compatible Hardware
StackableUSB Client Devices
PC Hosts
LVDS FP-Kits
PSxxx, Power Supplies
Secure Digital Devices
RS232/RS485 Devices
CAN Devices
Ethernet Networks
DIO
CAN
Dual Ethernet
JTAG
Power &
Reset
MC13892
Power
Mgmt
Dual SD/MMC
LVDS Display
512 MB
SDRAM
1‐2 GB Flash
StackableUSB
i.MX515
(ARM) CPU
SATA
HDD
USB
OTG
4 MB Flash
(boot)
Audio
TVO,
Touch
COM1 – COM7
Technical Details:
At the heart of the SBC1651 is the Freescale
i.MX515 multimedia applications processor,
a System on Chip (SOC) offering high-
performance processing optimized for the
lowest power consumption. The core of
i.MX515 is an 800MHz ARM Cortex-A8
CPU. The CPU is augmented by a floating-
point coprocessor, ARM’s NEON SIMD
media accelerator, and OpenGL ES 2.0 and
OpenVG 1.1 hardware accelerators for fast,
power-efficient graphics operations.
The i.MX515 SOC integrates many
peripherals, including an interrupt controller,
watchdog timer, SDRAM and flash memory
controllers, three High-Speed USB ports,
one Full-Speed On-The-Go USB port, a
10/100 Ethernet MAC, three 16C550
UARTs, 1-Wire interface, 24-bit flat panel
display output, 4-wire touchscreen interface,
an audio port, and PWM and TV outputs.
In addition to the peripherals built into the
i.MX515, the SBC1651 packs on a second
10/100 Ethernet port, four more 16C550
UARTs, a Controller Area Network (CAN)
controller, and 24 bits of 82C55A-compatible
programmable parallel I/O.
The SBC1651 offers three boot options: A
dedicated 4MB SPI NOR flash memory, a
partition of the NAND flash, and a bootable
SD/MMC card slot.
The SBC1651 memory subsystem provides
512MB of DDR2 SDRAM for application
data. The 4MB SPI NOR flash memory holds
the bootloader and operating system. Up to
2GB NAND flash is also available for
operating system and non-volatile user
storage.
If a larger program or data storage space is
required, or if portability is needed, there are
two options for expansion. Plug in an SD
card to the second SD/MMC card slot, or use
the SATA HDD connector to attach an
external hard drive.
Seven (7) 16C550-compatible RS232 serial
ports allow communication with low-speed
devices. COM7 is software-configurable for
half-duplex RS485 communication.
The SBC1651 can be powered from an
external 5 VDC source or a battery. If
external power is supplied while a battery is
plugged in, the battery will be recharged.
Advanced power management is enabled by
the new Freescale MC13892.
The SBC1651 becomes a powerful front-end
processor for control applications with the
standard StackableUSB expansion. This
popular I/O channel accommodates multiple
I/O boards on the top side and/or the bottom
side of the board without use of a hub.
For true 32-bit application development, the
SBC1651 supports 32-bit operating systems
such as Linux, Windows CE, VxWorks, and
Android. All have full tool suites available,
including compilers and debuggers.
For pre-configured sets of options, Micro/sys
can provide OEMs with a single part number
for ordering. In addition, custom versions of
the SBC1651 are available. Please call
Micro/sys Technical Sales for details.
ET-version operating range -40° to
+85°C, with 600MHz processor
-40° to +85°C storage
5%-95% relative humidity, non-condensing
Processor Core Section:
Freescale i.MX515 multimedia
applications processor
800MHz or 600MHz clock rate
ARM Cortex-A8 CPU core
Hardware graphics accelerators (video,
OpenGL ES 2.0 and OpenVG 1.1)
JTAG (IEEE 1149.1) debug interface
On-board Memory:
512MB DDR2 Synchronous DRAM
4MB SPI NOR flash
1-2GB NAND flash (option)
Memory Expansion:
Two (2) SD/MMC card slots
SATA HDD connector (option)
Watchdog Timer:
Program must refresh watchdog timer
periodically, or system will be reset
Enabled through software
COM1-COM7 Serial Ports:
Seven (7) asynchronous serial ports
16C550-compatible
RTS and CTS modem controls (all
except COM3)
RS232 on all channels
COM7 RS485 half-duplex
10/100BASE-T Ethernet Ports:
Two (2) 10/100BASE-T Ethernet ports
Standard RJ45 connectors
USB:
One (1) Full-Speed On-The-Go USB 2.0
port providing device and limited Host
functions, Mini-AB connector
Three (3) High-Speed USB 2.0 Host
ports, StackableUSB connector
Transfers at High-Speed 480Mbit/sec,
Full-Speed 12Mbit/sec, or 1.5Mbit/sec
Specifications:
Mechanical:
PC/104 mounting holes
3.55” (plus I/O region) x 3.775” x .6”
Installed Secure Digital (SD) cards
extend past edge of board opposite the
StackableUSB connector
Ethernet connector on top side has
height of .535”
Power Requirements:
+5v ±5% at 500mA typical, 850mA max
Battery input voltage up to 4.8V
Power Connector
Pin
1
2
3
Signal
+5V
Battery Input
GND
Environmental:
Operating range 0° to +70°C, with
800MHz processor
Controller Area Network:
CAN version 2.0B, 1Mbit/sec
Standard and extended data and remote
frames
Two (2) receive buffers and three (3)
transmit buffers with prioritized message
storage
Real Time Clock:
RTC with rechargeable on-board battery
Digital I/O:
82C55-compatible digital I/O:
•
24 TTL bi-directional signals
•
Direction programmable in three
(3) groups of eight bits
•
470-ohm current-limiting
resistors on all lines
4-wire touchscreen interface
I
2
C (on StackableUSB connector)
SPI (on StackableUSB connector)
1-Wire interface
Two (2) PWM outputs
Audio/Video I/O:
Microphone input, stereo line in/line out,
headphone out
FPDLink 24-bit LVDS flat panel display
transmitter
TV-out
External Connections:
40-pin header for COM1-COM7, RS485
40-pin header for digital I/O and CAN
Four (4) 20-pin headers for LVDS
display out, Audio, TV-out/touchscreen,
and JTAG
Two (2) 8-pin modular RJ45 jacks for Ethernet
Two (2) SD/MMC card slots
SATA HDD connector
Mini-B USB connector
2-pin locking header for reset
3-pin removable terminal strip for power input
Development Kit:
Single Board Computer
Complete cable set
Documentation, sample software
Ordering Information:
OEM Single Board Computers:
SBC1651
i.MX515 ARM Cortex-A8
CPU, 800MHz, 512MB
SDRAM, 4MB NOR
Flash, dual Ethernet
SBC1651-ET
i.MX515 ARM Cortex-A8
CPU, 600MHz, 512MB
SDRAM, 4MB NOR
Flash, dual Ethernet,
-40°C to +85°C operating
temperature
CS1651
Complete Cable Set
1651OPT5
Upgrade to 1GB flash
1651OPT6
Upgrade to 2GB flash
1651OPT22
CAN Bus Interface
1651OPT24
SATA Interface
1651OPT45
Audio Interface
Related Products:
BA2020
20-pin high density to
BA4040
CA4133
CA4136
20-pin screw terminal
40-pin high density to
40-pin screw terminal
RJ45 Ethernet Cable
Mini B to Type A USB
Cable
Cables nominally 15”, other lengths available
StackableUSB trademark Micro/sys, Inc.
VxWorks trademark Wind River
Android trademark Google, Inc.
Development Board Kits*
DK1651-Linux
DK1651-WinCE
.
SBC1651 Linux-installed
development kit
SBC1651 WinCE-ready
development kit
SBC1651-ET Linux-
installed development kit
SBC1651-ET WinCE-
ready development kit
DK1651-ET-Linux
DK1651-ET-WinCE
*See Development Kit Specifications
