8161J81ZQE12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 8161J81ZQE12

8161J81ZQE12: DescriptionPushbutton Switch, SPDT, Latched, 6A, 28VDC, Solder Terminal, Panel Mount-threaded, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size60KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric View All

8161J81ZQE12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8161J81ZQE12	-	-	View	Buy Now

8161J81ZQE12 Overview

Pushbutton Switch, SPDT, Latched, 6A, 28VDC, Solder Terminal, Panel Mount-threaded, ROHS COMPLIANT

8161J81ZQE12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITT
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	PLUNGER
body width	6.86 mm
body height	11.43 mm
Body length or diameter	12.7 mm
Contact (AC) maximum rated R load	6A@120VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	6 A
Contact (DC) maximum rated R load	6A@28VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Electrical life	50000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	8060
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	65 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	Silver (Ag)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

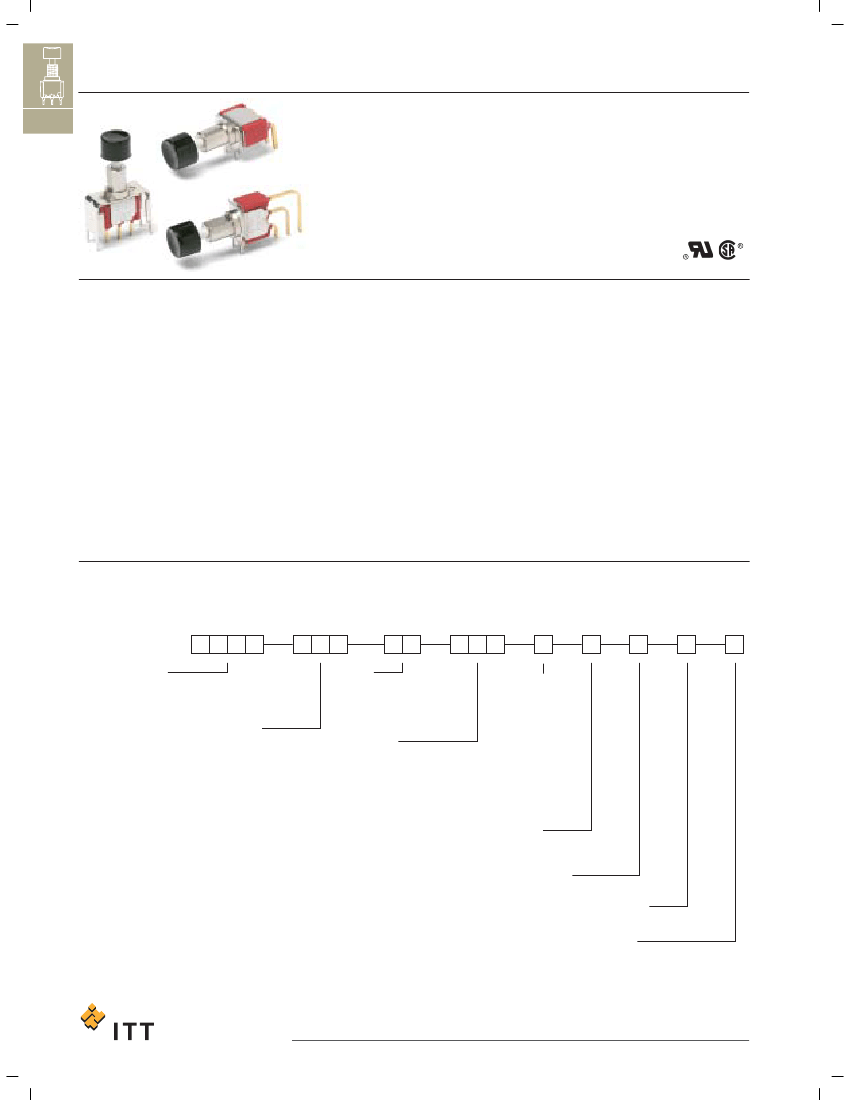

C&K 8060 Series

Alternate Action and Momentary Pushbutton Switches

Pushbutton

Features/Benefits

•

Long travel

•

Available with LED

•

Long life contact design

•

Epoxy terminial seal

compatabile with bottom

wash cleaning

Typical Applications

•

Instrumentation

•

Computers and peripherals

•

Telecommunications and

networking equipment

•

RoHS compliant models

available

Specifications

CONTACT RATING: Q contact material: 6 AMPS @ 120 V AC

or 28 V DC; 3 AMPS @ 250 V AC. See page A-57 for

additional ratings.

ELECTRICAL LIFE: 50,000 make-and-break cycles at full load.

CONTACT RESISTANCE: Below 20 mΩ typ. initial @

2-4 V DC, 100 mA, for both silver and gold plated contacts.

INSULATION RESISTANCE: 109

min.

DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.

OPERATING TEMPERATURE: –30ºC to 65ºC

SOLDERABILITY: Per MIL-STD-202F method 208D, or

EIA RS-186E method 9 (1 hour steam aging).

CAP INSTALLATION FORCE: 10 lbs. maximum permissible.

NOTE:

Any models supplied with P, R, S, Q, B or G contact material are RoHS compliant.

For the latest information regarding RoHS compliance,

please go to: www.ittcannon.com/rohs.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Models Available

Materials

CASE: Glass filled nylon 6/6 or diallyl phthalate (DAP),

flame retardant (UL 94V-0).

PLUNGER: S, S1, S2 Options: Glass filled nylon or glass filled

polyester (PBT) (UL 94V-0). L, L1 Options: Brass, nickel plated.

CAP & FRAME: Nylon, black standard.

BUSHING: Brass or zinc, nickel plated.

HOUSING: Stainless steel.

SWITCH SUPPORT: Brass or steel, matte-tin plated.

END CONTACTS: Q contact material: Coin silver, silver plated.

See page A-57 for additional contact materials.

CENTER CONTACT & ALL TERMINALS: Q contact material: Copper

alloy, silver plated. See page A-57 for additional contact materials.

TERMINAL SEAL: Epoxy. Refer to soldering and cleaning

in Technical Data Chapter.

HARDWARE: Nut & Locking Ring: Brass, nickel plated;

Lockwasher: Steel, nickel plated.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown

and described on pages A-51 thru A-59. For additional options not shown in catalog, consult Customer Service Center. All

models have epoxy terminal seal and are compatible with all “bottom-wash” PCB cleaning methods.

Switch Function

8161

SPDT On-On

8168

SPDT On-Mom.

8261

DPDT On-On

Actuator or Plunger

.710"

high plunger

with .375" dia. cap

J80

Snap-in

J81

Snap-in with frame

J82

Snap-in with frame for LED

J86

Snap-in with frame & LED

.740" high plunger with

.395" dia. cap

.740" high plunger with

.590" dia. cap

.615" high plunger with

.200" dia. cap

.710" high plunger with

.310" dia. cap

Bushing

.300" high, flat, hi torque

NONE

No bushing choice required

7.6mm, keyway

Terminations

Right angle, PC thru-hole

AV2

Vertical right angle,

PC thru-hole

PC Thru-hole

Solder lug

Right angle, snap-in, PC thru-hole

AV3

Vertical right angle, snap-in,

PC thru-hole

.460" high, V-bracket

.630" high, V-bracket

.460" high, V-bracket

V21

.555" high, snap-in V-bracket

V31

.460" high, snap-in V-bracket

.750" long, wire wrap

Quick connect

Contact Material

Gold

Gold, tin-lead

Gold, matte-tin

Silver

Silver, tin-lead

Silver, matte-tin

Gold over silver

Gold over silver, tin-lead

Gold over silver,

matte-tin

Seal

Epoxy

Epoxy potted base

Cap Color

Black

White

Red

Orange

Yellow

Gray

Frame Color

Black

LED Color

Red

NONE

Models without LED

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

A–50

www.ittcannon.com

Recommended Resources
