ZYBO Reference Manual

Revised February 14, 2014

This manual applies to the ZYBO rev. B

Overview

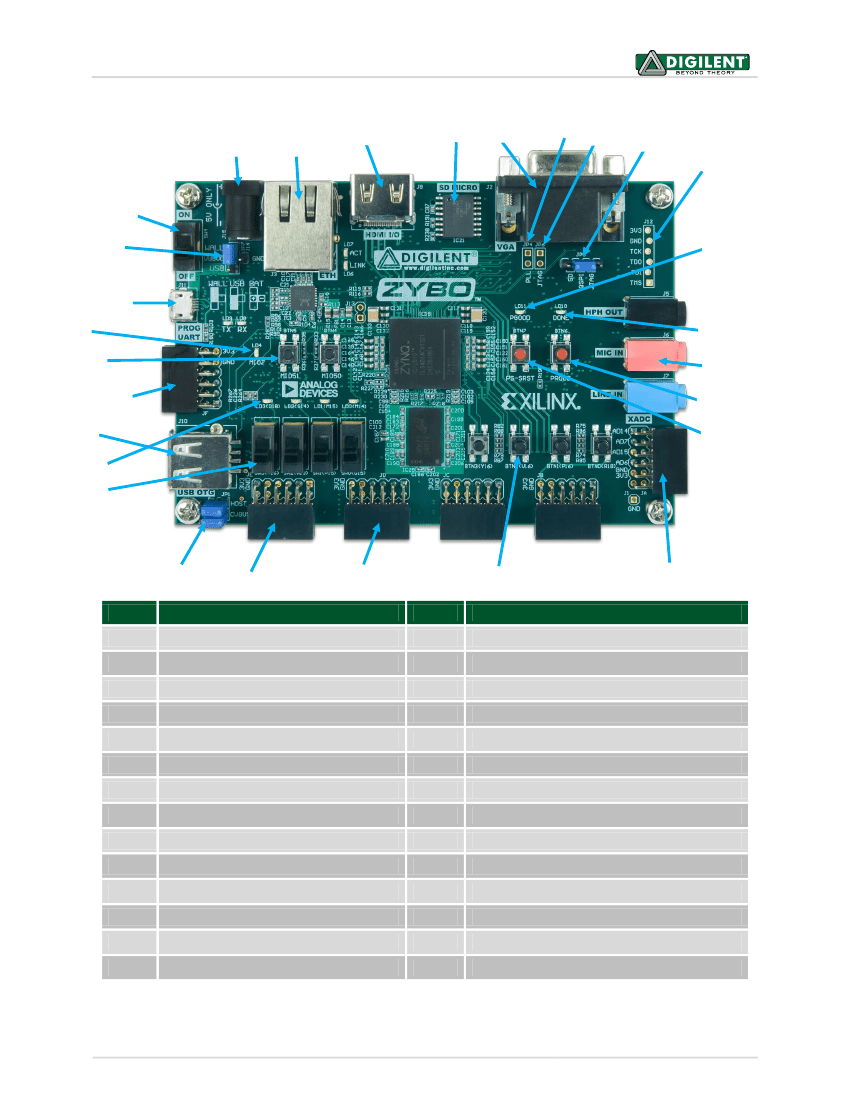

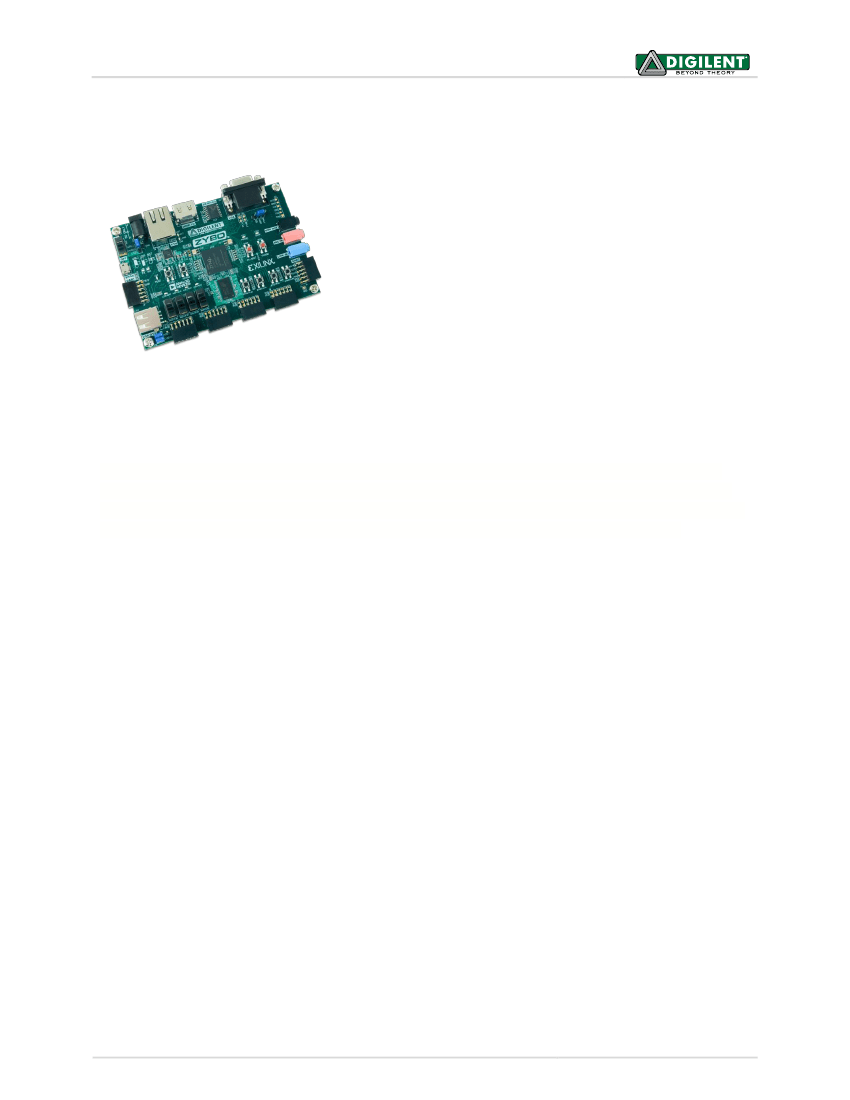

The ZYBO (ZYnq

BOard)

is a feature-rich, ready-to-use, entry-level embedded software and digital circuit

development platform built around the smallest member of the Xilinx Zynq-7000 family, the Z-7010. The Z-7010 is

based on the Xilinx All Programmable System-on-Chip (AP SoC) architecture, which tightly integrates a dual-core

ARM Cortex-A9 processor with Xilinx 7-series Field Programmable Gate Array (FPGA) logic. When coupled with the

rich set of multimedia and connectivity peripherals available on the ZYBO, the Zynq Z-7010 can host a whole

system design. The on-board memories, video and audio I/O, dual-role USB, Ethernet, and SD slot will have your

design up-and-ready with no additional hardware needed. Additionally, six Pmod connectors are available to put

any design on an easy growth path.

The Zynq 7010 AP SoC offers the following features:



650Mhz dual-core Cortex-A9 processor

DDR3 memory controller with 8 DMA channels

High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO

Low-bandwidth peripheral controller: SPI, UART, CAN, I

Reprogrammable logic equivalent to Artix-7 FPGA

4,400 logic slices, each with four 6-input LUTs and 8 flip-flops

240 KB of fast block RAM

Two clock management tiles, each with a phase-locked loop (PLL) and mixed-mode clock

manager (MMCM)

80 DSP slices

Internal clock speeds exceeding 450MHz

On-chip analog-to-digital converter (XADC)

DOC#: 502-279

Other product and company names mentioned may be trademarks of their respective owners.

Page

ZYBO™ FPGA Board Reference Manual

1 Power Supplies

The ZYBO can be powered from the Digilent USB-JTAG-UART port (J11), or from an external power supply. Jumper

JP7 (near the power switch) determines which power source is used. There are three valid configurations for this

jumper corresponding to the three powering options: USB, wall wart with barrel jack, and battery pack. There is a

diagram on the board silkscreen indicating all three.

All on-board power supplies are enabled or disabled by the power switch SW4. The power indicator LED (LD11) is

on when all the supply rails reach their nominal voltage. An overview of the power circuit is shown in Fig.2

Power

Jack

(J15)

Power

Switch

(SW4)

R281

VU5V0

VIN

PVIN5

PVIN1-4

1.5A

2.1A

1.2A

0.6A

D13

0.1A

PGOOD

REF

1.25V (III)

3.3V (III)

1.0V (I)

1.5V (III)

1.8V (II)

IC27: ADR127

JP7

J14

Micro-USB

Port (J11)

1.8V (III, analog)

Power-on Reset

Power On

LED (LD11)

IC26: ADP5052

Power Source Select

JP7

J14

USB

WALL

BATTERY

VIN

0.1A

3.3V (IV, analog)

IC6: ADP150

Figure 2. Power circuit overview.

A USB 2.0 port can deliver maximum 0.5A of current according to the specifications. This should provide enough

power for lower complexity designs. An idling blank board consumes around 0.2A from the 5V input supply. As an

example, the standalone lwIP echo server sample project replying to ping requests consumes 0.38A on average.

More demanding applications, including any that drive multiple peripheral boards or other USB devices, might

require more power than the USB port can provide. In this case, power consumption will increase until it’s limited

by the USB host. This limit varies a lot between manufacturers and depends on many factors. When in current

limit, once the voltage rails dip below their nominal value, the Zynq is reset by the Power-on Reset signal and

power consumption returns to its idle value. Also, some applications may need to run without being connected to

a PC’s USB port. In these instances an external power supply or battery pack can be used.

An external power supply (wall wart) can be used by plugging into to the power jack (J15) and setting jumper JP7

to “wall”. The supply must use a coax, center-positive 2.1mm internal-diameter plug, and deliver 4.5VDC to

5.5VDC and at least 2.5A of current (i.e., at least 12.5W of power). Suitable supplies can be purchased from the

Digilent website or through catalog vendors like DigiKey. Power supply voltages above 6VDC might cause

permanent damage.

An external battery pack can be used by connecting the battery’s positive terminal to the center pin of JP7 and the

negative terminal to the pin labeled J14 next to JP7. The external battery pack must be limited to 5.5VDC. The

Other product and company names mentioned may be trademarks of their respective owners.

Page

ZYBO™ FPGA Board Reference Manual

minimum voltage of the battery pack depends on the application: if the USB Host (J10) or HDMI Source (J8)

function is used, at least 4.6V need to be provided. In other cases the minimum voltage is 3.6V.

Voltage regulator circuits from Analog Devices create the required 3.3V, 1.8V, 1.5V, and 1.0V supplies from the

main power input. Table 2 provides additional information (typical currents depend strongly on FPGA configuration

and the values provided are typical of medium size/speed designs).

Supply

3.3V

1.0V

1.5V

1.8V

3.3V

1.25V

Circuits

FPGA I/O, USB ports, Clocks,

Ethernet, SD slot, Flash, HDMI

FPGA, Ethernet Core

DDR3

FPGA Auxiliary, Ethernet I/O,

USB OTG

XADC Analog

Audio Analog

XADC Precision Reference

Device

IC26#1: ADP5052

IC26#2: ADP5052

IC26#3: ADP5052

IC26#4: ADP5052

IC26#5: ADP5052

IC6: ADP150

IC27: ADR127

Table 2. ZYBO power supplies.

Current (max/typical)

2.5A/0.1A to 1.5A

2.5A/0.2A to 2.1A

1.2A/0.1A to 1.2A

1.2A/0.1A to 0.6A

200mA/20mA

150mA/50mA

5mA/50uA

The supply rails are daisy-chained to follow the Xilinx-recommended start-up sequence. Flicking the power switch

(SW4) will enable the 1.0V rail, which enables the 1.8V digital supply rail, which in turn enables the I/O supply rails

3.3V and 1.5V. The 1.25V reference and 1.8V analog supply ramp together with the 3.3V rail. Once all the channels

of the ADP5052 (IC26) supply reach regulation, the PGOOD signal will assert, enabling the 3.3V audio supply,

lighting up the power LED (LD11), and de-asserting the Power-On Reset signal (PS_POR_B) of the Zynq.

Each power supply uses a soft-start ramp of 1-10ms to limit in-rush current. There is an additional delay of at least

130ms after the power rails reach regulation and before the Power-On Reset signal de-assert to allow for the

PS_CLK (IC22) to stabilize.

2 Zynq AP SoC Architecture

The Zynq AP SoC is divided into two distinct subsystems: The Processing System (PS), and the Programmable Logic

(PL). Figure 3 shows an overview of the Zynq AP SoC architecture, with the PS colored light green and the PL in

yellow. Note that the PCIe Gen2 controller and Multi-gigabit transceivers are not available on the Zynq-7010

device.

Other product and company names mentioned may be trademarks of their respective owners.

Page
