TECHNICAL DATASHEET

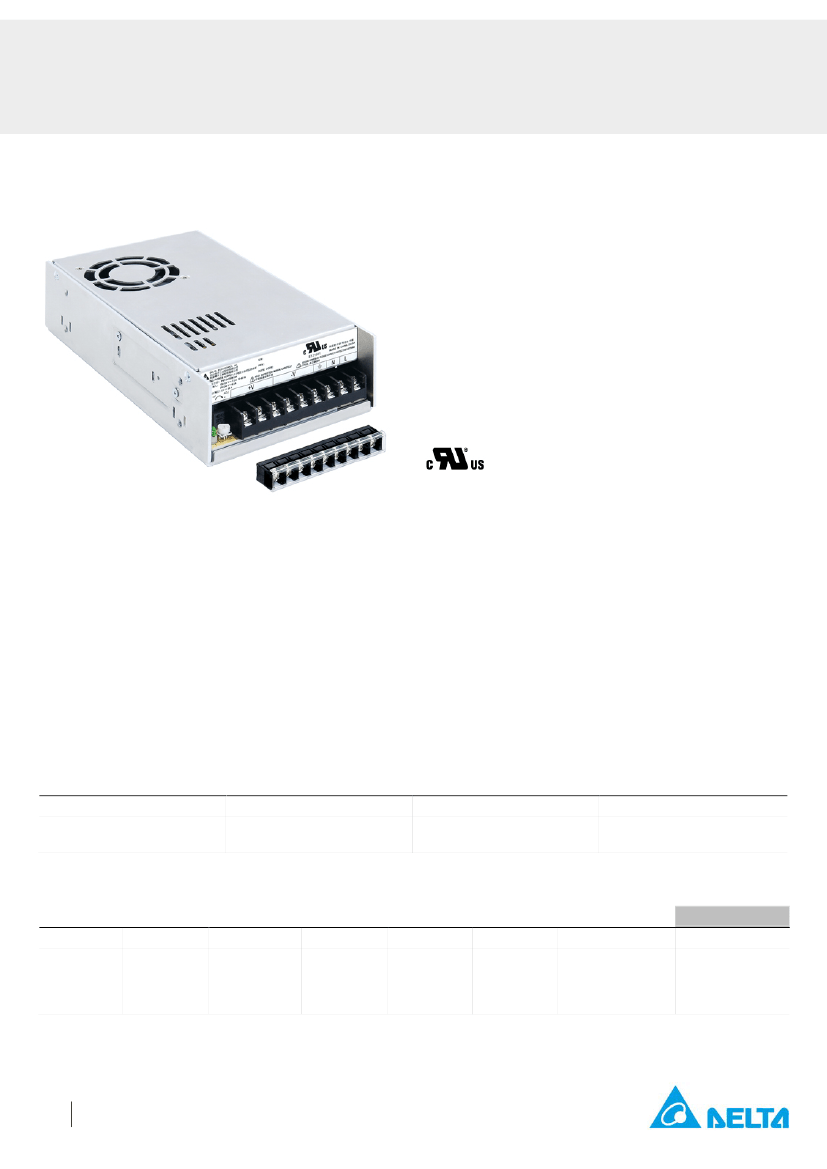

PMT Panel Mount Power Supply
5V 300W 1 Phase / PMT-5V350W1A
□□
PMT
Highlights & Features
–
–
–
–
–
–
AC input range selectable by switch
Full Aluminium casing for light weight and corrosion resistant
handling
Built-in automatic fan speed control circuit
Wide operating temperature range from -20°C to +70°C and
cold start at -40°C
MTBF > 700,000 hrs. as per Telcordia SR-332
Short Circuit / Overvoltage / Overload / Over Temperature
Protections
Safety Standards
CB Certified for worldwide use
Model Number:
PMT-5V350W1A☐☐
Unit Weight:
0.81 kg
Dimensions (L x W x D):
215 x 115 x 50 mm
General Description
The new PMT series of panel mount power supplies is the latest offering from one of the world’s largest power supply manufacturers
and solution providers - Delta. PMT-5V350W1A☐☐ offers a nominal output voltage of 5V with a wide operating temperature range
from -20°C to +70°C and can withstand shock and vibration (in accordance to IEC 60068-2-27 and IEC 60068-2-6 respectively). In
addition to features like overvoltage and overload protections, Delta’s PMT series of panel mount power supplies is unlike many other
brands in the same price level. The PMT series is designed for cost competitive markets without compromising the quality of the
components and product specifications. The series of products has an expected life time of 10 years and will have no output power de-
rating from 100Vac to 132Vac & 180Vac to 264Vac.
Model Information
PMT Panel Mount Power Supply
Model Number
PMT-5V350W1A☐☐
Input Voltage Range
90-132Vac, 180-264Vac
(Selectable by Switch)
Output Voltage
5Vdc
Output Current
60.0A
Model Numbering
CC Code
PM
T–
5V
350W
1
A
□
□
Panel Mount Product Type Output Voltage Output Power Single Phase No PFC
T – Enclosed
(350W series
Series
model)
Connector Type
Blank – Without
M – Terminal Block connector cover
N – Front Face*
A – With connector
cover
*Options
1
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (May 2014, Rev. 01)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5V 300W 1 Phase / PMT-5V350W1A
□□
Specifications
Input Ratings / Characteristics
Nominal Input Voltage
Input Voltage Range
Nominal Input Frequency
Input Frequency Range
Input Current
Efficiency at 100% Load
Max Inrush Current
Leakage Current
100-120Vac, 200-240Vac (Selectable by Switch)
90-132Vac, 180-264Vac (Selectable by Switch)
50-60Hz
47-63Hz
< 7.00A @ 115Vac, < 4.00A @ 230Vac
> 76.0% @ 230Vac
< 40A @ 115Vac, < 60A @ 230Vac
< 3.5mA @ 240Vac
Output Ratings / Characteristics
Nominal Output Voltage
Output Voltage Tolerance
Output Voltage Adjustment Range
Output Current
Output Power
Line Regulation
Load Regulation
PARD (20MHz)
Rise Time
Start-up Time
Hold-up Time
Dynamic Response (Overshoot & Undershoot O/P Voltage)
Start-up with Capacitive Loads
5Vdc
± 3% (initial set point tolerance from factory)
4.50-5.60Vdc
60.0A
300W
± 0.5% typ.
± 2.5% typ.
< 150mVpp
< 50ms @ nominal input (100% load)
< 1000ms @ nominal input (100% load
)
> 16ms @ 115Vac, > 20ms @ 230Vac
± 1000mVpp @ 10-50% load and 50-100% load
8,000µF Max
Mechanical
Case Chassis
Case Cover
Dimensions (L x W x D)
Unit Weight
Indicator
Cooling System
Terminal
Wire
PMT-5V350W1AM☐
PMT-5V350W1AN☐
Aluminium
Aluminium
215 x 115 x 50 mm
0.81 kg
Green LED (DC OK)
Forced Cooling
M3.5 x 9 Pins (Rated 300V/15A)
M3.5 x 9 Pins (Rated 300V/20A)
AWG 14-12
2
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (May 2014, Rev. 01)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5V 300W 1 Phase / PMT-5V350W1A
□□
Environment
Surrounding Air Temperature
Power De-rating
Operating
Storage
-20°C to +70°C
-40°C to +85°C
>
50
°C de-rate power by 4% / °C,
> 60°C de-rate power by 1% / °C
< 100Vac de-rate power by 3% / V,
< 200Vac de-rate power by 1.5% / V
5 to 95% RH (Non-Condensing)
0 to 5,000 Meters
IEC 60068-2-27, Half Sine: 50G for a duration of 11ms,
3 times per direction, 18 times in total
Operating
Non-Operating
Pollution Degree
IEC 60068-2-6, Sine Wave: 10Hz to 150Hz @ 25m/S²
(2.5G peak); 90 min per axis for all X, Y, Z direction
IEC 60068-2-6, Random: 5Hz to 500Hz @ 2.09Grms
peak; 20 min per axis for all X, Y, Z direction
2
Operating Humidity
Operating Altitude
Shock Test (Non-Operating)
Vibration
Protections
Overvoltage
Overload / Overcurrent
Over Temperature
Short Circuit
Protection Against Shock
*PE: Primary Earth
< 5.75~7.50V, SELV Output, Latch Mode
> 105~135% of rated load current, Hicc-up Mode,
Non-Latching (Auto-Recovery)
Hicc-up Mode, Non-Latching
(Auto-Recovery when the fault is removed)
Hicc-up Mode, Non-Latching
(Auto-Recovery when the fault is removed)
Class I with PE* connection
Reliability Data
MTBF
Expected Cap Life Time
> 700,000 hrs. as per Telcordia SR-332
I/P: 100Vac, O/P: 100% load, Ta: 35°C
Expected Cap Life Time
Safety Standards / Directives
Electrical Safety
Material and Parts
Galvanic Isolation
Input to Output
Input to Ground
Output to Ground
UL/cUL recognized to UL 60950-1 and CSA C22.2
No. 60950-1, CB scheme to IEC 60950-1
RoHS Directive 2011/65/EU Compliant
3.0KVac
1.5KVac
0.5KVac
3
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (May 2014, Rev. 01)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5V 300W 1 Phase / PMT-5V350W1A
□□
EMC
EMC / Emissions*
Immunity to*
Electrostatic Discharge
IEC61000-4-2
CISPR22, EN55022, FCC Title 47: Class A
(With Delta EMI filter P/N: 10DKAW5)
EN 55024
Level 4 Criteria A
1)
Air Discharge: 15kV
Contact Discharge: 8kV
Level 3 Criteria A
1)
80MHz-1GHz, 10V/M with 1kHz tone / 80% modulation
Level 3 Criteria A
1)
2kV
Level 3 Criteria A
1)
Common Mode
2)
: 2kV
3)
Differential Mode : 1kV
Level 3 Criteria A
1)
150kHz-80MHz, 10Vrms
Criteria A
1)
10A/Meter
100% dip; 1 cycle (20ms); Self Recoverable
Level 3 Criteria A
1)
Common Mode
2)
: 2kV
Differential Mode
3)
: 1kV
NA
IEC/EN 61000-3-3
Radiated Field
Electrical Fast Transient / Burst
Surge
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
Conducted
Power Frequency Magnetic Fields
Voltage Dips
Low Energy Pulse Test (Ring Wave)
IEC61000-4-6
IEC61000-4-8
IEC61000-4-11
IEC61000-4-12
Harmonic Current Emission
Voltage Fluctuation and Flicker*
*Fulfills tested conditions
1) Criteria A: Normal performance within the specification limits
2) Asymmetrical: Common mode (Line to earth)
3) Symmetrical: Differential mode (Line to line)
4
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (May 2014, Rev. 01)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
5V 300W 1 Phase / PMT-5V350W1A
□□

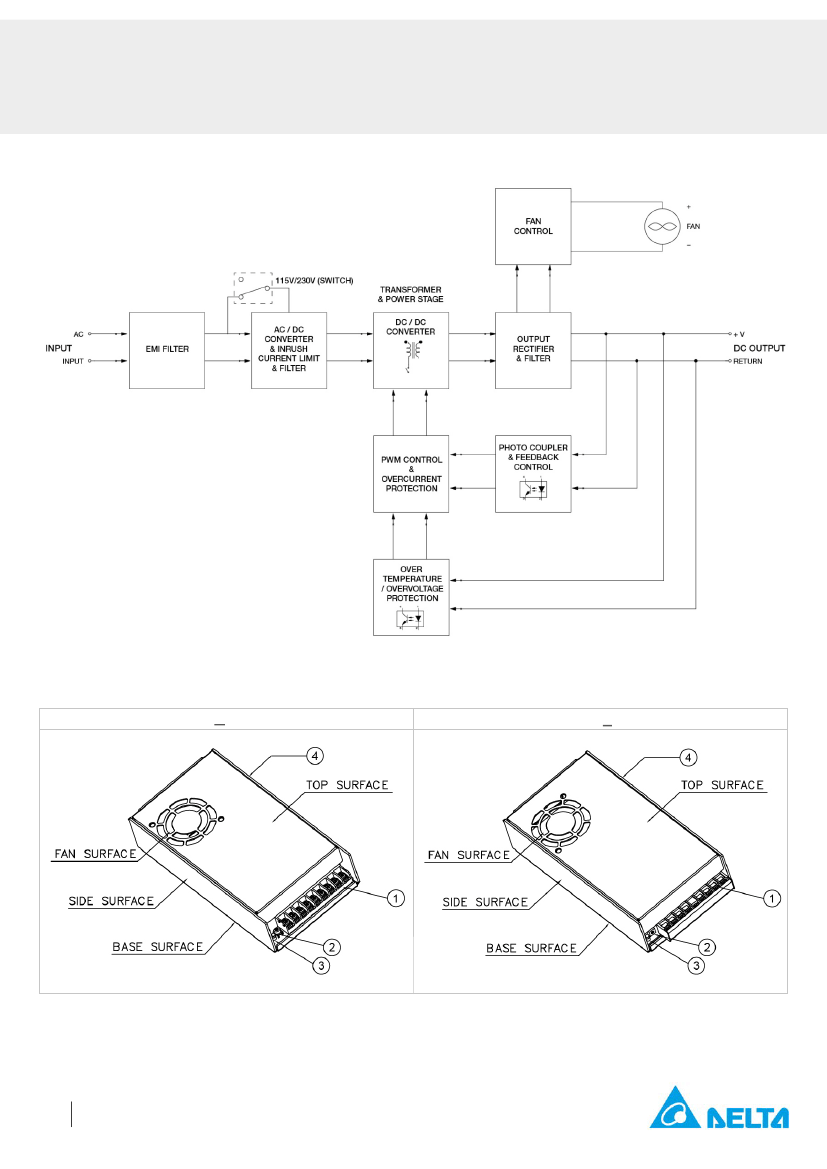

Block Diagram
Device Description
PMT-5V350W1AM☐:
Terminal Block
PMT-5V350W1AN☐:
Front Face
1)
2)
3)
4)
Input & Output terminal block connector
DC voltage adjustment potentiometer
DC OK control LED (Green)
AC selectable switch
5
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (May 2014, Rev. 01)
