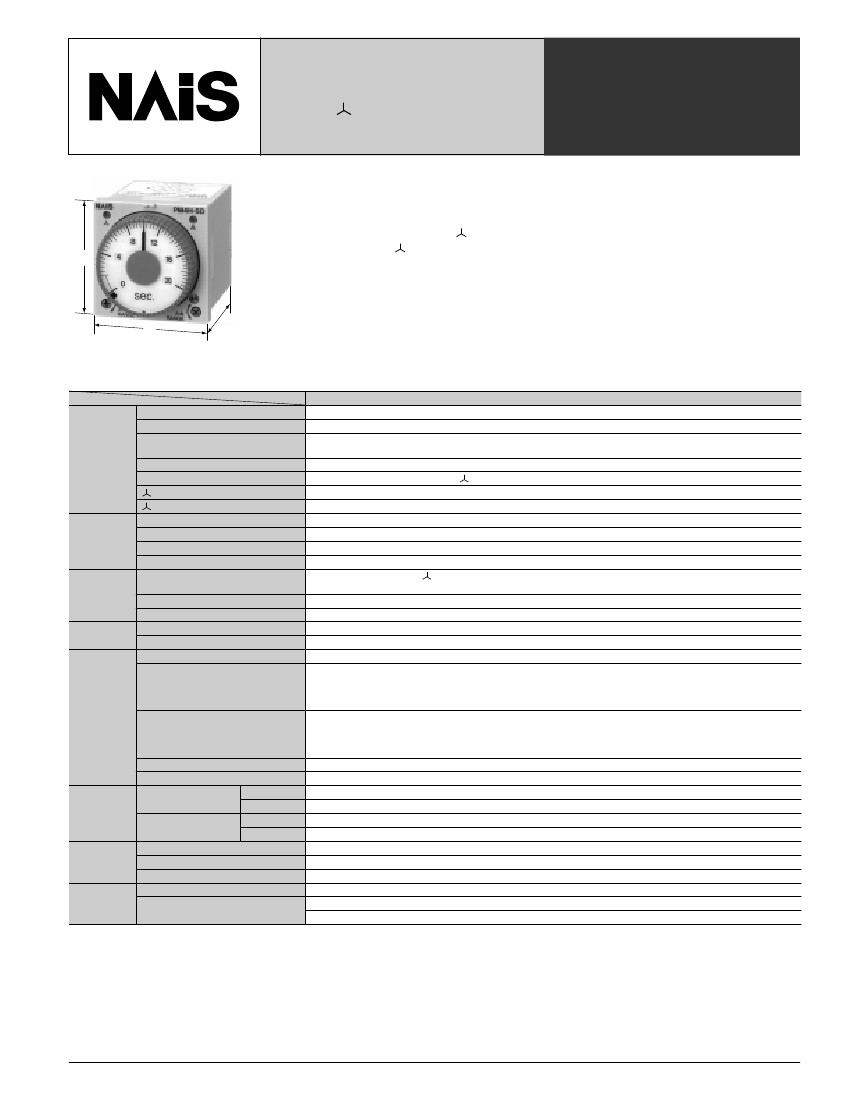

DIN48 SIZE ANALOG
STAR ( )-DELTA ( ) TIMERS
PM4H-SD/SDM
FEATURES
•
Select four types of operation time ranges between 0.2 s and 100 s on a single
unit.
•
Select between five ( - switching) time ranges between 0.04 s and 0.7 s.
•
There is a
- switching indicator so you can check the operation at a
glance.

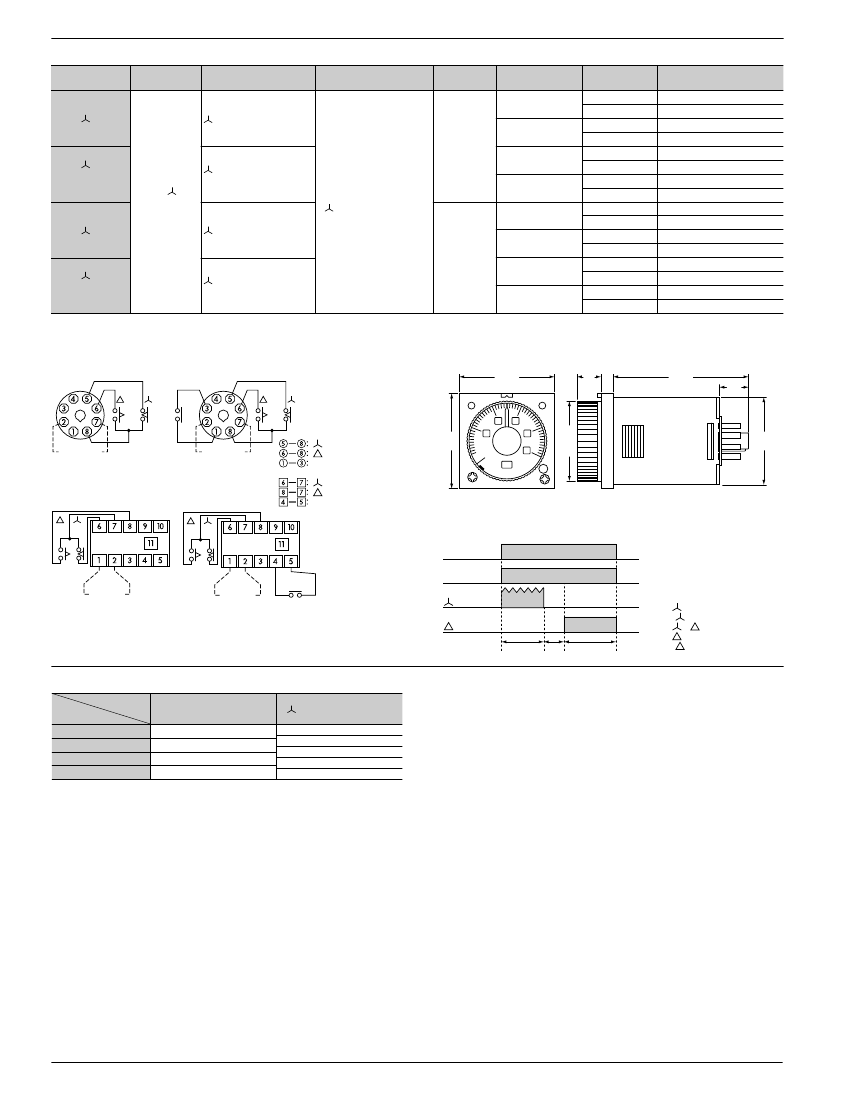

mm
inch
48
1.890
66.5
2.618
48
1.890
CHARACTERISTICS
Item
Rated operating voltage
Rated frequency
Rated power consumption
Rating
Output rating
Operation mode
operation control time range
- switching time
Operation time fluctuation
Time
Setting error
accuracy
Note:) Voltage error
Temperature error
Contact arrangement
Contact
Contact resistance (Initial value)
Contact material
Mechanical
Electrical
Allowable operating voltage range
Insulation resistance (Initial value)
Electrical
function
Breakdown voltage (Initial value)
Min. power off time
Max. temperature rise
Shock resistance
Mechanical
function
Vibration resistance
Functional
Destructive
Functional
Destructive
Type
PM4H-SD/SDM
100 to 240V AC, 24V AC
50/60Hz common (AC operating type)
Max. 10VA (100 to 240V AC)
Max. 2.5VA (24V AC)
5A 250V AC (resistive load)
- star-delta switching (Power ON-delay)
2s to 100s, 4 time ranges switchable
0.04, 0.1, 0.3, 0.5, 0.7s (5 time ranges selectable)
±0.3%
(power off time change at the range of 0.1s to 1h)
±5%
±0.5%
(at operating voltage changes between 85 to 110%)
±2%
(at 20°C ambient temp. at the range of –10 to +50°C
+14 to +122°F)
Star ( ) side: Timed-out 1 Form A Delta ( ) side: Timed-out 1 Form A
Instantaneous: 1 Form A (Instantaneous for SDM type only)
Max. 100mΩ (at 1A 6V DC)
Au flash on Silver alloy
2×10
7
10
5
(at rated control capacity)
85 to 110% of rated operating voltage (at 20°C coil temp.)
Between live and dead metal parts
Between input and output
Min. 100MΩ
(At 500V DC)
Between contacts of different poles *3
Between contacts of same pole
2,000Vrms for 1 min Between live and dead metal parts
2,000Vrms for 1 min Between input and output
2,000Vrms for 1 min Between contacts of different poles *3
1,000Vrms for 1 min Between contacts of same pole
500ms
65°C
131°F
Min. 294m/s
2
(4 times on 3 axes)
Min. 980m/s
2
(5 times on 3 axes)
10 to 55Hz: 1 cycle/min double amplitude of 0.5mm (10min on 3 axes)
10 to 55Hz: 1 cycle/min double amplitude of 0.75mm (1h on 3 axes)
–10 to +50°C
+14 to +122°F
Max. 85%RH
860 to 1,060hPa
IP65 on front panel (using rubber gasket ATC18002)
100g
3.527 oz
(Pin type)
110g
3.880 oz
(Screw terminal type)
Life
Operating
condition
Ambient temperature
Ambient humidity
Atmospheric pressure
Protective construction
Weight
Others
Notes: 1) Unless otherwise specified, the measurement conditions at the maximum scale time standard are specified at rated operating voltage, 20°C
68°F
ambient tem-
perature, and 1s power off time.
2) For the 2s range, the tolerance for each specification becomes ±10ms.
3) Between contacts of different poles for SDM type only.
