KT1612A33600ACW18T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> KT1612A33600ACW18T

Preview

KT1612A33600ACW18T: DescriptionClipped Sine Output Oscillator, 16.368MHz Min, 52MHz Max, 33.6MHz Nom, ROHS COMPLIANT, ULTRA MINIATURE, SMD, 4 PIN; CategoryPassive components oscillator; File Size76KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric View All

KT1612A33600ACW18T Overview

Clipped Sine Output Oscillator, 16.368MHz Min, 52MHz Max, 33.6MHz Nom, ROHS COMPLIANT, ULTRA MINIATURE, SMD, 4 PIN

KT1612A33600ACW18T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
package instruction	SOLCC4,.06
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.5%
Manufacturer's serial number	KT1612
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	52 MHz
Minimum operating frequency	16.368 MHz
Nominal operating frequency	33.6 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
Package body material	CERAMIC
Encapsulate equivalent code	SOLCC4,.06
physical size	1.69mm x 1.29mm x 0.7mm
power supply	1.8 V
Certification status	Not Qualified
Maximum slew rate	2 mA
Maximum supply voltage	3.45 V
Minimum supply voltage	1.68 V
Nominal supply voltage	1.8 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

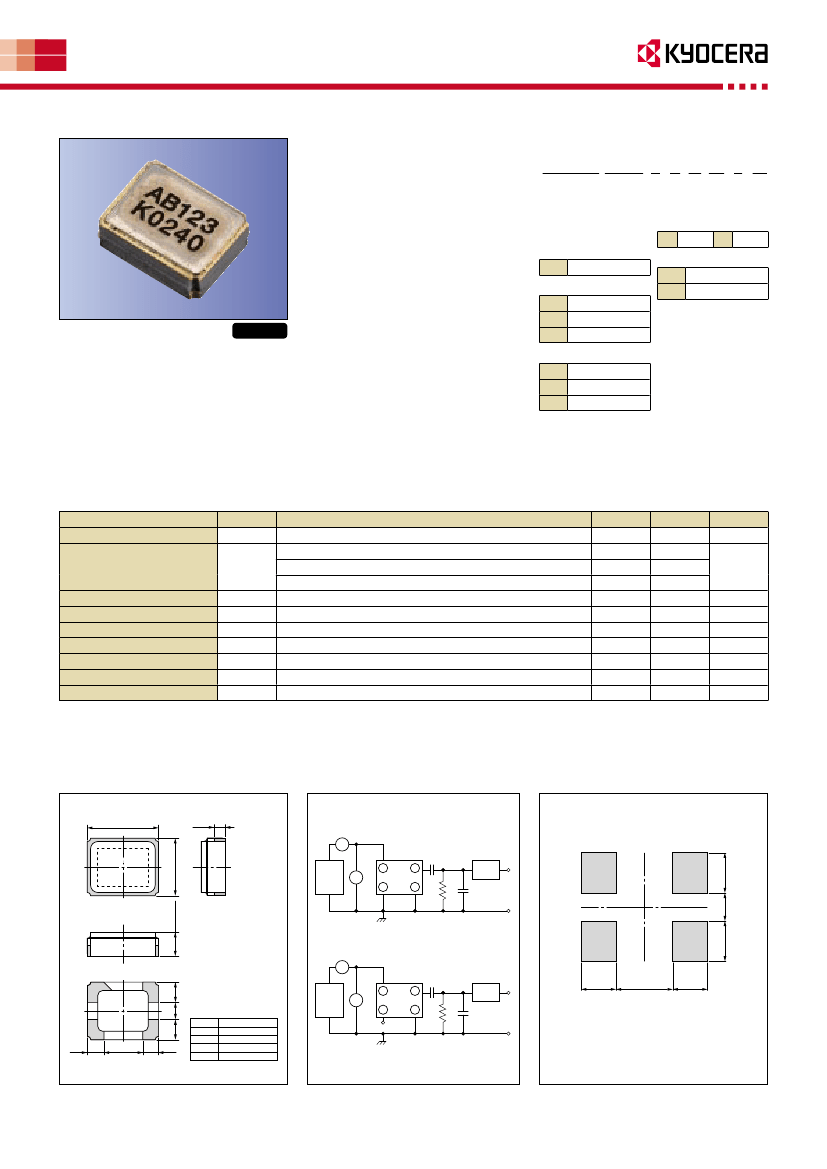

Temperature Compensated Crystal Oscillators (TCXO)

Surface Mount Type TCXO (LSI Type) KT1612 Series for GPS

1.6×1.2mm

Features

• 1612 Ultra-miniature SMD type

• Freq. temp. characteristics.

:

±0.5×10

-

6

/

-30

to

+85°C

• 1.68 to 3.45V drive available

• Reflow compatible

• Disable Function (Option)

How to Order

KT1612A 26000 A C W 28 T xx

①

②

③ ④ ⑤ ⑥ ⑦ ⑧

⑥

Supply Voltage

18

1.8V

28

2.8V

Applications

• GPS Unit

①

Series

②

Output Frequency

③

Freq. Temp. Chrst.

A

C

E

G

W

V

U

±0.5×10

-

6

-30°C

-20°C

-10°C

+85°C

+80°C

+75°C

⑦

Voltage Control Range

T

N

TCXO

Disable Function

④

Lower Operating Temp.

⑧

Option Code

RoHS Compliant

⑤

Upper Operating Temp.

Packaging (Tape & Reel 4000 pcs./ reel)

Specifications

Item

Output Frequency Range

Frequency Tolerance

Frequency Aging

Storage Temperature Range

Operating Temperature Range

Supply Voltage

Output Level

Current Consumption

Harmonics

Symbol

fo

f

_tol

f

_age

T

_stg

T

_use

V

CC

Vpp

I

CC

—

Conditions

Standard Frequency: 16.368, 16.369, 19.2, 26, 27.456, 33.6, 38.4, 52

vs Temperature

vs Load

vs Voltage

Per Year

Min.

16.368

-0.5

-0.1

-0.2

-1

-40

-30

1.68

0.8

—

Max.

52

+0.5

+0.1

+0.2

+1

+85

3.45

—

2

-5

Units

MHz

×10

-

6

×10

-

6

°C

V

Vp-p

mA

dBc

Clipped Sine

*

, Load: 10k ohm / / 10pF

*

: A DC-cut capacitor is not embedded in this crystal oscillator. Connect a DC-cut capacitor (≥1nF) to the line-out terminal of the oscillator.

Dimensions

#4

1.69±0.06

#3

1.29±0.06

0.21

(Unit: mm)

Test Circuit

Test circuit 1

Non Enable/ Disable Function

A

Co

POWER

SUPPLY

Vcc

Recommended Land Pattern

(Unit: mm)

Marking Area

Spectrum Analyzer &

Counter, Oscilloscope

V

1

TCXO

2

RL

CL

0.7 max.

Test circuit 2

With Enable/ Disable Function

A

#1

#2

0.445 0.4 0.445

POWER

SUPPLY

Vcc

Co

4

V

1

E/ D

TCXO

2

RL

3

Spectrum Analyzer &

Counter, Oscilloscope

FET

PROBE

0.5

0.9

0.5

CL

0.395 #4

0.90

#3 0.395

#1pin

#2pin

#3pin

#4pin

Pin Configuration

GND/ E/ D function

GND

OUTPUT

Vcc

•

Enable/ Disable Function

Please inquire details.

RL=10kΩ±10% CL=10pF±10%

•

CL include Probe Capacitance

Co: DC Cut Capacitance

Note: A capacitor of value 0.01µF between V

cc

and GND is recommended.

0.55

0.4

#1

#2

0.55

4

3

FET

PROBE
