Renesas Starter Kit for R8C/25
Target Devices
Device Group: R8C/25
Device Part No. populated on the board: R5F21256SNFP
For more information on the microcontroller please view the R8C/25 Device page.
→
Link to "R8C/25 Device page"
Product Overview

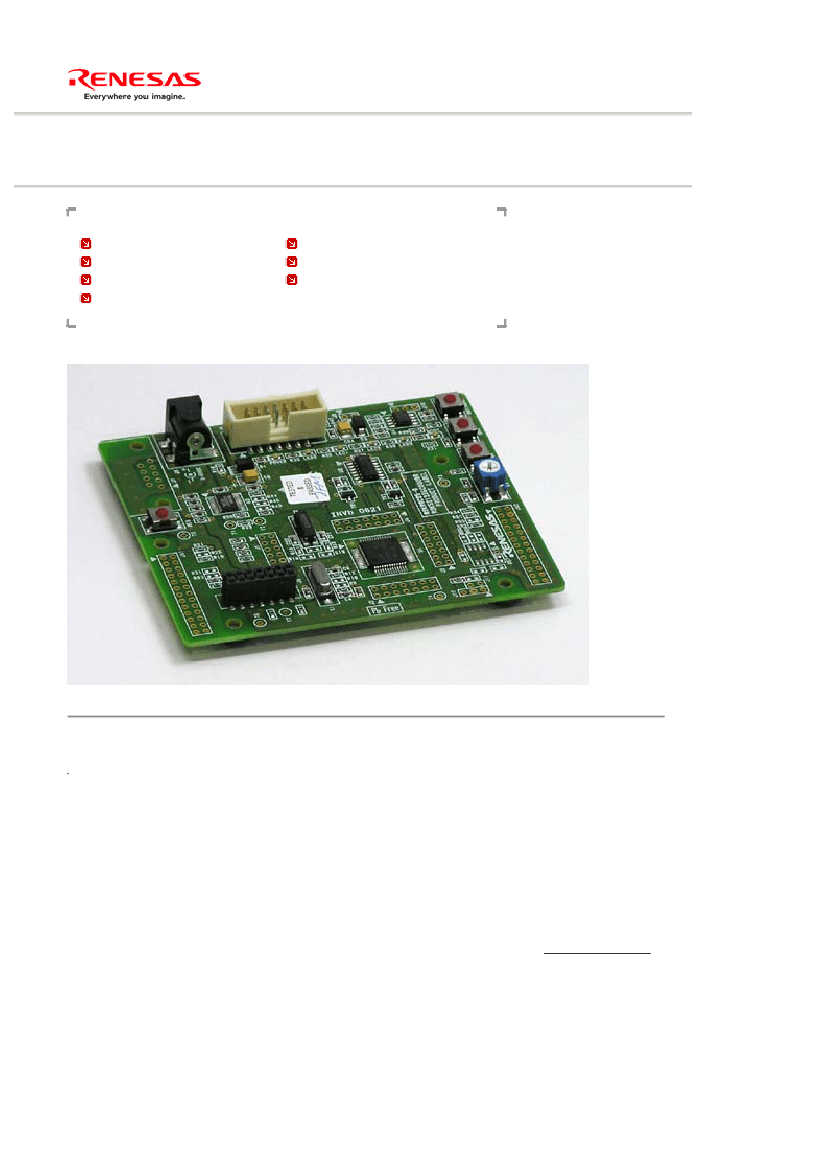

The Renesas Starter Kit for R8C/25 is intended as a user-friendly introductory and evaluation tool for the R8C/25
microcontroller. The board also provides a useful platform for evaluating the Renesas suite of development tools for
coding and debugging, using High-performance Embedded Workshop as well as programming the device using E8
emulator and/or Flash Development Toolkit.
The Renesas Starter Kit for R8C/25 may be connected to the host PC using a simple RS232 serial connection (not
normally fitted) or via the included USB E8 on chip debugging interface.
The purpose of the board is to enable the user to evaluate the capabilities of the device and its peripherals by giving
the user a simple platform on which code can be run only minutes from opening box. It can also prove an invaluable
tool in development by providing a useful test platform for code already debugged using one of our more powerful
emulation tools.

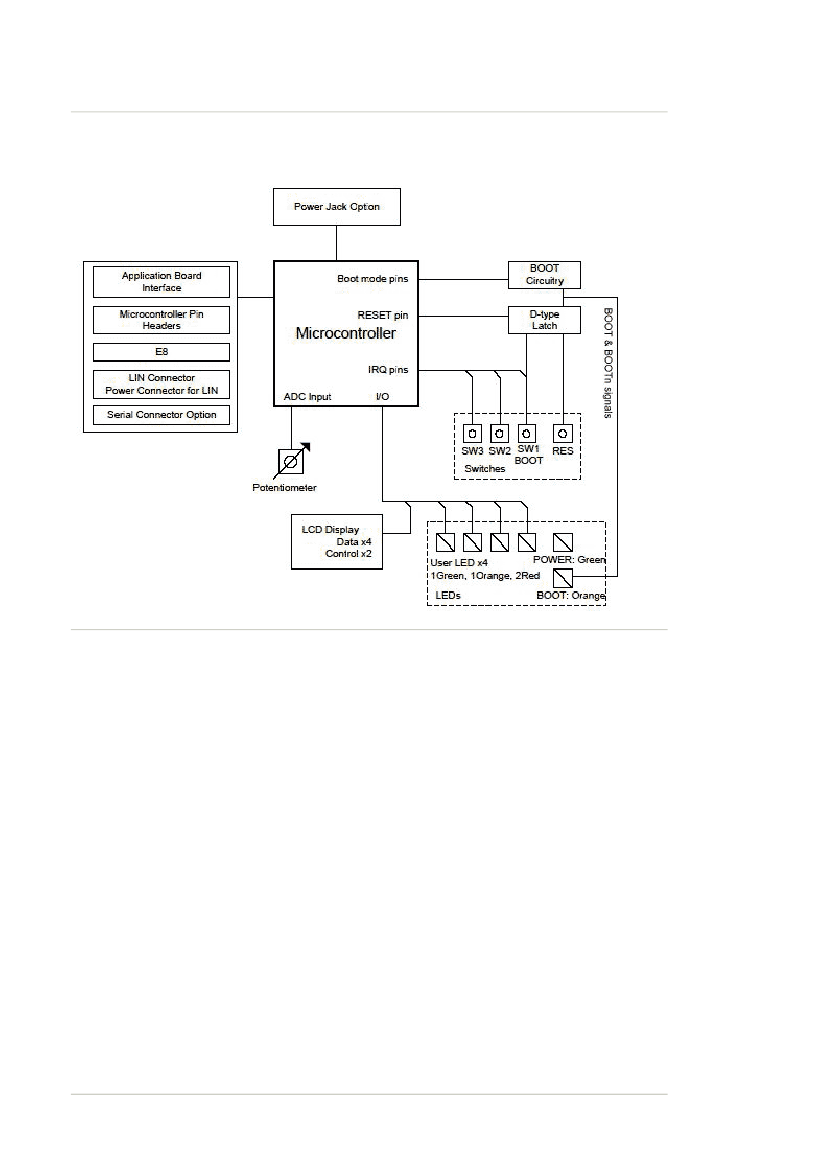

Functional Representation
Kit Contents
•
•
•
•
•
•
•
CPU Board
Detachable LCD Display Module
Detachable AD Adjustment Shaft
E8 Emulator
Connection Cable (USB Cable, User Interface Cable)
Quick Start Guide
CD-ROM
- Documents
: User Manual, Tutorial, and more
- IDE
: High-performance Embedded Workshop
- C Compiler
: M3T-NC30WA Evaluation Version
- Debugger
: E8 Emulator Debugger
- Flash Memory
: Flash Development Toolkit Evaluation Version
Programmer
Notes
• The M3T-NC30WA Evaluation Version does not come with technical support
services. In addition, The M3T-NC30WA Evaluation Version has some restrictions
compared to the M3T-NC30WA Professional Version.
Trial period: 60 days
The link size will be limited to 64KB after 60 days.
• The Flash Development Toolkit Evaluation Version does not come with technical
support services.

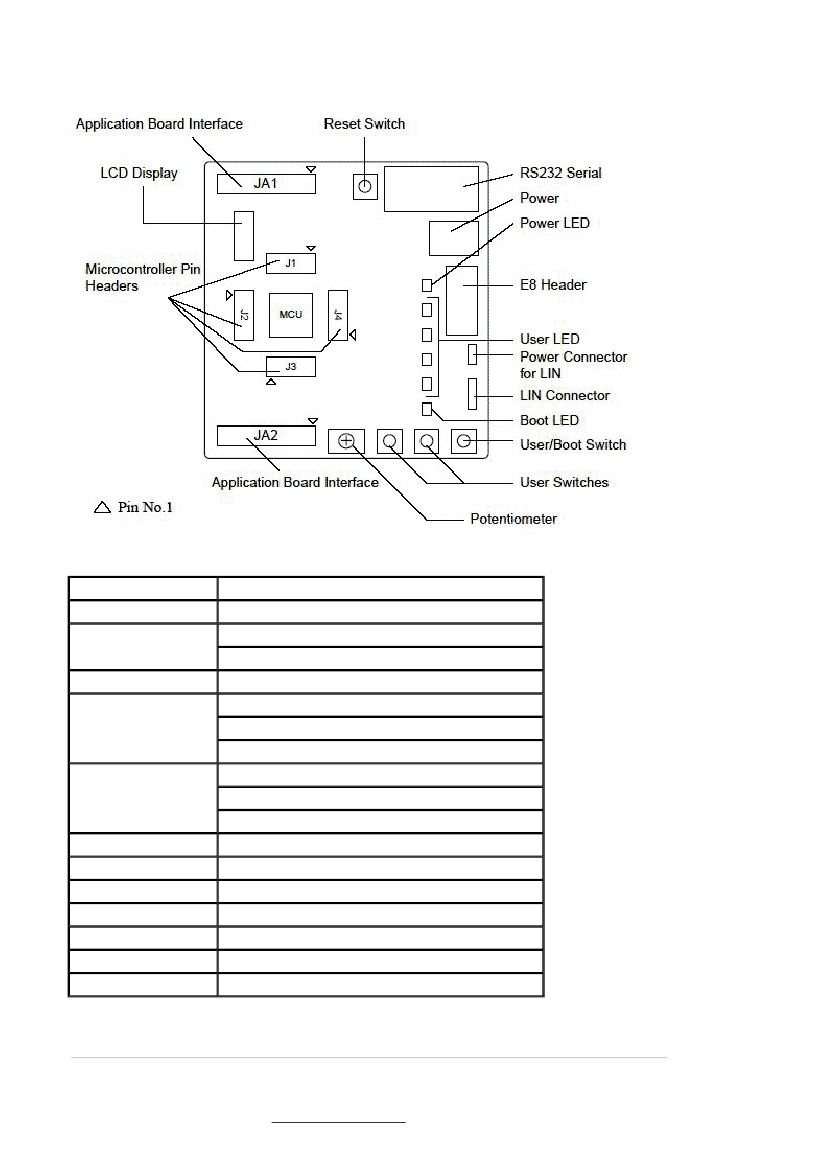

Board Layout
Users should note that the RS232 serial port connector is not populated by default. The LCD display module
is supplied as a detachable sub-board. The board dimensions are 85mm by 100mm, detailed dimensions are
available in the user manual.
Board Specification
Item
Microcontroller
Input Clock
Potentiometer
LED
Specification
R5F21256SNFP
Main: 20MHz
Sub: 32.768kHz
Single-turn, 10kΩ
Power indicator: green x 1
Boot indicator: orange x 1
User: green x 1, orange x 1, red x 2
Switch
Reset x 1
User/Boot x 1
User x 2
DC Power Jack
E8 Header
RS232 Serial Connector
LCD Display Connector
LIN Connector
Microcontroller Pin Header
3V to 5V Input
14-pin box header
9-pin DSUB
14-pin socket
2.54mm pitch, 3-pin (VBAT x 1, LIN Bus Line x 1, Ground x 1)
2.54mm pitch, 14-pin x 4
Application Board Interface 2.54mm pitch, 26-pin x 2
* RS232 Serial Connector, LIN Connector, Power Connector (for LIN), Microcontroller Pin Header and
Application Board Interface are not contained in the product.
Ordering Information
This product can be purchased through the normal sales channels.
Product Name
Renesas Starter Kit for R8C/25
Supported Device Group
R8C/25
Part Number
(Ordering Number)
R0K521256S000BE
Availability
Available
PC System Requirements
• IBM PC/AT or compatible PC (USB interface necessary) *1
• Intel Pentium
Ⅲ
600MHz or higher *3
• Memory 128MB or higher
• Microsoft Windows 98SE/ Windows ME / Windows 2000/ Windows XP *2
*1: IBM and PC/AT are registered trademarks of International Business Machines
Corporation of the U.S.
*2: MS, MS-DOS and Windows are registered trademarks of Microsoft Corporation
of the U.S.
*3: Pentium is a trademark of Intel Corporation of the U.S.
Technical Support
If you encounter problems concerning the bundled debugger (E8), please contact
http://www.renesas.com/inquiry or csc@renesas.com.
When contacting us, please have the following information ready:
your name, company name, department name, fax number, MCU part number (ex.
MCU: R5F21256SNFP), tool part number, version of debugger and a brief description
of the problem.
C Compiler M3T-NC30WA Evaluation Version and Flash Development Toolkit
Evaluation Version do not come with technical support services.
