WWW.PHIHONG.COM
8 Port Gigabit Power over Ethernet Midspan
POE125U for 10/100/1000 Base-T Networks
Features
IEEE802.3at Pre-Standard
Low Cost
Gigabit Compatible
Optional Mounting Kit for 19” Rack
Optional SNMPv3 with TLS/SSL
Applications
VoIP Phones
Access Points
Safety Approvals
cUL/UL
Mechanical Characteristics
Length: 224.9mm (8.85in)
Width: 200mm (7.87in)
Output Specifications
Model
POE125U-8-C
POE125U-8-N
Number of Ports
8
8
Full Power of 125W – 15.4W per port
No Power Management Required
Full Protection OTP, OCP, OVP
1 Year Warranty
Optional Cisco Legacy Detection
Security Systems
IP Cameras
CE
Height: 48.5 mm (1.91in)
Weight: 1.4Kg (3.0lbs)
Cisco Legacy Support
Yes
Yes
SNMP
No
Yes
Optional 19” Rack mounting adapter to mount 1 POE125U or 2 side by side; order P/N POE125U-ACCY01
Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at www.phihong.com for the
most up-to-date specifications and contact information.
Revision 2/27/2015
POE125U Characteristics
INPUT:
AC Input Voltage Range
90 to 264V AC
WWW.PHIHONG.COM
Immunity
ESD:
RS:
EFT:
Surge:
CS:
Voltage Dips:
Harmonic:
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-11
EN61000-3-2
Level 3
Level 2
Level 2
Level 3
Level 2
Class A
Input Voltage Rating
100 to 240V AC
Input Frequency
47 to 63Hz
IEEE802.3af Interoperability
UNH Interoperability report available upon request
Input Current
2.5A (RMS) maximum for 90V AC
1.3A (RMS) maximum for 230V AC
FEATURE:
Cisco Legacy Detection (Option)
No extern parts required for Legacy devices: VoIP
Phones:
7910,7912,7940,7960
Access Points:
350,1100,1200
Leakage Current
<3.5mA maximum at 254V AC, 60Hz
AC Inrush Current
30A (RMS) maximum for 115V AC
60A (RMS) maximum for 230V AC
Over Voltage/Current, Short Circuit Protection
Outputs equipped with short circuit protection and
overload protection as per 802.3af specification
The output can be shorted permanently without damage
OUTPUT:
Total Output Power
15.4W per port, 125W Total Power
Over Temperature Protection
Ripple and Regulation
100mV maximum
Automat shutdown without damage
Efficiency
75% (typical at maximum load, and 120V AC 60Hz
Indicators
Green LED: Power detected “ON”
Yellow LED: Fault Detected
Hold-up Time
10mS minimum 120V AC and maximum load
Input Connector
AC Input IEC320 3 Pin
Transient O/P Voltage Protection
60V maximum at switch on and off at any AC line phase
Warranty
1 Year
Turn-On Delay Time
3 sec maximum at maximum load, and 120V AC 60Hz,
25Hz

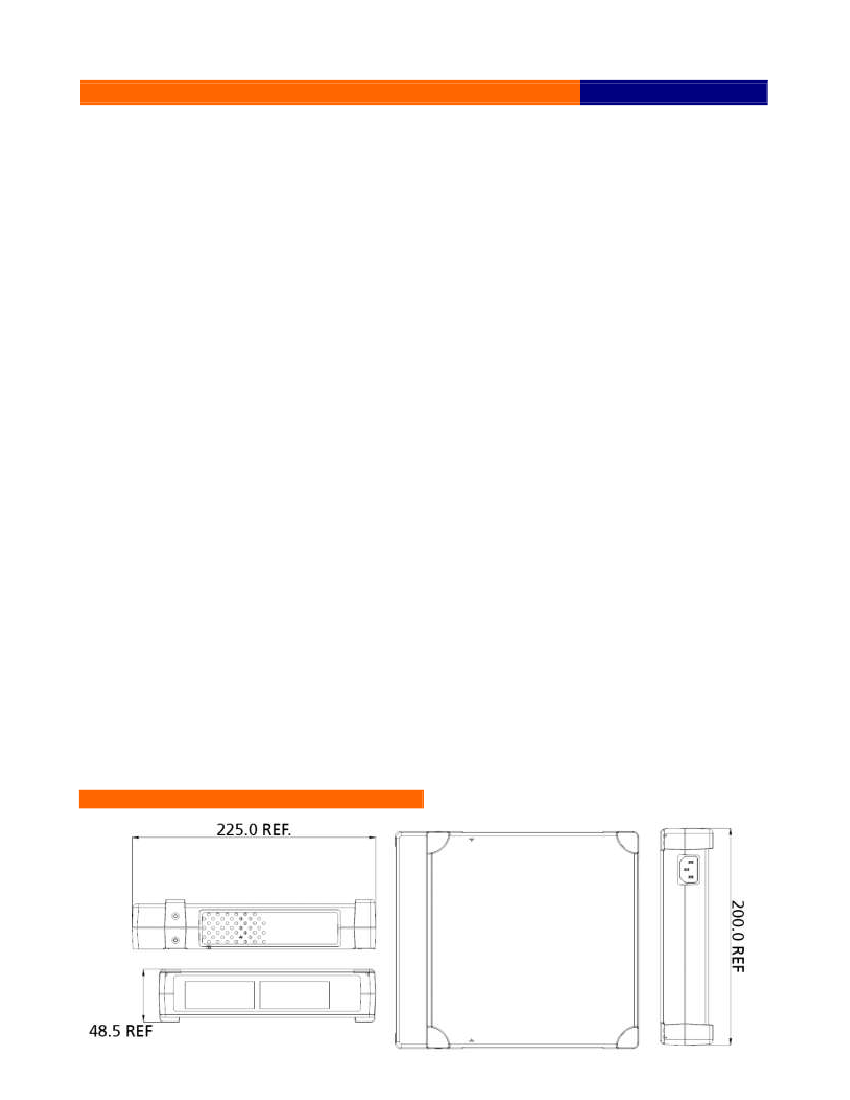

POE125U Dimension Diagram (mm)
