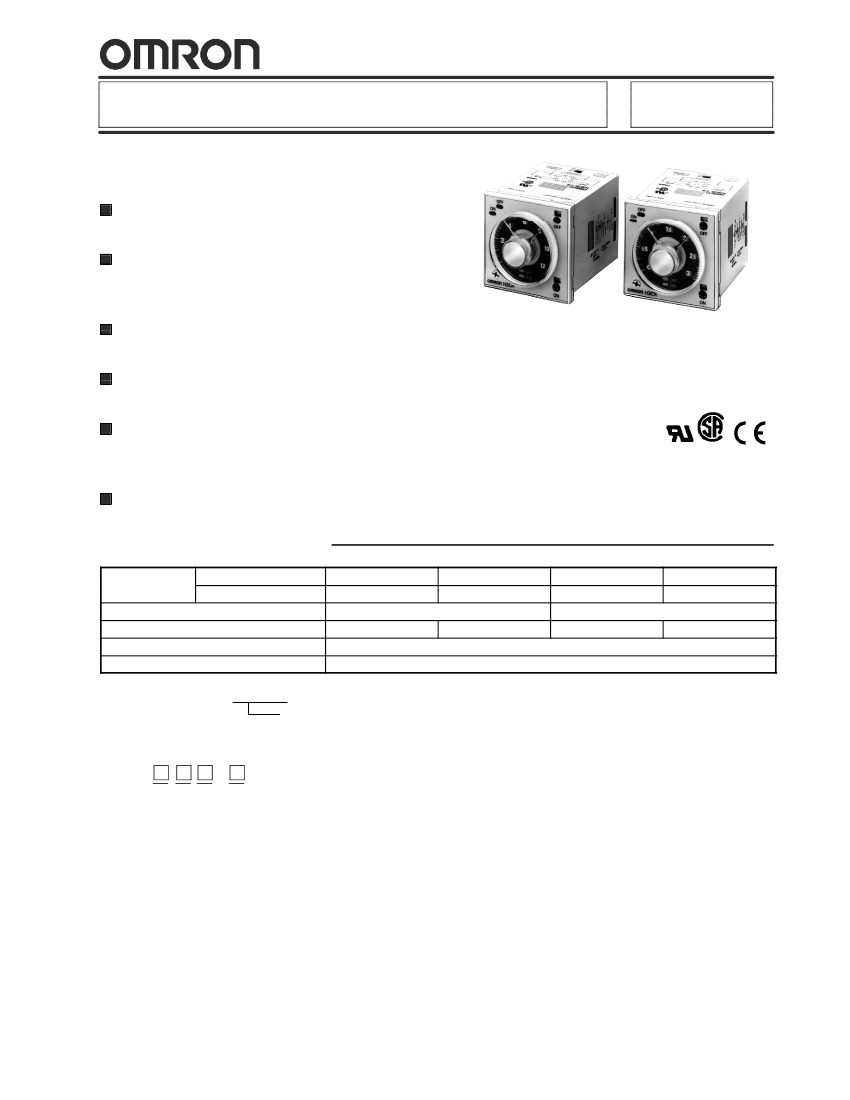

Solid-State Repeat-Cycle Timer
1/16 DIN Solid-State Repeat-Cycle
Timer
Wide power supply ranges of 100 to
240 VAC 24 VAC/VDC, 12VDC
Combinations of independent long or
short ON/OFF time settings are
possible
Fourteen time ranges from 0.05 s to
30 h or 1.2 s to 300 h
Repeat cycle models with either ON
start or OFF start operating functions
Easy sequence checks through
instantaneous outputs for a zero set
value at any time range
11-pin and 8-pin models are available
H3CR-F
Ordering Information
Part number
Timing units
Terminal form
Supply voltages
Operating mode
Note:
11-pin models
Repeat cycle
Repeat cycle OFF start
Repeat cycle ON start
H3CR-F
H3CR-FN
H3CR-F8
H3CR-F8N
0.05 s to 30 h
8-pin models
11-pin models
100 to 240 VAC, 24 VAC/DC, 12 VDC
H3CR-F-300
H3CR-FN-300
H3CR-F8-300
H3CR-F8N-300
1.2 s to 300 h
8-pin models
Specify both the model number and supply voltage when ordering.
Example: H3CR-F 24 VAC/DC
Supply voltage
J
MODEL NUMBER LEGEND
H3CR -
1
2 3
1. Classification
F: Repeat cycle timers
2. Configuration
None: 11-pin socket
8: 8-pin socket
-
4
3. Repeat cycle mode
None: OFF start
N: ON start
4. Specified Type
300: Long time range (1.2 s to 300 h) type
1
H3CR-F
J
ACCESSORIES
Description
Sockets
11-pin
p
Bottom surface or track mounting, top screw terminals
Bottom surface or track mounting, top screw terminals, finger-safe terminal conforms to
VDE0106/P100
Back mounting, for use with Y92F-30 mounting adapter, bottom screw terminals
8-pin
p
Bottom surface or track mounting, top screw terminals
Bottom surface or track mounting, top screw terminals, finger-safe terminal conforms to
VDE0106/P100
Back mounting, for use with Y92F-30 mounting adapter, bottom screw terminals
Terminal cover for P3G sockets, conforms to VDE0106/P100
Panel mounting adapter
g
p
Fits behind panel, ideal for side-by-side installation. Use P3G_-_ sockets
Panel-mounting adapter (88 mm x 58 mm x 66 mm)
Panel-mounting adapter (58 mm x 50 mm x 66 mm)
Protective cover
NEMA 4 cover
Colored panel covers
p
Hard plastic cover protects against dust, dirt and water; not for use with panel covers
Waterproof front cover
Light gray (Munsell No. 5Y7/1) to match case
Medium gray (Munsell No. 5Y5/1)
Black (Munsell No. N1.5)
Mounting track
g
DIN rail, 50 cm (1.64 ft) length; 7.3 mm thick
DIN rail, 1 m (3.28 ft) length; 7.3 mm thick
DIN rail, 1 m (3.28 ft) length; 16 mm thick
End plate
Spacer
H3CR-F
Part number
P2CF-11
P2CF-11-E
P3GA-11
P2CF-08
P2CF-08-E
P3G-08
Y92A-486
Y92F-30
Y92F-73
Y92F-74
Y92A-48B
Y92A-48N
Y92P-48GL
Y92P-48GM
Y92P-48GB
PFP-50N
PFP-100N
PFP-100N2
PFP-M
PFP-S
J
RANGE SELECTION
OFF indicator (green)
Lit when the output is OFF.
ON indicator (orange)
Lit when the output is ON.
Scale range display
windows
OFF-time unit display window
OFF-time unit selector (select one from sec.
10 s, min., and hrs, or from 10 s, 10 min, hrs,
and 10 h)
ON-time setting knob (with orange pointer)
For ON-time setting
OFF-time setting knob (with green pointer)
For OFF-time setting
Time range selector (select one
from 1.2, 3, 12, and 30)
For both ON-time and OFF-time.
ON-time unit display window
ON-time unit selector (select one
from sec. 10 s, min., and hrs, or from
10 s, 10 min, hrs, and 10 h)
0.05 s to 30 h Models
Time
range
1.2
3
12
30
Note:
Time units
s (sec)
0.05 to 1.2
0.3 to 3
1.2 to 12
3 to 30
x 10 s
(10 s)
1.2 to 12
3 to 30
12 to 120
30 to 300
min
0.12 to 1.2
0.3 to 3
1.2 to 12
3 to 30
h (hrs)
1.2 s to 300 h Models
Time
range
1.2
3
12
30
Note:
Time units
x 10 s
(10 s)
1.2 to 12
3 to 30
12 to 120
30 to 300
x 10 min
(10 min)
1.2 to 12
3 to 30
12 to 120
30 to 300
h (hrs)
0.12 to 1.2
0.3 to 3
1.2 to 12
3 to 30
x 10 h
(10 h)
1.2 to 12
3 to 30
12 to 120
30 to 300
Instantaneous output is available at any time range. To
obtain instantaneous output, set to below 0.
Instantaneous output is available at any time range. To
obtain instantaneous output, set to below 0.
2
H3CR-F
H3CR-F
Specifications
Part number
Operating mode
Supply
pp y
voltage
l
(see note)
AC
AC/DC
DC
AC
AC/DC
DC
Start, Reset, Gate inputs
H3CR-F/-F-300
OFF start
100 to 240 VAC (50/60 Hz)
24 VAC/DC (50/60 Hz)
12 VDC
85% to 110% of rated supply voltage, 90% to 110% with 12-VDC models
100 to 240 VAC: 10 VA (100 VAC applied)
24 VAC/DC: 2 VA (24 VAC applied)/1 W (24 VDC applied)
12 VDC: 1 W
ON-impedance: 1 kΩ max.
ON residual voltage: 1 V max
OFF impedance: 500 kΩ min.
DPDT relay
5 A at 250 VAC, p.f. = 1
10mA at 5 VDC
±0.3%
full scale max. (±0.3% full scale max.
±10
ms in ranges of 1.2 and 3 s)
±5%
full scale max
±0.05
s max.
Time-limit operation/time-limit reset or self-reset
Minimum power-opening time: 0.1 sec
Output ON indicator (orange LED), output OFF indicator (green LED)
Plastic case (light gray Munsell 5Y7/1)
Panel, DIN track, or surface depending on socket selected
11-pin round socket
Approx. 100 g (4.23 oz.)
UL, CSA, CE
Operating
Storage
Mechanical durability
Malfunction durability
Shock
Mechanical durability
Malfunction durability
Variation due to voltage change
Variation due to temperature change
Service life
Mechanical
Electrical
Insulation resistance
-
-10° to 55°C (14° to 131°F) with no icing
-
-25° to 65°C (-
-13° to 149°F) with no icing
35% to 85%
10 to 55 Hz with 0.75-mm single amplitude each in three directions
10 to 55 Hz with 0.5-mm single amplitude each in three directions
980 m/s
2
(100G) each in three directions
98 m/s
2
(10G) each in three directions
±0.5%
full scale max. (±0.5% full scale max.
±10
ms in ranges of 1.2 and 3 s)
±2%
full scale max. (±2% full scale max.
±l0
ms in ranges of 1.2 and 3 s)
20 million operations min. (under no load at 1,800 operations/h)
100,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h)
100 MΩ min. (at 500 VDC)
8-pin round socket
11-pin round socket
8-pin round socket
H3CR-F8/-F8-300
H3CR-FN/-FN-300
ON start
H3CR-F8N/-F8N-300
Operating voltage range
Power
consumption
i
Control
outputs
Type
Max. load
Min. load
Repeat accuracy
Setting error
Resetting system
Resetting time
Indicators
Materials
Mounting
Connections
Weight
Approvals
Ambient
temperature
Humidity
Vibration
Note: A power supply with a ripple of 20% max. (single-phase power supply with full-wave rectification) can be used with each
DC model.
3
H3CR-F
H3CR-F
Engineering Data
10,000
Switching operations (x 10
3
)
5,000
Note: A maximum current of 0.15 A can be switched at 125 VDC (cosf = 1) and
a maximum current of 0.1 A can be switched if L/R is 7 ms. In both cases,
a life of 100,000 operations can be expected.
The minimum applicable load is 10 mA at 5 VDC (failure level: P).
1,000
500
30 VDC L/R = 7 ms
250 VAC/30 VDC
(cosf = 1)
100
250 VAC (cosf = 0.4)
Load current (A)
Operation
J
BLOCK DIAGRAMS
ON indicator
OFF indicator
Zero setting
detection
circuit
Indicator
circuit
ROM
RAM
Clock
Output
circuit
Time range/unit
selectors
AC (DC) input
Power supply
circuit
One-chip microcomputer
4
H3CR-F
H3CR-F

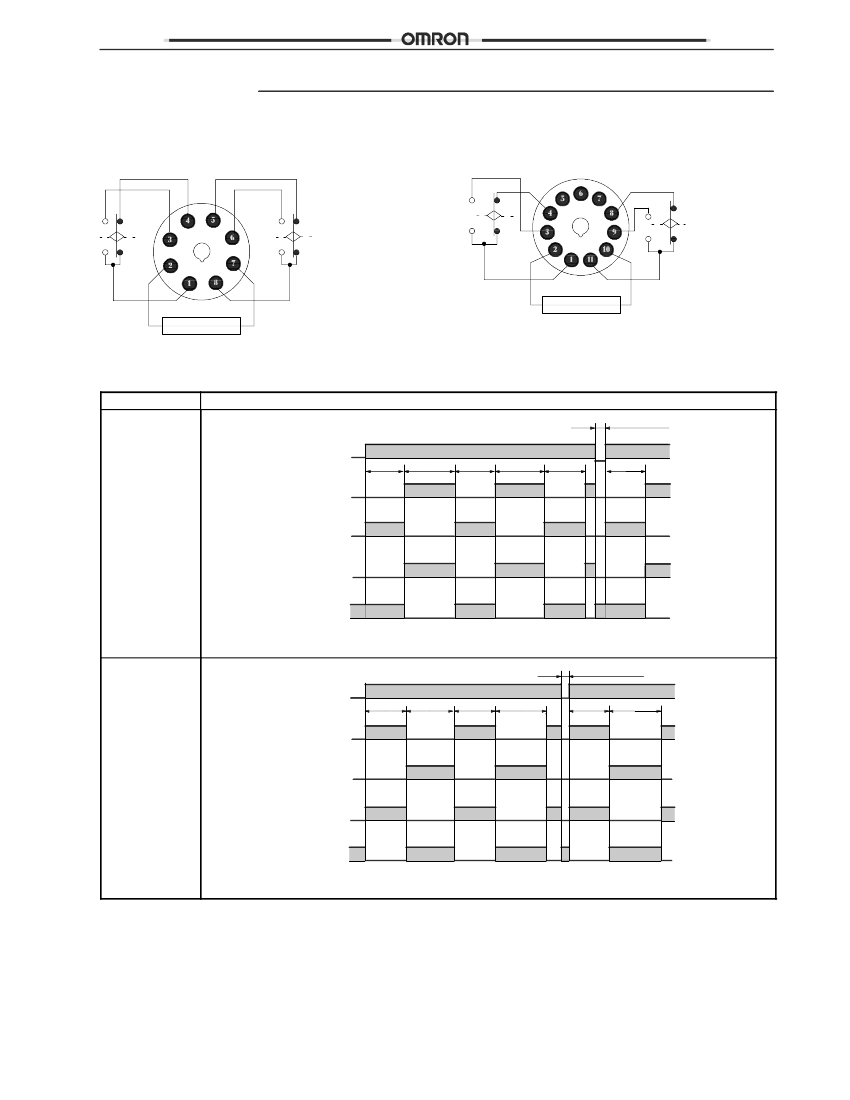

Timing Charts
H3CR-F8
H3CR-F8N
H3CR-F8-300
H3CR-F8N-300
H3CR-F
H3CR-FN
H3CR-F-300
H3CR-FN-300
(-
-)
(~)
(+)
(~)
(-
-)(~)
(+)(~)
Power supply
Power supply
Note: Leave terminals 5, 6, and 7 open.
Do not use them as relay terminals.
Note: Part numbers with an “N” included are Repeat cycle ON start timers. All others are Repeat cycle OFF start timers.
Operating mode
Repeat cycle
OFF start
Power
ON
OFF
t
OFF
t
ON
t
OFF
t
ON
t
OFF
Timing chart
0.1 s min.
t
OFF
ON
Lit
indicator Not lit
Lit
OFF
indicator Not lit
ON
OFF
ON
OFF
t
ON
: ON set time
t
OFF
: OFF set time
Output
NO
Output
NC
Repeat cycle
ON start
Power
0.1 s min.
ON
OFF
Lit
Not lit
Lit
Not lit
ON
OFF
ON
OFF
t
ON
: ON set time
t
OFF
: OFF set time
t
ON
t
OFF
t
ON
t
OFF
t
ON
t
OFF
ON
indicator
OFF
indicator
Output
NO
Output
NC
5
