PS051
PowerInfo™ 2 Configuration Interface
Features
• Hardware platform for configuration, verification
and test of Microchip PS70X and PS5XX ICs
• Operates under control of Windows
®
based
PowerMate™ (PS70X) software and
PowerTool™ 500 (PS5XX) software through an
RS-232 port or USB interface to the PC
• Directly connects to assembled PS70X or PS5XX
battery pack
• SMBus communication managed by onboard
processor
• Supports loading and verification of battery
configuration parameters and 3D cell models in
memory
• Pluggable battery connector for convenience and
flexibility
• Terminals for attachment to an external load or
charger
• Powered through USB port or by 12V DC external
supply (included) when connected to RS-232 port
• Production proven EMI/ESD protection

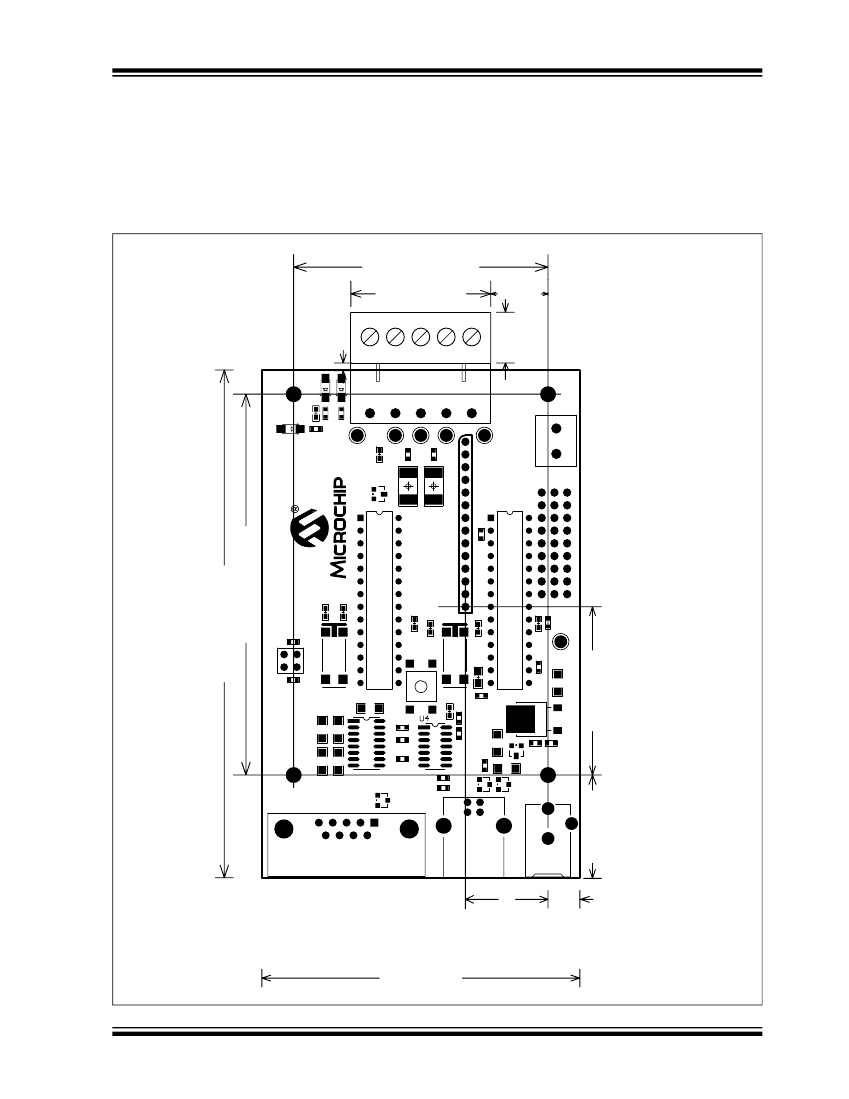

• Overall mechanical dimensions:
- 2.5 W x 4.0 L (inches)
- 63.5 W x 101.6 L (millimeters)
Ordering Information
Part No.
PS051
Description
PowerInfo™ 2 Interface Board
Development/Test Software
Part
No.
Description
PS070 PowerMate™ Software for use with PS70X
PS050 PowerTool™ 500 Software for use with PS5XX
2004 Microchip Technology Inc.
DS21815C-page 1
PS051
1.0
PRODUCT OVERVIEW
2.3
USB Setup
The PowerInfo 2 board is a simple, easy to use hard-
ware interface that supports configuration, verification
and test of Microchip PS70X and PS5XX ICs. It operates
under the control of Microchip’s development/test
software interfaced to a Windows PC.
The PowerInfo 2 board facilitates serial or USB com-
munication between the PC and the SMBus battery
interface. If connected to the PC’s serial (RS-232) port,
the PowerInfo 2 board must be powered through an
external 12V DC power supply. If connected through a
USB port, no additional power is required.
The preferred method to connect PowerInfo 2 to the PC
is through the USB port. Connect the USB cable from
J1 on the PowerInfo 2 board to the USB port on the PC.
The board is now powered through the USB connec-
tion. Attach your battery to the TB1 connector and
launch the Microchip development/test software on the
PC.
2.4
RS-232 Setup
2.0
GENERAL SETUP
The Microchip PowerInfo 2 interface facilitates commu-
nication between a battery containing a Microchip
PS5XX or PS70X IC and a PC running Microchip’s
development/test software. The information that
follows will guide you through the setup of the various
features available.
Connect the serial cable from P1 on the PowerInfo 2
board to the RS-232 port on the PC. Connect a 12V DC
power supply to J2 and plug it into the electrical outlet.
The board is now powered. Attach your battery to the
TB1 connector and launch the Microchip development/
test software on the PC.
2.5
Charger/Load Setup (Optional)
A battery charger or a load can be attached at TB2 to
exercise the device under test.
2.1
Connections
3.0
PS700Driver SETUP
• P1 – Serial (RS-232)
• J1 – USB
• J2 – 12V DC power supply (used with serial
connection only)
• TB1 – Pluggable terminal block for device under
test. Looking into the connector on the board, the
pins from left to right are:
- V+ (VP): Battery pack positive
- C: SMBus clock
- D: SMBus data
- T: T-pin
- V- (VN): Battery pack negative
• TB2 – External charger or load connection
The software driver for PS700 was developed for a
PIC
®
microcontroller and can be installed on the
PowerInfo 2 board when using a PS705X module
board or a PS7070 evaluation board. This software
driver is distributed on a PIC16F876 when a license
agreement has been executed.
3.1
Installing PS700Driver
2.2
Jumpers
Jumper Position
Address
2-3
0
1
2
3
X
X
O
O
1-4
X
O
X
O
Disconnect the PS051 from power and PC. Remove
the PIC microcontroller at location U1. Keep this IC in
a safe place as it must be replaced to operate the
PS051 with another PowerSmart
®
product, such as
PS501. Install the PS700Driver at location U1. The
PowerInfo 2 board can now be used with the PS700
development products.
• ADR – Jumper for board address identification
3.2
Removing PS700Driver
To use the PS051 with another PowerSmart product,
such as PS501, the PS700Driver must be removed and
the PIC microcontroller originally located at U1
replaced. Disconnect the PS051 from power and PC.
Remove the PS700Driver at location U1. Install the
original PIC microcontroller and reconnect PC and
power connections.
Legend:
O = open, X = connect
DS21815C-page 2
2004 Microchip Technology Inc.

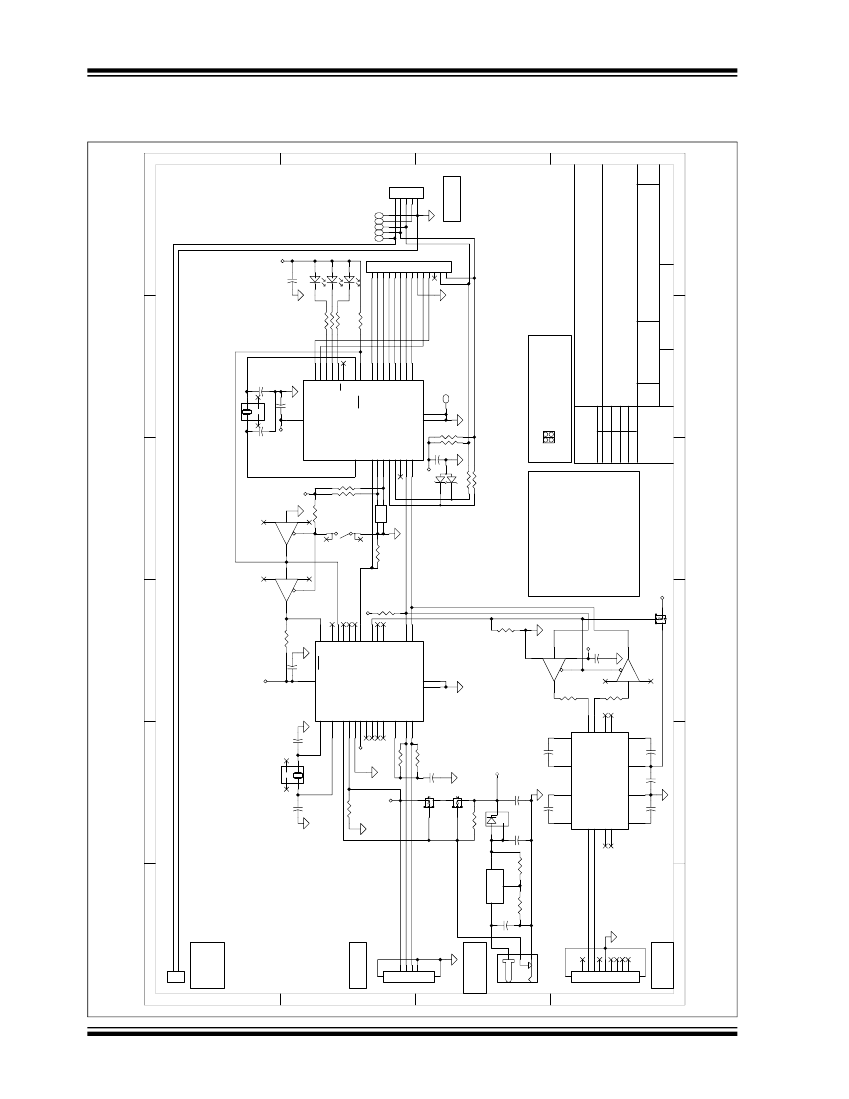

PS051
4.3
Bill of Materials
PS051 BILL OF MATERIALS
Description
Raw PCB, PowerInfo™ 2
Firmware Specification, PowerInfo™ 2 Main MCU
Firmware Specification, PowerInfo™/PowerCal™ USB MCU
Capacitor, Ceramic, 22 pF, 50V, +/-5%, C0G dielectric, 0603
Capacitor, Ceramic, 100 nF, 25V, +80%/-20%, Y5V dielectric, 0603
Capacitor, Ceramic, 220 nF, 25V, +/-10%, X7R dielectric, 0805
Capacitor, Ceramic, 1.0
µF,
25V, +/-10%, X7R dielectric, 1206
Capacitor, Ceramic, 100 nF, 50V, +/-10%, X7R dielectric, 1206
LED, clear green, 1206 package
Schottky Diode, 40V, 500 mA, SOT-23
Dual Zener Diode, 5.6V +/- 5%, 300 mW, common-anode, SOT-23
Manufacturer
Microchip
None
None
Panasonic
Panasonic
Panasonic
Panasonic
BC Components
Lumex
Manufacturer PN
04-826159 Rev. 3.1
Document
Document
ECJ-1VC1H220J
ECJ-1VF1E104Z
ECJ-2YB1E224K
ECJ-3YB1E105K
1206B104K500BT
SML-LX1206GC-TR
ZHCS500TA
AZ23C5V6-7
AZ23-C5V6
382811-6
1757271
110-99-328-41-001
PJ-102A
1729128
5011
5010
5012
897-30-004-90-000000
67068-0000
SJ-5303 (CLEAR)
929665-09-36-I
Qty.
1
Doc.
Doc.
4
5
1
7
1
3
1
1
2
1
2
1
1
2
1
3
1
4
1
TABLE 4-1:
Symbols
U1
U2
C10-C13
C3-C4,
C17-C19
C26
C2, C20-C25
C1
LED1-LED2,
PWR
D2
D1
ADR
TB1
U1, U2
J2
TB2
V-, GND
V+
C, D, T
J1
ADR
TB1
P1
Q1-Q3
R18
R19
R20-R21
R8
R9-R10
R22
R1-R7
R16-R17
R11-R13
R14-R15
RST
U1
U2
U4
U3
U5
Y1
Y2
Zetex
Diodes Inc.
General Semi.
Connector, shorting jumper, female, 2-position, 100 mil spacing, mates AMP
with 25 mil square pins, 15-microinch gold over nickel
Header, pluggable terminal block, 5.08 mm pitch x 5 positions,
Phoenix
12A/250V, right angle, closed end
IC socket, 28-pin DIP, 300 mil width
Mill-max
Connector, coaxial power, female, 2.0 mm center pin x 6.5 mm
Cui Stack
sleeve, right angle PCB mount
Terminal block, PCB, 5.08 mm pitch x 2 positions, 16A/250V
Phoenix
Test point, 0.125" OD, for 0.062" hole, black
Keystone
Test point, 0.125" OD, for 0.062" hole, red
Keystone
Test point, 0.125" OD, for 0.062" hole, white
Keystone
Connector, USB type B, right angle PCB mount, shielded
Mill-max
Molex
Bumper, hemispherical, 0.44"D x 0.20"H, transparent plastic
3M
Connector, break-apart PCB header, straight, 2-row x 36-pin, 100 x 3M
100 mil spacing, 235 mil/100 mil/145 mil length, 25 mil square pins,
10-microinch gold
Pluggable terminal block, 5.08 mm pitch x 5 positions, 12A/250V
Phoenix
Connector, DB9 right angle PCB mount, female sockets
Norcomp
MOSFET, P-channel, -30V, -1.1A, 0.2 ohms, SOT-23
Fairchild Semi.
Resistor, film, 0603, 1%, 1.18 kOhms
Panasonic
Resistor, film, 0603, 1%, 365 ohms
Panasonic
Resistor, 0603, zero ohm
Panasonic
Resistor, film, 0603, 5%, 1.5 kOhms
Panasonic
Resistor, film, 0603, 5%, 10 kOhms
Panasonic
Resistor, film, 0603, 5%, 150 kOhms
Panasonic
Resistor, film, 0603, 5%, 47 kOhms
Panasonic
Resistor, film, 0603, 5%, 6.8 kOhms
Panasonic
Resistor, film, 0603, 5%, 680 ohms
Panasonic
Resistor, film, 2512, 5%, 330 ohms
Panasonic
Switch, SPST momentary tact, surface mount, 6 mm square,
E-Switch
4.3 mm high, 260 G-force
Microchip
IC, Microcontroller, 20 MHz, with Flash EEPROM, 28-pin/300 mil DIP,
0°C to 70°C
IC, Microcontroller, 24 MHz, with USB Interface, 28-pin/300 mil DIP,
Microchip
-40°C to +85°C
IC, quad buffer with tri-state outputs, VHCMOS, SO-14, -40°C to +85°C Toshiba
IC, RS-232 transceiver, SO-16, 0°C to 70°C
National Semi.
IC, Linear Voltage Regulator, adjustable 1.2 - 37V output, 500 mA,
National Semi.
TO-252 package, 0°C to 125°C
Crystal, 20.0000 MHz, 18 pF load capacitance, surface mount.
Citizen
Crystal, 6.0000 MHz, 18 pF load capacitance, surface mount.
Citizen
1757048
182-009-212-531
NDS356AP
ERJ-3EKF1181V
ERJ-3EKF3650V
ERJ-3GEY0R00V
ERJ-3GEYJ152V
ERJ-3GEYJ103V
ERJ-3GEYJ154V
ERJ-3GEYJ473V
ERJ-3GEYJ682V
ERJ-3GEYJ681V
ERJ-1TYJ331U
TL3301NF260QG
PIC16F876-20/SP
PIC16C745-I/SP
TC74VHC125FN
DS14C232CM
LM317MDT
CM309S20.000MABJTR
CM309S6.000MABJTR
1
1
3
1
1
2
1
2
1
7
2
3
2
1
1
1
1
1
1
1
1
2004 Microchip Technology Inc.
DS21815C-page 5
