CSRN20.1621%G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CSRN20.1621%G

CSRN20.1621%G: DescriptionFixed Resistor, Metal Glaze/thick Film, 2W, 0.162ohm, 200V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size150KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

CSRN20.1621%G Overview

Fixed Resistor, Metal Glaze/thick Film, 2W, 0.162ohm, 200V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP, ROHS COMPLIANT

CSRN20.1621%G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2011828671
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
JESD-609 code	e3
Manufacturer's serial number	CSRN
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.584 mm
Package length	6.248 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	3.073 mm
method of packing	TR, 13 INCH
Rated power dissipation(P)	2 W
Rated temperature	70 °C
resistance	0.162 Ω
Resistor type	FIXED RESISTOR
series	CSRN2(1% TOL)
size code	2512
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	200 V

Preview

Download Datasheet

View All

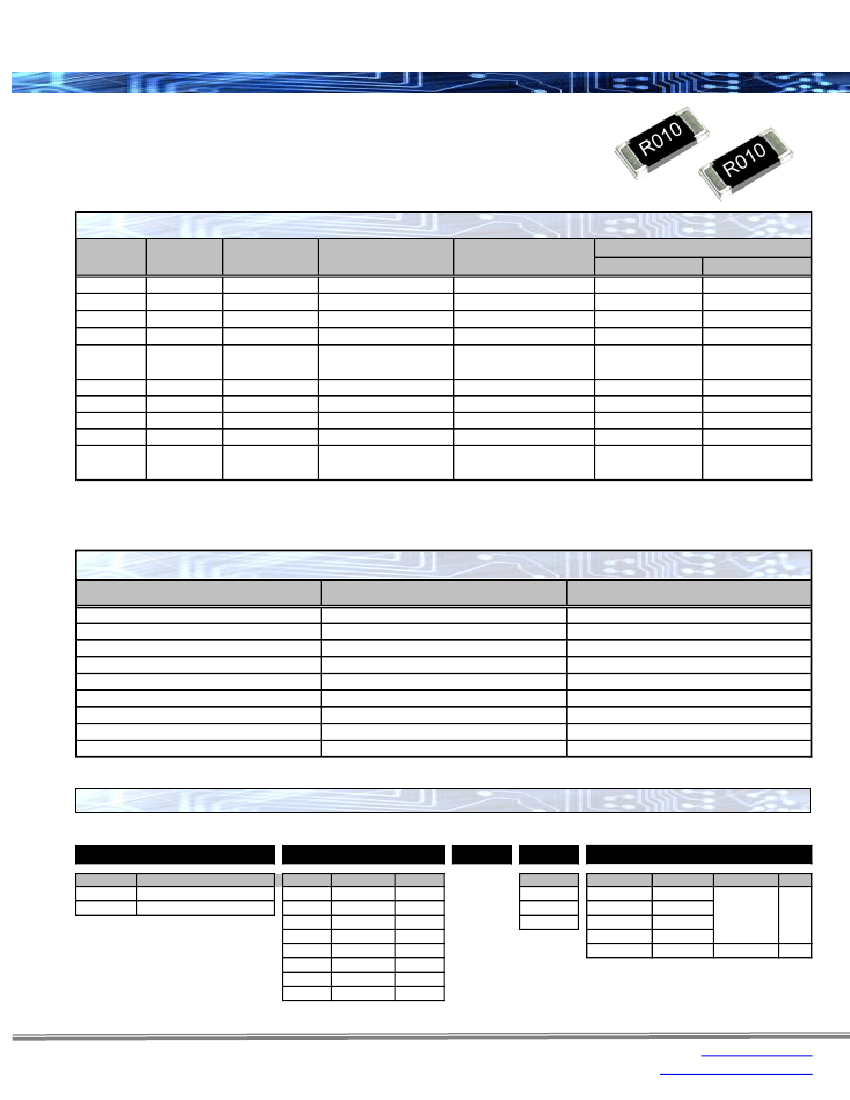

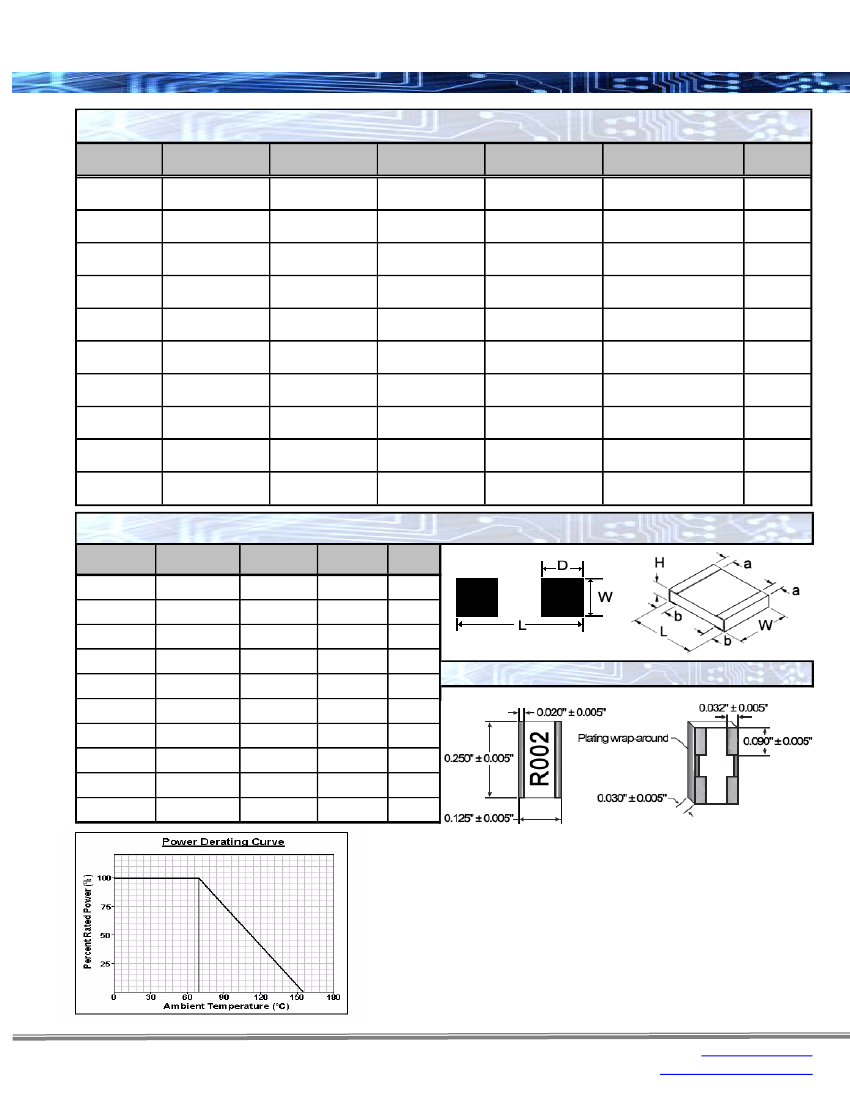

CSR / CSRN Series

Thick Film Current Sensing Resistors

Features:

Stackpole Electronics, Inc.

Resistive Product Solutions

0402 to 2512 & 1225 sizes available

Power ratings to 3W

Low inductance – less than 0.2nH typically

RoHS compliant / lead-free available (CSF)

Non-standard resistance values available

2010 and 2512 sizes available with narrow terminations (CSRN)

Electrical Specifications

Type / Code Package Type

CSR 1/8S

CSR 1/8

CSR 1/4

CSR 1/2

CSRN 1S

CSR 1

CSRN 1

CSR 2

CSRN 2

CSR 3

Power Rating

(Watts) @ 70ºC

0.125W

0.250W

0.500W

1.000W

2.000W

3.000W

Dielectric Withstanding

Voltage

200V

Resistance Temperature

Coefficient

±200 ppm/ºC

±300 ppm/ºC

±200 ppm/ºC

±100 ppm/ºC

Ohmic Range and Tolerance

0.051Ω - 1Ω

0.021Ω - 1Ω

0.01Ω - 1Ω

0.01Ω - 0.019Ω

0.02Ω - 0.5Ω

0.01Ω - 1Ω

0.003Ω - 0.02Ω

0.021Ω - 3Ω

2% / 5%

0.051Ω - 1Ω

0.021Ω - 1Ω

0.01Ω - 1Ω

0.01Ω - 0.019Ω

0.02Ω - 0.5Ω

0.01Ω - 1Ω

0.003Ω - 0.02Ω

0.021Ω - 3Ω

0402

0603

0805

1206

0815

2010

2512

1225

±300 ppm/ºC

±150 ppm/ºC

±100 ppm/ºC

±250 ppm/ºC

±200 ppm/ºC

±100 ppm/ºC

Contact factory for TCR on values below 0.05Ω.

Power rating is 1.5W if ambient exceeds 80°C and terminal exceeds 105°C.

Performance Characteristics

Test

Moisture Resistance

Load Life

Leach Resistance

Resistance to Soldering Heat

Solderability

Temperature Cycling

Thermal Shock

Short Time Overload

Insulation Resistance

Operating Temperature Range: -55ºC to +155ºC

Test Specification

± 0.5%

90 seconds minimum

± 0.5%

minimum 95% coverage

± 0.5%

1MΩ minimum

Typical

≤

0.5%

≤

0.5%

> 90 seconds

≤

0.25%

≥

95%

≤

0.5%

≤

0.5%

≤

0.5%

≥

1MΩ

How to Order

SEI Type

Code

Nominal

Resistance

Tolerance

Packaging

CSR

Type

CSR

CSRN

Description

Standard

Narrow Terminations

Code

1/8S

1/8

1/4

1/2

Wattage

0.125W

0.250W

0.500W

1.000W

2.000W

3.000W

Size

0402

0603

0805

1206

0815

2010

2512

1225

0.01

Tolerance

SEI Types

1/8S

1/8, 1/4, 1/2

1, 2

1S, 3

1, 2

Pkg Qty

10,000

5,000

4,000

2,000

5,000

Description Code

7" reel

13" reel

Rev Date: 6/15/2009

www.seielect.com
