NWW26.19K1%R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> NWW26.19K1%R

NWW26.19K1%R: DescriptionRESISTOR, WIRE WOUND, 1.5W, 1%, 20ppm, 6190ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size200KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

NWW26.19K1%R Overview

RESISTOR, WIRE WOUND, 1.5W, 1%, 20ppm, 6190ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

NWW26.19K1%R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1890848561
package instruction	AXIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	NON-INDUCTIVE, PRECISION
JESD-609 code	e3
Manufacturer's serial number	WW
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	275 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	TR
Rated power dissipation(P)	1.5 W
Rated temperature	125 °C
resistance	6190 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	WIRE WOUND
Temperature Coefficient	20 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Tolerance	1%

Preview

Download Datasheet

View All

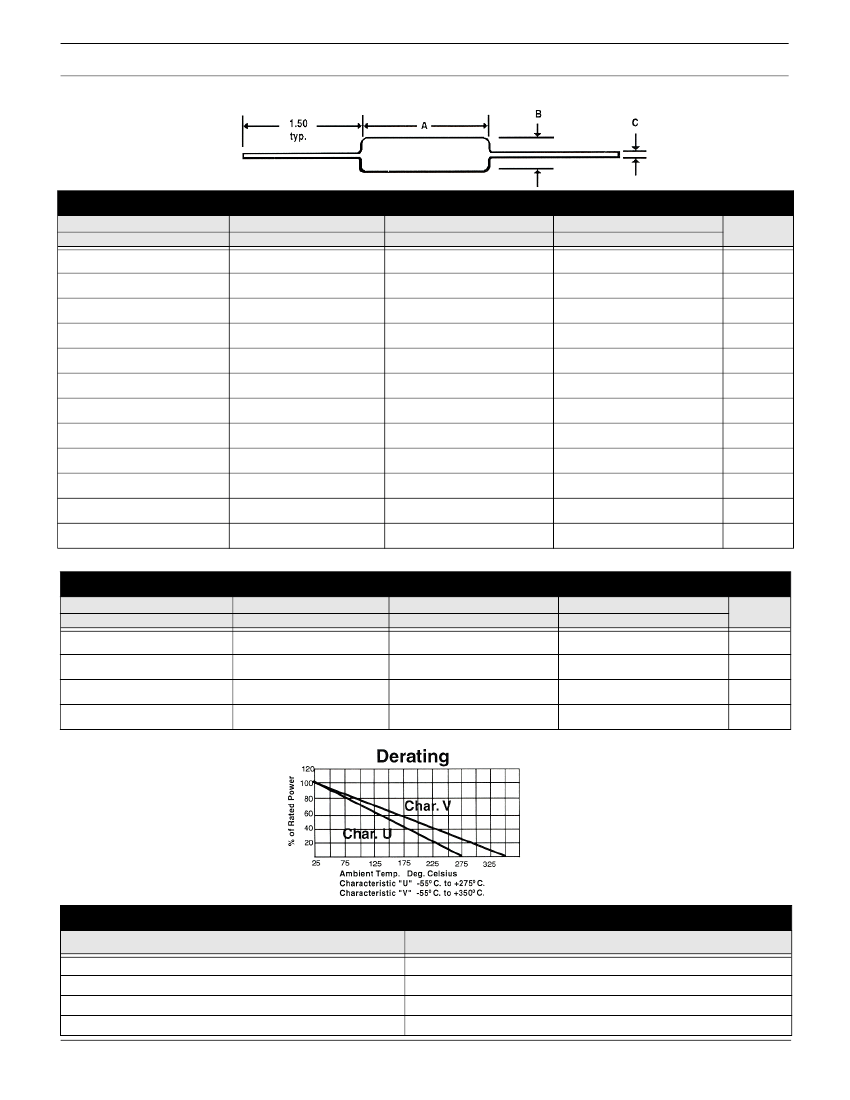

WW / MWW Series — General Purpose and Precision Wirewound

Features

• High performance for low cost

• Excellent stability in operation

• High power to size ratio

• MWW - Completely molded construction with

welded terminations tested to MIL-R-39007

• Complete welded terminations

• Tinned copper leads

• Available in non-inductive styles

• High temperature silicone coating

• RoHS compliant / lead-free

Electrical Specifications

Power Rating (Watts)

Type / Code

MIL-R-26 Ref.

Dielectric Strength

@ 125°C (U)

WW H

WW 1

WW 1A

WW 2

WW 2A

WW 3

WW 3A

WW 4

WW 5

WW 7

WW 7B

WW 10

MWW 1

MWW 3

MWW 5

MWW 10

–

RW-70

RW-69

–

RW-79

–

RW-67, RW-74

–

RW-78

RW-70

RW-79

RW-67, RW-74

RW-68, RW-74

500

1,000

0.4W

1.0W

1.5W

2.5W

3.0W

4.0W

5.0W

6.5W

7.0W

10W

1.0W

3.0W

5.0W

10.0W

@ 25°C (V)

0.6W

1.2W

1.5W

2.5W

3.0W

3.7W

4.0W

5.0W

6.0W

8.5W

9.0W

13W

1.5W

3.75W

6.5W

13.0W

0.1%, 0.5%, 1% & 5%

0.1Ω – 2K

0.1Ω – 3K

0.1Ω – 7K

0.1Ω – 10K

0.1Ω – 15K

0.1Ω – 22K

0.1Ω – 30K

0.1Ω – 40K

0.1Ω – 50K

0.1Ω – 70K

0.1Ω – 100K

0.1Ω – 150K

0.1Ω – 2K

0.1Ω – 20K

0.1Ω – 40K

0.1Ω – 150K

Std. Resistance Range* (ohms)

*Standard TC as follows: ±90ppm below 1Ω, ±50ppm from 1 - 10Ω,

±20ppm above 10Ω.

How to Order

SEI Type

Code

10K

Nominal Resistance

Tolerance

Packaging

Type

MWW

Description

Standard

Molded

Code

Tolerance

0.1%

0.5%

1.0%

5.0%

Description

WW H, WW 1, WW 1A, MWW 1

WW 2, WW 2A, WW 3, WW 4, MWW 3

WW 3A

WW 5, WW 7, WW 7B, WW 10, MWW 5

WW 10, MWW 10

Pkg Qty Description Code

2,500

2,000

750

500

250

11" Flange

NWW Non-Inductive

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

email: marketing@seielect.com
