33_PC7-N-Q50-4/1--_NE: DescriptionRF Connector Adapter, PC7-N, Male-Female, Plug-jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

33_PC7-N-Q50-4/1--_NE Overview

RF Connector Adapter, PC7-N, Male-Female, Plug-jack, ROHS COMPLIANT

33_PC7-N-Q50-4/1--_NE Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Adapter type	PC7-N
Body/casing type	PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
Coupling type	SNAP-THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
MIL compliance	NO
Manufacturer's serial number	BETWEEN
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.11
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

®

DATA SHEET

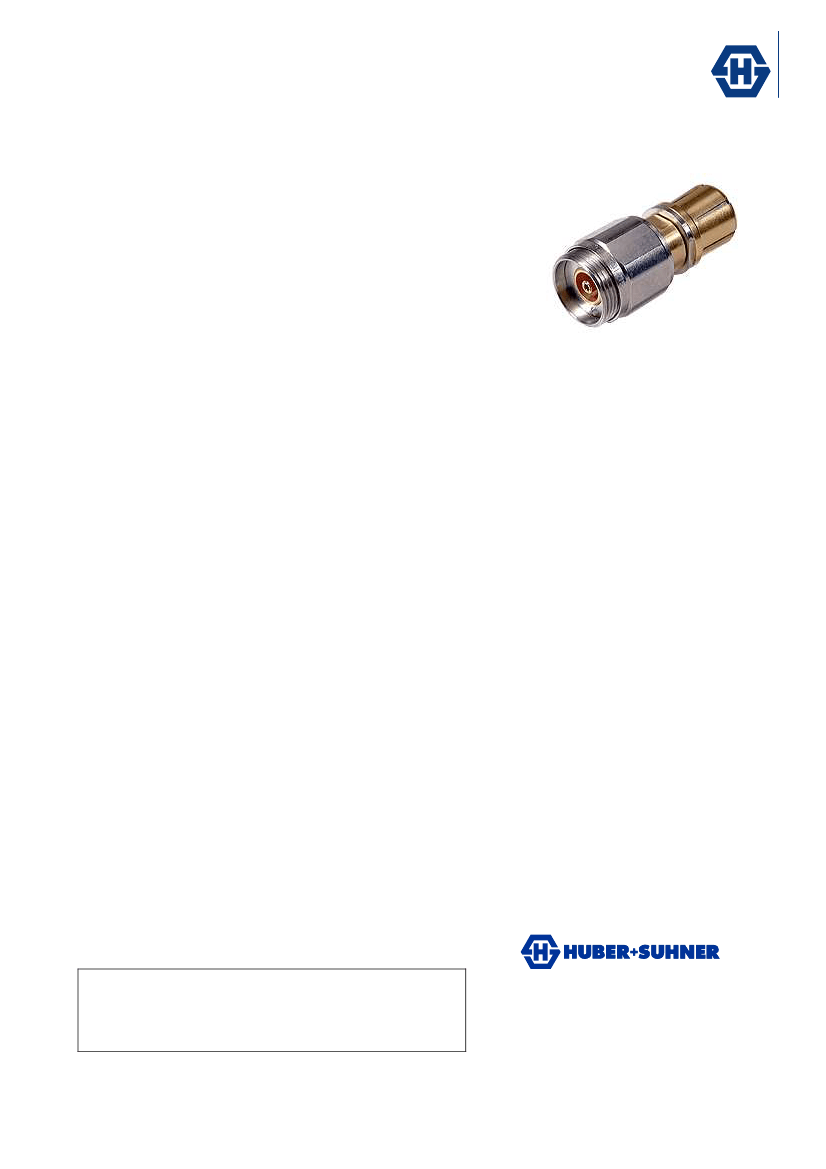

Between Series Adapter: 33_PC7-N-Q50-4/1--_N

Description

Rev.: B

Adaptor plug/jack

PC 7 plug (male) / N jack (female)

Interface standards

IEEE STD 287_ANSI C 16.43

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

50

Ω

18 GHz

DC to 4 GHz

≥ 29 dB

500

0.0559 kg

-55 °C to 70 °C

compliant

Material

Copper Beryllium Alloy

Brass

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

DOU-00014284

33_PC7-N-Q50-4/1--_NE

Surface Plating

SUCOPRO Plating

SUCOPLATE (R) Plating

Surface Plating

SUCOPRO Plating

SUCOPLATE (R) Plating

Mechanical Data

Number of matings

Weight

4 to 18 GHz

≥ 20 dB

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

(PC 7)

Centre contact

Outer contact

Body

Insulator

Piece Parts

(N)

Centre contact

Outer contact

Body

Insulator

Outline drawing

Single package

Material Data

33_PC7-N-Q50-4/1--_NE Related Products

	33_PC7-N-Q50-4/1--_NE	33_PC7-N-Q50-4/1-_NE	33PC7-N-Q50-4/1-NE
Description	RF Connector Adapter, PC7-N, Male-Female, Plug-jack, ROHS COMPLIANT	MALE-FEMALE, RF STRAIGHT ADAPTER	HERMAPHRODITIC-FEMALE, RF STRAIGHT ADAPTER, PLUG-JACK
Reach Compliance Code	compliant	unknown	unknown
Adapter type	PC7-N	PC7-N	PC7-N
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE	MALE-FEMALE	HERMAPHRODITIC-FEMALE
Coupling type	SNAP-THREADED	THREADED	SNAP-THREADED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	YES	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	BETWEEN	33_PC7-N-Q50-4/1-_NE	33PC7-N-Q50-4
Maximum operating frequency	18 GHz	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO
voltage standing wave ratio	1.11	1.22	1.22
Base Number Matches	1	1	1
Body/casing type	PLUG-JACK	-	PLUG-JACK
Characteristic impedance	50 Ω	-	50 Ω
Other features	-	VSWR AT 4 GHZ: 1.07	VSWR MAX AT 18GHZ, VSWR AT 4GHZ: 1.07

Recommended Resources

AND gate control circuit

Telephone ring signal remote control switch circuit diagram

5V regulated power supply with symmetrical output

FM transmitter production circuit (crystal oscillator 80mW)

Rice cooker circuit diagram 03
