☆GO-Compatible
◆Input
Voltage Range : 2.2~10.0V
◆Output
Voltage Range : 1.5~6.0V(±2.5%)
◆Oscillator
Frequency : 300kHz(±15%)
◆Maximum
Duty Ratio : 100%
◆High
Efficiency
: 92%
◆PWM/PFM
Switching Control (XC6366)
◆SOT-25
Package
■APPLICATIONS
●Electronic
information organizers
●Palmtops
●Cellular
and portable phones
●Portable
audio systems
●Various
multi-function power supplies
■GENERAL
DESCRIPTION

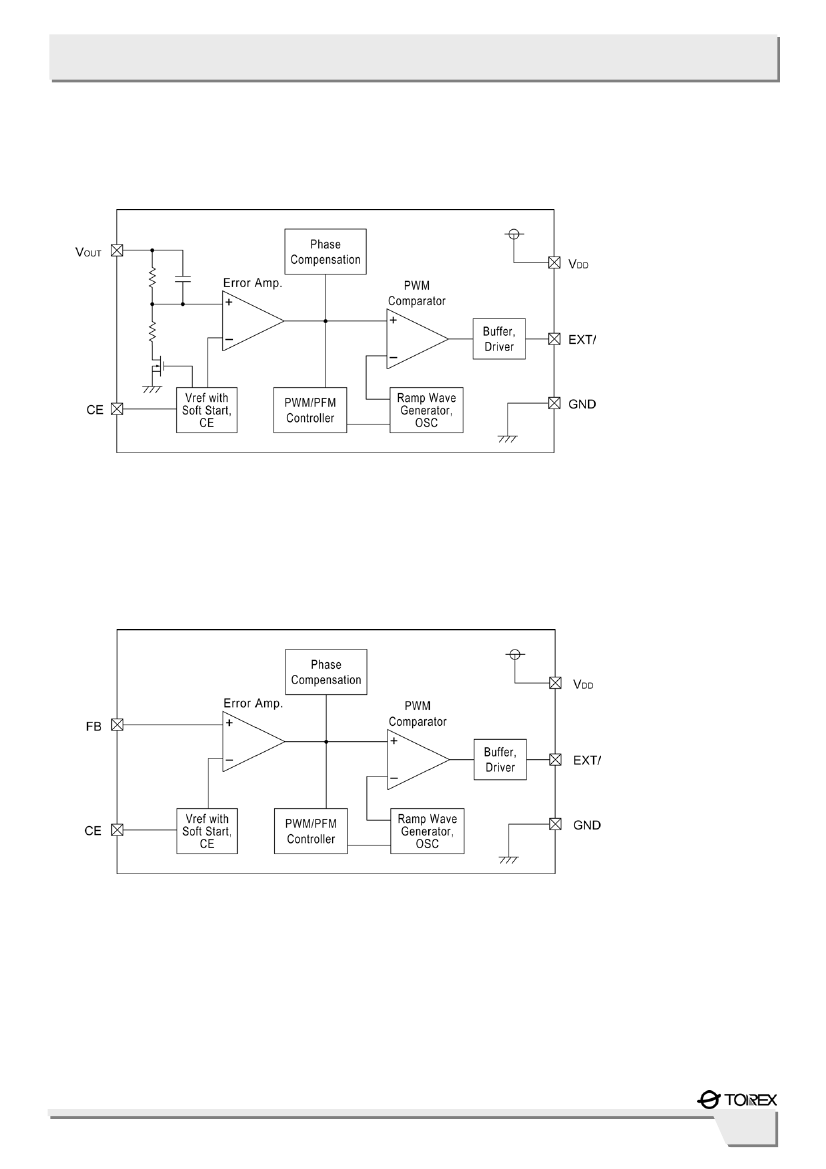

The XC6365/66 series are multi-functional step-down DC/DC
converters with built-in high speed, low ON resistance drivers. An
output current of more than 1A is possible using an externally
connected transistor, coil, diode and capacitor.
Output voltage is programmable in 100mV steps between 1.5V to
6.0V (V
OUT
) (±2.5% accuracy). Further, with 1.0V of standard
voltage supply internal and using externally connected
components, output voltage can be set up freely (FB).
With a 300kHz switching frequency, the size of the external
components can be reduced.
Control switches from PWM to PFM during light loads with the
XC6366 (PWM/PFM switchable) and the series is highly efficient
from light loads to large output currents.
In relation to soft-start time, both internally set-up 10msec types
(A,B) and external resistor or capacitor regulated types (C,D) are
available.
During stand-by time (CE pin "Low" ), current consumption is
reduced to less than 0.5μA.
With U.V.L.O internal, the external Tr. will be forcibly switched off if
used below the stipulated voltage.
■FEATURES
Input Voltage Range
: 2.2V~10V (V
OUT
type)
Output Voltage Range
: 1.5V ~ 6.0V programmable in
100mV steps (±2.5%)
Oscillation Frequency
: 300kHz (±15%)
: Custom products for 180, 500kHz
Output Current
: More than 1.0A
(V
IN
=5.0V, V
OUT
=3.0V)
High Efficiency
: 92% (TYP.)
Stand-by Capability
: I
STB
=0.5μA (MAX.)
Soft-start time set-up externally type possible
Internally set-up output voltage type possible (V
OUT
)
Externally set-up outut voltage type possible (FB)
Package
: SOT-25

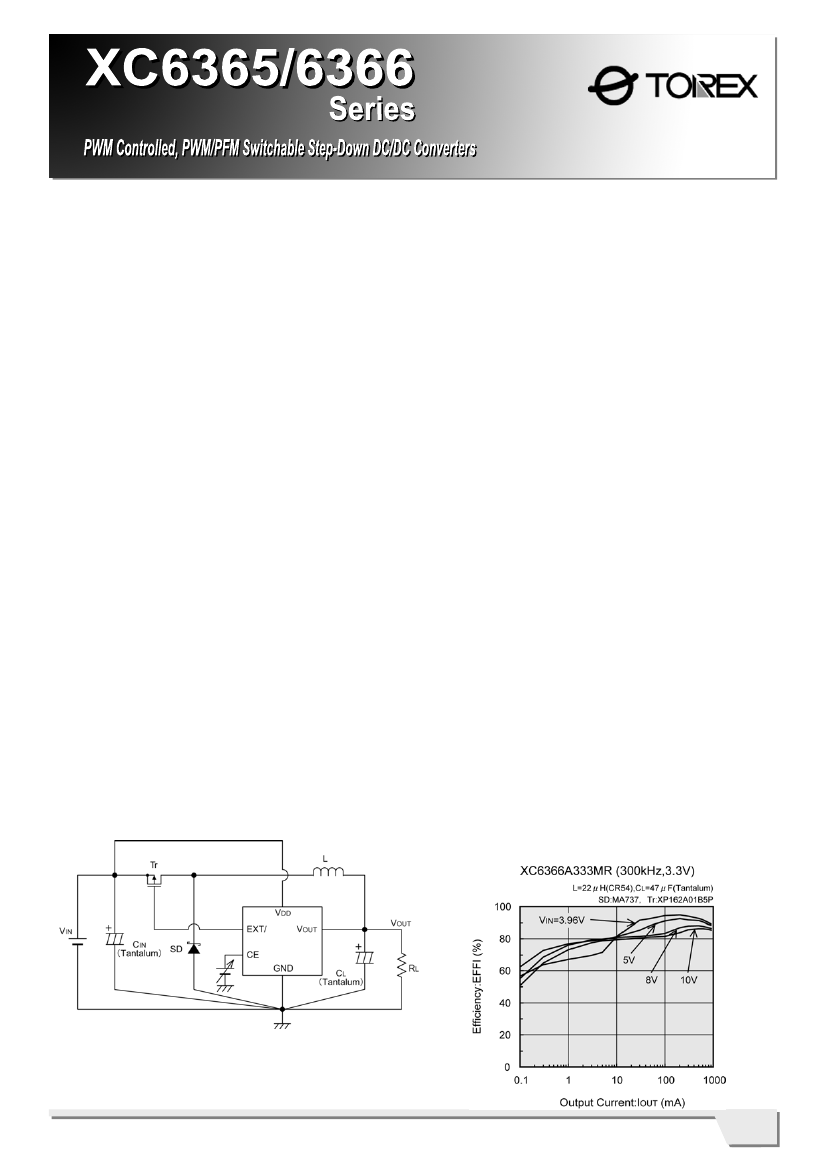

■TYPICAL
APPLICATION CIRCUIT
■TYPICAL
PERFORMANCE
CHARACTERISTICS
553
XC6365/6366
Series

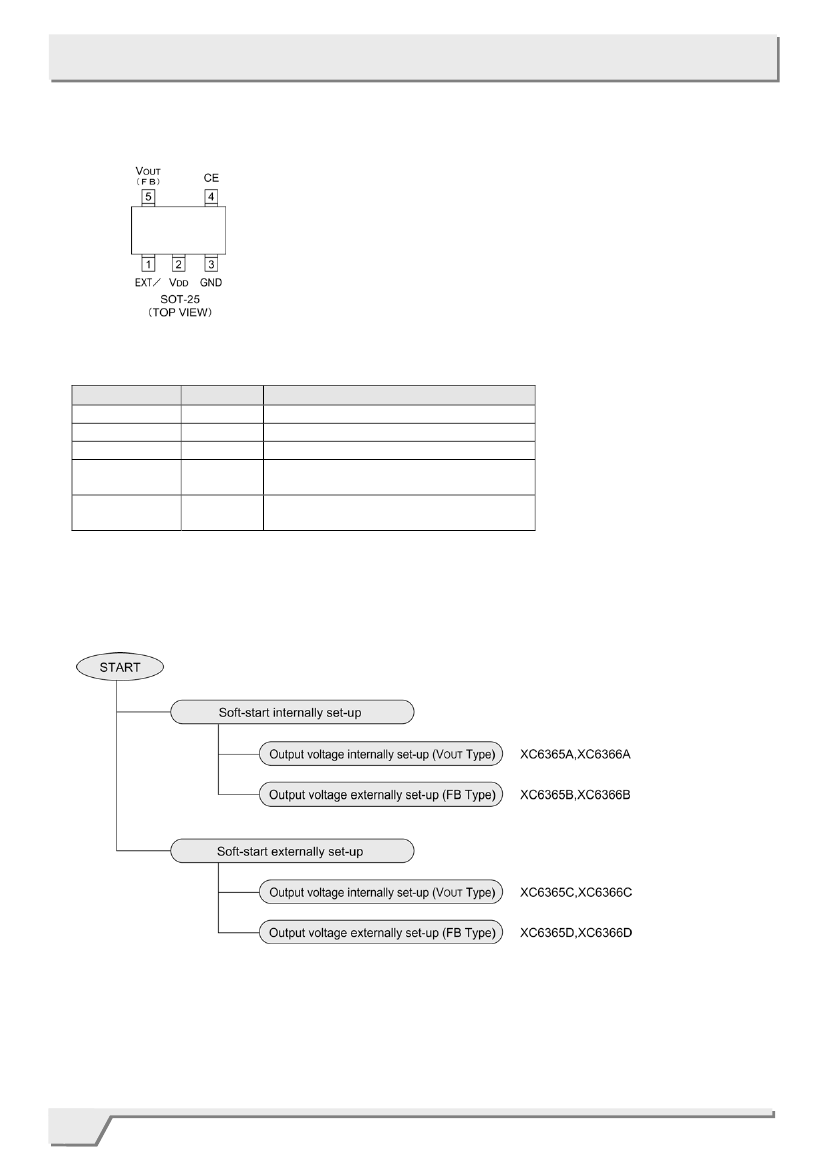

■PRODUCT
CLASSIFICATION (Continued)
●Ordering
Information
XC6365①②③④⑤⑥
XC6366①②③④⑤⑥
DESIGNATOR
PWM control
PWM/PFM switching control
DESCRIPTION
SYMBOL
A
B
C
D
Integer
10
3
5
2
M
R
L
DESCRIPTION
: V
OUT
type: Internally set-up, soft-start internally set-up
: FB type: Externally set-up, soft-start internally set-up
: V
OUT
type: Internally set-up, soft-start externally set-up
: FB type: Externally set-up, soft-start internally set-up
: V
OUT
type: 3.0V output
→ ②=3, ③=0
: FB type: 10 fixed
→ ②=1, ③=0
fixed
: 300kHz
: 500kHz (custom)
: 180kHz (custom)
: SOT-25 (SOT-23-5)
: Embossed tape, Standard feed
: Embossed tape, Reverse feed
①
Type of DC/DC Converter
② ③
Output Voltage
④
⑤
⑥
Oscillation Frequency
Package
Device Orientation
■PACKAGING
INFORMATION
●SOT-25
555
XC6365/6366
Series
■MARKING
RULE
5
①
②
4
③ ④
①Represents
product classification
PRODUCT SERIES
XC6365A
XC6365B
XC6365C
XC6365D
MARK
A
B
C
D
PRODUCT SERIES
XC6366A
XC6366B
XC6366C
XC6366D
MARK
K
L
M
N
1
2
SOT-25
3
(TOP VIEW)
②Represents
integer of output voltage and oscillation frequency
OUTPUT VOLTAGE
1
2
3
4
5
6
100
B
C
D
E
F
H
OSCILLATION FREQUENCY（kHz）
180
300
1
1
2
2
3
3
4
4
5
5
6
6
500
B
C
D
E
F
H
③Represents
decimal number of output voltage and oscillation frequency
OUTPUT VOLTAGE
0
1
2
3
4
5
6
7
8
9
100
0
1
2
3
4
5
6
7
8
9
OSCILLATION FREQUENCY（kHz）
180
300
0
A
1
B
2
C
3
D
4
E
5
F
6
H
7
K
8
L
9
M
500
A
B
C
D
E
F
H
K
L
M
④Represents
production lot number
0 to 9, A to Z repeated(G,I,J,O,Q,W excepted)
556
