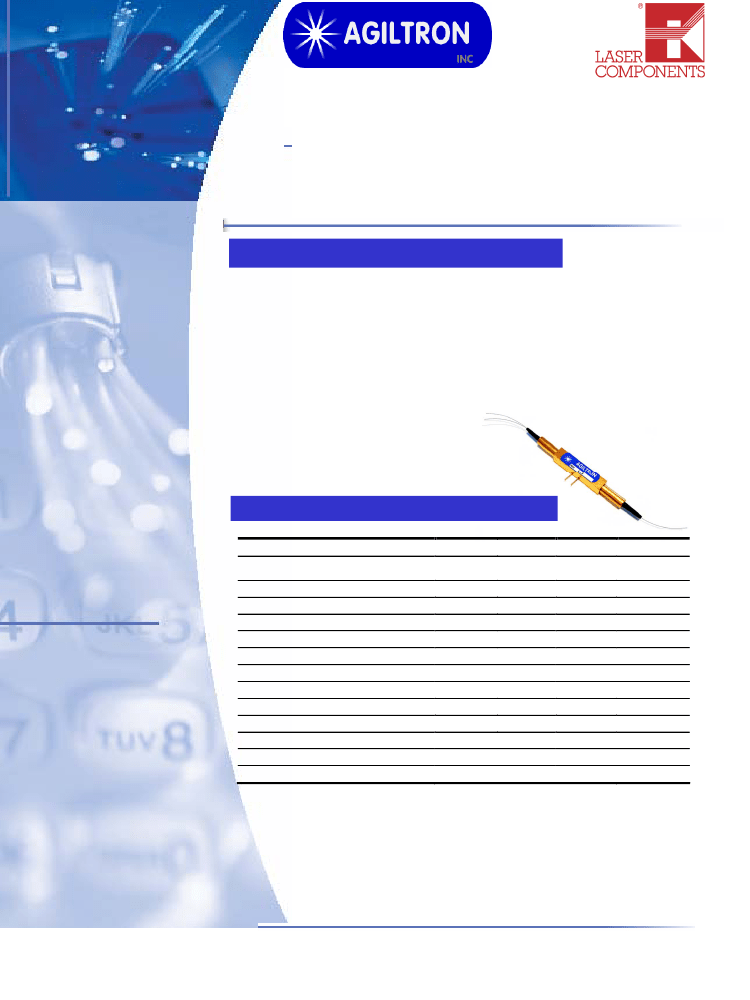

Nano Speed
TM
2X2 Solid-State
Fiber-optic Switch
(Protected by U.S. patent 7,403,677B1 and pending patents)
Product Description
The NS Series 2x2 solid-state fiber optic switch connects optical channels
by redirecting an incoming optical signal into a selected output optical
fiber. This is achieved using patent pending non-mechanical configurations
with solid-state all-crystal design, which eliminates the need for
mechanical movement and organic materials. The NS fiberoptic switch is
designed to meet the most demanding switching requirements of ultra-
high reliability, fast response time, and continuous switching operation.
The device can be driven by a cost effective circuit with 12V input voltage
and a 0-5 V control signal.
Features
•
•
•
•
•
•
•
Solid-State high speed
Ultra-high reliability
Low insertion loss
Compact size
Low cost
Low power consumption
Simple driver
Performance Specifications
NS Series 2x2 Switch
Operation Wavelength
Insertion Loss
Cross Talk
Polarization Dependent Loss
IL Temperature Dependency
Polarization Mode Dispersion
Return Loss
Response Time (Rise, Fall)
Repetition Rate
Operating Temperature
Optical Power Handling
Storage Temperature
Package Dimension
* Driver kit is recommended
** Special circuit
*** Special order
Min
400
-
20
42
DC
-5
-40
Applications
•
Optical blocking
•
Configurable operation
•
Instrumentation
Max
1800
0.6
1.3
25
35
0.15
0.35
0.25
0.5
0.1
0.3
50
60
300
5
300**
70
300
5000***
85
77.1x8.5x8.4
Typical
Unit
nm
dB
dB
dB
dB
ps
dB
ns
KHz
o
C
mW
o
C
mm
LASER COMPONENTS GmbH
Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Nano Speed
TM
2X2 Solid-State
Fiber-optic Switch

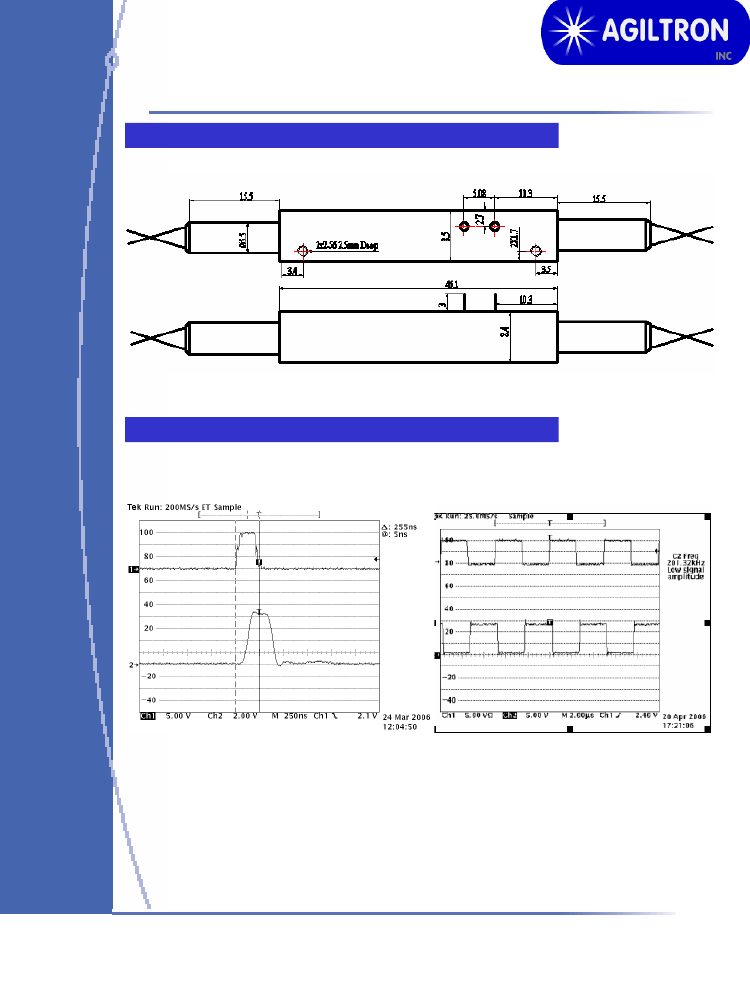

Device Image and Dimensions (Unit:mm)
Speed and Repetition Measurement
CH1:Electric
Pulse
→
255
←
CH2:Light Pulse
LASER COMPONENTS GmbH
Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Nano Speed
TM
2X2 Solid-State
Fiber-optic Switch
Bandwidth Measurement
Typical C
ross Talk Curve for NanoSpeed Sw
itch/VO
A
-20
-21
-22
-23
-24
Cross Talk (dB)
-25
-26
-27
-28
-29
-30
-31
-32
-33
-34
-35
-36
-37
-38
-39
-40
1
520
1
525
1
530
1
535
1
540
1
545
1
550
1
555
1
560
1
565
1
570
1
575
1
580
W Length (nm)
ave
Ordering Information
NSSW-
Type
2x2=22
Wavelength
1310=3
1550=5
Special=0
1
Configuration
1
1
Fiber Length Connector
0.25m=1
Bare fiber =1
900um loose tube=3 0.5m =2
1.0 m=3
Special=0
Special=0
None=1
FC/PC=2
FC/APC=3
SC/PC=4
SC/APC=5
ST/PC=6
LC=7
Duplex LC=8
Special=0
Package Fiber Type
SMF-28=1
Special=0
06/09 / V1 /
IF
/
agiltron
/
sm_schalter / ns_switch_2x2.pdf
www.lasercomponents.com
LASER COMPONENTS GmbH
Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
