1.00mm HORIZONTAL DIP LIF CONNECTOR
SERIES.
1763 SERIES
1.00mm(0.039”). For PCB solder
Features
!
Available in 4 through 32 circuits
!
Insulator Material: Nylon 6T UL 94V-0
!
Contact Material: Phosphor Bronze

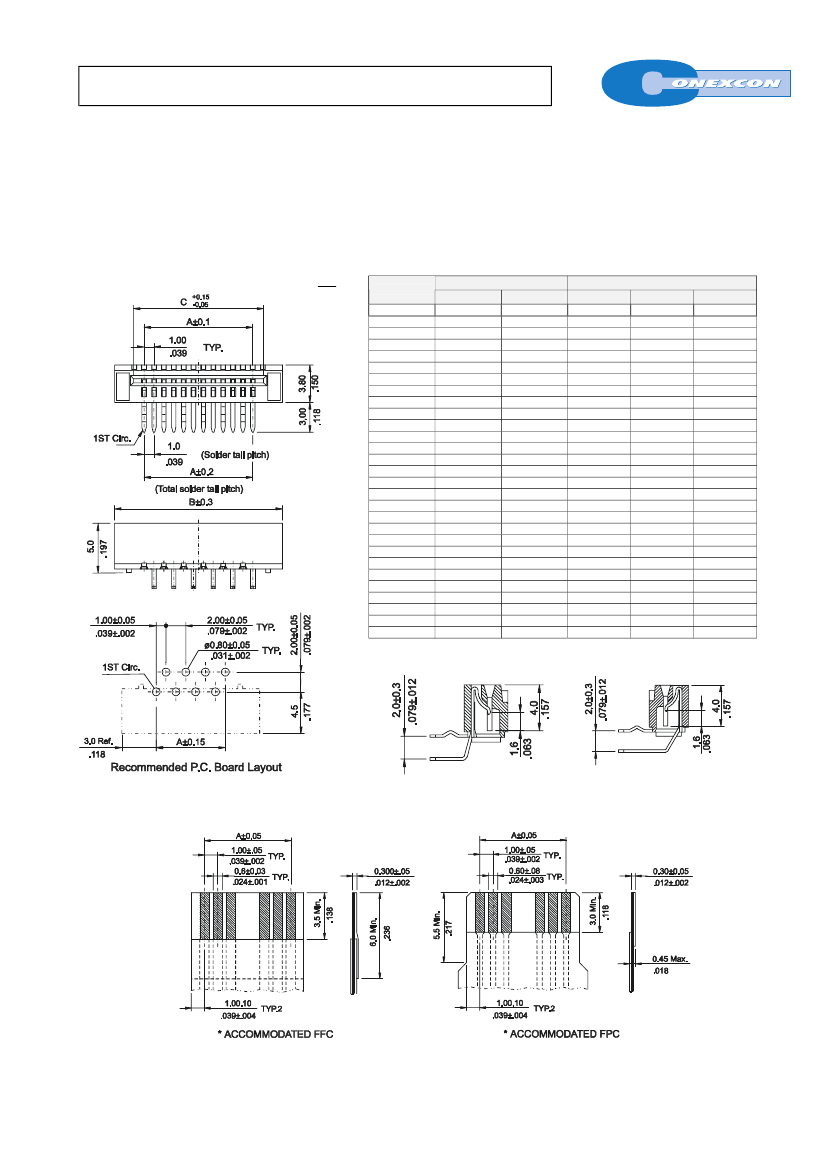

Dimensional Information
!
Low insertion forceand high contact pressure
!
Applicable FPC and FFC: Thickness 0.30mm(.012”)
Ordering and Dimensional Information
Unit:
mm.
Inch.
Circuit Size
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Part Number
Upside contact Downside cont.
1763-2041
1763-2051
1763-2061
1763-2071
1763-2081
1763-2091
1763-2101
1763-2111
1763-2121
1763-2131
1763-2141
1763-2151
1763-2161
1763-2171
1763-2181
1763-2191
1763-2201
1763-2211
1763-2221
1763-2231
1763-2241
1763-2251
1763-2261
1763-2271
1763-2281
1763-2291
1763-2301
1763-2311
1763-2321
1763-2042
1763-2052
1763-2062
1763-2072
1763-2082
1763-2092
1763-2102
1763-2112
1763-2122
1763-2132
1763-2142
1763-2152
1763-2162
1763-2172
1763-2182
1763-2192
1763-2202
1763-2212
1763-2222
1763-2232
1763-2242
1763-2252
1763-2262
1763-2272
1763-2282
1763-2292
1763-2302
1763-2312
1763-2322
A
3,00(0,118)
4,00(0,157)
5,00(0,197)
6,00(0,236)
7,00(0,276)
8,00(0,315)
9,00(0,354)
10,00(0,394)
11,00(0,433)
12,00(0,472)
13,00(0,512)
14,00(0,551)
15,00(0,591)
16,00(0,630)
17,00(0,669)
18,00(0,709)
19,00(0,748)
20,00(0,787)
21,00(0,827)
22,00(0,866)
23,00(0,906)
24,00(0,945)
25,00(0,984)
26,00(1,024)
27,00(1,063)
28,00(1,102)
29,00(1,142)
30,00(1,181)
31,00(1,220)
DIMENSIONES
B
10,20(0,402)
11,20(0,441)
12,20(0,480)
13,20(0,520)
14,20(0,559)
15,20(0,598)
16,20(0,638)
17,20(0,677)
18,20(0,717)
19,20(0,756)
20,20(0,795)
21,20(0,835)
22,20(0,874)
23,20(0,913)
24,20(0,953)
25,20(0,992)
26,20(1,031)
27,20(1,071)
28,20(1,110)
29,20(1,150)
30,20(1,189)
31,20(1,228)
32,20(1,268)
33,20(1,307)
34,20(1,346)
35,20(1,386)
36,20(1,425)
37,20(1,465)
38,20(1,504)
C
5,20(0,205)
6,20(0,244)
7,20(0,283)
8,20(0,323)
9,20(0,362)
10,20(0,402)
11,20(0,441)
12,20(0,480)
13,20(0,520)
14,20(0,559)
15,20(0,598)
16,20(0,638)
17,20(0,677)
18,20(0,717)
19,20(0,756)
20,20(0,795)
21,20(0,835)
22,20(0,874)
23,20(0,913)
24,20(0,953)
25,20(0,992)
26,20(1,031)
27,20(1,071)
28,20(1,110)
29,20(1,150)
30,20(1,189)
31,20(1,228)
32,20(1,268)
33,20(1,307)
Downside contact
Upside contact
CONEXCON
Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation
