KIA78D10PI: DescriptionFixed Positive LDO Regulator, 10V, 0.5V Dropout, BIPolar, TO-220IS, 3 PIN; CategoryPower/power management The power supply circuit; File Size11MB，6 Pages; ManufacturerKEC; Websitehttp://www.keccorp.com/

Download Datasheet Parametric Compare View All

KIA78D10PI Overview

Fixed Positive LDO Regulator, 10V, 0.5V Dropout, BIPolar, TO-220IS, 3 PIN

KIA78D10PI Parametric

Parameter Name	Attribute value
Maker	KEC
Parts packaging code	TO-220IS
package instruction	,
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum drop-back voltage 1	0.5 V
Maximum input voltage	26 V
Minimum input voltage	11 V
JESD-30 code	R-XSFM-T3
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	150 °C
Maximum output voltage 1	10.25 V
Minimum output voltage 1	9.75 V
Nominal output voltage 1	10 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

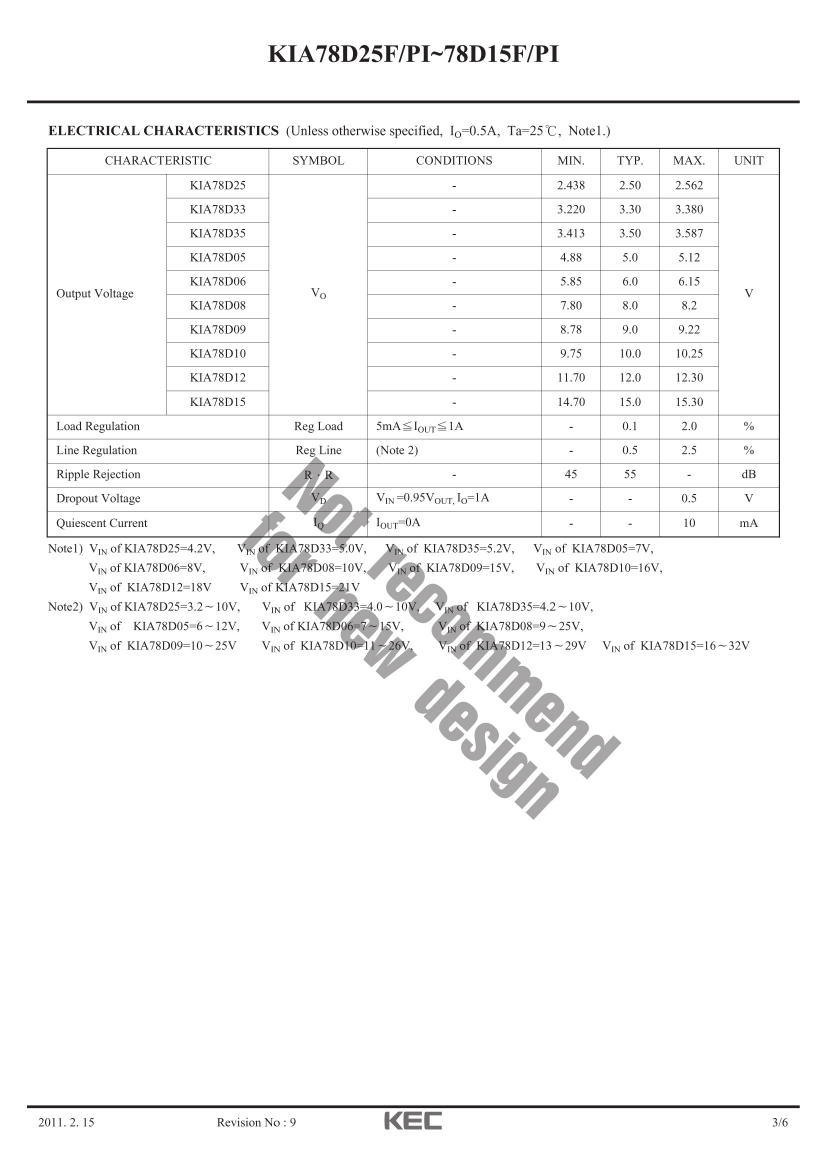

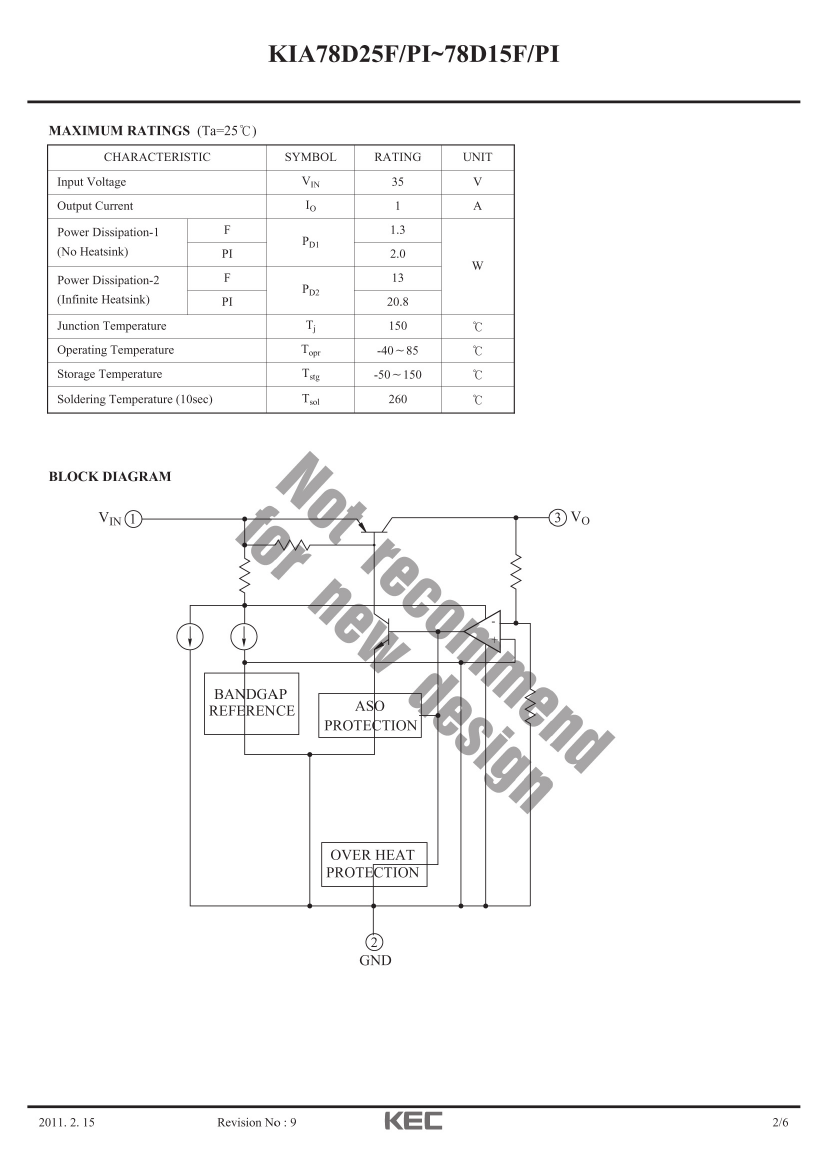

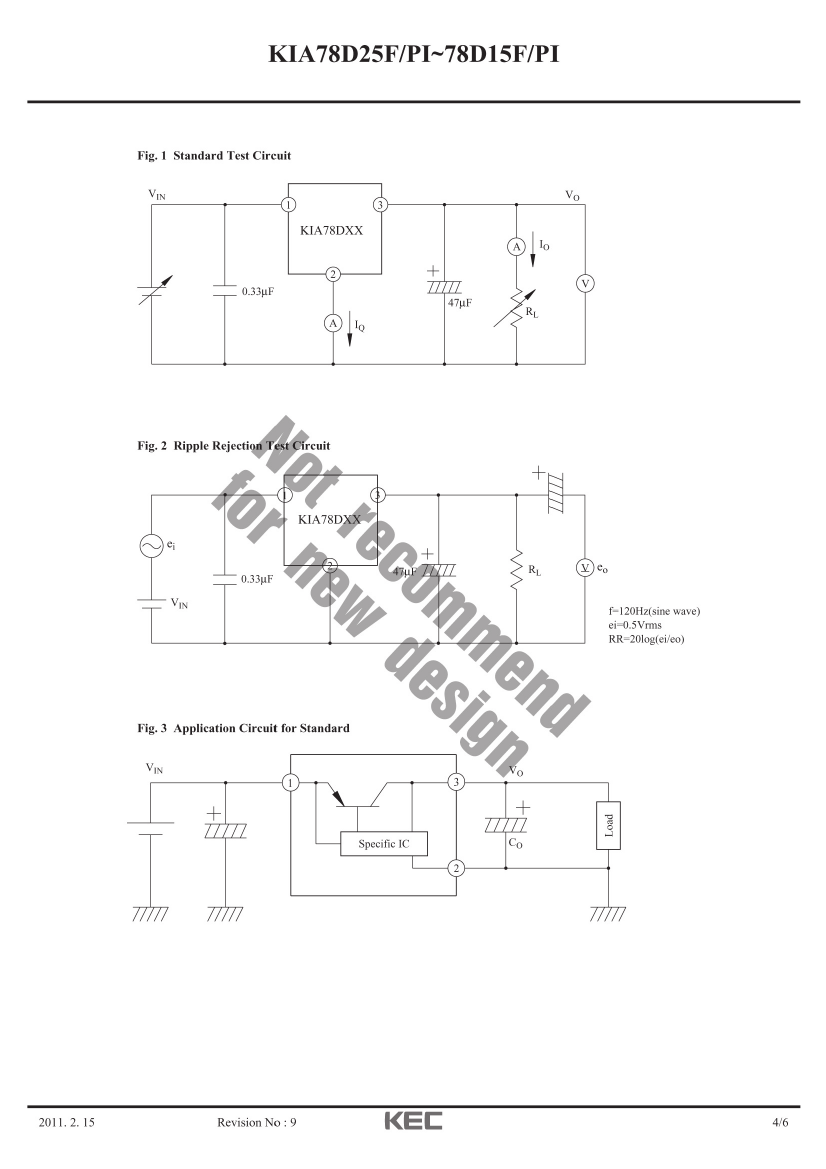

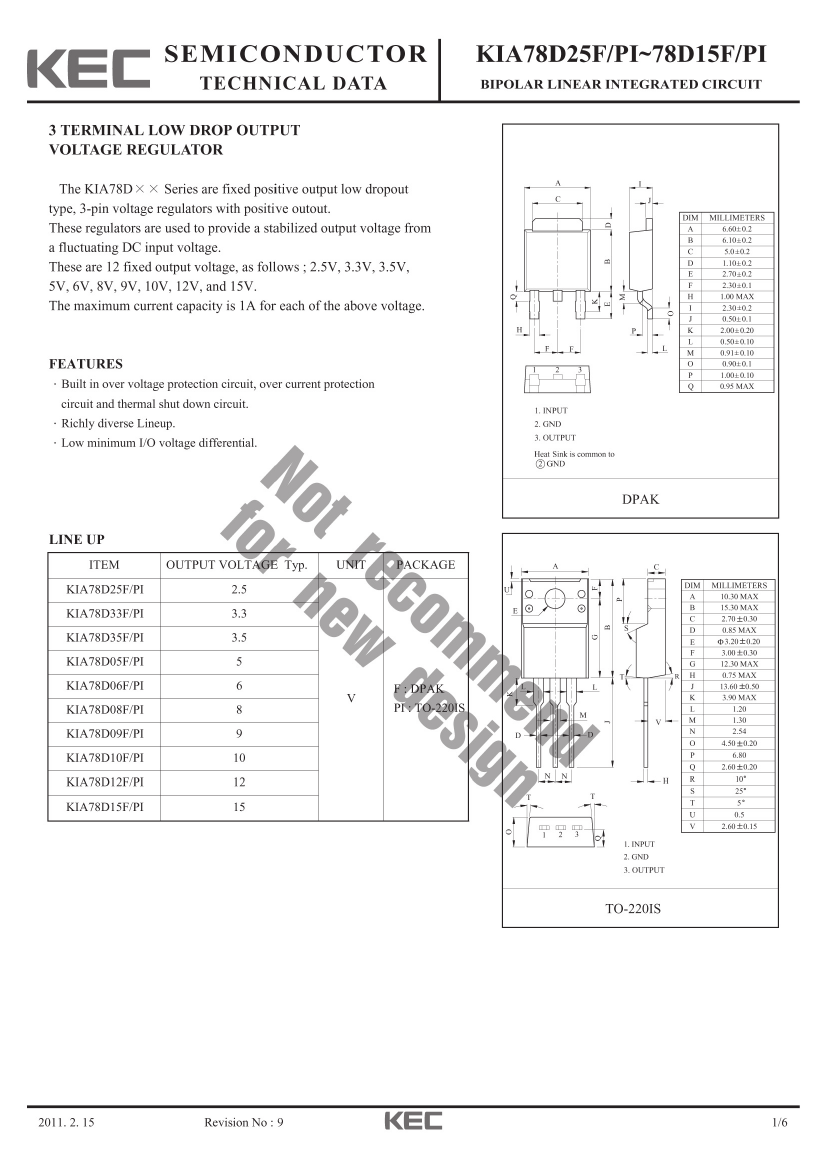

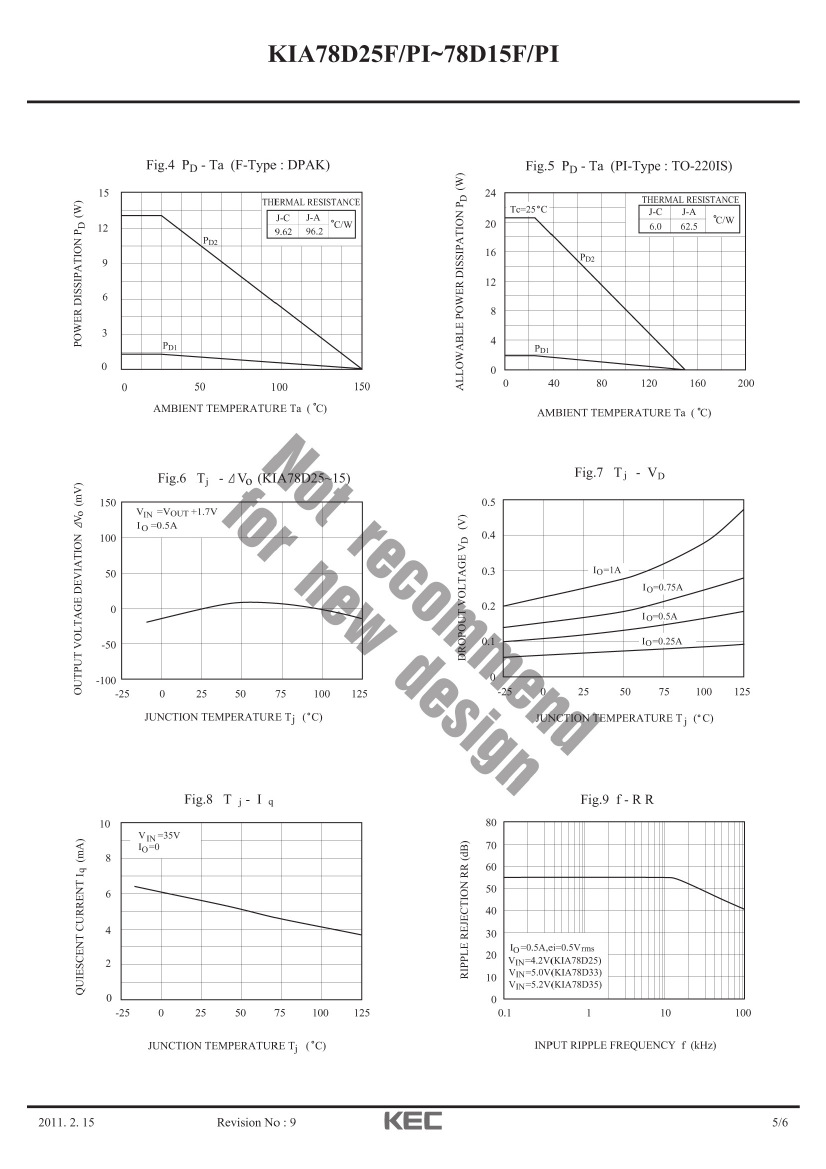

Preview

Download Datasheet

View All

KIA78D10PI Related Products

	KIA78D10PI	KIA78D33PI	KIA78D15PI	KIA78D06PI	KIA78D08PI	KIA78D09PI	KIA78D12PI	KIA78D25PI	KIA78D35PI
Description	Fixed Positive LDO Regulator, 10V, 0.5V Dropout, BIPolar, TO-220IS, 3 PIN	Fixed Positive LDO Regulator, 3.3V, 0.5V Dropout, BIPolar, TO-220IS, 3 PIN	Fixed Positive LDO Regulator, 15V, 0.5V Dropout, BIPolar, TO-220IS, 3 PIN	Fixed Positive LDO Regulator, 6V, 0.5V Dropout, BIPolar, TO-220IS, 3 PIN	Fixed Positive LDO Regulator, 8V, 0.5V Dropout, BIPolar, TO-220IS, 3 PIN	Fixed Positive LDO Regulator, 9V, 0.5V Dropout, BIPolar, TO-220IS, 3 PIN	Fixed Positive LDO Regulator, 12V, 0.5V Dropout, BIPolar, TO-220IS, 3 PIN	Fixed Positive LDO Regulator, 2.5V, 0.5V Dropout, BIPolar, TO-220IS, 3 PIN	Fixed Positive LDO Regulator, 3.5V, 0.5V Dropout, BIPolar, TO-220IS, 3 PIN
Maker	KEC	KEC	KEC	KEC	KEC	KEC	KEC	KEC	KEC
Parts packaging code	TO-220IS	TO-220IS	TO-220IS	TO-220IS	TO-220IS	TO-220IS	TO-220IS	TO-220IS	TO-220IS
Contacts	3	3	3	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum drop-back voltage 1	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V
Maximum input voltage	26 V	10 V	32 V	15 V	25 V	25 V	29 V	10 V	10 V
Minimum input voltage	11 V	4 V	16 V	7 V	9 V	10 V	13 V	3.2 V	4.2 V
JESD-30 code	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Working temperatureTJ-Max	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output voltage 1	10.25 V	3.38 V	15.3 V	6.15 V	8.2 V	9.22 V	12.3 V	2.562 V	3.587 V
Minimum output voltage 1	9.75 V	3.22 V	14.7 V	5.85 V	7.8 V	8.78 V	11.7 V	2.438 V	3.413 V
Nominal output voltage 1	10 V	3.3 V	15 V	6 V	8 V	9 V	12 V	2.5 V	3.5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
