1254H-03W-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1254H-03W-L

1254H-03W-L: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Plug; CategoryThe connector The connector; File Size222KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

1254H-03W-L Overview

Board Connector, 3 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Plug

1254H-03W-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305221283
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.071 inch
subject depth	0.244 inch
body length	0.274 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	100000000 Ω
insulator material	NYLON
Manufacturer's serial number	1254
Plug contact pitch	0.049 inch
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	3
Maximum wire diameter	28 AWG
Minimum wire diameter	32 AWG

Preview

Download Datasheet

View All

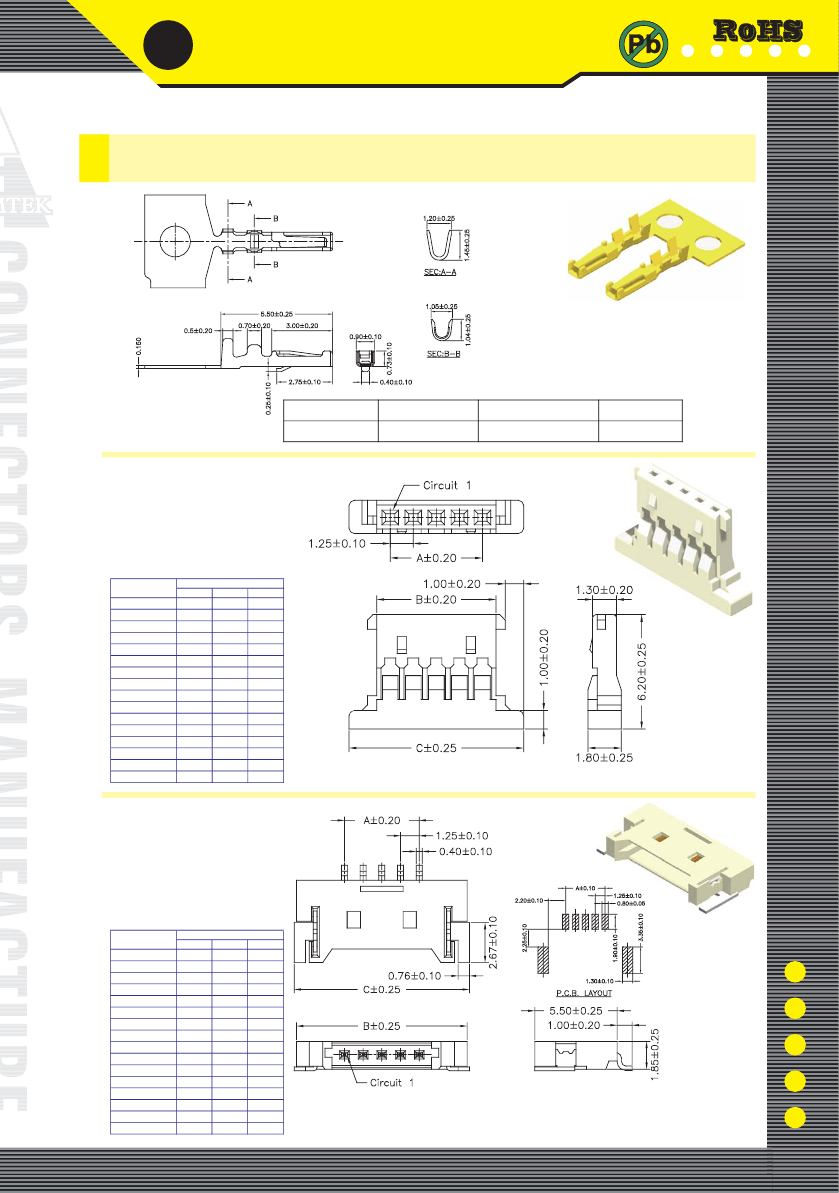

ousing Wafer Terminal

1.25mm Terminal / Housing / Wafer SMT R/A Type

Part No.:1254-T-L

Wire Range

AWG#28-#32

Specifications

Current Rating: 1A AC,DC

Voltage Rating: 125V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 20m

Max

Insulation Resistance: 100M

Min

Withstanding Voltage: 500V AC/minute

Material:Nylon 66,UL94V-0

Part No.

1254H-02W-L

1254H-03W-L

1254H-04W-L

1254H-05W-L

1254H-06W-L

1254H-07W-L

1254H-08W-L

1254H-09W-L

1254H-10W-L

1254H-11W-L

1254H-12W-L

1254H-14W-L

1254H-15W-L

1254H-16W-L

1254H-20W-L

1254H-30W-L

Dimensions

2.72

3.97

5.22

6.47

7.72

8.97

10.22

11.47

12.72

13.97

15.22

17.72

18.97

20.22

25.22

37.72

Insulation O.D.

1.00mm(max)

Material

Phosphor Bronze

Finish

Gold-plated

1.25

2.50

3.75

5.00

6.25

7.50

8.75

10.00

11.25

12.50

13.75

16.25

17.50

18.75

23.75

36.25

5.72

6.97

8.22

9.47

10.72

11.97

13.22

14.47

15.72

16.97

18.22

20.72

21.97

23.22

28.22

40.72

Part No.:1254H-XXW-L

Specifications

Current Rating: 1A AC,DC

Voltage Rating: 125V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 20m

Max

Insulation Resistance: 100M

Min

Withstanding Voltage: 500V AC/minute

Terminal: Brass / Gold Plated

Solder Tabs: Brass / Tin Plated

Material:Nylon 6T,UL94V-0

Part No.

1254MR-02GW-U

1254MR-03GW-U

1254MR-04GW-U

1254MR-05GW-U

1254MR-06GW-U

1254MR-07GW-U

1254MR-08GW-U

1254MR-09GW-U

1254MR-10GW-U

1254MR-11GW-U

1254MR-12GW-U

1254MR-14GW-U

1254MR-15GW-U

1254MR-16GW-U

1254MR-20GW-U

1254MR-30GW-U

Dimensions

7.65

8.90

10.15

11.40

12.65

13.90

15.15

16.40

17.65

18.90

20.15

22.65

23.90

25.15

30.15

42.65

1.25

2.50

3.75

5.00

6.25

7.50

8.75

10.00

11.25

12.50

13.75

16.25

17.50

18.75

23.75

36.25

7.97

9.22

10.47

11.72

12.97

14.22

15.47

16.72

17.97

19.22

20.47

22.97

24.22

25.47

30.47

42.97

Part No.:1254MR-XXGW-U
