PS1R85B-219SB1-L datasheet, PDF

Datasheet> All Categories > The connector> The connector> PS1R85B-219SB1-L

PS1R85B-219SB1-L: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size189KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS1R85B-219SB1-L Overview

Board Connector, 38 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

PS1R85B-219SB1-L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1164678337
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.276 inch
subject depth	0.335 inch
body length	1.92 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
Manufacturer's serial number	PS1R
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.106 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	38

Preview

Download Datasheet

View All

emale Header 2.54mm

Material

Insulator:Polyester,UL 94V-0

◎

Standard:PBT or Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

2.50±0.15

5.00±0.15

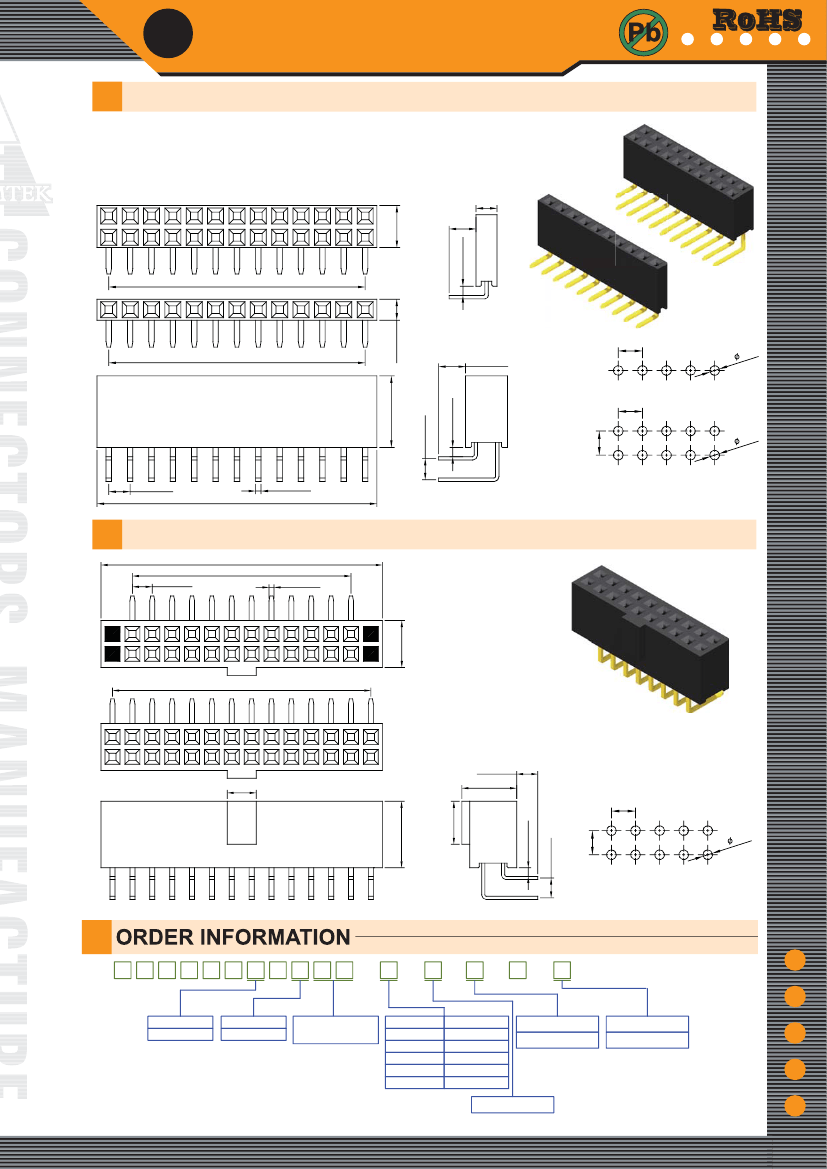

Female Header 2.54mm 1 & 2 Row H=8.5mm Right Angle Type

Specifications

Current Rate:3 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-40°C to +105°C

3.20±0.25

1.10±0.25

2.54 x (No. of Contacts/2-1)±0.20

2.50±0.15

2.54

3.20±0.25

2.54 x (No. of Contacts-1)±0.20

1.02

8.50±0.15

1.10±0.25

2.54

1.02

2.54±0.20

2.54

2.54±0.10

0.64x0.40

2.54 x No. of Positions+0.50±0.30

Recommended PCB Layout

(PCB TOLERANCE ±0.05)

Part No.:PS1R85-1/2XX-L/U

Female Header 2.54mm 2 Row H=8.5mm With Bump Right Angle Type

2.54 x No. of Positions+0.50±0.30

2.54 X (No. of Contacts-1)±0.20

2.54±0.10

0.64x0.40

6.00±0.15

With Blocked

2.54 X (No. of Contacts-1)±0.20

W/O Blocked

2.70±0.25

3.70

7.00±0.15

2.54

8.50±0.15

5.50

1.10±0.25

2.54±0.20

2.54

1.02

Recommended PCB Layout

(PCB TOLERANCE ±0.05)

Part No.:PS1R85B-2XX-L/U

P S 1 R 8 5 X - X X X

Blank:W/O Bump

1:Single Row

B:With Bump

2:Dual Row

No. of Contacts Per Row

(02~40)

◎G:Gold

Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

T:Tin Plated

S:Selective

SA:Selective 5u"

SB:Selective 10u"

SC:Selective 20u"

SD:Selective 30u"

TE:Tin 200u"

1:With Blocked

2:W/O Blocked

L:RoHS + PBT

U:RoHS + Nylon 6T

◎B:Black

Insulator

◎:Standard

Recommended

www.amtek-co.com.tw

2-119
