PS2S46-224GCB-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> PS2S46-224GCB-U

PS2S46-224GCB-U: DescriptionBoard Connector, 48 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size248KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS2S46-224GCB-U Overview

Board Connector, 48 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug

PS2S46-224GCB-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1164395550
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.177 inch
subject depth	0.181 inch
body length	1.909 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (20)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	PS2S
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	20u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.106 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	48

Preview

Download Datasheet

View All

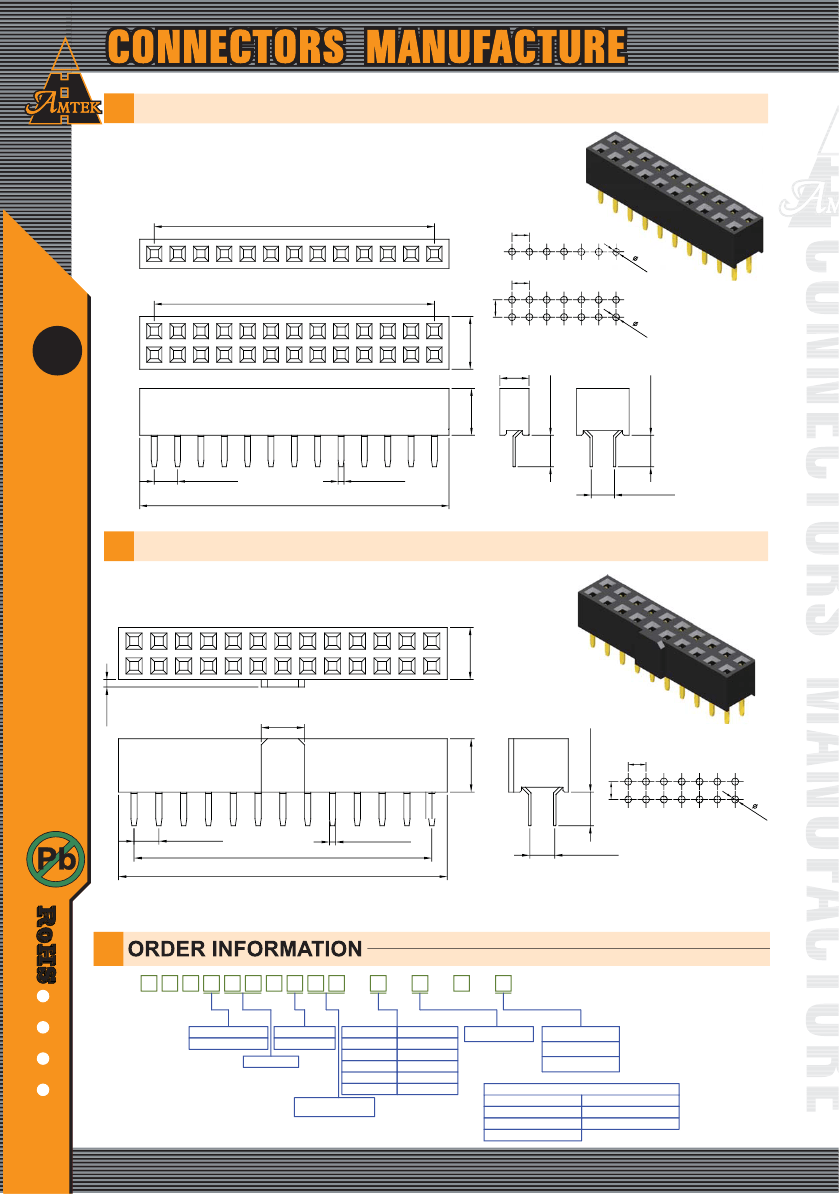

Female Header 2.0mm 1 & 2 Row H=4.0/4.3/4.6mm Straight Type

Specifications

Current Rate:2.0 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:PBT or Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

emale Header 2.0mm

2-71

Part No.:PS2S40/43/46-1/2XX-U

Female Header 2.0mm 2 Row H=4.0/4.3mm Straight Type With Bump

Part No.:PS2SB40/43-2XX-L/U

P S 2 X X X - X X X

S:Straight

1:Single Row

G:Gold Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

T:Tin Plated

S:Selective

SA:Selective 5u"

SB:Selective 10u"

SC:Selective 20u"

SD:Selective 30u"

TE:Tin 200u"

B:Black Insulator

L:RoHS + PBT

U:RoHS + Nylon 6T

(L For PS2SB Only)

Insulator Height

SB:Straight With Bump

2:Dual Row

Insulator Height

No. of Contacts Per Row

(02~40)

Straight Type

40:Insulator Height H=4.0mm

43:Insulator Height H=4.3mm

46:Insulator Height H=4.6mm

Straight With Bump Type

40:Insulator Height H=4.0mm

43:Insulator Height H=4.3mm

Standard Recommended

www.amtek-co.com.tw
