MSM40A Overview

pwr sply med 40w 5.1;12;-12

Preview

Download Datasheet

View All

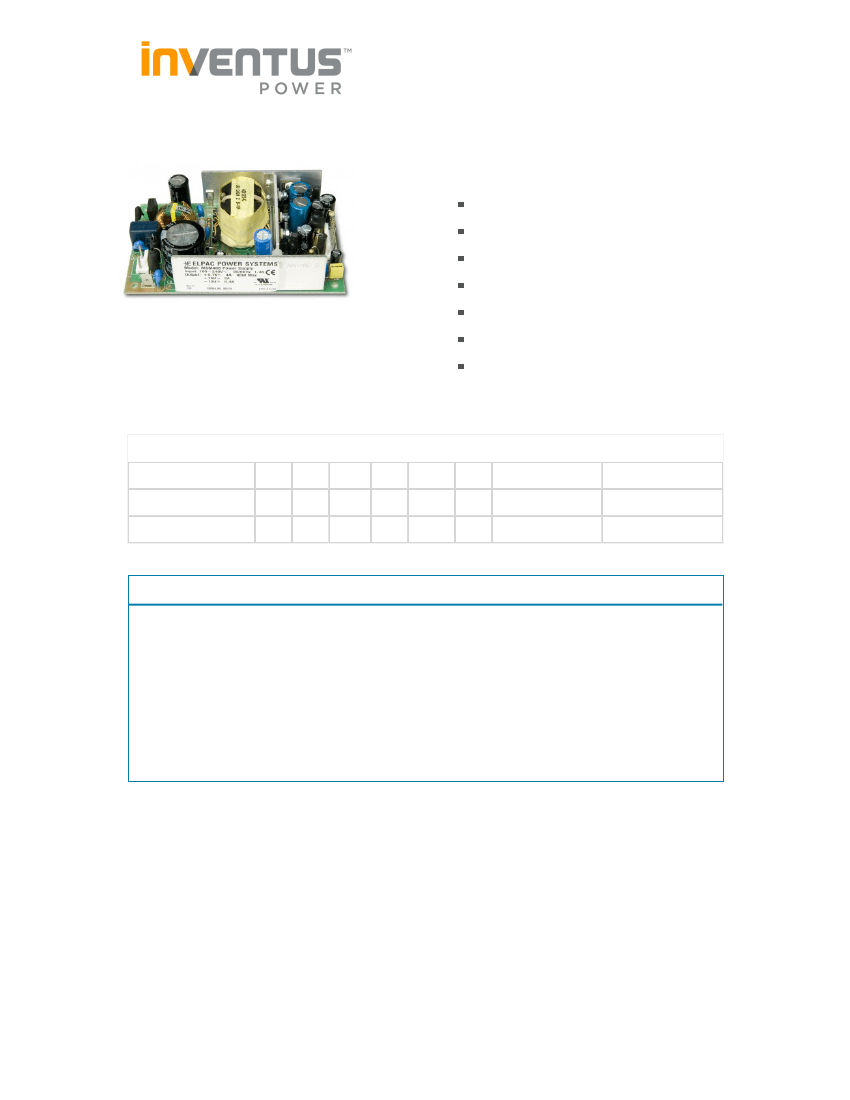

MSM40A/B/D Series

High Efficiency

Wide Range AC Input

Fully Regulated DC Output

Lifetime Expectation >5 years

Holdup Time >20ms at full load

Outputs Floating

40 Watt Triple Output Medical Open Frame

Power Supply

Safety Approval EN606011 Class I

Elpac Part Number

MSM40D

MSM40B

MSM40A

5.1V

4.0A

24.0V

15.0V

12.0V

1.0A

2.0A

12.0V

15.0V

12.0V

0.4A

Total Regulation

±5%

Typical Efficiency

74%

73%

Input

Input Voltage

Input Frequency

Input Current

Inrush Current

Zero Load Power Consumption

Earth Leakage Current (Typical)

85 264VAC 100 240VAC Nominal

50 60Hz

<1.3A rms

<37A at 230VAC cold start

<7.0W

<25µA @ 132VAC @ 60Hz

<40µA @ 264VAC @ 60Hz

MSM40A Related Products

	MSM40A	MSM40B	MSM40D
Description	pwr sply med 40w 5.1;12;-12	AC/DC CONVERTER 5.1V +/-15V 40W	AC/DC CNVRTR 5.1V 24V -12V 40W
type	-	open framework	open framework
Number of outputs	-	3	3
Voltage - input	-	85 ~ 264 VAC	85 ~ 264 VAC
Voltage - Output 1	-	5.1V	5.1V
Voltage - Output 2	-	15V	24V
Voltage - Output 3	-	-15V	-12V
Current - Output (maximum)	-	4A，2A，400mA	4A，1A，400mA
Power (W)	-	40W	40W
application	-	Medical type	Medical type
efficiency	-	74%	74%
Operating temperature	-	0°C ~ 50°C	0°C ~ 50°C
characteristic	-	universal input	universal input
Installation type	-	Base installation	Base installation

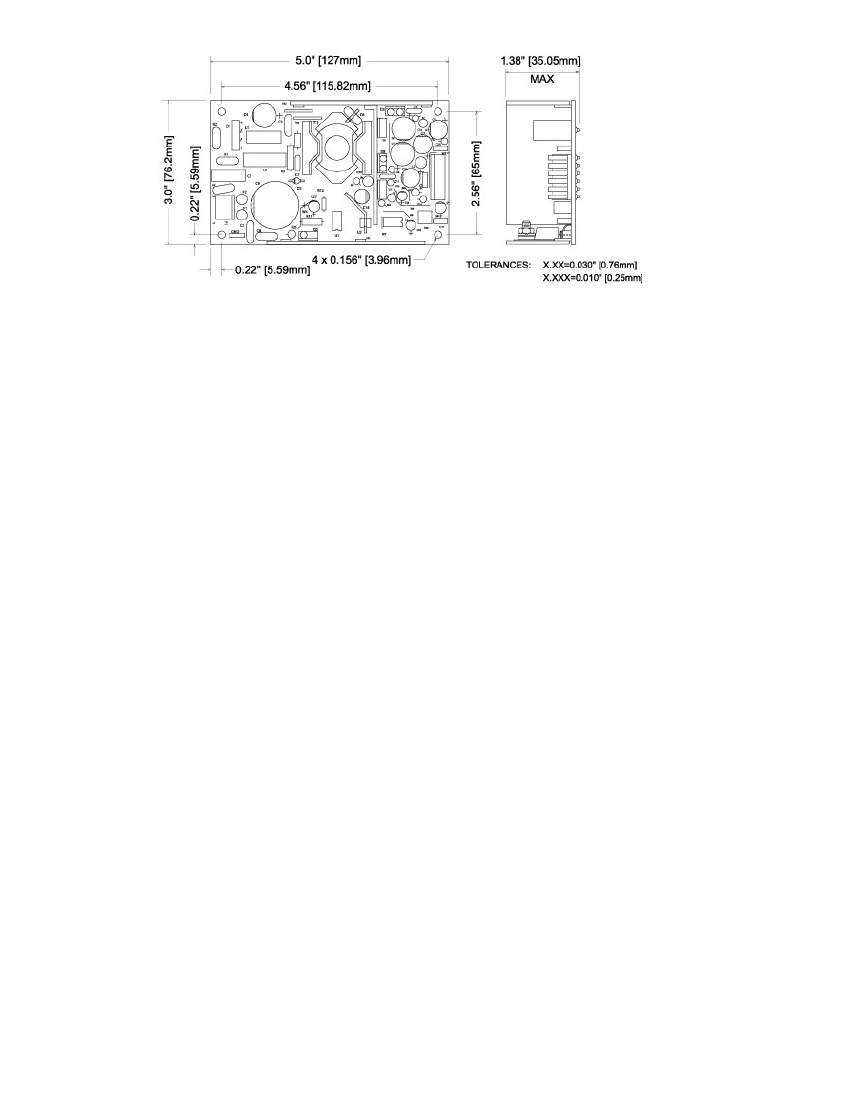

size/dimensions	-	5.00" long x 3.00" wide x 1.38" high (127.0mm x 76.2mm x 35.1mm)	5.00" long x 3.00" wide x 1.38" high (127.0mm x 76.2mm x 35.1mm)
Approval	-	CB，CE，cURus	CB，CE，cURus
