JAN469-1 datasheet, PDF - EEWORLD Datasheet

JAN469-1: DescriptionBridge Rectifier Diode, Avalanche, 1 Phase, 10A, 240V V(RRM), Silicon, METAL PACKAGE-4; CategoryDiscrete semiconductor diode; File Size74KB，2 Pages; ManufacturerDefense Logistics Agency

Download Datasheet Parametric Compare View All

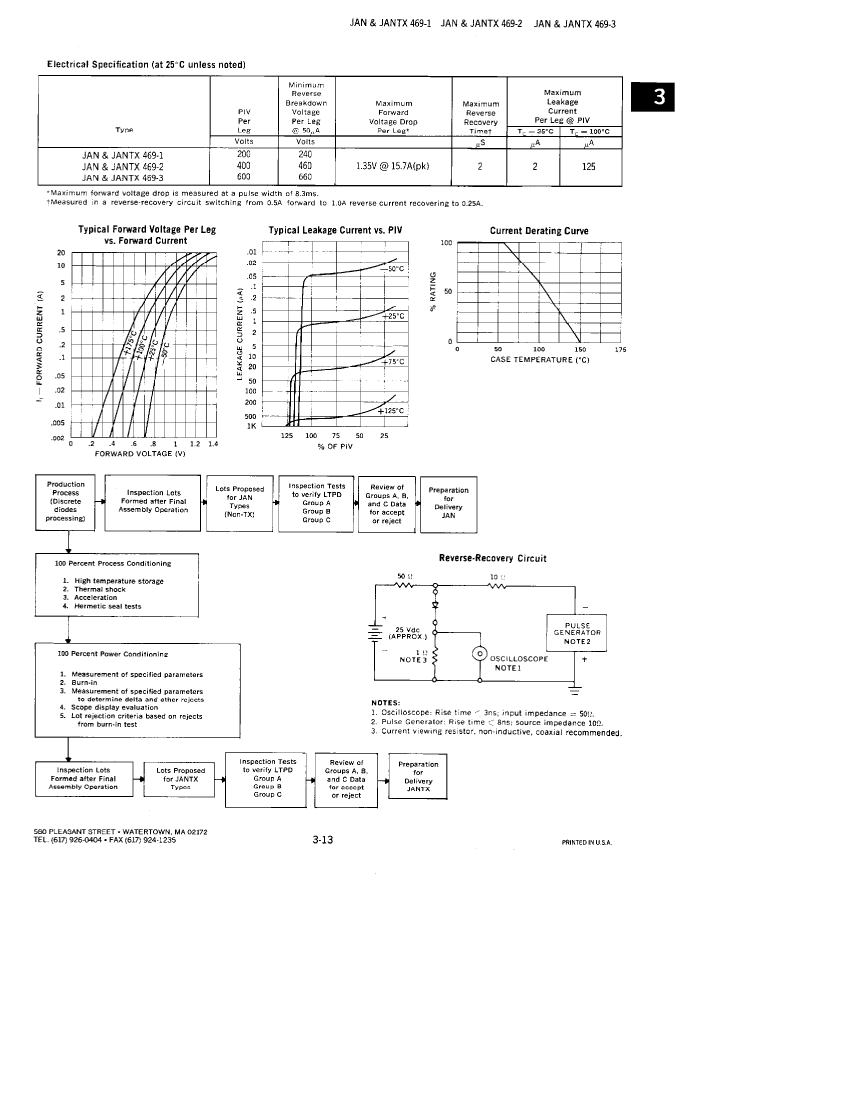

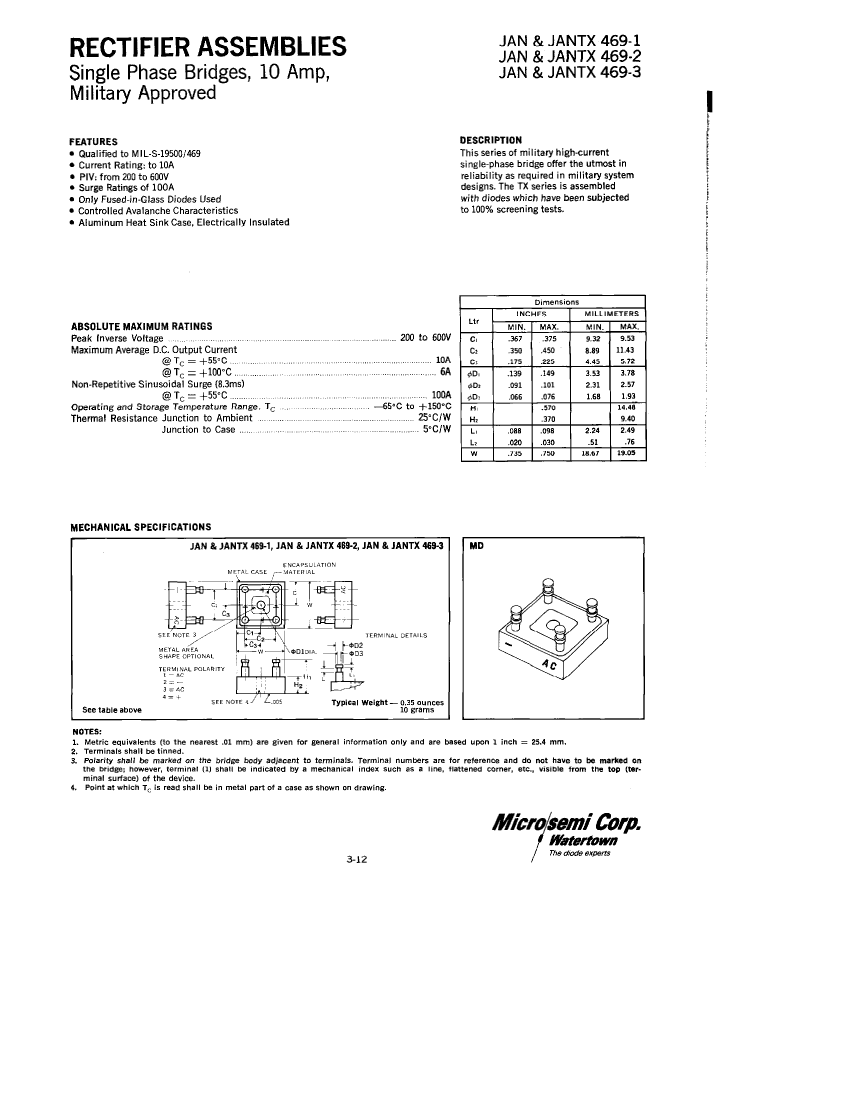

JAN469-1 Overview

Bridge Rectifier Diode, Avalanche, 1 Phase, 10A, 240V V(RRM), Silicon, METAL PACKAGE-4

Parameter Name	Attribute value
Maker	Defense Logistics Agency
package instruction	S-MUFM-X4
Reach Compliance Code	unknown
ECCN code	EAR99
Minimum breakdown voltage	240 V
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	S-MUFM-X4
Maximum non-repetitive peak forward current	100 A
Number of components	4
Phase	1
Number of terminals	4
Maximum output current	10 A
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Guideline	MIL-19500/469
Maximum repetitive peak reverse voltage	240 V
surface mount	NO
technology	AVALANCHE
Terminal form	UNSPECIFIED
Terminal location	UPPER
Base Number Matches	1

	JAN469-1	JANTX469-3
Description	Bridge Rectifier Diode, Avalanche, 1 Phase, 10A, 240V V(RRM), Silicon, METAL PACKAGE-4	Bridge Rectifier Diode, Avalanche, 1 Phase, 10A, 660V V(RRM), Silicon, METAL PACKAGE-4
Maker	Defense Logistics Agency	Defense Logistics Agency
package instruction	S-MUFM-X4	S-MUFM-X4
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Minimum breakdown voltage	240 V	660 V
Shell connection	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	S-MUFM-X4	S-MUFM-X4
Maximum non-repetitive peak forward current	100 A	100 A
Number of components	4	4
Phase	1	1
Number of terminals	4	4
Maximum output current	10 A	10 A
Package body material	METAL	METAL
Package shape	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Guideline	MIL-19500/469	MIL-19500/469
Maximum repetitive peak reverse voltage	240 V	660 V
surface mount	NO	NO
technology	AVALANCHE	AVALANCHE
Terminal form	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER
Base Number Matches	1	1
