RMS12JE753 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RMS12JE753

RMS12JE753: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.25W, 75000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size726KB，12 Pages; ManufacturerTA-I Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

RMS12JE753 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 75000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT

RMS12JE753 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1244831785
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	Taiwan
ECCN code	EAR99
YTEOL	7.55
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED, 7 INCH
Rated power dissipation(P)	0.25 W
Rated temperature	70 °C
resistance	75000 Ω
Resistor type	FIXED RESISTOR
size code	1206
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	200 V

Preview

Download Datasheet

View All

Anti-Sulfurated Thick Film Chip Resistors

( RMS series standard )

Document No.

TRMS-XX0S001A

Revise Date

page number

2011/02/09

1/12

1. Scope :

This specification applies for the RMS series of Anti-Sulfurated thick film chip resistors made

by TA-I.

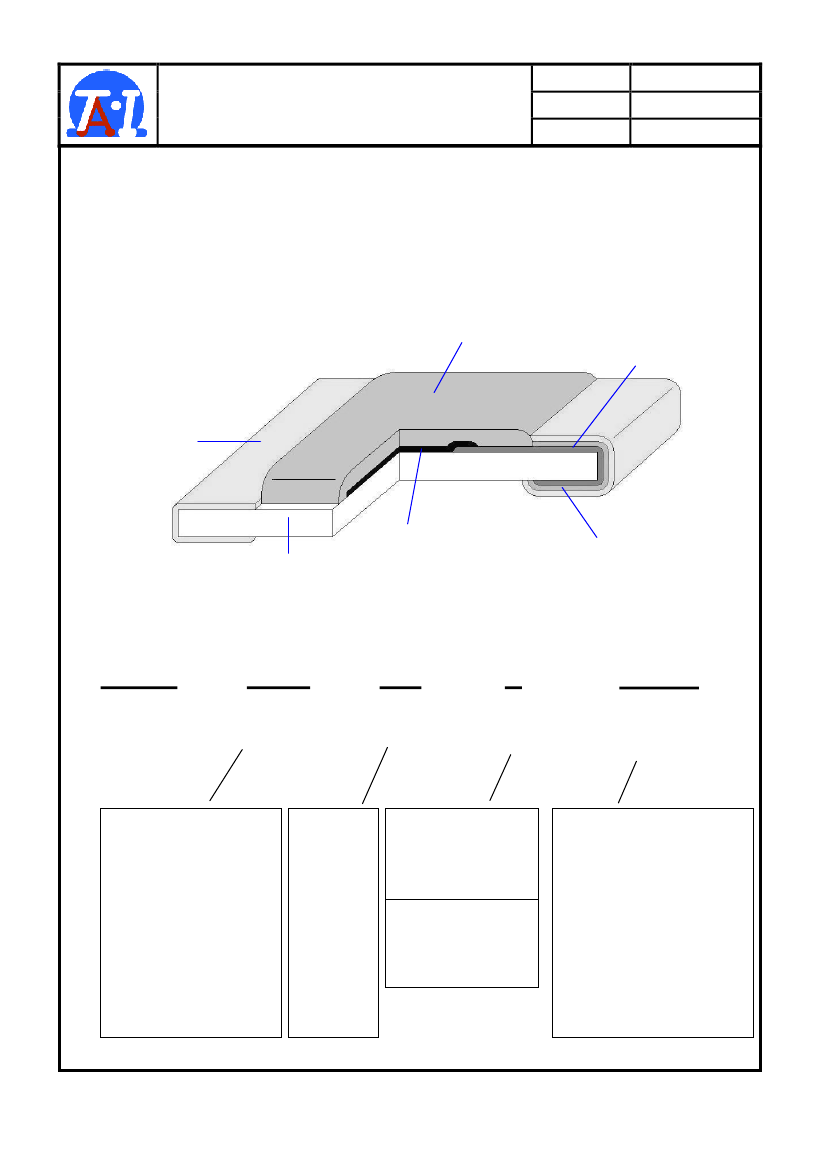

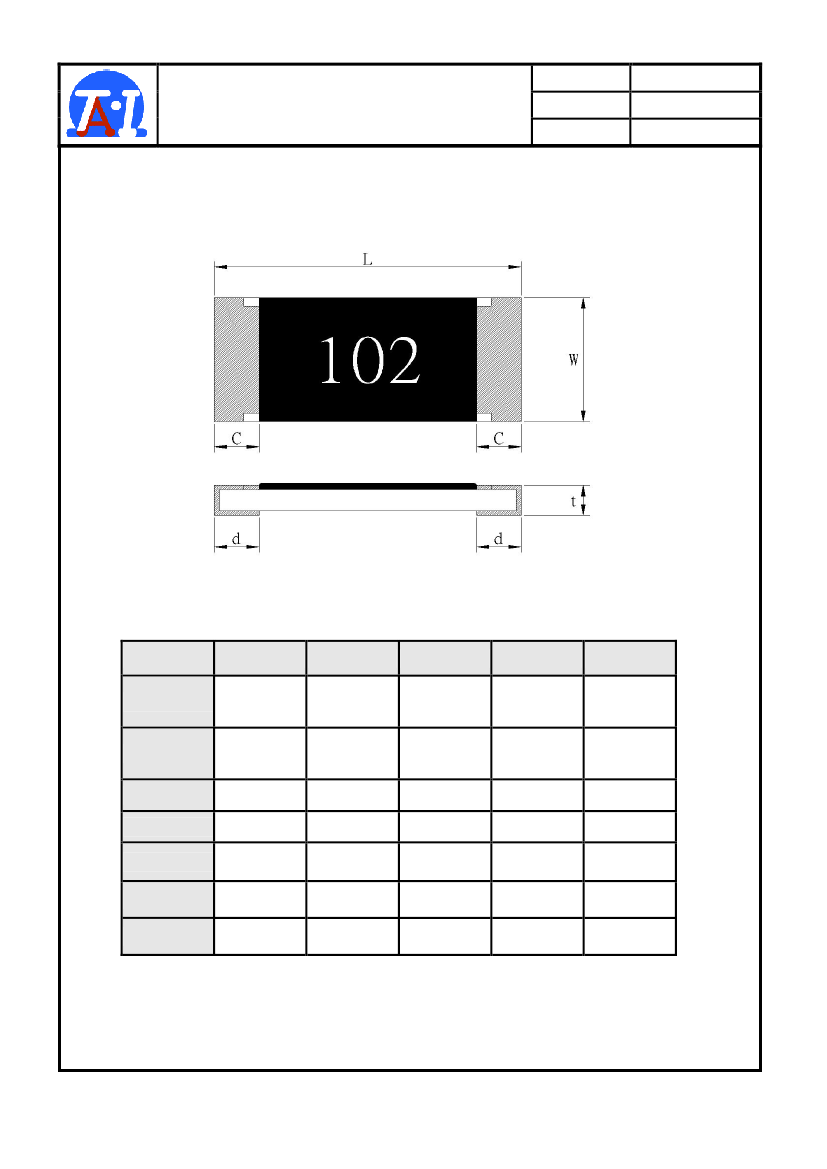

2. Construction:

Over Coat (Color : Black)

Conductor

Sn Plating

Resistive Element

Ceramic Substrate

Ni Plating

Type Designation:

RMS

Product Code

RMS : Anti-Sulfurated

Chip Resistor

Size

Power Rating

Tolerance

Packaging

103

Nominal

Resistance

04-0402(1005)

06-0603(1608)

10-0805(2012)

12-1206(3216)

13-1210(3226)

20-2010(5025)

25-2512(6432)

1/16W

1/10W

1/8W

1/4W

1/3W

1/2W

J-±5%

G-±2%

F-±1%

T-Paper Tape

E-Embossed Tape

3 digits, e.g.,:

(E-24) 103 = 10kΩ

0 = 0Ω

Special

L : 06 – 2mm pitch

paper Tape

(E-96) 1540 = 154Ω

43R2 = 43.2Ω

4 digits, e.g., :

TA-I TECHNOLOGY CO., LTD
