PE-53914NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> PE-53914NL

PE-53914NL: Description2 FUNCTIONS, 250 V, 0.5 A, DATA LINE FILTER, ROHS COMPLIANT PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size367KB，2 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric View All

PE-53914NL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PE-53914NL	-	-	View	Buy Now

PE-53914NL Overview

2 FUNCTIONS, 250 V, 0.5 A, DATA LINE FILTER, ROHS COMPLIANT PACKAGE-4

PE-53914NL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pulse Electronics
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Maximum DC resistance	0.85 Ω
filter type	DATA LINE FILTER
high	8.89 mm
inductance	13200 µH
length	16.38 mm
Installation type	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
method of packing	TAPE AND REEL
physical size	L16.38XB14.22XH8.89 (mm)/L0.645XB0.56XH0.35 (inch)
Rated current	0.5 A
Rated voltage	250 V
width	14.22 mm
Base Number Matches	1

Preview

Download Datasheet

View All

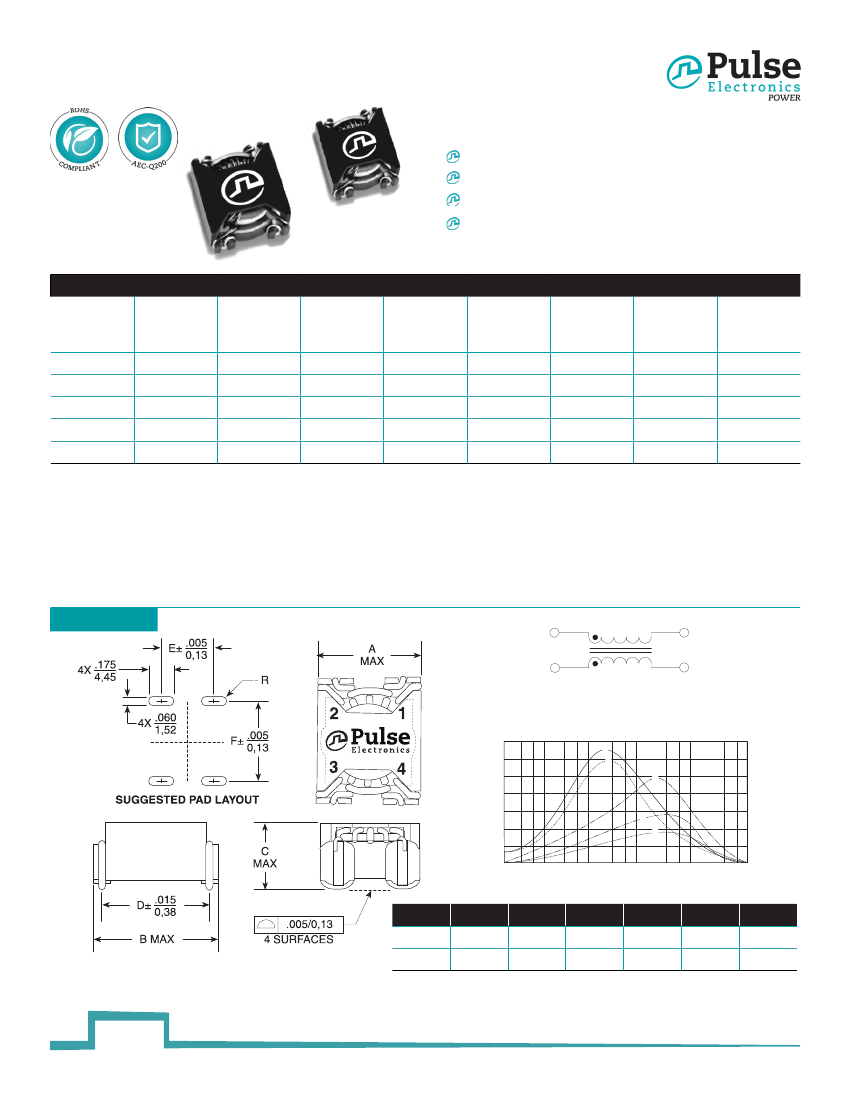

SMT Common Mode Inductors

0.5A to 3.6A

Pick and place compatible

Rated voltage 250Vac

Low RFI toroid

Tape & Reel packaging available

Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C

Part

Number

1, 2

Inductance

(mH MIN)

13.2

6.0

1.8

0.9

0.6

Irated

(A)

0.50

1.00

2.50

1.50

3.60

DCR (MAX)

(mΩ)

850

450

Typical

SRF

(MHz)

0.3

0.5

2.2

Impedance

Curve

Size

Code

LCCI-37

LCCI-50

LCCI-37

LCCI-50

Weight

(Grams)

2.4

5.2

2.5

5.3

Quantity

In Tube

PE-53914NL

PE-53913NL

PE-53912NL

PE-53911NL

PE-53910NL

Notes:

1. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the

part number (i.e. PE-53914L becomes PE-53914LT). Pulse complies to industry

standard tape and reel specification EIA481.

2. The “NL” suffix indicates an RoHS-compliant part number. Non-NL suffixed

parts are not necessarily RoHS compliant, but are electrically and mechanically

equivalent to NL versions. If a part number does not have the “NL”

suffix, but an RoHS compliant versions is required, please contact

Pulse for availability.

3. The temperature of the component (ambient plus temperature rise)

must be within the stated operating temperature range.

Mechanicals

PE-XXXXNL

Schematics

1:1 ±2%

Typical Impedance Curves

Impedance

(Ω)

0.01

0.1

100

Frequency (MHz)

Size

LCCI-37

LCCI-50

.560/14,22

.670/17,02

.645/16,38

.770/19,56

.350/8,89

.390/9,90

.520/13,21

.650/16,51

.340/8,64

.445/11,30

.530/13,46

.660/16,76

power.pulseelectronics.com

SPM2007 (01/18)

http://www.power.pulseelectronics.com/contact
