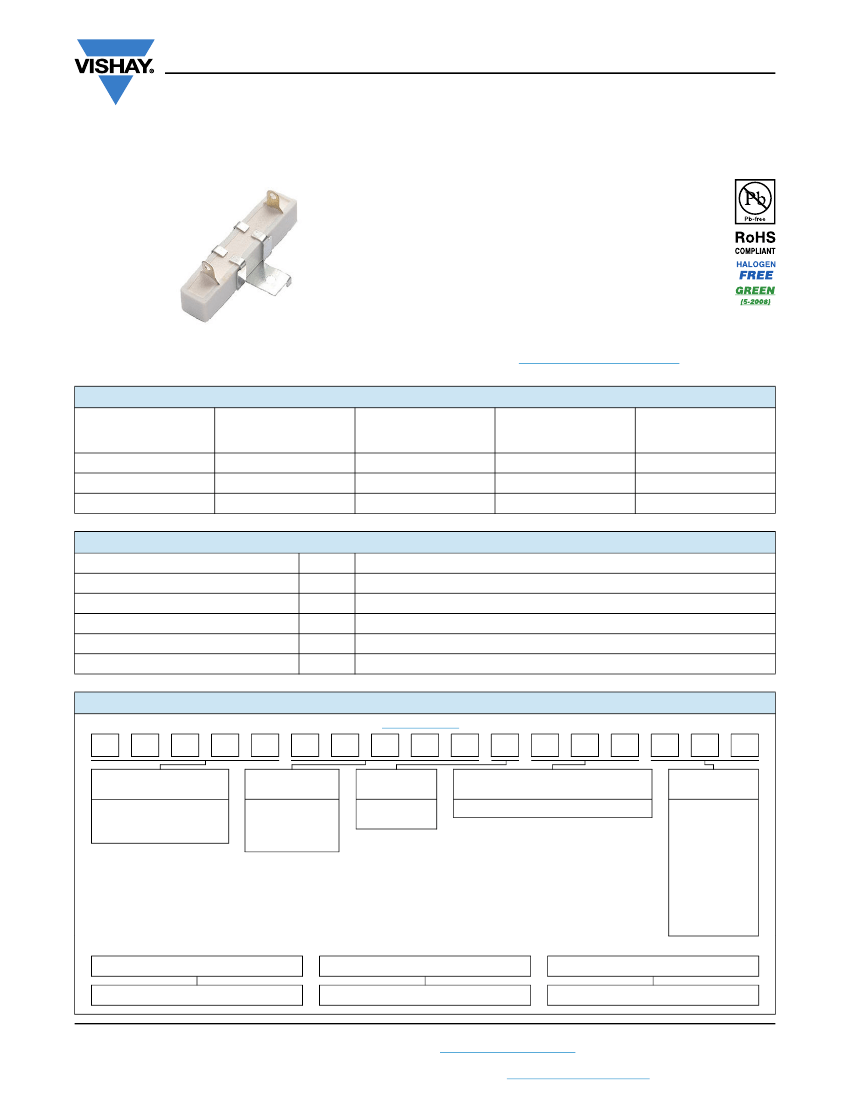

PC Quick Connect
www.vishay.com
Vishay Huntington
Wirewound Resistors, Commercial High Power,
Quick Connect Terminals
FEATURES
• Can be purchased with or without brackets
installed (“BKT” SPECIAL)
• Solder tag terminals are standard, quick
connect terminals available
• High power ratings
• Special inorganic potting compound and
ceramic case provide high thermal conductivity
in a fireproof package
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
PC-30
PC-40
PC-50
POWER RATING
P
40 °C
W
30
40
50
RESISTANCE RANGE
Ω
1 to 2K
1 to 2K
1 to 2K
TOLERANCE
±%
5, 10
5, 10
5, 10
WEIGHT
(typical)
g
45
75
75
TECHNICAL SPECIFICATIONS
PARAMETER
Temperature Coefficient
Short Time Overload
Operating Temperature Range
Dielectric Withstanding Voltage
Maximum Continuous Working Voltage
UNIT
ppm/°C
-
°C
V
AC
V
PC QUICK CONNECT CHARACTERISTICS
± 300
10 x rated power for 5 s
-55 to +275
1000
(P x
R)
1/2
GLOBAL PART NUMBER INFORMATION
Global Part Numbering example: PC-3022R00KE66
(Visit
www.vishay.net
SAP Parts Manual for all options)
P
C
-
3
0
2
VALUE
(5 digits)
2
R
0
0
K
E
6
6
SPECIAL
(up to 3 digits)
(dash number)
from
1
to
999
as applicable
BKT
= solder
tags, bracket
QC
= quick
connect, no
bracket
BQC
= quick
connect,
bracket
GLOBAL MODEL
(5 digits)
PC-30
PC-40
PC-50
TOLERANCE
(1 digit)
J
=±5%
K
= ± 10 %
PACKAGING CODE
(3 digits)
E66
= lead (Pb) free bulk pack
R
= decimal
K
= thousand
15R00
= 15
Ω
1K500
= 1.5 kΩ
Historical Part Number example: PC-30-22-10 %
PC-30
HISTORICAL MODEL
Revision: 29-Jun-17
22
Ω
RESISTANCE VALUE
10 %
TOLERANCE
Document Number: 31826
1
For technical questions, contact:
ww2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PC Quick Connect
www.vishay.com
DIMENSIONS
in inches [millimeters]
Quick connect terminal connections 0.250 [6.35]
0.245 ± 0.010
[6.22 ± 0.254]
P
0.024
[0.60]
D
Ø 0.106
[2.70]
H1
W
0.413 [10.49]
0.280 ± 0.010
0.275 [6.99]
[7.11 ± 0.254]
0.118
[3.00]
Ø 0.177 [4.50]
0.290 ± 0.010
[7.37 ± 0.254]
0.082 ± 0.010
[2.08 ± 0.254]
0.130 ± 0.005
[3.30 ± 0.127]
0.032 [0.813] thick
Quick connect terminal dimensions
for
-QC
and
-BQC
options.
Vishay Huntington
H
L
W
0.725
[18.42]
Solder
tag terminal dimensions
shown
(standard part and
-BKT
option).
GLOBAL
MODEL
PC-30
PC-40
PC-50
DIMENSIONS
in inches [millimeters]
W
± 0.050 [1.27]
0.75 [19.00]
0.75 [19.00]
0.75 [19.00]
H
± 0.050 [1.27]
0.75 [19.00]
0.75 [19.00]
0.75 [19.00]
L
± 0.079 [2.00]
2.95 [75.00]
3.54 [90.00]
3.54 [90.00]
H
1
± 0.125 [3.18]
1.14 [28.96]
1.14 [28.96]
1.14 [28.96]
P
± 0.079 [2.00]
2.17 [55.00]
2.64 [67.00]
2.64 [67.00]
D
± 0.02 [0.50]
0.30 [7.50]
0.30 [7.50]
0.30 [7.50]
MATERIAL SPECIFICATIONS
Element:
copper-nickel alloy or nickel-chrome alloy,
depending on resistance value
Core:
high purity grade alumina ceramic rod
Body:
steatite ceramic case with inorganic potting
compound
Terminals:
100 % tin
Part Marking:
HEI, model, wattage, value, tolerance, date
code
DERATING
RATED POWER IN %
120
100
80
60
40
20
0
- 55 - 25
25
75
70
125
175
225
275
AMBIENT TEMPERATURE IN °C
PERFORMANCE
TEST
Short Time Overload
Load Life
Temperature Cycle
CONDITIONS OF TEST
10 x rated power for 5 s
1000 h at rated power, +70 °C, 1.5 h "ON", 0.5 h "OFF"
-30 °C; ~85 °C for 5 cycles
TEST LIMITS
± 2 %
ΔR
± 5 %
ΔR
± 1 %
ΔR
Revision: 29-Jun-17
Document Number: 31826
2
For technical questions, contact:
ww2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
