TECHNICAL DATASHEET

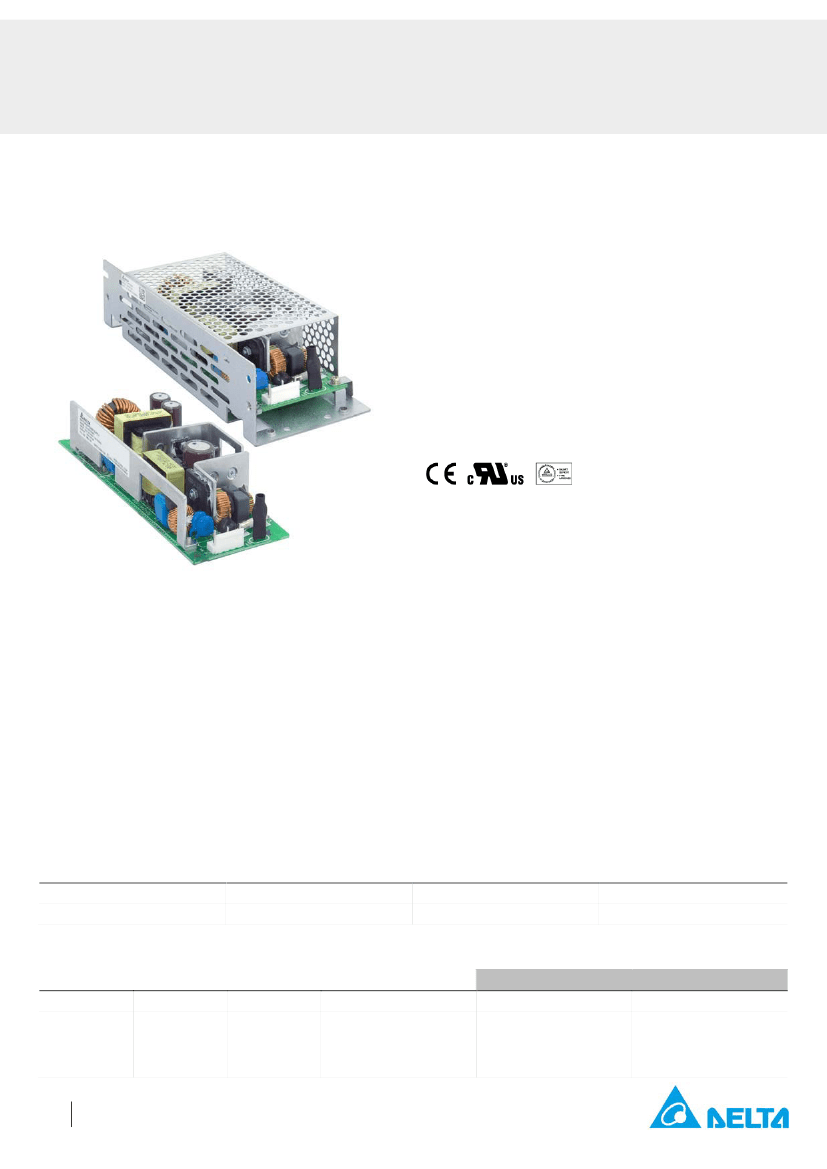

PJ Open Frame Power Supply
12V 100W 1 Phase / PJ-12V100W
□□
A
PJ
Highlights & Features
–
–
–
–
–
–
–
–
Universal AC Input (85Vac – 264Vac)
Low Inrush Current / Low Leakage Current
High efficiency and PF factor to conserve energy
Conforms to harmonic current IEC/EN 61000-3-2, Class A
Conformal coating on PCBA to protect against chemical and
dust pollutants
Remote ON/OFF (Optional for 100W)
Versatile configuration options: Open Frame, L Frame,
Enclosed
Long life capacitors
Safety Standards
CB Certified for worldwide use
PJ-12V100W
□□
A
0.26 kg (Open Frame)
0.42 kg (Enclosed)
Dimensions (L x W x D):
155 x 62 x 33 mm (Open Frame)
185 x 72 x 45 mm (Enclosed)
Model Number:
Unit Weight:
General Description
The PJ series of Open Frame Power Supply comes with universal AC input at 85Vac to 264Vac. Other features include low leakage /
Inrush current and conformal coating on the PCBAs to provide protection against dust and chemical pollutants. The built-in active PFC
provides PF > 0.97 and fulfills Harmonic Current Emission according to IEC/EN 61000-3-2. The PJ series is certified for EMC
standards according to EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment and EN 55022 for Industrial
Technology Equipment (ITE) radio-frequency equipment and EMS according to EN 55024. In addition, the detachable input and output
connectors are from JST and only recognized Japanese capacitors are used.
Metal chassis and case cover are available as options for different installation preferences. The PJ series conforms to major
international safety standards according to EN/UL 60950-1 standards and are fully compliant with RoHS Directive 2011/65/EU for
environmental protection.
Model Information
PJ Open Frame Power Supply
Model Number
PJ-12V100W
□□
A
Input Voltage Range
85-264Vac
Output Voltage
12Vdc
Output Current
8.50A
Model Numbering
CC Code
PJ –
PJ Series
12V
100W
□
Product Type
B - Open Frame
L - L Frame
C - Enclosed
□
A
Output Voltage Output Power
Remote ON/OFF Function Delta Standard
N - No Remote ON/OFF
R - With Remote ON/OFF
1
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (May 2013, Rev. 01)
TECHNICAL DATASHEET
PJ Open Frame Power Supply
12V 100W 1 Phase / PJ-12V100W
□□
A
Specifications
Input Ratings / Characteristics
Nominal Input Voltage
Input Voltage Range
Nominal Input Frequency
Input Frequency Range
Input Current
Efficiency at 100% Load
Max Inrush Current
Power Factor Correction
Leakage Current
100-240Vac
85-264Vac
50-60Hz
47-63Hz
1.30A typ. @ 100Vac, 0.65A typ. @ 200Vac
85.0% typ. @ 100Vac, 87.5% typ. @ 200Vac
15A typ. @ 100Vac, 30A typ. @ 200Vac
Yes, 0.99 typ. @ 100Vac, 0.98 typ. @ 200Vac
0.2mA @ 100Vac, 0.4mA @ 230Vac
Output Ratings / Characteristics
Nominal Output Voltage
Output Voltage Tolerance
Output Voltage Adjustment Range
Output Current
Output Power
Line Regulation
Load Regulation
Ripple (20MHz)
Ripple Noise (20MHz)
Start-up Time
Hold-up Time
Dynamic Response (Overshoot & Undershoot O/P Voltage)
Start-up with Capacitive Loads
12Vdc
± 1% (initial set point tolerance from factory)
10.8-13.2Vdc
8.50A
102W
< 48mV
< 100mV
< 120mVpp @ 0°C to 50°C, < 160mVpp @ -10°C to 0°C
< 150mVpp @ 0°C to 50°C, < 180mVpp @ -10°C to 0°C
500ms typ. @ 100Vac
20ms typ. @ 100Vac
± 5% @ 0-50% load and 50-100% load
(Slew Rate: 0.1A/µS)
8,000µF Max
Mechanical
Case Chassis
Case Cover
Dimensions
Unit Weight
Indicator
Cooling System
Terminal
Wire
Input
Output
SGCC
SGCC
155 x 62 x 33 mm (Open Frame)
185 x 72 x 45 mm (Enclosed)
0.26 kg (Open Frame)
0.42 kg (Enclosed)
NA
Convection
JST B3P5-VH (LF)(SN)
JST B8P5-VH (LF)(SN)
AWG 22-18
2
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (May 2013, Rev. 01)
TECHNICAL DATASHEET
PJ Open Frame Power Supply
12V 100W 1 Phase / PJ-12V100W
□□
A
Environment
Surrounding Air Temperature
Power De-rating
Operating Humidity
Operating Altitude
Shock Test (Non-Operating)
Vibration (Operating)
Operating
Storage
Mounting Orientation A
-10°C to +70°C
-25°C to +75°C
> 50°C de-rate power by 2% / °C
< 90Vac de-rate power by 2% / V
20-90% RH (Non-Condensing)
3,000 Meters
IEC60068-2-27, 196.1m/S² (20G),11ms, once along X,
Y, and Z axis
IEC60068-2-6, 10Hz to 55Hz @ 19.6m/S² (2G); 3 min
period, 60 min per axis for all X, Y, Z direction
Protections
Overvoltage
Overload / Overcurrent
Over Temperature
Short Circuit
Protection Against Shock
*PE: Primary Earth
13.8-16.8V, Latch Mode
> 105% of rated load current, Hicc-up Mode,
Non-Latching (Auto-Recovery)
Latch Mode
Hicc-up Mode, Non-Latching
(Auto-Recovery when the fault is removed)
Class I with PE* connection
Reliability Data
MTBF
Expected Cap Life Time
> 200,000 hrs. as per JEITA RCR-9102B
10 years (115Vac, 50% load @ 40°C
Safety Standards / Directives
Electrical Safety
TUV Bauart to EN60950-1, UL/cUL recognized to
UL60950-1 and CSA C22.2 No. 60950-1, CB scheme to
IEC60950-1
IEC60950-1
In conformance with EMC Directive 2004/108/EC and
Low Voltage Directive 2006/95/EC
RoHS Directive 2011/65/EU Compliant
Input to Output
Input to Ground
Output to Ground
3.0KVac
2.0KVac
0.5KVac
ITE
CE
Material and Parts
Galvanic Isolation
3
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (May 2013, Rev. 01)
TECHNICAL DATASHEET
PJ Open Frame Power Supply
12V 100W 1 Phase / PJ-12V100W
□□
A
EMC
EMC / Emissions
Immunity to
Electrostatic Discharge
IEC 61000-4-2
Level 4 Criteria A
1)
Air Discharge: 15kV
Contact Discharge: 8kV
Level 3 Criteria A
1)
80MHz-1GHz, 10V/M with 1kHz tone / 80% modulation
Level 3 Criteria A
1)
2kV
Level 3 Criteria A
1)
Common Mode
2)
: 2kV
Differential Mode
3)
: 1kV
Level 3 Criteria A
1)
150kHz-80MHz, 10Vrms
Criteria A
1)
Magnetic field strength 30A/Meter
100% dip; 1 cycle (20ms); Self Recoverable
Level 3 Criteria A
1)
Common Mode
2)
: 2kV
Differential Mode
3)
: 1kV
IEC/EN 61000-3-2, Class A
IEC/EN 61000-3-3
CISPR22, EN55022, FCC Title 47: Class B
Radiated Field
Electrical Fast Transient / Burst
Surge
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
Conducted
Power Frequency Magnetic Fields
Voltage Dips
Low Energy Pulse Test (Ring Wave)
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
IEC 61000-4-12
Harmonic Current Emission
Voltage Fluctuation and Flicker
1) Criteria A: Normal performance within the specification limits
2) Asymmetrical: Common mode (Line to earth)
3) Symmetrical: Differential mode (Line to line)

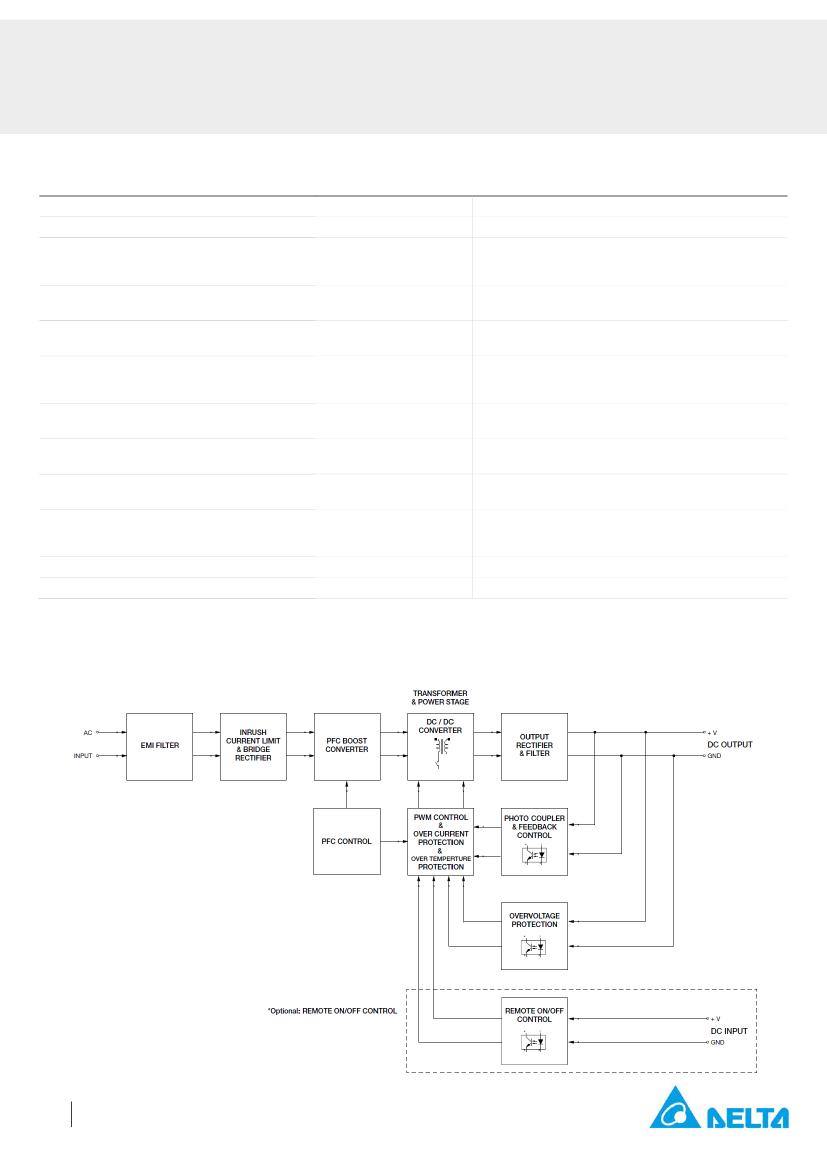

Block Diagram
4
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (May 2013, Rev. 01)
TECHNICAL DATASHEET
PJ Open Frame Power Supply
12V 100W 1 Phase / PJ-12V100W
□□
A

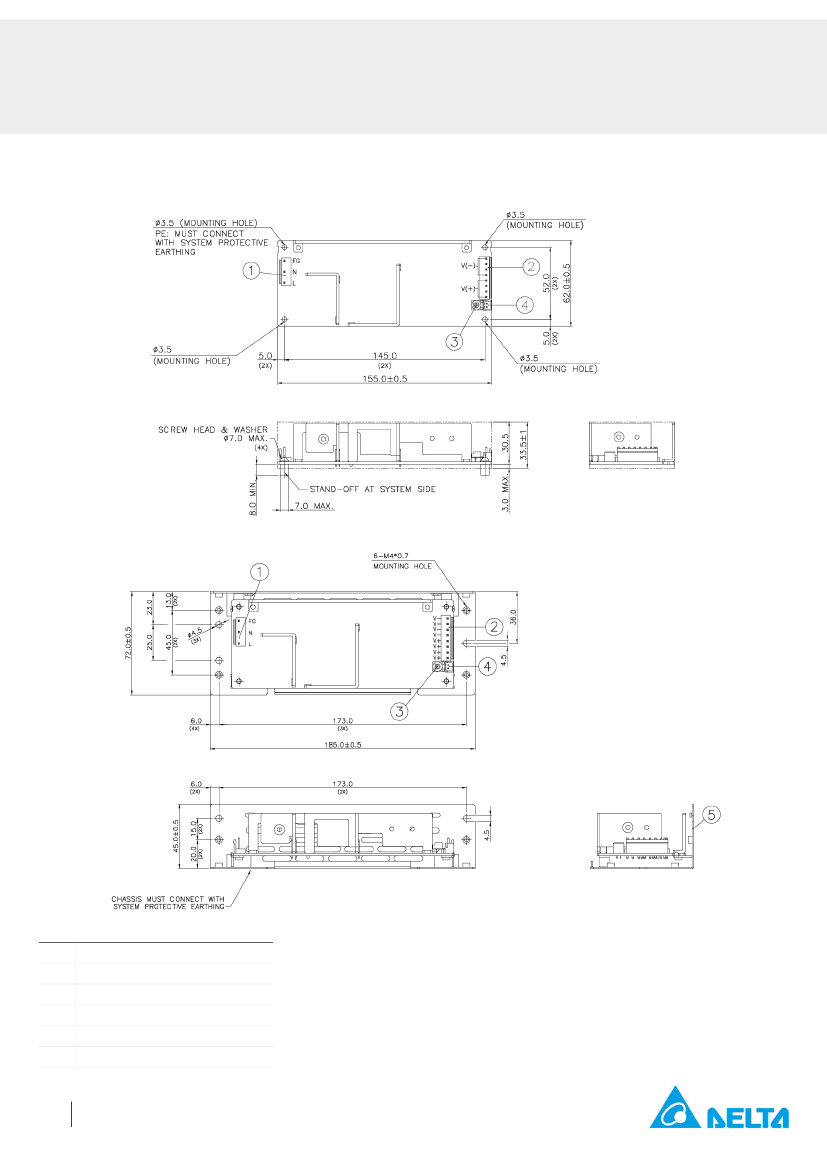

Dimensions
L x W x D:
155 x 62 x 33 mm (Open Frame)
L x W x D:
185 x 72 x 42 mm (L Frame)
Item Device Description
1
2
3
4
5
Input Connector
Output Connector
VR
Remote ON/OFF (JST B2B-XH-A)
Chassis
Notes
–
–
–
–
Dimensions are in mm
For information on Mounting Torque, and I/O Connector and Housing, please refer
to the Instruction Manual.
For L Frame type: There are 6 threaded mounting holes and 5 normal mounting
holes.
For Open Frame type: There are 4 normal mounting holes.
5
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (May 2013, Rev. 01)
