3950S110003

Description

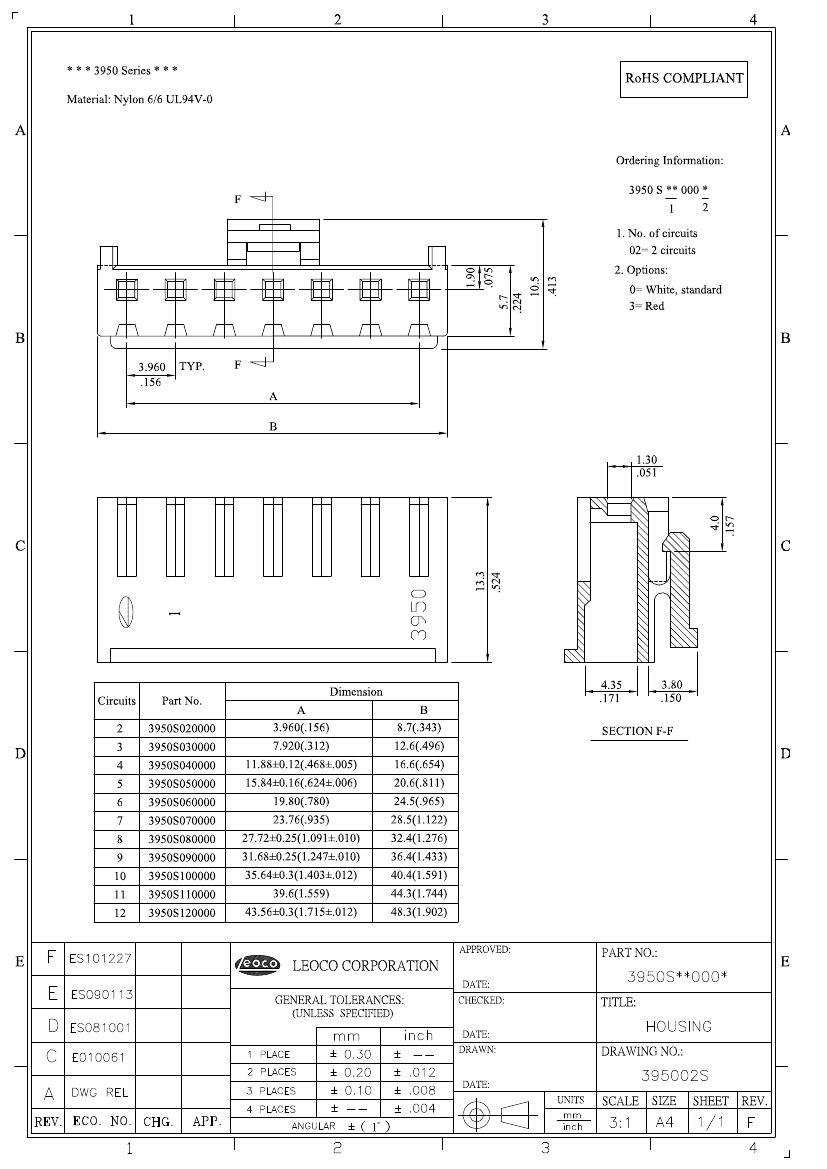

Board Connector, 11 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking, Red Insulator, Plug
CategoryThe connector    The connector
File Size155KB,1 Pages
ManufacturerLeoco USA Corp
Websitehttp://www.leoco.com.tw
Download Datasheet Parametric View All

3950S110003 Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking, Red Insulator, Plug

3950S110003 Parametric

Parameter NameAttribute value
Objectid305239937
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.413 inch
subject depth0.524 inch
body length1.744 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact point genderFEMALE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Durability100 Cycles
Insulation resistance1000000000 Ω
Insulator colorRED
insulator materialNYLON
Manufacturer's serial number3950
Plug contact pitch0.156 inch
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
polarization keyPOLARIZED HOUSING
Rated current (signal)7 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts11
Maximum wire diameter18 AWG
Minimum wire diameter26 AWG
