0508X7R274K10VF3 datasheet, PDF

0508X7R274K10VF3: DescriptionCeramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.27uF, Surface Mount, 0508, CHIP; CategoryPassive components capacitor; File Size132KB，2 Pages; ManufacturerPresidio Components Inc; Websitewww.presidiocomponents.com

Download Datasheet Parametric View All

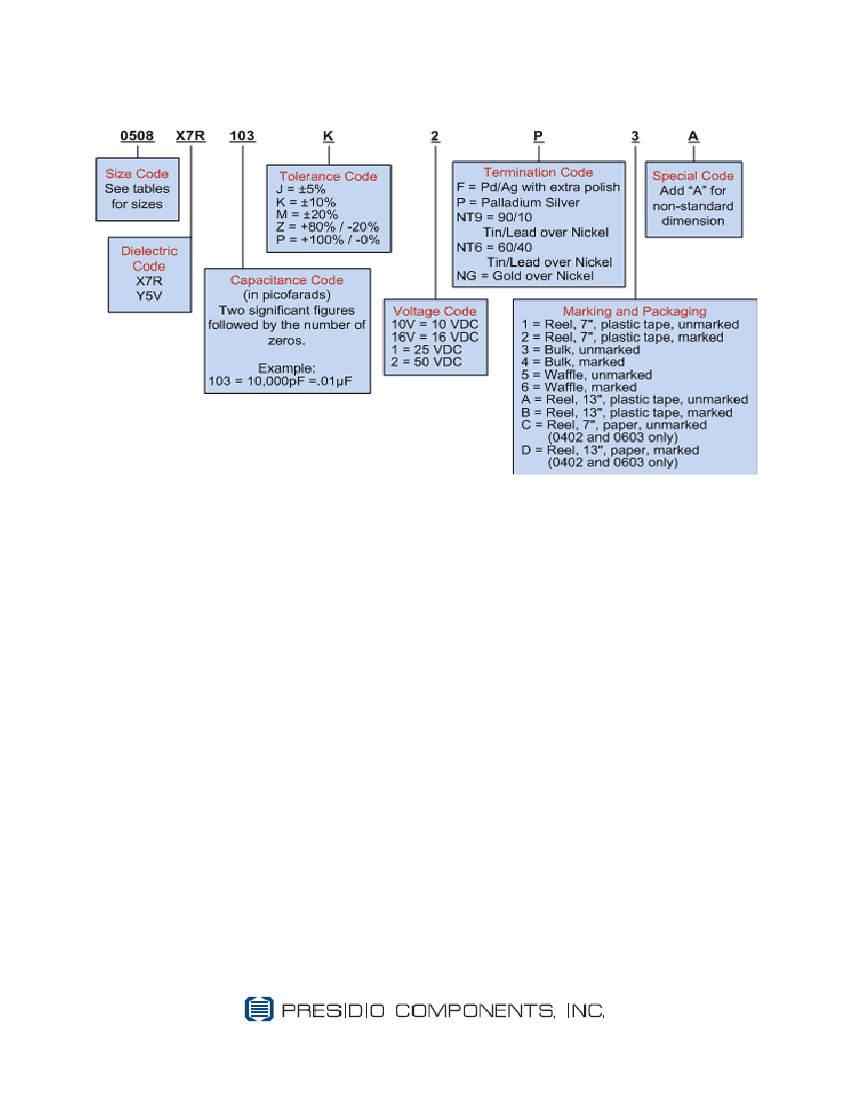

0508X7R274K10VF3 Overview

Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.27uF, Surface Mount, 0508, CHIP

Parameter Name	Attribute value
Objectid	1598140992
package instruction	, 0508
Reach Compliance Code	compliant
Country Of Origin	USA
ECCN code	EAR99
YTEOL	8.15
capacitance	0.27 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e4
Manufacturer's serial number	0508
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	10%
Rated (DC) voltage (URdc)	10 V
size code	0508
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	SILVER PALLADIUM
Terminal shape	WRAPAROUND

Low Inductance Capacitors

In high speed switching applications where the inductance of a traditional form factor impairs the

performance of the circuit, Presidio recommends its low inductance capacitors. The inductance of

this form factor is approximately one half of its counterpart. For example, the inductance of the

0508 is half that of the 0805.

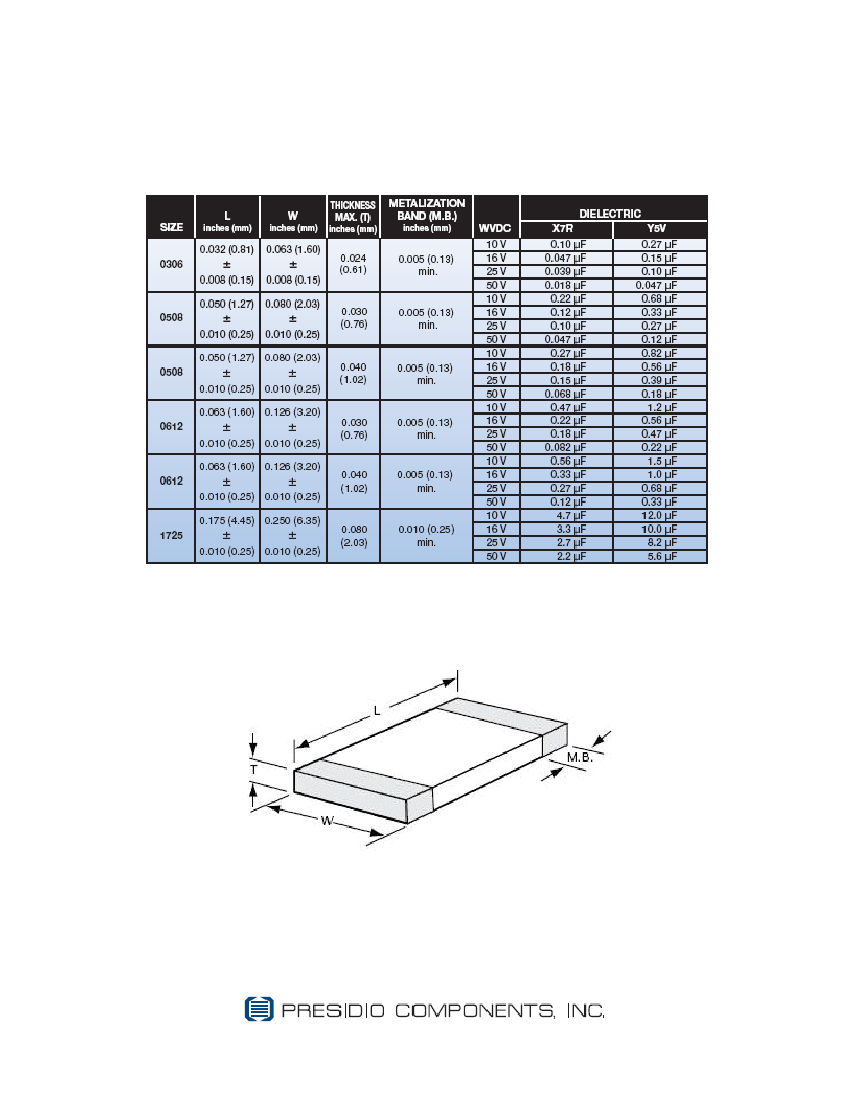

Dimensions
