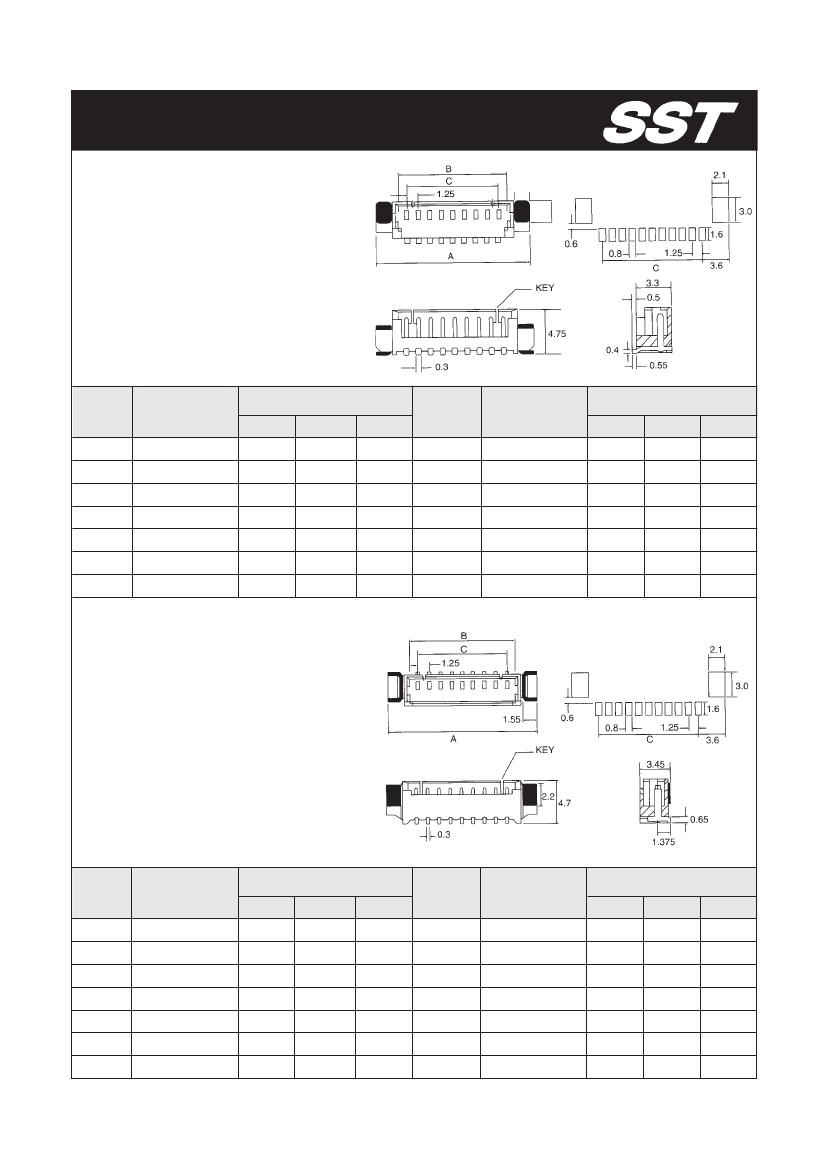

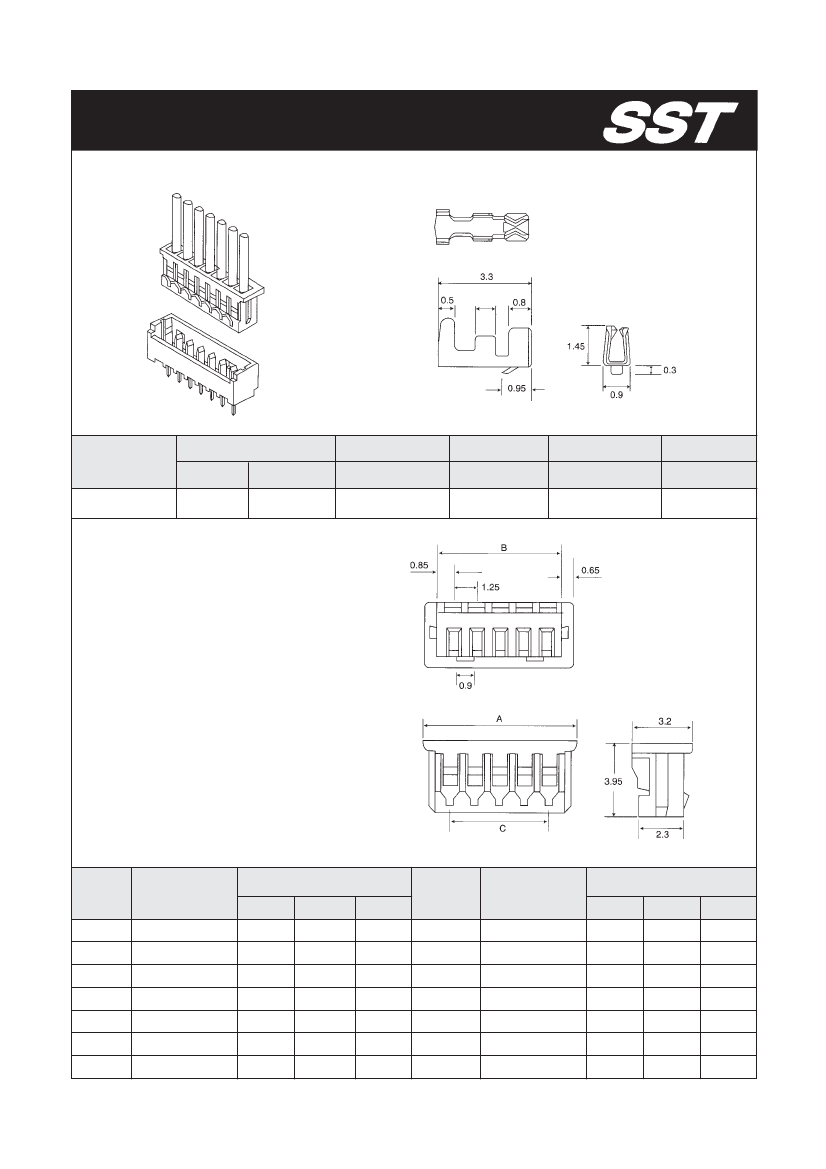

125G1 CONNECTOR SYSTEM
.049” (1.25mm) pitch wire-to-board type
WIRE RANGE
PART NO.
AWG#
125G1-TP
28-32
mm
2
0.08-0.032
MATERIAL/
FINISH
PHOS/TIN
THICKNESS
mm
1.5
INSULATION
O.D.(mm)
0.9-0.5
REEL
PCS
15000
125G1 SERIES HOUSING
MATERIAL : NYLON 66 UL 94V-0
ACCEPT 125G1-TP TERMINAL
MATE WITH 125G1-D(M) SERIES HEADER
CURRENT RATING : 1A AC,DC
VOLTAGE RATING : 125V AC,DC
CONTACT RESISTANCE : 20m MAX
INSULATION RESISTANCE : 100M MIN
WITHSTANDING VOLTAGE : 250V AC/MINUTE
TEMPERATURE RANGE : -25ºC TO +85ºC
POLES
2
3
4
5
6
7
8
PART NO.
125G1-H02
125G1-H03
125G1-H04
125G1-H05
125G1-H06
125G1-H07
125G1-H08
DIMENSIONS (mm)
POLES
A
4.25
5.50
6.75
8.00
9.25
10.50
11.75
B
2.95
4.20
5.45
6.70
7.95
9.20
10.45
C
1.25
2.50
3.75
5.00
6.25
7.50
8.75
9
10
11
12
13
14
15
125G1-H09
125G1-H10
125G1-H11
125G1-H12
125G1-H13
125G1-H14
125G1-H15
PART NO.
DIMENSIONS (mm)
A
13.00
14.25
15.50
16.75
18.00
19.25
20.50
B
11.70
12.95
14.20
15.45
16.70
17.95
19.20
C
10.00
11.25
12.50
13.75
15.00
16.25
17.50
125G1 CONNECTOR SYSTEM
.049” (1.25mm) pitch wire-to-board type

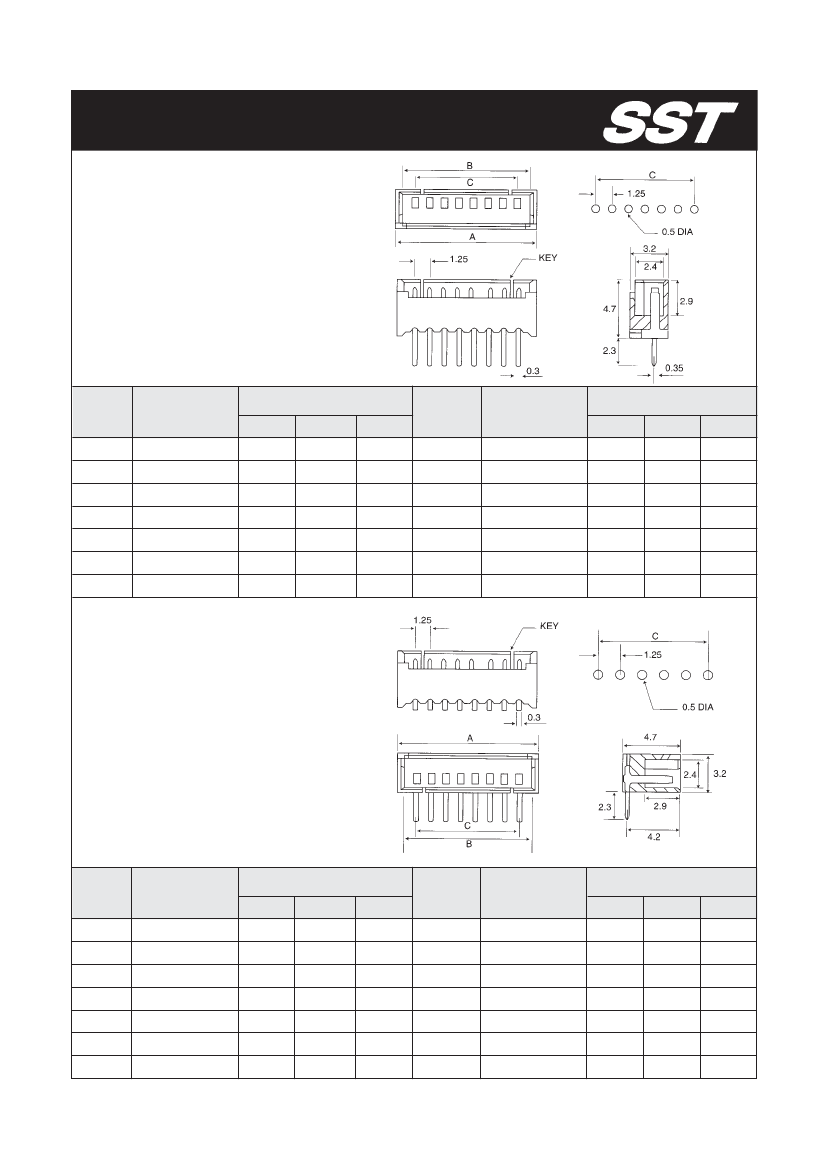

125G1-DV SERIES HEADER
MATERIAL : NYLON 6T UL 94V-0
PIN PHOS TIN-PLATED
MATE WITH 125G1-H SERIES HOUSING
CURRENT RATING : 1A AC, DC
VOLTAGE RATING : 125V AC, DC
CONTACT RESISTANCE : 20m MAX
INSULATION RESISTANCE : 100M MIN
WITHSTANDING VOLTAGE : 250V AC/MINUTE
TEMPERATURE RANGE : -25ºC TO +85ºC
PC BOARD HOLE : 0.5 MM DIA
(2-3) P-1 KEY ,(4-15) P-2 KEY
POLES
2
3
4
5
6
7
8
PART NO.
125G1-DV02
125G1-DV03
125G1-DV04
125G1-DV05
125G1-DV06
125G1-DV07
125G1-DV08
DIMENSIONS (mm)
POLES
A
4.25
5.50
6.75
8.00
9.25
10.50
11.75
B
3.05
4.30
5.55
6.80
8.05
9.30
10.55
C
1.25
2.50
3.75
5.00
6.25
7.50
8.75
9
10
11
12
13
14
15
125G1-DV09
125G1-DV10
125G1-DV11
125G1-DV12
125G1-DV13
125G1-DV14
125G1-DV15
PART NO.
DIMENSIONS (mm)
A
13.00
14.25
15.50
16.75
18.00
19.25
20.50
B
11.80
13.05
14.30
15.55
16.80
18.05
19.30
C
10.00
11.25
12.50
13.75
15.00
16.25
17.50
125G1-DR SERIES HEADER
MATERIAL : NYLON 6T UL 94V-0
PIN PHOS TIN-PLATED
MATE WITH 125G1-H SERIES HOUSING
CURRENT RATING : 1A AC, DC
VOLTAGE RATING : 125V AC, DC
CONTACT RESISTANCE : 20m MAX
INSULATION RESISTANCE : 100M MIN
WITHSTANDING VOLTAGE : 250V AC/MINUTE
TEMPERATURE RANGE : -25ºC TO +85ºC
PC BOARD HOLE : 0.5 MM DIA
(2-3) P-1 KEY ,(4-15) P-2 KEY
POLES
2
3
4
5
6
7
8
PART NO.
125G1-DR02
125G1-DR03
125G1-DR04
125G1-DR05
125G1-DR06
125G1-DR07
125G1-DR08
DIMENSIONS (mm)
POLES
A
4.25
5.50
6.75
8.00
9.25
10.50
11.75
B
3.05
4.30
5.55
6.80
8.05
9.30
10.55
C
1.25
2.50
3.75
5.00
6.25
7.50
8.75
9
10
11
12
13
14
15
125G1-DR09
125G1-DR10
125G1-DR11
125G1-DR12
125G1-DR13
125G1-DR14
125G1-DR15
PART NO.
DIMENSIONS (mm)
A
13.00
14.25
15.50
16.75
18.00
19.25
20.50
B
11.80
12.95
14.30
15.55
16.80
18.05
19.30
C
10.00
11.25
12.50
13.75
15.00
16.25
17.50
125G1 CONNECTOR SYSTEM
.049” (1.25mm) pitch wire-to-board type
125G1-MV SERIES HEADER
MATERIAL : NYLON 6T UL 94V-0
PIN PHOS TIN-PLATED
MATE WITH 125G1-H SERIES HOUSING
CURRENT RATING : 1A AC, DC
VOLTAGE RATING : 125V AC, DC
CONTACT RESISTANCE : 20m MAX
INSULATION RESISTANCE : 100M MIN
WITHSTANDING VOLTAGE : 250V AC/MINUTE
TEMPERATURE RANGE : -25ºC TO +85ºC
PC BOARD HOLE : 0.5 MM DIA
(2-3) P-1 KEY ,(4-15) P-2 KEY
POLES
2
3
4
5
6
7
8
PART NO.
125G1-MV02
125G1-MV03
125G1-MV04
125G1-MV05
125G1-MV06
125G1-MV07
125G1-MV08
DIMENSIONS (mm)
POLES
A
7.79
9.04
10.29
11.54
12.79
14.04
15.29
B
3.05
4.30
5.55
6.80
8.05
9.30
10.55
C
1.25
2.50
3.75
5.00
6.25
7.50
8.75
9
10
11
12
13
14
15
125G1-MV09
125G1-MV10
125G1-MV11
125G1-MV12
125G1-MV13
125G1-MV14
125G1-MV15
PART NO.
DIMENSIONS (mm)
A
16.54
17.79
19.04
20.29
21.54
22.79
24.04
B
11.80
13.05
14.30
15.55
16.80
18.05
19.30
C
10.00
11.25
12.50
13.75
15.00
16.25
17.50
125G1-MR SERIES HEADER
MATERIAL : NYLON 6T UL 94V-0
PIN PHOS TIN-PLATED
MATE WITH 125G1-H SERIES HOUSING
CURRENT RATING : 1A AC, DC
VOLTAGE RATING : 125V AC, DC
CONTACT RESISTANCE : 20m MAX
INSULATION RESISTANCE : 100M MIN
WITHSTANDING VOLTAGE : 250V AC/MINUTE
TEMPERATURE RANGE : -25ºC TO +85ºC
PC BOARD HOLE : 0.5 MM DIA
(2-3) P-1 KEY ,(4-15) P-2 KEY
POLES
2
3
4
5
6
7
8
PART NO.
125G1-MR02
125G1-MR03
125G1-MR04
125G1-MR05
125G1-MR06
125G1-MR07
125G1-MR08
DIMENSIONS (mm)
POLES
A
7.79
9.04
10.29
11.54
12.79
14.04
15.29
B
3.05
4.30
5.55
6.80
8.05
9.30
10.55
C
1.25
2.50
3.75
5.00
6.25
7.50
8.75
9
10
11
12
13
14
15
125G1-MR09
125G1-MR10
125G1-MR11
125G1-MR12
125G1-MR13
125G1-MR14
125G1-MR15
PART NO.
DIMENSIONS (mm)
A
16.54
17.79
19.04
20.29
21.54
22.79
24.04
B
11.80
12.95
14.30
15.55
16.80
18.05
19.30
C
10.00
11.25
12.50
13.75
15.00
16.25
17.50
