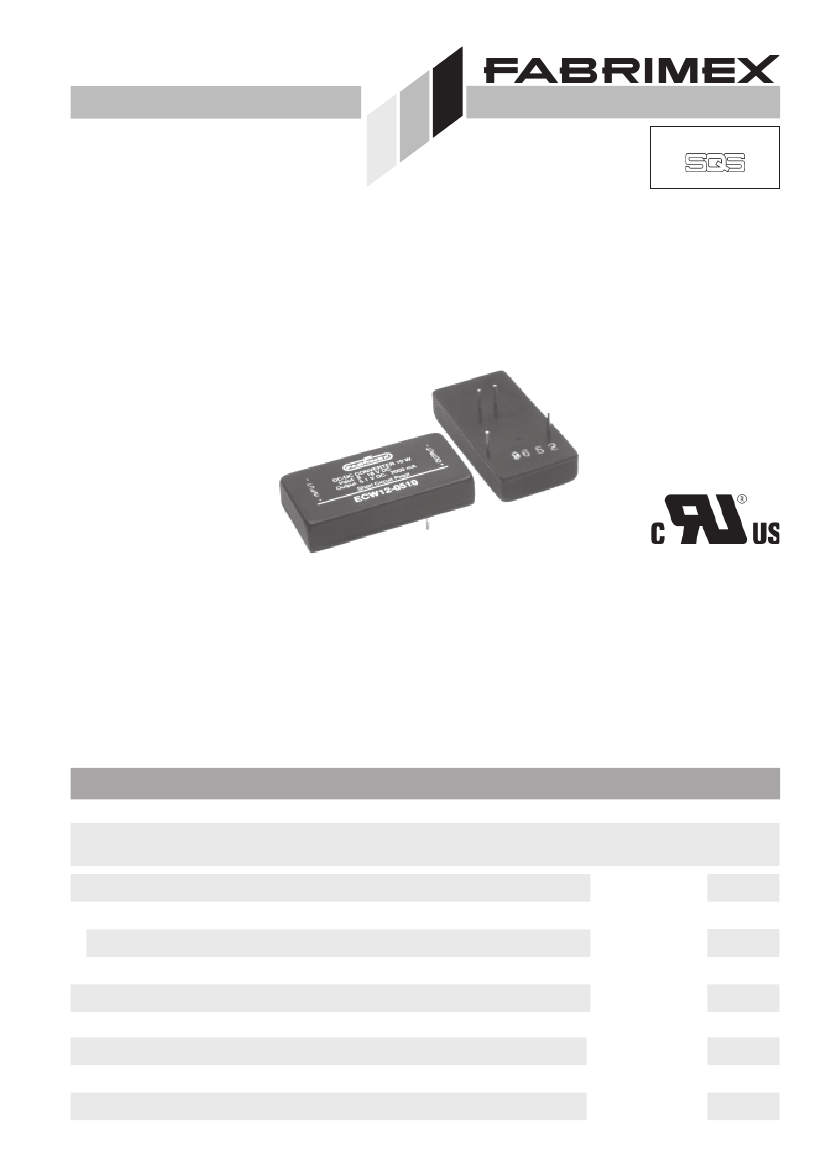

DC/DC Wide Input Converter
UCW 10 Watt Series
DC/DC converter module with input to
output isolation of 500 VDC • Pi-filter at
input • Continuous short circuit proof • High
efficiency • No derating up to 70°C • Low
output ripple and spikes • Low silhouette
• Metal case with a non conductive base
plate, six-sides shielded • SMD
technology • UL, cUL certified
DC/DC Konverter-Modul mit galvanischer
Trennung Eingang / Ausgang von 500
VDC • Pi-Filter am Eingang • Dauerkurz-
schlussfest • Hoher Wirkungsgrad • Kei-
ne Lastminderung bis zu einer Umge-
bungstemperatur von 70°C • Gute Werte
von Rippel und Spikes • Geringe Bauhöhe
• Metallgehäuse mit isolierender Boden-
platte, 6seitig abgeschirmt • SMD Tech-
nologie • UL, cUL zertifiziert
Module convertisseur CC/CC avec sépa-
ration galvanique entrée/sortie 500 VDC
• Filtre en Pi à l'entrée • Protection courts-
circuits permanente • Rendement élevé •
Pas de derating jusqu' à 70°C • Ondulati-
on résiduelle de sortie très faible • Profile
bas • Boîtier en métal blindé 6 faces avec
fond isolé • Technologie CMS • Approba-
tion UL, cUL
Product range
Model
Input range
Input
nominal
12 VDC
12 VDC
12 VDC
24 VDC
24 VDC
24 VDC
48 VDC
48 VDC
48 VDC
Typenübersicht
Output
Uout
5.1 VDC
12.0 VDC
15.0 VDC
5.1 VDC
12.0 VDC
15.0 VDC
5.1 VDC
12.0 VDC
15.0 VDC
Output
Iout min.
100 mA
45 mA
35 mA
100 mA
45 mA
35 mA
100 mA
45 mA
35 mA
-1-
Output
Iout max.
2000 mA
830 mA
666 mA
2000 mA
830 mA
666 mA
2000 mA
830 mA
666 mA
Sommaire des types
No load
input current
typ. 30 mA
typ. 30 mA
typ. 30 mA
Operating
temperature
For all models:
-25...+70°C
or maximum case
Efficiency
typ.
76%
78%
78%
78%
80%
80%
80%
82%
82%
UCW12-0510
UCW12-1210
UCW12-1510
UCW24-0510
UCW24-1210
UCW24-1510
UCW48-0510
UCW48-1210
UCW48-1510
9...18 VDC
9...18 VDC
9...18 VDC
18...36 VDC
18...36 VDC
18...36 VDC
36...72 VDC
36...72 VDC
36...72 VDC
typ. 20 mA temperature of 95°C
typ. 20 mA
typ. 20 mA
typ. 10 mA
typ. 10 mA
typ. 10 mA
Model
Input range
Input
nominal
Output
Uout
Output
Iout min.
Output
Iout max.
No load
input current
Operating
temperature
Efficiency
typ.
Dual Output
UCW12-050510
UCW12-121210
UCW12-151510
UCW24-050510
UCW24-121210
UCW24-151510
UCW48-050510
UCW48-121210
UCW48-151510
9...18 VDC
9...18 VDC
9...18 VDC
18...36 VDC
18...36 VDC
18...36 VDC
36...72 VDC
36...72 VDC
36...72 VDC
12 VDC
12 VDC
12 VDC
24 VDC
24 VDC
24 VDC
48 VDC
48 VDC
48 VDC
±5.1 VDC
±12.0 VDC
±15.0 VDC
±5.1 VDC
±12.0 VDC
±15.0 VDC
±5.1 VDC
±12.0 VDC
±15.0 VDC
±50 mA
±25 mA
±20 mA
±50 mA
±25 mA
±20 mA
±50 mA
±25 mA
±20 mA
±1000 mA
±415 mA
±333 mA
±1000 mA
±415 mA
±333 mA
±1000 mA
±415 mA
±333 mA
typ. 40 mA
typ. 40 mA
typ. 40 mA
typ. 20 mA
typ. 20 mA
typ. 20 mA
typ. 10 mA
typ. 10 mA
typ. 10 mA
For all models:
-25...+70°C
or maximum case
temperature of 95°C
78%
78%
78%
80%
80%
80%
82%
82%
82%
Nomenclature
Nomenklatur
Nomenclature
UCW 48 - 05 xx 10
Product Series
Nominal Input Voltage
Output Power in Watts
Nominal Output Voltage
Nominal Dual Output Voltage
El. characteristics
Output voltage accuracy
Output voltage balance
Residual output ripple
and noise [BW 20 MHz]
Short circuit protection
Line regulation (Umax...Umin)
Load regulation (100...25%)
Isolation voltage
Isolation resistance
Switching frequency
MTBF (MIL-HB 217E at 25°C)
EMC
Conducted and radiated
Safety certification
El. Eigenschaften
Ausgangsspannungsgenauigkeit
Abgleich zwischen den Ausgängen
Ausgangsspannungsrippel
und HF Spitzen [BW 20 MHz]
Kurzschlussfestigkeit
Leitungsregulierung (Umax...Umin)
Lastregulierung (100...25%)
Isolationsspannung
Isolationswiderstand
Schaltfrequenz
MTBF (MIL-HB 217E bei 25°C)
EMV
Leitungsgebunden und abgestrahlt
Sicherheitsprüfung
-2-
Caractéristiques él.
±1% of Uout nom.
±1%; on dual models
100 mVpp max.
continuous
±0.2% at Iout nom.
1%
500 VDC
> 1 GOhm
min. 200 kHz
>1'000'000 hrs.
EN55022/11 Class A
All values refer to an ambient temperature of 25°C and nominal rated values where nothing else is specified
Précision de la tension de sortie
Balance des sorties
Ondulation résiduelle et bruit
de sortie [BW 20 MHz]
Protection courts-circuits
Régulation ligne (Umax...Umin)
Régulation charge (100...25%)
Tension d'isolement
Résistance d'isolement
Fréquence de découpage
MTBF (MIL-HB 217E à 25°C)
EMC
Emis et conduit
Approbation de sécurité
UL / cUL file no. E195564
El. characteristics
Temperature coefficient
Storage temperature
Case material
Soldering information
Compound material
Weight
El. Eigenschaften
Coefficient de température
Température de stockage
Matière du boîtier
Information de soudage
Resine d'enrobage
Poids
Caractéristiques él.
typ. ±0.02% per °C
-40...+100°C
Copper, black coated
275°C for 10 sec.
Two component resin
UL94-V0
approx. 32 g
Temperaturkoeffizient
Lagertemperatur
Gehäusematerial
Lötinformationen
Vergussmaterial
Gewicht
EMC information
EMV Informationen
Information CEM
EMC-TESTCENTER ACCR. EN45001
FABRIMEX AG
Date :
Technician :
Test Method :
Equipment :
Mode of Op. :
Serial No. :
Comment :
120
110
100
90
dBuV
ANTENNA
FILES
LISN_UV.A30
02/19/99
Urs Luessi

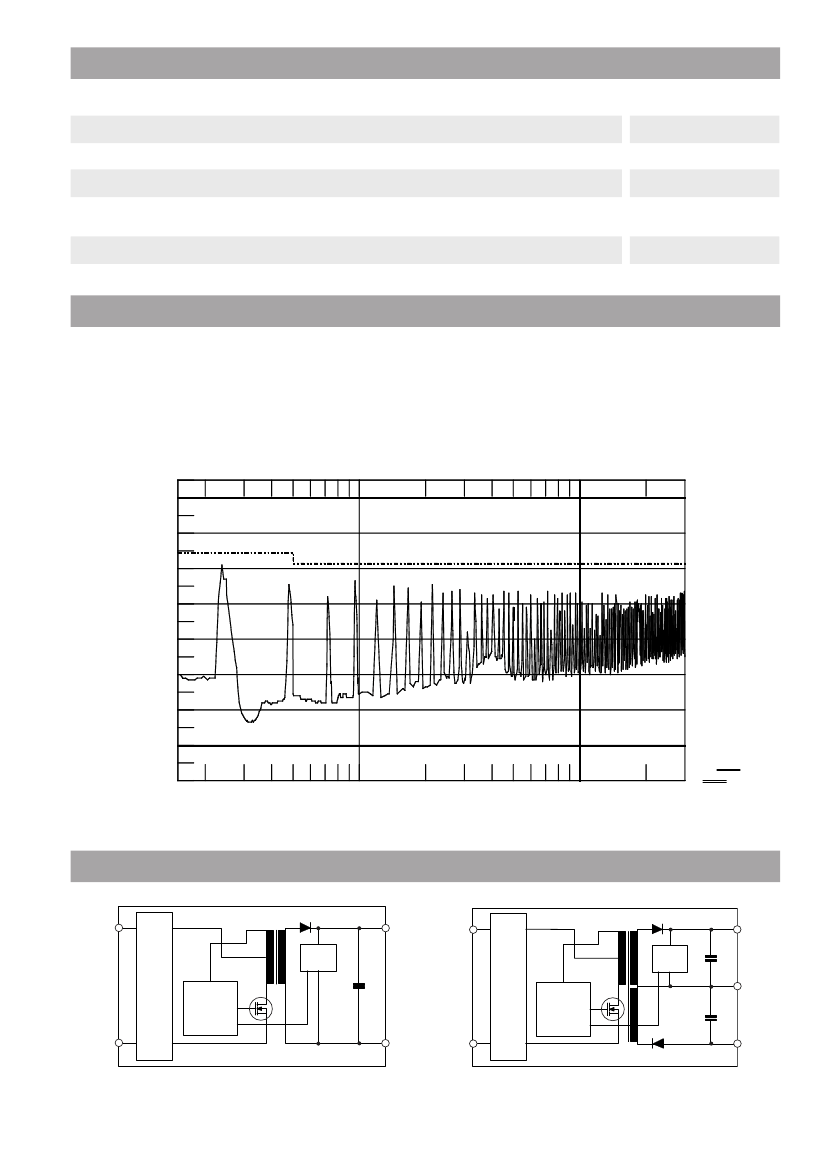

Conducted Emission
ECW48-0510
Nominal Operation
9816
Time :
Test Equip. :
Test Number :
Sensor Loc. :
Sensor Pol. :
Ext. Atten. :
13:04:36.14
EMC-30 MKIV
1
Positive
0 dB
EMC-30 SETTINGS
Detector
QuasiPeak
Bandwidth
CISPR
Dwell
N/A
RF Atten.
0 dB
IF Atten.
0 dB
SPECS
1) EN 55022 Class A QuasiPeak
80
70
60
50
40
OTHER
FACTORS
CISPR-C2.F30
1.
Amplitude
30
20
10
0
-10
-20
-30
-40
-50
0.150
1.
Frequency MHz
10.
30.000
E-M
Functional block diagram
+Vin
Ref.
Input filter
Blockschema
+Vout
+Vin
Synoptique
+Vout
Ref.
Input filter
COM
PWM
Controller
-Vout
PWM
Controller
-Vout
-Vin
-Vin
Single output converter block diagram
-3-
Dual output converter block diagram
Case
15.2
Gehäuse
20.32
Boîtier
View from bottom; Normal tolerance ±1.0 mm; Pin distance tolerance ±0.05 mm; Round pins 1.0 mm diameter
1.0
+Vout
10.2 5.08
20.32
-Vin
-Vout
50.8
15.2
20.32
1.0
10.16 10.16
+Vout
10.2 5.08
2.5
5.6
10.2
25.4
25.4
+Vin
UCW 10 Watt Series
Single Output Models
View from bottom
+Vin
-Vin
COM
-Vout
50.8
UCW 10 Watt Series
Dual Output Models
View from bottom
5.6
10.2
Cleaning
The modules are cleanable with the to-
day's known and in the electronics indu-
stry usually used products.
Due to the different cleaning processes
and new available products, we highly
recommend to do a compatibility test when
using the converters the first time.
Waschen
Die Module sind waschbar mit den heute
bekannten und in der Elektronikindustrie
üblichen Reinigungsmitteln.
Bedingt durch die verschiedenen Reini-
gungsprozesse und neu auf den Markt
kommenden Mittel, raten wir dringend,
beim Ersteinsatz der Konverter eine
Verträg-lichkeitsprüfung vorzunehmen.
2.5
Lavage
Les modules sont lavables avec les
solvants couramment utilisés dans l'in-
dustrie électronique.
Dû aux differents processus de lavage et
aux nouveaux détergents disponibles sur
le marché, il est strictement recommandé
de faire un test de compatibilité avant la
première utilisation.
Notice:
All statements, technical information, and recommendations related to FABRIMEX's products are based on information
believed to be reliable, but the accuracy or completeness thereof is not guaranteed. Before utlizing the product, the user should
determine the suitability of the product for its intended use.
POWER SUPPLIES
Switzerland:
FABRIMEX AG • Industriestrasse 4B • Volketswil
Post Address: P.O.Box • CH-8603 Schwerzenbach
Tel: +41-44-908 13 40 • Fax: +41-44-908 13 00
Internet: www.fabrimex.com
Germany:
CAC FABRIMEX GmbH • D-89543 Gerstetten
Tel: 07323/ 950-0 • Fax: 07323/ 95050
300'060 Rev. B / 11.2006
