RC40R2A474K-TPN: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.47uF, Surface Mount, 1210, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size76KB，2 Pages; ManufacturerMaruwa; Environmental Compliance

Download Datasheet Parametric View All

RC40R2A474K-TPN Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.47uF, Surface Mount, 1210, CHIP, ROHS COMPLIANT

RC40R2A474K-TPN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1063485700
package instruction	, 1210
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.47 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	10%
Rated (DC) voltage (URdc)	100 V
size code	1210
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

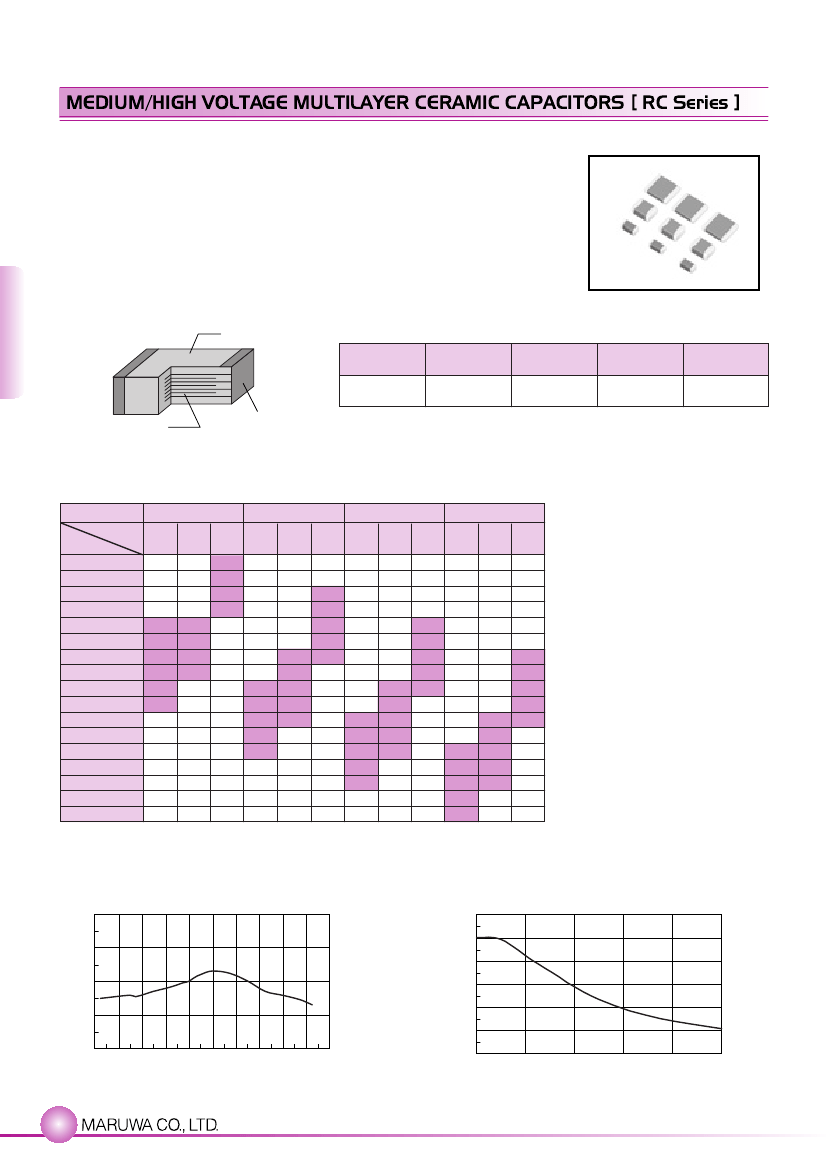

MEDIUM/HIGH VOLTAGE MULTILAYER CERAMIC CAPACITORS [ RC Series ]

a

Features

•

Little migration and high reliability.

•

Large capacitance values in smaller sizes compared to conventional materials.

•

Pb free.

•

RoHS Compliant.

MARUWA

G

ENERAL CATALOG

a

Applications

•

Snubber circuit for switching power supply, digital circuit whole.

CERAMIC CAPACITORS

a

Structure

dielectric

substance

a

Range

of Use

EIA symbol

X7R

Capacitance change Temperature range

15%

-55

~

+125℃

Capacitance tolerance

K ( 10%

)

Temperature

characteristics

R

internal

electrode

terminal electrode Cu/Ni plated

：

Sn plated

a

Capacitance

Type

Map

RC40 (3.2×2.5)

50V

DC

（1H）

100V

DC

（2A）

250V

DC

（2E）

RC30 (3.2×1.6)

100V

DC

（2A）

250V

DC

（2E）

RC70 (4.5×3.2)

50V

DC

（1H）

100V

DC

（2A）

250V

DC

（2E）

RC80 (5.7×5.0)

50V

DC

（1H）

100V

DC

（2A）

250V

DC

（2E）

rated

voltage

50V

DC

（1H）

capacitance

223

333

473

683

104

154

224

334

474

684

105

155

225

335

475

685

106

0.022μF

0.033μF

0.047μF

0.068μF

0.1μF

0.15μF

0.22μF

0.33μF

0.47μF

0.68μF

1μF

1.5μF

2.2μF

3.3μF

4.7μF

6.8μF

10μF

1.00

1.25

1.80

1.00

1.25

1.00

1.25

1.80

1.00

1.25

1.80

1.25

1.70

2.50

1.00

1.25

1.70

2.20

2.50

1.00

1.25

1.70

2.20

2.50

1.25

1.70

2.50

2.80

1.00

1.25

1.70

2.20

2.80

1.25

1.70

2.20

2.80

1.25

1.70

2.20

2.80

1.25

1.70

2.20

2.80

1.25

1.70

2.20

2.80

a

Capacitance-Temperature

characteristics

a

DC

(Reference)

temperature characteristics-RC40R2A474K-TPN

40

bias characteristics

(Reference)

bias characteristics-RC40R2A474K-TPN

20

0

⊿C/C［%½

0

20

40

60

80

100 120 140

20

-20

-40

-60

-80

0

-20

-40

-60 -40 -20

-100

0

20

40

60

80

100

temperature［℃½

applied voltage［V½

18
