Telecom Performance
5x7mm
TCXO / VCTCXO
T / TV Series
Description:
Connor-Winfield's Txxx
and TVxxx series are
TV
50
10 4 14
5x7mm TCXO and
.0
MH 07
Z
VCTCXO products with
exceptional frequency
stability and low phase
noise. Through the use
of analog temperature
compensation, these products are capable
of holding Stratum 3 level temperature
stabilities of ±0.28 ppm over the commercial
and industrial temperature ranges. Available
in 4-pad or 10-pad surface mount footprints.
These products are designed for
such applications as IEEE 1588 PTP and
Synchronous Ethernet.
All models will meet ±4.6 ppm accuracies
for twenty years
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
US Headquarters:
630-851-4722
European Headquarters:
+353-61-472221
Features:
•
Frequency Stabilities Available:
+/-0.28 ppm (6.4 to 50 MHz)
+/-0.50 ppm (6.4 to 50 MHz)
+/-1.00 ppm or +/-2.00 ppm (6.4 to 54 MHz)
•
Temperature Ranges Available:
0 to 85°C, 0 to 70°C, -40 to 85°C or
-20 to 70°C Packages Available:
•
T - Series: 5 x 7mm - 10 Pad
•
TV - Series: 5 x 7mm - 4 Pad
•
3.3 Vdc Operation
•
Output Logic: LVCMOS or Clipped Sinewave
•
Fixed Frequency - TCXO
•
Voltage Controlled - VCTCXO
•
Low Jitter <0.50 ps RMS
•
Low Phase Noise
•
Tri-State Enable/Disable: (T Model Series Only)
•
Tape and Reel Packaging
•
RoHS Compliant / Lead Free
Applications:
•
IEEE 1588 Applications
•
Synchronous Ethernet slave clocks, ITU-T G.8262 EEC options 1 & 2
•
Compliant to Stratum 3, GR-1244-CORE & GR-253-CORE
•
Wireless Communications
•
Small Cells
•
Test and Measurement
•
GPS
Standard Frequencies Available *
* 6.4, 9.72, 10, 10.24, 12.5, 12.8, 13.5, 19.2, 19.44, 20, 20.48, 25, 27, 38.88, 40 MHz
Available frequencies from the factory for small quantity orders or quick delivery.
Additional frequencies are available.
** Not all
Models
available at
Digi-Key
Ordering Information
5
Temperature
Range
3 = 0 to 85 °C
5 = 0 to 70°C
6 = -40 to 85°C
7 = -20 to 70°C
TV
Type / Package
TCXO / VCTCXO
Series
T = 5.0x7.0 mm
10 Pads
TV = 5.0x7.0 mm
4 Pads
0
Frequency
Stability
0 = ±0.28 ppm
1 = ±0.50 ppm
2 = ±1.00 ppm
3 = ±2.00 ppm
4
Features
2 = TCXO, LVCMOS, 3.3 Vdc
3 = TCXO, Clipped Sinewave, 3.3 Vdc
4 = VCTCXO, LVCMOS, 3.3 Vdc
5 = VCTCXO, Clipped Sinewave, 3.3 Vdc
- 010.0M
Output Frequency
Frequency Format
-xxx.xM Min
-xxx.xxxxxxM Max
*Amount of numbers after
the decimal point.
M = MHz
Example: Part Number
Bulletin
Page
Revision
Date
Tx176
1 of 6
21
10 May 2017
TV504-010.0M = 5x7mm 4 pad package,
±0.28
ppm, 0 to 70°C, 3.3 Vdc, LVCMOS Output, VCTCXO
T715-012.8M = 5x7mm 10 pad package,
±0.50
ppm, -20 to 70°C, 3.3 Vdc, Clipped Sinewave Output, VCTCXO
T522-050.0M = 5x7mm 10 pad package,
±1.0
ppm, 0 to 70°C, 3.3 Vdc, LVCMOS Output, TCXO
TV602-010.0M = 5x7mm 4 pad package,
±0.28
ppm, -40 to 85°C, 3.3 Vdc, LVCMOS Output, TCXO
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Absolute Maximum Ratings
Parameter
Storage Temperature
Supply Voltage (Vcc)
Input Voltage
Minimum
-55
-0.5
-0.5
Nominal
-
-
-
Maximum
95
6.0
Vcc + 0.5
Units
°C
Vdc
Vdc
Units
MHz
MHz
MHz
MHz
°C
°C
°C
°C
ppm
ppm
ppm
ppb
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppb
ppm
Vdc
mA
mA
ps RMS
ps RMS
Notes
Operating Specifications
Parameter
Minimum
Nominal
Maximum
Output Frequency (Fo)
Models Tx0x, TVx0x
6.4
-
50
Models Tx1x, TVx1x
6.4
-
50
Models Tx2x, TVx2x
6.4
-
54
Models Tx3x, TVx3x
6.4
-
54
Operating Temperature Range
(See Ordering Information for full part number)
Models T3xx, TV3xx
0
-
85
Models T5xx, TV5xx
0
-
70
Models T6xx, TV6xx
-40
-
85
Models T7xx, TV7xx
-20
-
70
Frequency Calibration @ 25 °C
-1.0
-
1.0
Frequency Stability (See Ordering Information for full part number) Per STRATUM 3 GR-1244-CORE
Frequency Stability ±0.28 ppm is only available in the frequency range of 6.4 to 50 MHz.
Models Tx0x, TVx0x
-0.28
-
0.28
Holdover Stability
-0.32
-
0.32
Constant Temperature Stability
-40
-
40
Frequency Stability
(See Ordering Information for full part number)
Models Tx1x, TVx1x
-0.50
-
0.50
Models Tx2x, TVx2x
-1.00
-
1.00
Models Tx3x, TVx3x
-2.00
-
2.00
Frequency vs. Load Stability
-0.05
-
0.05
Frequency vs. Voltage Stability
-0.05
-
0.05
Static Temperature Hysteresis
-
-
0.40
Freq. shift after reflow soldering
-1.0
-
1.0
Long Term Stability
-1.0
-
1.0
Aging
per Life (20 Years)
-3.0
-
3.0
per Day
-40
-
40
Total Frequency Tolerance
-4.6
-
4.6
Supply Voltage (Vcc)
3.135
3.30
3.465
Supply Current (Icc) LVCMOS
-
2.1
6.0
Clipped Sinewave
-
1.3
2.9
Jitter:
Period Jitter
-
3.0
5.0
Integrated Phase Jitter (12K to Fo/2)
-
0.3
1.0
Allan Deviation (1s)
-
1.0E-10
-
Typical SSB Phase Noise
For Fo
10.0 MHz
25.0 MHz
50.0 MHz
@ 10 Hz offset
-98
-90
-73
@ 100 Hz offset
-125
-120
-103
@ 1 KHz offset
-143
-140
-134
@ 10 KHz offset
-151
-151
-151
@ 100 KHz offset
-152
-152
-152
@ 1 MHz offset
-155
-154
-154
Start-Up Time
-
-
10
Notes
1
2
3
Over 24 Hrs.
2
2
2
±5%
±5%
4
5
6
7
8
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
ms
Bulletin
Page
Revision
Date
Tx176
2 of 6
21
10 May 2017
Specifications subject to change without notification. See Connor-Winfield's website for latest revision.
© Copyright 2017 The Connor-Winfield Corporation
Not intended for life support applications.
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Control Voltage Input Characteristics
Parameter
Control Voltage
Frequency Pullability
Pull Slope (Vc=1.65V)
Control Voltage Slope
Monotonic Linearity
Input Impedance
Modulation Bandwidth (3dB)
Parameter
Enable Input Voltage -(Vih)
Disable Input Voltage - (Vil)
Minimum
0.3
±10
-
-
100K
10
Minimum
70%Vcc
-
Nominal
1.65
±12
8.00
Positive Slope
-
-
-
Nominal
-
-
Maximum
3.0
-
-
5
-
-
Maximum
-
30%Vcc
Units
V
ppm
ppm/V
%
Ohm
Notes
KHz
Notes
9
9
OE Enable /Disable Input Characteristics (Pad 8) T Series only
Units
Vdc
Vdc
Function
Low:
High or Open:
Output
Disabled (High Impedance)
Enabled
Parameter
Load (CL)
Voltage (High) (Voh)
(Low)
(Vol)
Current (High) (Ioh)
(Low)
(Iol)
Duty Cycle at 50% of Vcc
Rise / Fall Time 10% to 90%
LVCMOS Output Characteristics
Minimum
Nominal
-
90%Vcc
-
-4
-
45
-
15
-
-
-
-
50
4
Maximum
-
-
10%Vcc
-
4
55
8
Units
pF
Vdc
Vdc
mA
mA
%
ns
Notes
10
Parameter
Load (RC)
Output Load Resistance
Output Load Capacitance
OutputVoltage (< 40 MHz)
OutputVoltage (=>40 MHz)
Output Impedance
Package
Clipped Sinewave Output Characteristics
Minimum
Nominal
Maximum
-
-
1.0
0.8
-
10K
10
1.2
1.0
200
-
-
-
-
-
Units
Ohm
pF
V
V
Ohms
Notes
11
12
pk-pk
pk-pk
Package Characteristics
Hermetically sealed ceramic package with grounded metal cover
Environmental Characteristics
Vibration:
Vibration per Mil Std 883E Method 2007.3 Test Condition A.
Shock:
Mechanical Shock per Mil Std 883E Method 2002.4 Test Condition B.
Soldering Process: RoHS compliant lead free. See soldering profile on page 6.
Notes:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Initial calibration @ 25°C. ±2°C, for VCTCXO's Vc = 1.65V. Specifications at time of shipment
Frequency stability vs. change in temperature. [±(Fmax-Fmin)/(2*Fo]). For VCTCXO's - Vc -= 1.65V
Inclusive of frequency stability, supply voltage change (±1%), aging, for 24 hours. Per STRATUM 3 GR-1244-CORE.
Frequency change after reciprocal temperature ramped over the operating range. Frequency measured before and after at 25°C
Two consecutive solder reflows after 1 hour recovery @ 25°C.
Frequency drift over 1 year @ 25°C.
Inclusive of calibration @ 25°C, frequency vs. change in temperature, change in supply voltage (±5%), load change (±5%), reflow soldering
process and 20 years aging.
BW = 12 KHz to 20 MHz
Leave Pad 8 on the T Series unconnected if enable / disable function is not required. When tri-stated, the output stage is disabled but the
oscillator and compensation circuit are still active (current consumption < 1 mA).
Attention: To achieve optimal frequency stability, and in some cases to meet the specification stated on this data sheet, it is required that the
circuit connected to this TCXO output must have the equivalent input capacitance that is specified by the nominal load capacitance. Deviations
from the nominal load capacitance will have a graduated effect on the stability of approximately 20 ppb per pF load difference.
Load components are required for proper operation of the device.
Output is AC coupled.
Bulletin
Page
Revision
Date
Tx176
3 of 6
21
10 May 2017
Specifications subject to change without notification. See Connor-Winfield's website for latest revision.
© Copyright 2017 The Connor-Winfield Corporation
Not intended for life support applications.
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com

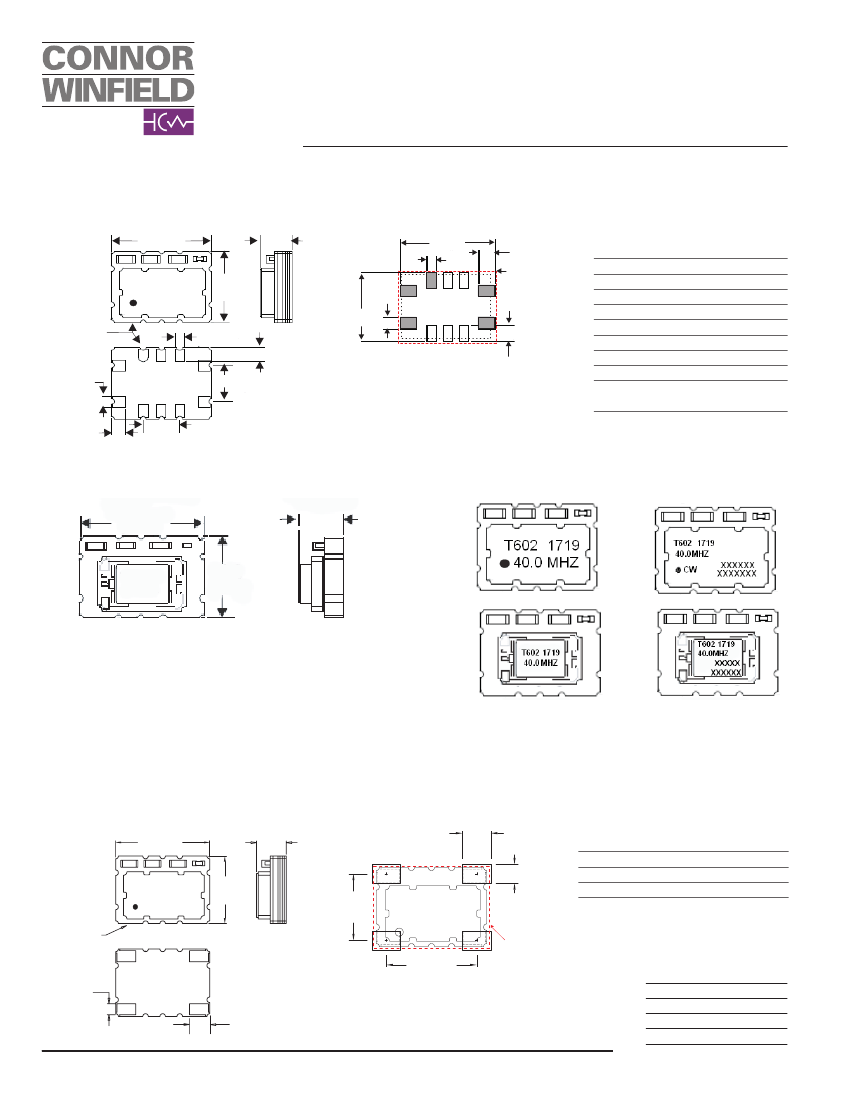

T Series
Package Outline
0.276 ±0.006
(7.0mm)
0.079 Max.
(2.0mm)
T Series
Suggested Pad Layout
0.295
(7.49mm)
0.030
(0.76mm)
T Series
Pad Connections
0.051
(1.28mm)
Keep Out Area
0.197
±0.006
(5.0mm)
8
0.037
(0.94mm)
0.215
(5.46mm)
7
6
5
9
Top View
10
1
2
3
Pin 1
0.025(6 Places)
(0.635mm)
4
0.051
(1.28mm)
0.030
(0.762mm)
(4 Places)
0.038
(0.965mm)
(4 Places)
10
1
2
3
4
0.040
(1.02mm)
(6 Places)
Bottom
View
0.100
(2.54mm)
9
8
7
6
5
0.100
(2.54mm)
Dimensional Tolerance:
±.005 (.127mm)
±.02 (.508mm)
* Do not route any traces in the keep out area. It is
recommended the next layer under the keep out
area is to be ground plane.
1: Do Not Connect
2: Do Not Connect
3: Do Not Connect
4: Ground
5: Output
6: Do Not Connect
7: Do Not Connect
8: Enable / Disable (OE)
9: Supply Voltage (Vcc
10: VCTCXO: Control Voltage (Vc)
TCXO: N/C
T Series
Alternate Package Outline
0.276 ±0.006
(7.0mm)
0.095
(2.4mm)
Marking Information
The following are examples of possible marking configurations
0.197
±0.006
(5.0mm)
Alternate package applies to some frequencies
where a smaller crystal size is used.
The differences are the top view crystal size,
and the overall height.
Bottom view, suggested pad layout, and pad
connections all remain the same as above.
Note: The XXXXX represents crystal lot code information.
TV Series
Package Outline
0.276 ±0.006
(7.0mm)
0.079 Max.
(2.0mm)
TV Series
Suggested Pad Layout
0.071
(1.8mm)
4 Places
TV Series
Pad Connections
1:
2:
3:
4:
VCTCXO: Voltage Control (Vc)
TCXO: N/C
Ground
Output
Supply (Vcc)
4
0.197
±0.006
(5.0mm)
Pad 1
1
0.034
(0.90mm)
(4 Places)
(Bottom View)
4
3
(Top View)
2
Dimensional Tolerance:
±.005 (.127mm)
±.02 (.508mm)
3
0.165
(4.2mm)
(Top View)
0.047
(1.2mm)
4 Places
Keep
Out *
Area
1
0.224
(5.7mm)
2
Bulletin
* Do not route any traces in the keep out area. It is
recommended the next layer under the keep out
area is to be ground plane.
Page
Revision
Date
0.055
(1.40mm)
(4 Places)
Tx176
4 of 6
21
10 May 2017
Specifications subject to change without notification. See Connor-Winfield's website for latest revision.
© Copyright 2017 The Connor-Winfield Corporation
Not intended for life support applications.
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
T Series Design Recommendations
Vcc, should have
a large copper
area for reduced
inductance.
Connect a 0.01uF
bypass capacitor
<0.1”(2.54mm)
from the pad.
TV Series Design Recommendations
Vcc, should have
a large copper
area for reduced
inductance.
Connect a 0.01uF
bypass capacitor
<0.1”(2.54mm)
from the pad.
8
9
6
5
0.010”(0.254mm)
Recommended
clearance
inductance
for internal
copper flood.
Ground,
should have
a large copper
area for reduced
inductance.
Vcc
50 Ohm trace
<1”by design
Buffer
4
3
0.010”(0.254mm)
Recommended
clearance
inductance
for internal
copper flood.
Vcc
50 Ohm trace
<1”by design
Buffer
9
5
10
1
3
4
Ground
Top View
Ground
10
1
4
2
Ground
Ground,
should have
a large copper
area for reduced
inductance.
Top View
Top View
Top View
Ground
OSC
TOP LAYER
GROUND LAYER
50 Ohm Trace
Without Output
Vias
Buffer
OSC
TOP LAYER
GROUND LAYER
50 Ohm Trace
Without Output
Vias
Buffer
.......
.......
BOTTOM LAYER
BOTTOM LAYER
T Series
LVCMOS Test Circuit
Enable/
Disable DNC DNC
TV Series
LVCMOS Test Circuit
Vcc
Supply
Voltage
4
3
Output
LVCMOS Output Waveform
Vcc
Supply
Voltage
8
9
7
6
5
Output
Ground
1
2
15 pF
10
1
4
2
3
Ground
15 pF
0.1 uF
Bypass
10 nF
Bypass
TCXO = N/C
VCTCXO = Vc
DNC
DNC DNC
0.1 uF
Bypass
10 nF
Bypass
TCXO = N/C
VCTCXO = Vc
DNC = Do Not Connect
1V/Div
T Series
Clipped Sinewave Test Circuit
Enable/
Disable DNC DNC
TV Series
Clipped Sinewave Test Circuit
Clipped Sinewave
Output Waveform
Vcc
Supply
Voltage
8
9
7
6
5
Output
Vcc
Supply
Voltage
4
3
Output
10
1
4
2
3
Ground
10K
Ohm
0.1 uF
Bypass
10 nF
Bypass
TCXO = N/C
VCTCXO = Vc
Ground
1
2
10 pF
10K
Ohm
0
10 pF
0.1 uF
Bypass
10 nF
Bypass
TCXO = N/C
VCTCXO = Vc
DNC
DNC DNC
DNC = Do Not Connect
200 mV/Div
Note: The clipped sinewave output is AC coupled
Bulletin
Page
Revision
Date
Specifications subject to change without notification. See Connor-Winfield's website for latest revision.
© Copyright 2017 The Connor-Winfield Corporation
Not intended for life support applications.
Tx176
5 of 6
21
10 May 2017
京公网安备 11010802033920号
EEWORLD
