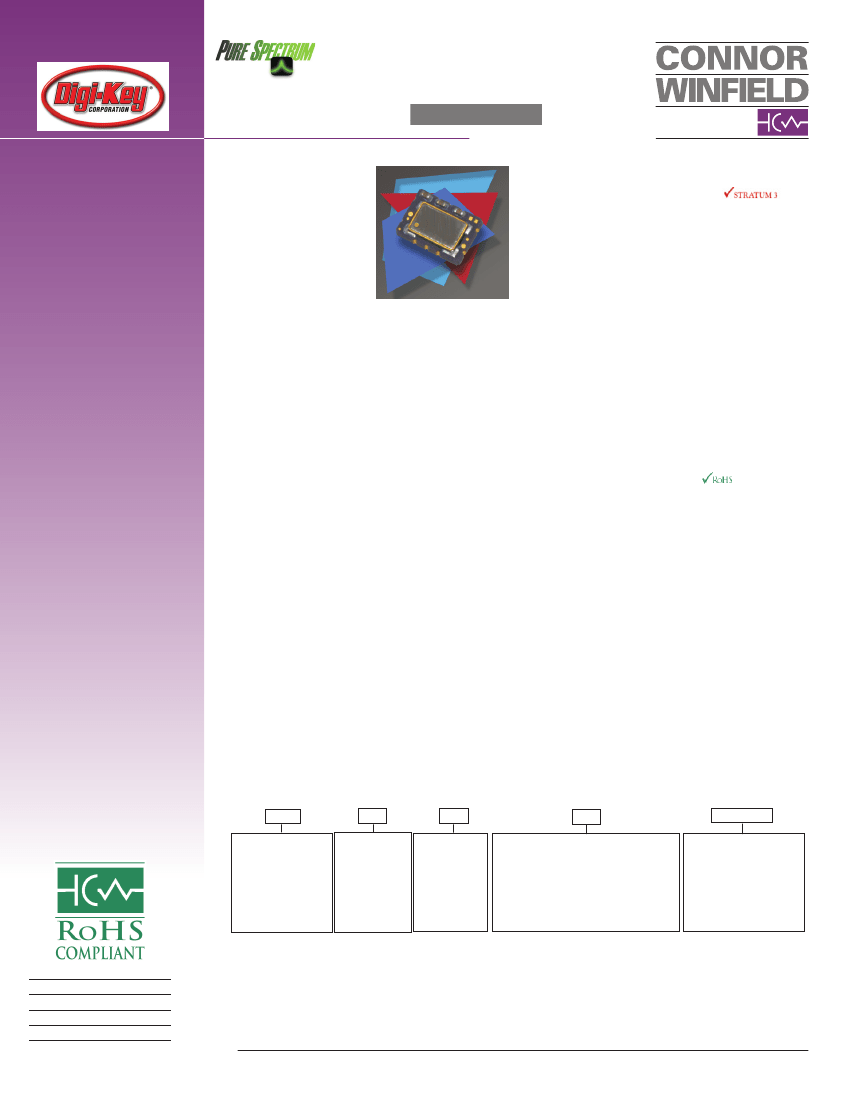

Improved Performance
5x7mm
TB / TVB Model Series
TCXO / VCTCXO
Description:
Connor-Winfield's TBxxx
and TVBxxx series
TV
B5
0
10 4 12
are 5x7mm TCXO and
.0
MH 42
Z
VCTCXO products with
exceptional frequency
stability and low phase
noise.
Similar to our Txxx
/ TVxxx series, these devices are quieter,
smoother over temperature and are available at
higher frequencies.
Using the latest analog TCXO technology,
the TBxxx and TVBxxx series have improved
phase noise and frequency stability
performance and are available in 4-pad or 10-
pad surface mount footprints.
These products are designed for
such applications as IEEE 1588 PTP and
Synchronous Ethernet.
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
US Headquarters:
630-851-4722
European Headquarters:
+353-61-472221
Features:
•
Frequency Stabilities Available:
+/-0.28 ppm (10 to 50 MHz)
+/-0.50 ppm, +/-1.00 ppm or +/-2.00 ppm
(10 to 100 MHz)
•
Temperature Ranges Available:
0 to 85°C, 0 to 70°C, -40 to 85°C or -20 to 70°C
•
Packages Available:
TB - Series: 5 x 7mm - 10 Pad
TVB - Series: 5 x 7mm - 4 Pad
•
3.3 Vdc Operation
•
Output Logic: LVCMOS or Clipped Sinewave
•
Fixed Frequency - TCXO
•
Voltage Controlled - VCTCXO
•
Low Jitter <0.50 ps RMS
•
Low Phase Noise
•
Tri-State Enable/Disable: (TB - Model Series Only)
•
Tape and Reel Packaging
•
RoHS Compliant / Lead Free
Applications:
•
IEEE 1588 Applications
•
Synchronous Ethernet slave clocks, ITU-T G.8262 EEC options 1 & 2
•
Compliant to Stratum 3, GR-1244-CORE & GR-253-CORE
•
Wireless Communications
•
Small Cells
•
Test and Measurement
•
GPS Applications
Standard Frequencies Available *
* 10, 12.8, 19.2, 19.44, 20, 25, 40, 50, 52, 54, 80 and 100 MHz
Available frequencies from the factory for small quantity orders or quick delivery.
Additional frequencies are available.
** Not all options
available at
Digi-Key
Ordering Information
5
Temperature
Range
3 = 0 to 85 °C
5 = 0 to 70°C
6 = -40 to 85°C
7 = -20 to 70°C
TVB
Type / Package
TCXO / VCTCXO
Series
TB = 5.0x7.0 mm
10 Pads
TVB = 5.0x7.0 mm
4 Pads
0
Frequency
Stability
0 = ±0.28 ppm
1 = ±0.50 ppm
2 = ±1.00 ppm
3 = ±2.00 ppm
4
Features
2 = TCXO, LVCMOS, 3.3 Vdc
3 = TCXO, Clipped Sinewave, 3.3 Vdc
4 = VCTCXO, LVCMOS, 3.3 Vdc
5 = VCTCXO, Clipped Sinewave, 3.3 Vdc
9 = VCTCXO, LVCMOS, 3.3V with
reduced pull range
- 010.0M
Output Frequency
Frequency Format
-xxx.xM Min*
-xxx.xxxxxxM Max*
*Minimum of 1 digit after
the decimal point, and
Maximum of 6
Example: Part Number
Bulletin
Page
Revision
Date
Tx380
1 of 6
09
15 Sept 2016
TVB504-010.0M = 5x7mm 4 pad package,
±0.28
ppm, 0 to 70°C, 3.3 Vdc, LVCMOS Output, VCTCXO
TB715-012.8M = 5x7mm 10 pad package,
±0.50
ppm, -20 to 70°C, 3.3 Vdc, Clipped Sinewave Output, VCTCXO
TB522-050.0M = 5x7mm 10 pad package,
±1.0
ppm, 0 to 70°C, 3.3 Vdc, LVCMOS Output, TCXO
TVB602-010.0M = 5x7mm 4 pad package,
±0.28
ppm, -40 to 85°C, 3.3 Vdc, LVCMOS Output, TCXO
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Absolute Maximum Ratings
Parameter
Storage Temperature
Supply Voltage (Vcc)
Input Voltage
Minimum
-55
-0.5
-0.5
Nominal
-
-
-
Maximum
95
6.0
Vcc + 0.5
Units
°C
Vdc
Vdc
Notes
Operating Specifications
Parameter
Output Frequency (Fo)
Models TBx0x, TVBx0x
10
-
50
Models TBx1x, TVBx1x
10
-
100
Models TBx2x, TVBx2x
10
-
100
Models TBx3x, TVBx3x
10
-
100
Operating Temperature Range
(See Ordering Information for full part number)
Models TB3xx, TVB3xx
0
-
85
Models TB5xx, TVB5xx
0
-
70
Models TB6xx, TVB6xx
-40
-
85
Models TB7xx, TVB7xx
-20
-
70
Frequency Calibration @ 25 °C
-1.0
-
1.0
Frequency Stability (See Ordering Information for full part number) Per STRATUM 3 GR-1244-CORE
Frequency Stability ±0.28 ppm is only available in the frequency range of 10 to 50 MHz.
Models TBx0x, TVBx0x
-0.28
-
0.28
Holdover Stability
-0.32
-
0.32
Constant Temperature Stability
-40
-
40
Frequency Stability
(See Ordering Information for full part number)
Models TBx1x, TVBx1x
-0.50
-
0.50
Models TBx2x, TVBx2x
-1.00
-
1.00
Models TBx3x, TVBx3x
-2.00
-
2.00
Frequency vs. Load Stability
-0.05
-
0.05
Frequency vs. Voltage Stability
-0.05
-
0.05
Static Temperature Hysteresis
-
-
0.40
Freq. shift after reflow soldering
-1.0
-
1.0
Long Term Stability
-1.0
-
1.0
Aging
per Life (20 Years)
-3.0
-
3.0
per Day
-40
-
40
Total Frequency Tolerance
-4.6
-
4.6
Supply Voltage (Vcc)
3.135
3.30
3.465
Supply Current (Icc)
LVCMOS (10 to 52 MHz)
-
2.1
6.0
LVCMOS (>52 to 100 MHz)
-
-
12
Clipped Sine (10 to 52 MHz)
-
1.3
2.9
Clipped Sine (>52 to 100 MHz)
-
-
12
Jitter:
Period Jitter
-
3.0
5.0
Integrated Phase Jitter (12K to Fo/2)
-
0.3
1.0
Allan Deviation (1s) Fo=10.0 MHz
-
1.0E-10
-
Typical SSB Phase Noise
For Fo
10.0 MHz
50.0 MHz
100.0 MHz
@ 10 Hz offset
-98
-70
-60
@ 100 Hz offset
-125
-100
-91
@ 1 KHz offset
-143
-122
-119
@ 10 KHz offset
-151
-145
-142
@ 100 KHz offset
-152
-150
-153
@ 1 MHz offset
-155
-152
-153
Start-Up Time
-
-
10
Minimum
Nominal
Maximum
Units
MHz
MHz
MHz
MHz
°C
°C
°C
°C
ppm
ppm
ppm
ppb
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppb
ppm
Vdc
mA
mA
mA
mA
ps RMS
ps RMS
Notes
1
2
3
Over 24 Hrs.
2
2
2
±5%
±5%
4
5
6
7
8
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
ms
Bulletin
Page
Revision
Date
Tx380
2 of 6
09
15 Sept 2016
Specifications subject to change without notification. See Connor-Winfield's website for latest revision. All dimensions in inches.
© Copyright 2016 The Connor-Winfield Corporation
Not intended for life support applications.
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Control Voltage Input Characteristics
ParameterMinimum
Control Voltage
Frequency Pullability
Pull Range Options 4 and 5:
Pull Range Option 9:
Pull Slope (Vc=1.65V)
Pull Range Options 4 and 5:
Pull Range Option 9:
Control Voltage Slope
Monotonic Linearity
Input Impedance
Modulation Bandwidth (3dB)
Parameter
Enable Voltage (High)
Disable Voltage (Low)
Minimum
0.3
±10
±5
-
-
-
100K
10
Minimum
70%Vcc
-
Nominal
1.65
±12
±6
8.00
4.50
Positive Slope
-
-
-
Nominal
-
-
Maximum
3.0
-
±8
-
-
5
-
-
Maximum
-
30%Vcc
Units
V
ppm
ppm
ppm/V
ppm/V
%
Ohm
KHz
Units
Vdc
Vdc
Notes
9
9
Notes
OE Enable /Disable Input Characteristics (Pad 8) TB Series only
Function
Low:
High or Open:
Disabled (High Impedance)
Enabled
Output
LVCMOS Output Characteristics
Parameter
Load (CL)
Voltage (High) (Voh)
(Low)
(Vol)
Current (High) (Ioh)
(Low)
(Iol)
Duty Cycle at 50% of Vcc
Rise / Fall Time 10% to 90%
Minimum
-
90%Vcc
-
-4
-
45
-
Nominal
15
-
-
-
-
50
4
Maximum
-
-
10%Vcc
-
4
55
8
Units
pF
Vdc
Vdc
mA
mA
%
ns
Notes
10
Clipped Sinewave Output Characteristics
Parameter
Load (RC)
Output Load Resistance
Output Load Capacitance
OutputVoltage(< 40 MHz)
OutputVoltage(=>40 MHz)
Output Impedance
Package
Vibration:
Shock:
Soldering Process:
Notes:
1.
2.
3.
4.
5.
6.
7.
Minimum
-
-
1.0
0.8
-
Nominal
10K
10
1.2
1.0
200
Maximum
-
-
-
-
-
Units
Ohm
pF
V
V
Ohms
Notes
11
12
pk-pk
pk-pk
Package Characteristics
Hermetically sealed ceramic package with grounded metal cover
Environmental Characteristics
Vibration per Mil Std 883E Method 2007.3 Test Condition A.
Mechanical Shock per Mil Std 883E Method 2002.4 Test Condition B.
RoHS compliant lead free. See soldering profile on page 6.
Initial calibration @ 25°C. ±2°C, for VCTCXO's Vc = 1.65V. Specifications at time of shipment
Frequency stability vs. change in temperature. [±(Fmax-Fmin)/(2*Fo]). For VCTCXO, Vc = 1.65Vdc
Inclusive of frequency stability, supply voltage change (±1%), aging, for 24 hours. Per STRATUM 3 GR-1244-CORE.
Frequency change after reciprocal temperature ramped over the operating range. Frequency measured before and after at 25°C
Two consecutive solder reflows after 1 hour recovery @ 25°C.
Frequency drift over 1 year @ 25°C.
Inclusive of calibration @ 25°C, frequency vs. change in temperature, change in supply voltage (±5%), load change (±5%), reflow
soldering process and 20 years aging.
8. For Fo<40MHz, BW=12kHz to Fo/2, for Fo>40MHz, BW=12kHz to 20MHz
9. Ouput is active with Pad 8 not connected. Leave Pad 8 open if disable function is not required. When disabled, output stage is off
but oscillator and compensation circuits are still powered (current consumption <2 mA)
10. Attention: To achieve optimal frequency stability, and in some cases to meet the specification stated on this data sheet, it is
required that the circuit connected to this TCXO output must have the equivalent input capacitance that is specified by the
nominal load capacitance. Deviations from the nominal load capacitance will have a graduated effect on the stability of
approximately 20 ppb per pF load difference.
11. Load components are required for proper operation of the device.
12. Output is AC coupled.
Specifications subject to change without notification. See Connor-Winfield's website for latest revision. All dimensions in inches.
© Copyright 2016 The Connor-Winfield Corporation
Not intended for life support applications.
Bulletin
Page
Revision
Date
Tx380
3 of 6
09
15 Sept 2016
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com

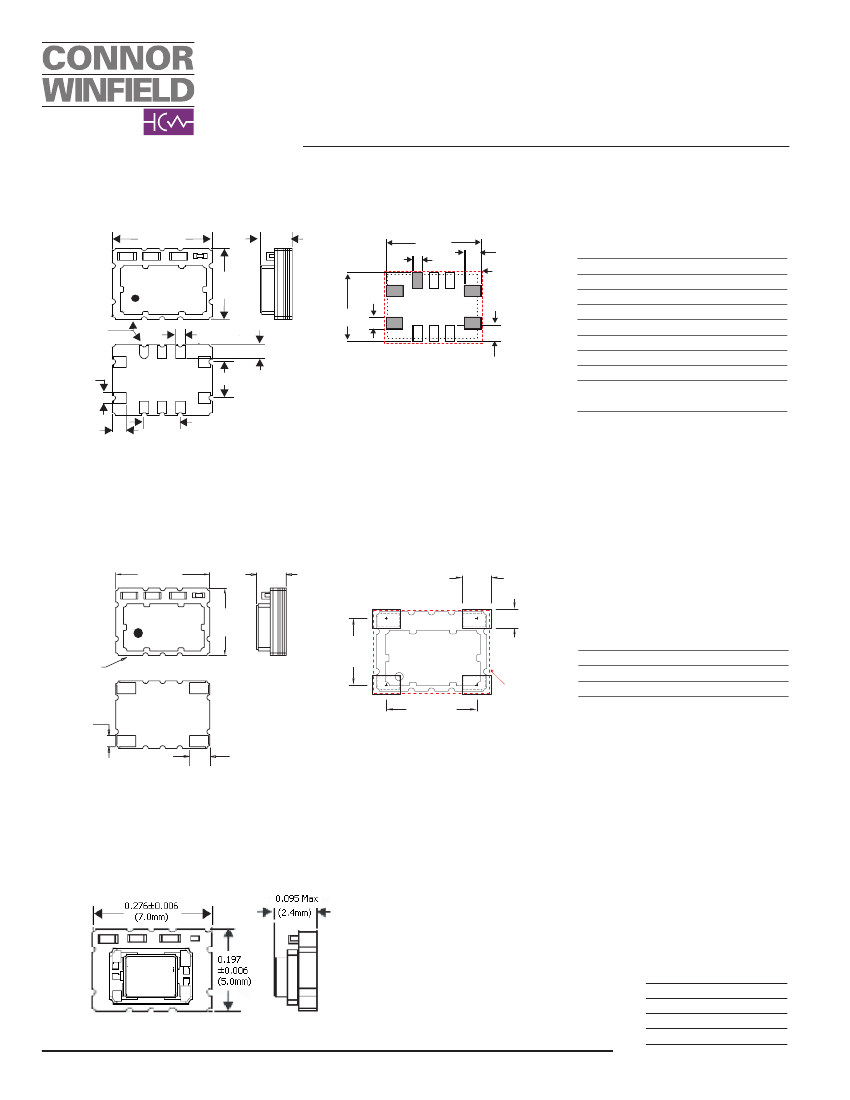

TB Series
Package Outline
0.276 ±0.006
(7.0mm)
0.079 Max.
(2.0mm)
TB Series
Suggested Pad Layout
0.295
(7.49mm)
0.030
(0.76mm)
TB Series
Pad Connections
0.051
(1.28mm)
Keep Out Area
TB715 1242
12.8 MHZ
Pin 1
0.197
±0.006
(5.0mm)
8
0.037
(0.94mm)
0.215
(5.46mm)
7
6
5
9
Top View
10
1
2
3
0.025(6 Places)
(0.635mm)
4
0.051
(1.28mm)
1
0.030
(0.762mm)
(4 Places)
2
3
4
10
Bottom
View
0.040
(1.02mm)
(6 Places)
0.100
(2.54mm)
9
8
0.038
(0.965mm)
(4 Places)
5
7
6
0.100
(2.54mm)
1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
Dimensional Tolerance:
±.005 (.127mm)
±.02 (.508mm)
* Do not route any traces in the keep out area. It is
recommended the next layer under the keep out
area is to be ground plane.
Do Not Connect
Do Not Connect
Do Not Connect
Ground
Output
Do Not Connect
Do Not Connect
Enable / Disable (OE)
Supply Voltage (Vcc
VCTCXO: Control Voltage (Vc)
TCXO: N/C
TVB Series
Package Outline
0.276 ±0.006
(7.0mm)
0.079 Max.
(2.0mm)
TVB Series
Suggested Pad Layout
0.071
(1.8mm)
4 Places
TVB Series
Pad Connections
4
TVB504 1242
10.0 MHZ
Pad 1
1
0.034
(0.90mm)
(4 Places)
(Bottom View)
4
3
(Top View)
2
0.197
±0.006
(5.0mm)
0.165
(4.2mm)
3
1:
(Top View)
0.047
(1.2mm)
4 Places
Keep
Out *
Area
Dimensional Tolerance:
±.005 (.127mm)
±.02 (.508mm)
2:
3:
4:
VCTCXO: Voltage Control (Vc)
TCXO: N/C
Ground
Output
Supply (Vcc)
1
0.224
(5.7mm)
2
0.055
(1.40mm)
(4 Places)
* Do not route any traces in the keep out area. It is
recommended the next layer under the keep out
area is to be ground plane.
Alternate TB/TVB Package Height
for select frequencies in the
38 to 52MHz frequency range
TB512 1518
50.0 MHZ
Bulletin
Page
Revision
Date
Specifications subject to change without notification. See Connor-Winfield's website for latest revision. All dimensions in inches.
© Copyright 2016 The Connor-Winfield Corporation
Not intended for life support applications.
Tx380
4 of 6
09
15 Sept 2016
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
TB Series Design Recommendations
Vcc, should have
a large copper
area for reduced
inductance.
Connect a 0.01uF
bypass capacitor
<0.1”(2.54mm)
from the pad.
TVB Series Design Recommendations
Vcc, should have
a large copper
area for reduced
inductance.
Connect a 0.01uF
bypass capacitor
<0.1”(2.54mm)
from the pad.
8
9
6
5
0.010”(0.254mm)
Recommended
clearance
inductance
for internal
copper flood.
Ground,
should have
a large copper
area for reduced
inductance.
Vcc
50 Ohm trace
<1”by design
Buffer
4
3
0.010”(0.254mm)
Recommended
clearance
inductance
for internal
copper flood.
Vcc
50 Ohm trace
<1”by design
Buffer
9
5
10
1
3
4
Ground
Top View
Ground
10
1
4
2
Ground
Ground,
should have
a large copper
area for reduced
inductance.
Top View
Top View
Top View
Ground
OSC
TOP LAYER
GROUND LAYER
50 Ohm Trace
Without Output
Vias
Buffer
OSC
TOP LAYER
GROUND LAYER
50 Ohm Trace
Without Output
Vias
Buffer
.......
.......
BOTTOM LAYER
BOTTOM LAYER
TB Series

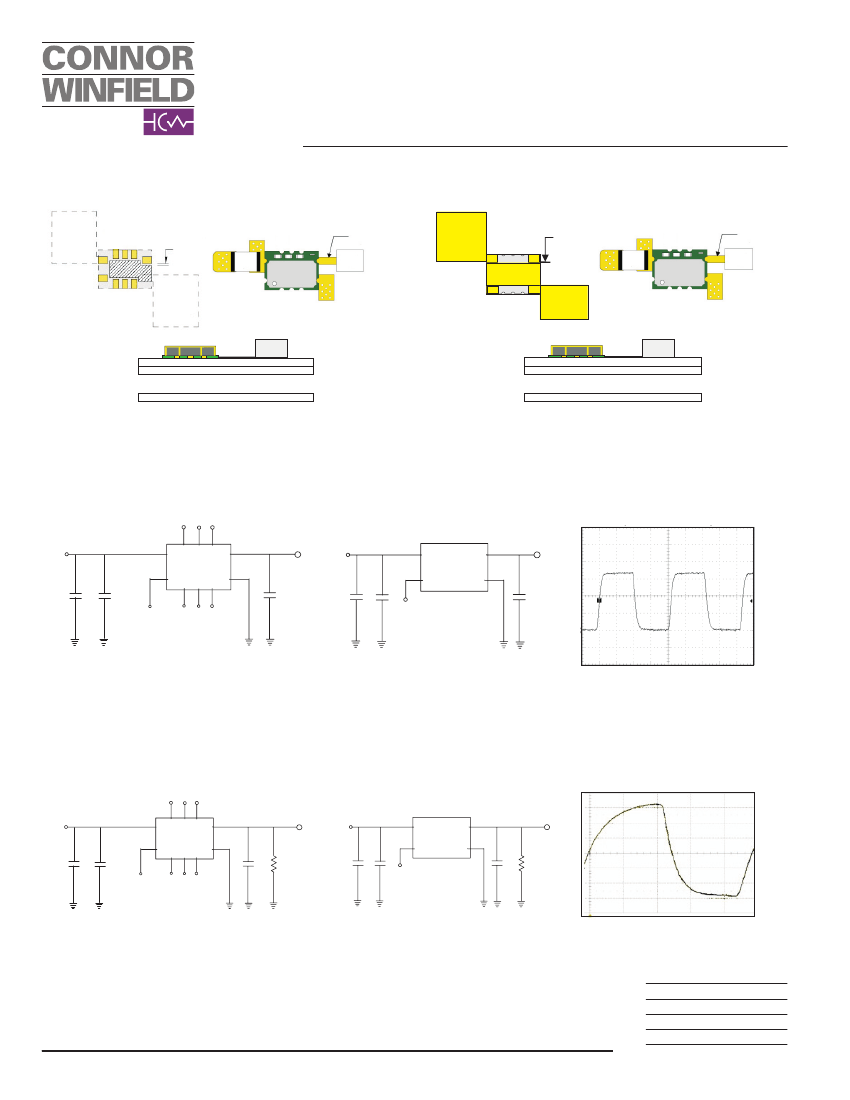

LVCMOS Test Circuit
Enable/
Disable DNC DNC
TVB Series
LVCMOS Test Circuit
LVCMOS Output Waveform
Vcc
Supply
Voltage
8
9
7
6
5
Output
Vcc
Supply
Voltage
4
3
Output
10
1
4
2
3
Ground
Ground
1
15 pF
2
15 pF
0.1 uF
Bypass
10 nF
Bypass
TCXO = N/C
VCTCXO = Vc
DNC
DNC DNC
0.1 uF
Bypass
10 nF
Bypass
TCXO = N/C
VCTCXO = Vc
DNC = Do Not Connect
1V/Div
TB Series
Clipped Sinewave
Test Circuit
Enable/
Disable DNC DNC
TVB Series
Clipped Sinewave
Test Circuit
Clipped Sinewave
Output Waveform
Vcc
Supply
Voltage
8
9
7
6
5
Output
Vcc
Supply
Voltage
4
3
Output
10
1
4
2
3
Ground
10K
Ohm
0.1 uF
Bypass
10 nF
Bypass
TCXO = N/C
VCTCXO = Vc
Ground
1
2
10 pF
10K
Ohm
0
10 pF
0.1 uF
Bypass
10 nF
Bypass
TCXO = N/C
VCTCXO = Vc
DNC
DNC DNC
DNC = Do Not Connect
200 mV/Div
Note: The clipped sinewave output is AC coupled
Bulletin
Page
Revision
Date
Specifications subject to change without notification. See Connor-Winfield's website for latest revision. All dimensions in inches.
© Copyright 2016 The Connor-Winfield Corporation
Not intended for life support applications.
Tx380
5 of 6
09
15 Sept 2016
京公网安备 11010802033920号
EEWORLD
