P/N: T-11-2500-X3-XXX/XXX-XX
2.5Gbps PIN-TIA Receiver Modules (3.3V
)
Features
InGaAs/InP
PIN Photodiode with transimpedance amplifer
High Sensitivity with AGC*
Differential ended output
Single Supply Voltage 3.3V
-40~85°C operating temperature
Packaging
FC/ST/SC receptacle package
SM/MM fiber pigtailed with optional FC/ST/SC connector
Application
2.5Gbps SDH/SONET/ATM receivers
RoHS Compliant available
Absolute Maximum Ratings
Parameter
Supply Voltage
Operating Temperature
Storage Temperature
(Tc=25
℃
)
Symbol
V
cc
T
opr
T
stg
Rating
3.8
-40 ~ 85
-40 ~ 85
Unit
V
°C
°C
DC Electrical Characteristics
Parameter
Power Supply
Differential Output Voltage
Supply Current (no load)
(Tc=25
℃
)
Symbol
V
cc
V
d
I
cc
Min.
3
-
16
Typ.
3.3
0.6
25
Max.
3.6
-
35
Unit
V
V
mA
(Operating at Vcc=3.3V , Tc=25°
C
,
λ=1310nm,
9/125μm SM & 50/125μm MM fiber)
Parameter
Detection Range
Gain@10Mbps differential
Bandwidth
Saturation Power
Sensitivity
Output Resistance
G
BW
P
sat
Sens
R
out
Symbol
Min.
1100
4
1.7
-3
-
-
Typ.
1310
6
2
0
-21
50
Max.
1650
9
-
-
-18
-
Unit
nm
V/mW
GHz
dBm
dBm
Ω
Notes
-
Measure differentially
AC coupled, RL=50Ω
-
BER<10
-10
@2.5Gbps,
PRBS 2
23
-1, E
r
=10dB
BER<10
-10
@2.5Gbps,
PRBS 2
23
-1, E
r
=10dB
-

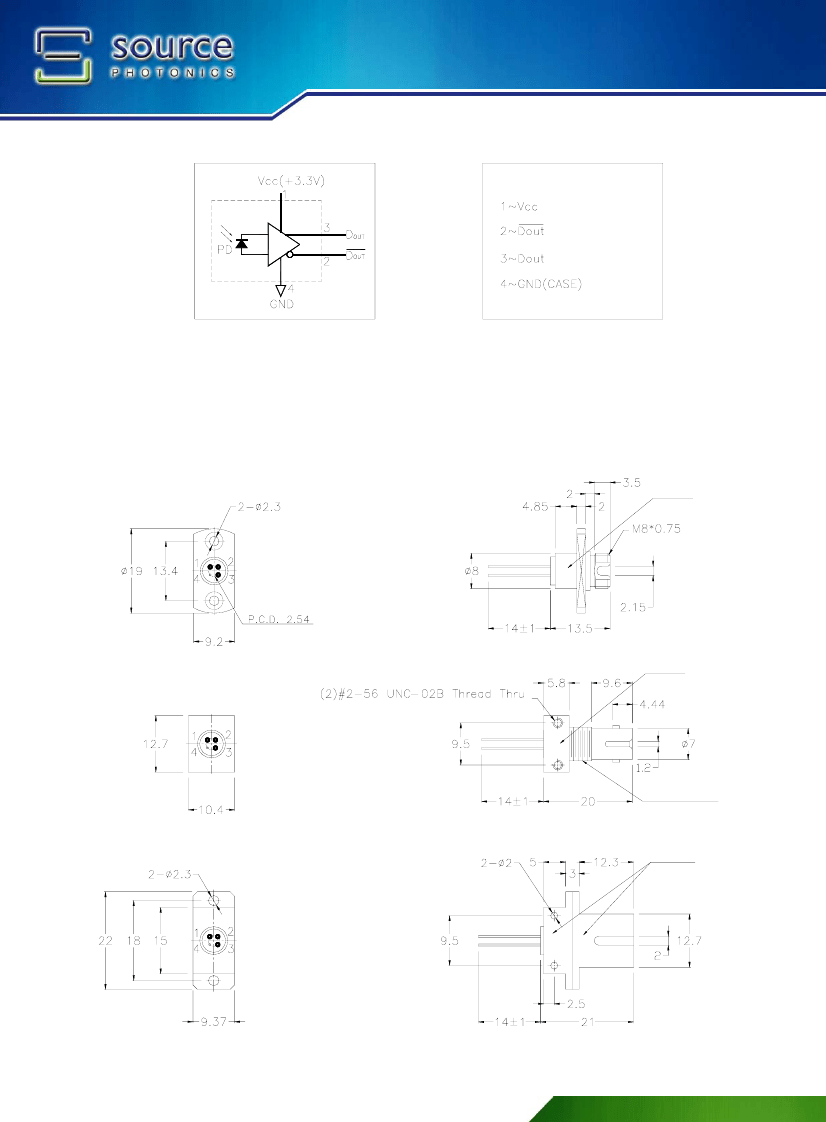

Note: 1. Pin assignment can be customized.
2. Specifications subject to change without notice.
1
DS-5765 Rev 0.0 2009-09-14
P/N: T-11-2500-X3-XXX/XXX-XX
2.5Gbps PIN-TIA Receiver Modules (3.3V
)
Warnings
Handling Precautions:
This device is susceptible to damage as a result of electrostatic discharge (ESD). A static
free environment is highly recommended. Follow guidelines according to proper ESD procedures.
Laser Safety:
Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or
indirect radiation.
Legal Notice
IMPORTANT NOTICE!
All information contained in this document is subject to change without notice, at Source Photonics’s sole and
absolute discretion. Source Photonics warrants performance of its products to current specifications only in
accordance with the company’s standard one-year warranty; however, specifications designated as
“preliminary”
are given to describe components only, and Source Photonics expressly disclaims any and all warranties for said
products, including express, implied, and statutory warranties, warranties of merchantability, fi tness for a particular
purpose, and non-infringement of proprietary rights. Please refer to the company’s Terms and Conditions of Sale for
further warranty information.
Source Photonics assumes no liability for applications assistance, customer product design, software performance,
or infringement of patents, services, or intellectual property described herein. No license, either express or implied,
is granted under any patent right, copyright, or intellectual property right, and Source Photonics makes no
representations or warranties that the product(s) described herein are free from patent, copyright, or intellectual
property rights. Products described in this document are NOT intended for use in implantation or other life support
applications where malfunction may result in injury or death to persons. Source Photonics customers using or
selling products for use in such applications do so at their own risk and agree to fully defend and indemnify Source
Photonics for any damages resulting from such use or sale.
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN
“AS
IS” BASIS. Customer agrees
that Source Photonics is not liable for any actual, consequential, exemplary, or other damages arising directly or
indirectly from any use of the information contained in this document. Customer must contact Source Photonics to
obtain the latest version of this publication to verify, before placing any order, that the information contained herein is
current.
©
Copyright Source Photonics, Inc. 2009
All rights reserved
5
DS-5765 Rev 0.0 2009-09-14
