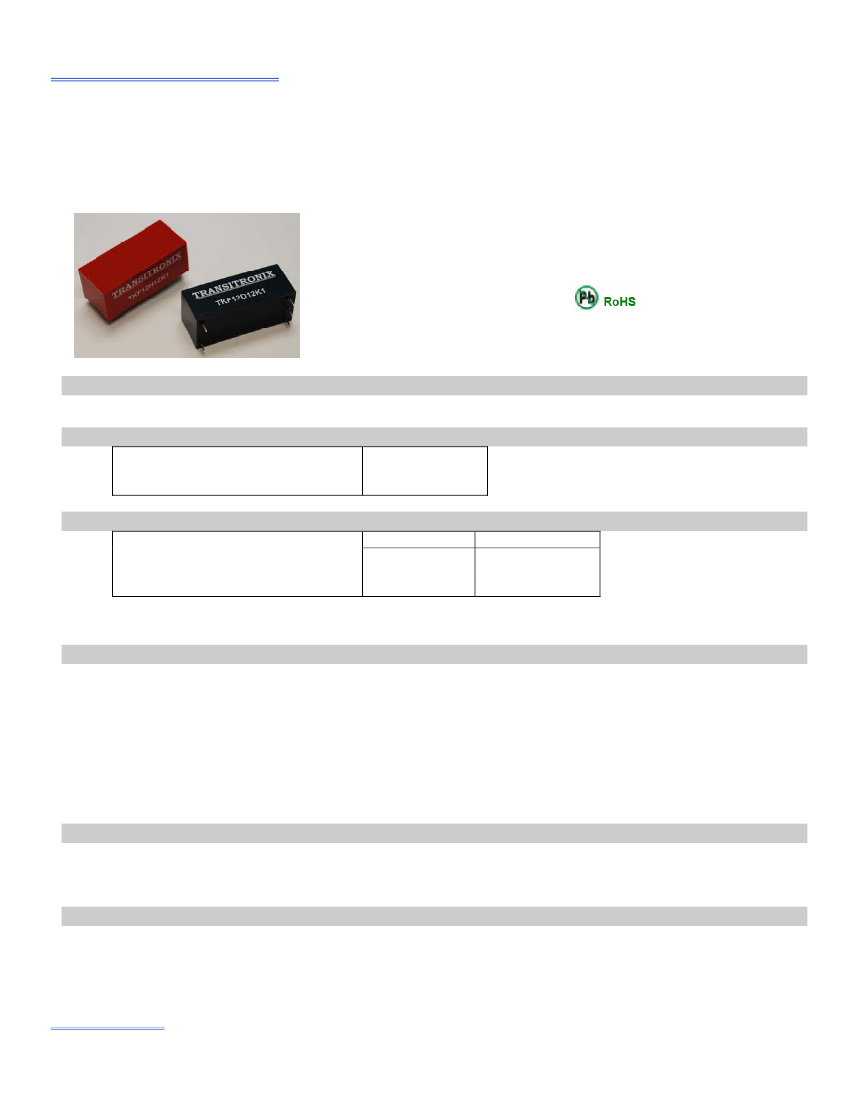

TRANSITRONIX
DC/DC Converter Series Datasheet
Datasheet # F0010K0
TKF-series
Single and Dual Output DC/DC Converter – Regulated
>
1-Watt
>
DIP Package
>
Fixed Input Range
>
>
15,000 VDC Isolation
ELECTRICAL SPECIFICATIONS
All specifications are typical at nominal input, full load, and 25°C unless otherwise noted.
INPUT SPECIFICATIONS
Input Voltage Range (DC)
OUTPUT SPECIFICATIONS
Output Voltage Range (DC)
Output Voltage Accuracy
Ripple & Noise
Single Output
+5V at 200mA
+12V at 83mA
+15V at 66mA
±3.0%
20mV rms Typ
Dual Output
±5V at ±100mA
±12V at ±42mA
±15V at ±33mA
12V ±10%
15V ±10%
24V ±10%
GENERAL SPECIFICATIONS
Switching Frequency
Short Circuit Protection
RoHS
MTBF
Line Regulation
Load Regulation
Isolation Voltage (Continuous)
Isolation Voltage (Momentary for 60 sec)
Isolation Voltage (Momentary for 1 sec)
40KHZ
Momentary
Compliant
60,000 Hours Min
1.0%
1.0%
15,000VDC; 10,000VAC
20,000VDC; 14,140VAC
25,000VDC
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature Range
Storage Temperature Range
Cooling
0 ~ 50ºC (De-rating linearly to 0% power at 100ºC)
-25ºC ~ +125ºC
Free-air Convection
PHYSICAL SPECIFICATIONS
Dimensions (length x width x height) (inches)
DIP: 2.05 x 0.87 x 0.83
TRANSITRONIX
Ronkonkoma, New York
http://www.transitronix.com
TRANSITRONIX
PART NUMBERS
Vin
12VDC
Single Output
+5V at 200mA
TKF12H05K1
+12V at 83mA
TKF12H12K1
+15V at 66mA
TKF12H15K1
+5V at 200mA
TKF15H05K1
+12V at 83mA
TKF15H12K1
+15V at 66mA
TKF15H15K1
+5V at 200mA
TKF24H05K1
+12V at 83mA
TKF24H12K1
+15V at 66mA
TKF24H15K1
DC/DC Converter Series Datasheet
15VDC
24VDC
Dual Output
±5V at ±100mA
TKF12D05K1
±12V at ±42mA
TKF12D12K1
±15V at ±33mA
TKF12D15K1
±5V at ±100mA
TKF15D05K1
±12V at ±42mA
TKF15D12K1
±15V at ±33mA
TKF15D15K1
±5V at ±100mA
TKF24D05K1
±12V at ±42mA
TKF24D12K1
±15V at ±33mA
TKF24D15K1

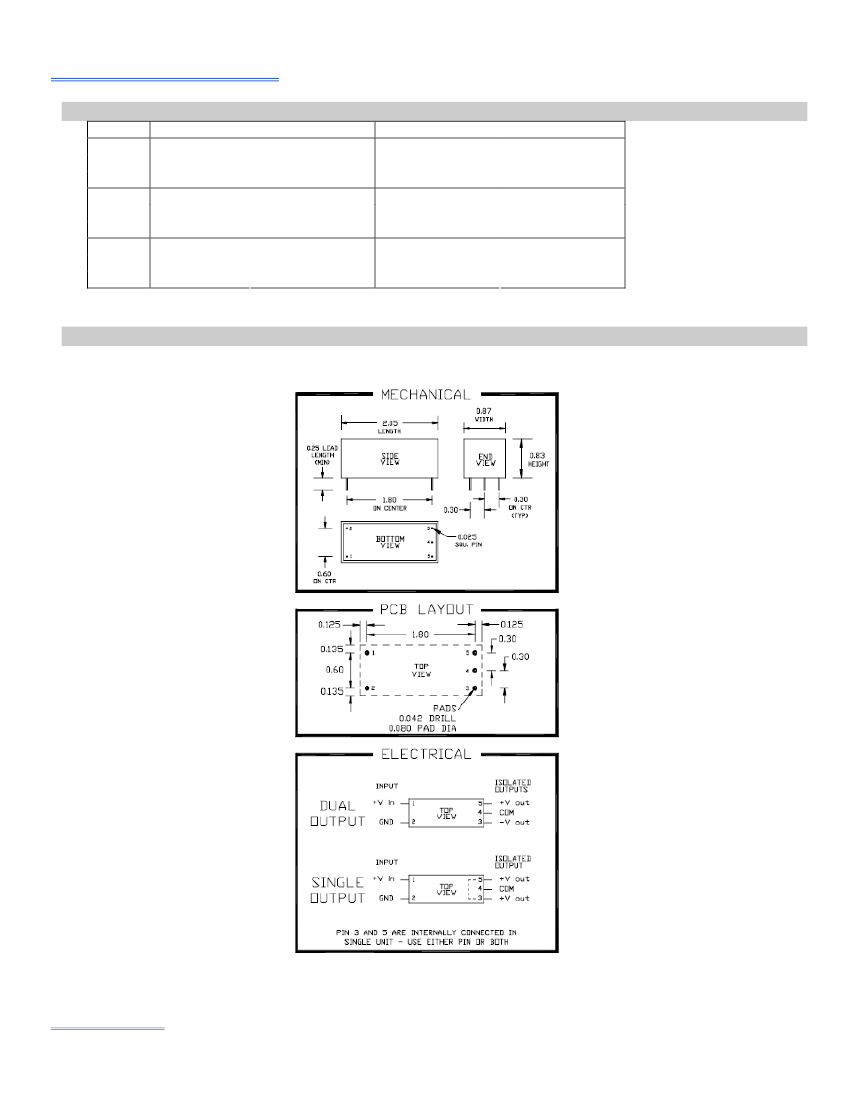

PACKAGE DRAWING and PIN CONNECTIONS
All dimensions in inches
TRANSITRONIX
Ronkonkoma, New York
http://www.transitronix.com
