88391-1000: DescriptionBoard Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug; CategoryThe connector The connector; File Size125KB，1 Pages; ManufacturerAces Electronics Co., Ltd.

Download Datasheet Parametric View All

88391-1000 Overview

Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug

88391-1000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	305591283
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.149 inch
subject depth	0.145 inch
body length	1.122 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Insulator color	NATURAL
insulator material	THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	88391
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	100

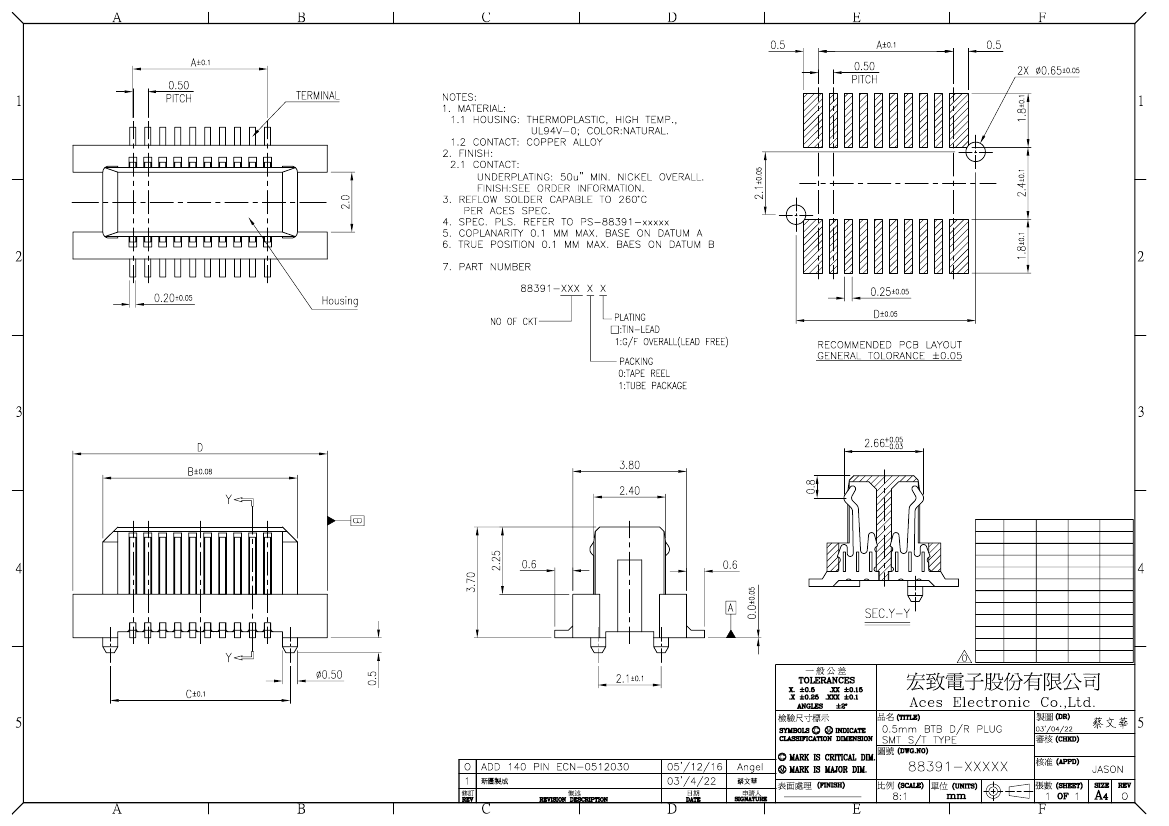

Preview

Download Datasheet

View All

CKT

16

20

30

40

50

60

70

80

100

120

140

Dim A

3.5

4.5

7.0

9.5

12.0

14.5

17.0

19.5

24.5

29.5

34.5

Dim B

5.5

6.5

9.0

11.5

14.0

16.5

19.0

21.5

26.5

31.5

36.5

Dim C

5.0

6.0

8.5

11.0

13.5

16.0

18.5

21.0

26.0

31.0

36.0

Dim D

7.5

8.5

11.0

13.5

16.0

18.5

21.0

23.5

28.5

33.5

38.5
