88511-265B-002

Description
Card Edge Connector, 26 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator
CategoryThe connector    The connector
File Size369KB，1 Pages
ManufacturerAces Electronics Co., Ltd.
Download Datasheet Parametric View All

88511-265B-002 Overview

Card Edge Connector, 26 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator

88511-265B-002 Parametric

Parameter NameAttribute value
Objectid305604434
Reach Compliance Codeunknown
ECCN codeEAR99
Board mount optionsFITTING NAIL
body width0.079 inch
subject depth0.205 inch
body length0.677 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationAU ON NI
contact modeRECTANGULAR
Contact resistance55 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage250VAC V
Durability30 Cycles
Insulation resistance500000000 Ω
Insulator colorNATURAL
insulator materialNYLON
Plug contact pitch0.02 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Plating thickness5u inch
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.508 mm
Termination typeSURFACE MOUNT
Total number of contacts26

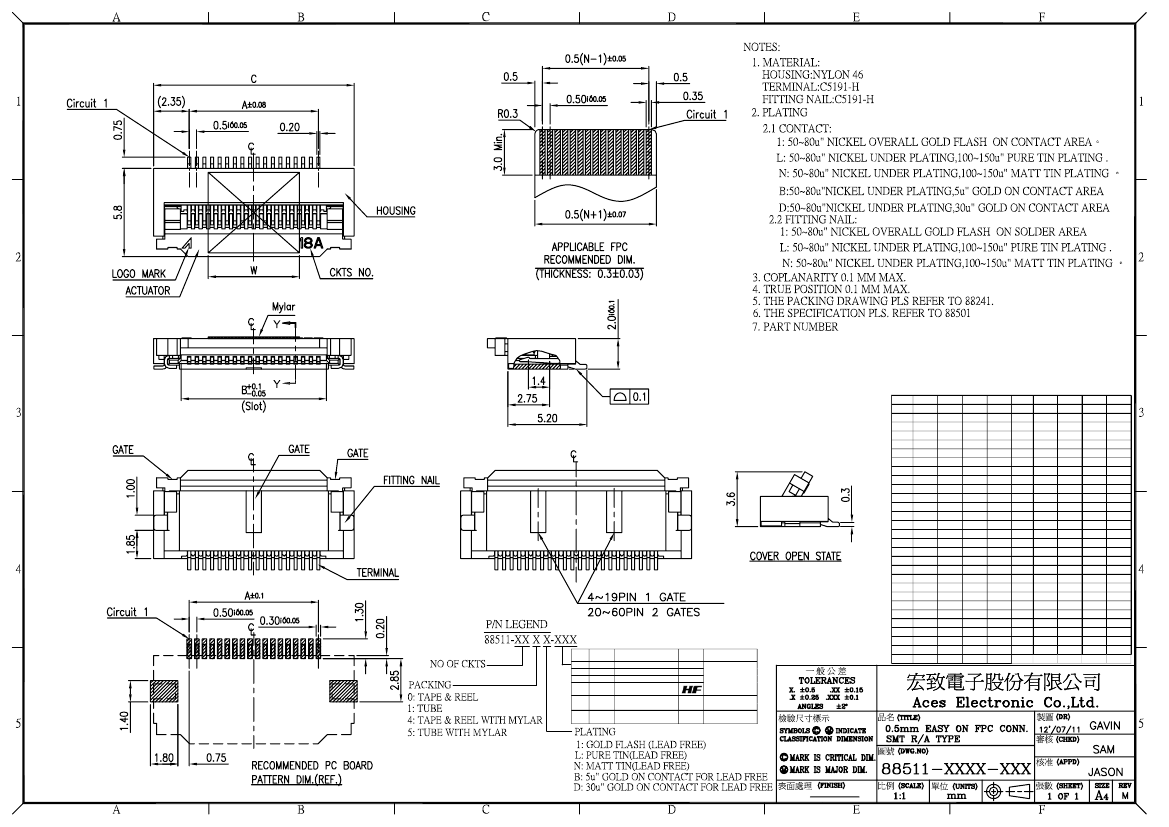

Preview
